1075 D-Minus Fall Indicator Roof Anchor, 10 Pack
The Super Anchor 1075 D-Minus is a low profile roof anchor with a patented built-in fall indicator: the 7/8 inch connector hole is bent at a 45 degree angle and visibly deforms if the anchor is ever loaded by a fall or other force. Stamped from 11 gauge powder coated steel with a 5,000 lb minimum breaking strength, the 9 inch leg installs temporarily with duplex nails or permanently with stainless spiral shank nails or bugle head screws.
What is included: 10 D-Minus anchors in a retail box with factory fasteners and butyl flashing strips. Fall arrest and fall restraint for one worker at 310 lb including tools, with a 6 ft maximum free fall on slopes to 12/12. Compliant with OSHA 1926.502 and ANSI Z359.18-17 Type D.
Who Needs This Product
D-Minus anchors are for roofers, builders, and safety managers who want an anchor that shows its history: one glance at the 45 degree connector hole tells a competent person whether the anchor has ever been loaded. Crews install them temporarily with the supplied duplex nails, or permanently under the overlapping course with spiral shank nails or bugle head screws and the included butyl strips. Each worker ties off with a full body harness and a personal energy absorber rated 1,800 lb maximum arrest force, or an SRL-LE. D-Minus anchors are not for window washing, horizontal lifeline systems, work positioning, scaffolding, hoisting, or lifting.
Features
Patented fall indicator
The connector hole leg is bent at 45 degrees and deforms when subjected to a free fall, giving inspectors a visual pass or fail under US Pat. 8746402.
Temporary or permanent
16d duplex nails install and pull for temporary work; spiral shank nails or bugle head screws with butyl strips stay for the life of the roof.
Low profile 9 inch leg
2 inch wide leg tucks under the overlapping shingle course with only the connector hole exposed.
Butyl flashing strips included

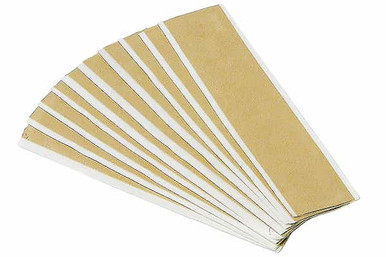

7 inch butyl strips seal permanent installations without extra mastic.
Blow-out inspection design
Defective installations show from the underside of the framing; blow-outs or fasteners through sheathing only fail the anchor before anyone ties off.
3,600 lb fastener strength
The 6 factory supplied fasteners hold a minimum 3,600 lb pull out strength in the service load direction.
Technical Specifications
| Model | 1075 D-Minus, US Pat. 8746402 |
|---|---|
| Package | 10 anchors with factory fasteners and butyl flashing strips |
| Material | 11 gauge powder coated steel; No. 1075-S available in 11 gauge 430 stainless steel |
| Dimensions | 9 inch leg length, 2 inch width |
| Connector Hole | 7/8 inch diameter, bent at 45 degrees as the fall indicator |
| Minimum Breaking Strength | 5,000 lb (22 kN) |
| Fasteners | 6 per anchor: No. 2012-A 16d duplex nails (temporary); No. 2013 spiral shank nails or No. 2045-3.5 bugle head screws (permanent) |
| Fastener Pull Out Strength | 3,600 lb minimum with the service load applied in the arrest zone |
| User Capacity | 1 person at 310 lb maximum including tools and equipment |
| Maximum Free Fall | 6 ft with a personal energy absorber; 1,800 lb maximum arrest force |
| Maximum Slope | 12/12 |
| Anchor Spacing | Maximum 8 ft on center or as engineered in a job specific plan |
| Framing Requirement | Minimum 2x4 top chord with 7/16 inch OSB sheathing; structure supports 5,000 lb or 2 times the intended load |
| Compliance | OSHA 1926.502; ANSI Z359.18-17 Type D |
| UPC | 786158107500 |
A deformed fall indicator retires the anchor. If the connector hole leg reads less than 45 degrees, remove the anchor from service and dispose of it in a way that prevents further use; never re-bend a deformed anchor. Do not reverse load anchors exposed to a free fall, and do not use 16d sinkers or duplex nails for permanent installations. Sheathing must be installed before the anchor is used for fall protection.
Compliance Standards
ANSI Z359.18-17 Type D
The D-Minus complies with ANSI Z359.18-17 Type D per the 2025 instruction manual.
OSHA 1926.502
Meets anchorage criteria with framing that sustains 2 times the intended load or 5,000 lb.
US Patent 8746402
The 45 degree fall indicator geometry is patented Super Anchor Safety engineering.
Date of Manufacture Stamp
Every anchor carries a stamped date of manufacture and an English and Spanish PID label.
Typical Applications
Installation Overview
Full figures, fastener tables, and service zone layouts are in the 2025 D-Minus manual linked below. The basics:
- Position the leg centering holes over the top chord center with the connector hole exposed downslope.
- Choose fasteners for the job: No. 2012-A 16d duplex nails for temporary installs, or No. 2013 spiral shank nails or No. 2045-3.5 bugle head screws for permanent installs.
- Drive all 6 factory supplied fasteners; never substitute fasteners from another manufacturer.
- For permanent installations, seal the leg with the included 7 inch butyl strip under the overlapping course.
- Inspect the underside of the framing and verify there are no blow-outs and no fasteners through sheathing only.
- Space anchors a maximum of 8 ft on center, minimum 12 inches from the ridge, per the job specific fall protection plan.
Inspection and Retirement
Inspect before installation and each use, with documented annual inspections. Remove the anchor from service when any of the following apply:
- The fall indicator leg reads less than 45 degrees; dispose of the anchor so it cannot be reused.
- A fastener blow-out is visible from the underside of the framing.
- Fasteners are visible through sheathing only or the anchor is off center.
- The anchor was reverse loaded or subjected to a free fall.
- The PID label is missing or unreadable.
- Fasteners were substituted or reused.
Tag anchors removed from service to prevent further use until inspected by a qualified or competent person.
