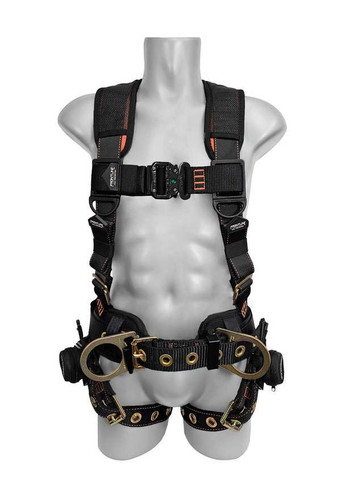

Built to work. Built to last. The Frontline 100CTB Combat is a steel-hardware construction harness with the full Combat Series feature set: dorsal D-ring for fall arrest, two side D-rings for work positioning, padded waist belt, automatic chest buckle, tongue-buckle leg straps, and integrated suspension trauma straps. 5,000 lb webbing breaking strength. 310 lb user capacity. Certified ANSI/ASSE Z359.11-2014, compliant with OSHA 1910 and 1926. Tested by INSPEC Technical Services, ANAB accredited testing laboratory AT-1725.
5,000lbBreaking Strength
310lbMax Capacity
6.0 to 6.3lbHarness Weight
11.4inTested Stretch (Hs)
4Sizes Available
Independently lab verified, not self certifiedINSPEC Technical Services (Kunshan) tested all four sizes to ANSI Z359.11-2014. Dorsal dynamic feet-first torso angle was 4 degrees from vertical (limit 30). Dorsal dynamic head-first 11 degrees (limit 30). Static feet-first held without slip or tear. Both fall arrest indicators deployed visibly and permanently. Reference 2.21.07.17, 30 July 2021.
What Sets the 100CTB Apart
●
Dorsal D-Ring for Fall ArrestSingle alloy steel D-ring centered between the shoulder blades. Primary fall arrest attachment. Two dorsal fall arrest indicators deploy visibly and permanently if the harness is loaded in arrest.
▲
Integrated Suspension Trauma StrapsTwo trauma relief pouches mount on the waist belt. Deploys post fall to give the suspended worker footholds that shift leg position and maintain blood circulation while awaiting rescue.
●
Two Side D-Rings for Work PositioningHip D-rings on the work positioning belt are tested per ANSI Z359.11 section 3.2.6 for work positioning and travel restraint only. Used as a pair. Not rated for fall arrest, that is the dorsal only.
■
Fall Arrest Indicators (FAI)Two FAIs sit at the dorsal area. INSPEC confirmed both deploy visibly and permanently following dynamic feet-first and head-first dorsal arrest testing. Retire the harness immediately if either deploys.
◆
Alloy Steel Hardware, Galvanized FinishAll D-rings, buckles, and connectors are galvanized alloy steel with a Golden Yellow and Silver finish. The automatic chest buckle has a PCB finish. Built for abrasive construction environments.
✦
Moisture-Wicking PaddingBack, shoulder, and waist pads use breathable, moisture-wicking material. Reduces fatigue and heat exhaustion on long shifts. Built for roofing, high-rise, and summer construction work.
★
Tongue Buckle Leg StrapsTraditional tongue buckle on both leg straps. Secure, field-adjustable, easy to inspect. Grommets protect the webbing at buckle contact points. INSPEC measured eyelet spacing of 1.8 in, within the 1.125 in to 2.0 in ANSI range.
◉
Color-Contrasting StitchingOrange thread on black polyester webbing. Contrasting colors make pre-use webbing inspection fast. Broken stitching is visible at a glance. Webbing width 1.73 in (44 mm tested, above the 41 mm ANSI minimum).
▲
Padded Work Positioning BeltThe work positioning belt supports a full tool load without the harness sagging. Distributes load through the waist while the worker is suspended at the hips. Lanyard keepers on the shoulder straps keep your connector organized.
✓
5-Point AdjustabilityFive points of adjustment allow a snug, customized fit across all four sizes. Reduces pressure points and harness migration during long shifts. All adjusters passed INSPEC static testing with no slippage.
☀
Ironwork, Roofing, and Steel Erection ReadyFrontline built the Combat Series for sustained construction wear: ironworkers, steel erectors, formwork crews, roofers, and standing seam metal roof installers. Built for the shift.
■
Lanyard Keepers and ParkingTwo integrated lanyard parking attachments. INSPEC measured 94.4 lb disengagement load, below the 120 lb maximum permitted by ANSI Z359.11 section 3.1.10. Unused legs stay parked, release cleanly under fall force.
Attachment Points: Know Before You Clip In
The 100CTB has three D-ring locations. Each is rated for specific uses only. Never use a positioning D-ring for fall arrest.
Fall ArrestDorsal D-Ring (Back)Centered on the vertical midline between the shoulder blades. Primary fall arrest attachment. Also approved for travel restraint and rescue. Connect your SRL or shock-absorbing lanyard here for any fall arrest application.
Work Positioning OnlySide D-Rings (Hip, Pair)Two alloy steel side D-rings on the work positioning belt. Used as a pair for work positioning and travel restraint only per ANSI Z359.11 section 3.2.6. Not rated for fall arrest.
Lanyard ParkingLanyard Parking AttachmentTwo lanyard parking locations on the shoulder straps secure unused lanyard legs. INSPEC measured disengagement at 94.4 lb, under the 120 lb maximum per ANSI Z359.11 section 3.1.10.
Technical Specifications
| Specification | Detail |
|---|---|
| Model | Frontline 100CTB Combat Construction Full Body Harness with Tongue Buckle Legs and Trauma Straps |
| Hardware Material | Alloy steel, Golden Yellow and Silver galvanized finish |
| Chest Buckle | Alloy steel with PCB finish, automatic quick-connect buckle |
| Webbing Material | High-tenacity polyester, black |
| Stitching Thread | High-tenacity polyester, orange color contrasting |
| Webbing Width | 1.73 in (44 mm minimum tested, exceeds 41 mm ANSI minimum) |
| Breaking Strength | 5,000 lb (22.2 kN) per ANSI Z359.11 section 3.3.1.2 |
| Post-Abrasion Strap Strength | 3,600 lb (16 kN) minimum, passed 1-minute hold per section 3.3.1.5 |
| User Capacity | 310 lb maximum, includes user body weight, clothing, tools, and equipment |
| ANSI Capacity Range | 130 lb to 310 lb (59 kg to 140.6 kg) |
| Total Harness Weight | 6.0 lb to 6.3 lb by size |
| Dorsal D-Ring | Alloy steel, fall arrest, travel restraint, and rescue |
| Side D-Rings | Two alloy steel, work positioning and travel restraint only (used as a pair) |
| Leg Buckles | Tongue buckle with grommet webbing protection, 1.8 in eyelet spacing |
| Adjustability | 5 points of adjustment |
| Fall Arrest Indicators | Two dorsal FAIs, deploy permanently on fall arrest load |
| Suspension Trauma Straps | Two, integrated in waist-belt pouches, deployable post fall |
| FBH Stretch (Tested) | 11.4 in dynamic feet-first per INSPEC section 3.2.1.3.1 |
| FBH Stretch (Mfr-Stated Maximum) | 18 in for fall clearance calculations |
| Lanyard Parking Disengagement | 94.4 lb, under the 120 lb ANSI maximum per section 3.1.10 |
| Service Temperature | -40 deg F to +130 deg F (-40 deg C to +54 deg C) |
| Service Life | 5 years from date of first use, or from date of manufacture if not recorded |
| Sizes Available | S, M/L, XL/2XL, 3XL/4XL |
| Certification Standard | ANSI/ASSE Z359.11-2014 |
| OSHA Compliance | 1910.140 (General Industry) and 1926.502 (Construction) |
| Test Lab | INSPEC Technical Services (Kunshan) Co. Ltd., ANAB accredited, certificate AT-1725 |
| Test Report Reference | 2.21.07.17, issued 30 July 2021 |
| Manufacturer | Frontline Fall Protection Inc., 6 Lee Blvd, Malvern, PA 19355 |
| User Manual Revision | Rev. October 2024 |
| Country of Origin | China |
Size Selection
Size is based on both height and weight, not weight alone. All four sizes share the same 310 lb maximum capacity. Measure before ordering. A harness worn on a jobsite cannot be returned.
| Size | Height Range | Weight Range |
|---|---|---|
| Small (S) | 4 ft 10 in to 5 ft 6 in | 110 lb to 170 lb |
| Medium / Large (M/L) | 5 ft 2 in to 6 ft 4 in | 140 lb to 260 lb |
| XL / 2XL | 5 ft 4 in to 6 ft 8 in | 200 lb to 310 lb |
| 3XL / 4XL | 5 ft 10 in to 6 ft 10 in | 240 lb to 310 lb |
⚠ Weight Capacity: Read Before Ordering
310 lb is the maximum combined weight of the user including all clothing, tools, and equipment carried. This is not a body weight limit, it is a total system limit.
If a worker's combined weight exceeds 310 lb but is under 400 lb, the employer is required by OSHA 1926.502(d)(16) to modify criteria and protocols to provide appropriate protection. Above 400 lb a higher-capacity harness system is required.
Compliance & Certification
✔ CertifiedANSI/ASSE Z359.11-2014Full body harness standard for personal fall arrest systems. Dorsal dynamic feet-first, head-first, static, and Fall Arrest Indicator tests all passed. Hip static tests passed per section 3.2.6.
✔ CompliantOSHA 1926.502 & 1910.140Meets OSHA requirements for personal fall arrest in both construction (1926) and general industry (1910). Required for all US regulated work at height.
⚠ Canadian Buyers, NoteCSA Z259.10, Not CertifiedThe 100CTB is ANSI certified only. Most Canadian provincial OH&S regulations require CSA Z259.10 certification for regulated work at height, including in Ontario, British Columbia, Alberta, and Quebec. Verify with your site safety officer or provincial authority before ordering for use on Canadian jobsites.
✔ Independently Tested3rd-Party Lab VerifiedTesting conducted by INSPEC Technical Services (Kunshan) Co. Ltd. Samples received 2 June 2021, tests conducted 7 June 2021 to 29 July 2021. Report issued 30 July 2021. Not self-certified.
INSPEC ANAB AT-1725
Tested by INSPEC Technical Services, ANAB Accredited INSPEC Technical Services (Kunshan) Co. Ltd. (Kunshan, Jiangsu, China) holds ANAB accreditation certificate AT-1725 under the ANSI National Accreditation Board, recognized worldwide under international mutual recognition agreements. The 100CTB passed all requested ANSI Z359.11-2014 tests, including dorsal dynamic feet-first, head-first, static strength, Fall Arrest Indicator, and Hip static under report reference 2.21.07.17. INSPEC Reference: 2.21.07.17 | Report Date: 30 July 2021 | Signed: Steven Sum, Laboratory Manager
Right Harness. Right Job.
Ironwork & Steel ErectionDorsal D-ring for fall arrest, hip D-rings for column positioning, tongue-buckle leg straps engineered for long shifts on steel.
Metal Roofing & Standing SeamPairs with the SSRA1 standing seam roof anchor and a leading-edge SRL for compliant fall protection on metal roofs.
Concrete & FormworkHip D-rings carry the positioning lanyard for tying rebar and working off form walls. Padded belt distributes load during sustained suspension.
US & Canadian WorkANSI Z359.11 certified for US applications. Canadian buyers must verify that ANSI equivalency is accepted at their specific worksite, most provinces require CSA Z259.10.
How to Don the Harness in 7 Steps
A correctly fitted harness is as important as a certified one. Follow these steps every time before moving to height.
- Shake it out. Hold the harness by the dorsal D-ring and shake to let any tangled straps fall into place.
- Unbuckle everything. Unbuckle the automatic chest buckle, tongue-buckle leg straps, and waist belt before putting on.
- Slip over shoulders. Slip the straps over the shoulders so the dorsal D-ring is centered between the shoulder blades on the vertical midline.
- Connect the chest buckle. Position in the mid-chest area and engage the automatic buckle. Adjust the shoulder straps at the lower-end adjusters so left and right are equal length.
- Thread the leg straps. Pull each leg strap between the legs and engage the tongue buckle on the opposite side. Connect the waist belt last.
- Adjust for snug fit. After all buckles are connected, adjust so the harness fits snug but allows full range of motion. Confirm no fall arrest indicator is deployed.
- Confirm the anchor point. Use the dorsal D-ring as your fall arrest connection. Verify your lanyard or SRL is properly engaged before moving to height. Check the dorsal FAIs are not deployed before each use.
Inspection & Retirement
Per ANSI Z359.2, full body harnesses require inspection at two levels. Skipping either is an OSHA violation and a safety failure.
Pre-Use Inspection (Every Use)
Bend the webbing 6 to 8 inches into a U-shape and inspect all webbing for tears, cuts, fraying, abrasions, burns, holes, mold, or broken stitches. Inspect under keepers and pads. Inspect D-rings and hardware for cracks, distortion, sharp edges, and corrosion on the galvanized finish. Engage and release the chest buckle to confirm positive lock. Confirm neither dorsal Fall Arrest Indicator is deployed. Takes 60 to 90 seconds. Do it every time.
Competent Person Inspection (Minimum Every 6 Months)
Formal documented inspection by a Competent Person who is not the regular user. Records must be maintained and made available to all users at all times. The user manual includes a Checking Card for log-in. More frequent inspection is required in heavy-use, abrasive, or chemical environments.
Immediate Retirement After Any Fall
Any harness subjected to fall arrest forces, even if it appears undamaged, must be removed from service and destroyed immediately. The dorsal FAIs will have deployed. Internal webbing fiber damage from a fall event is not visible to the eye.
Retirement for Damage
Remove from service if webbing shows damage, buckles show deformation, hardware shows corrosion beyond the galvanized surface, labels are illegible, or any component fails inspection. Repairs may only be performed by Frontline Fall Protection Inc. or a party authorized in writing by Frontline. Field repair of webbing, stitching, or hardware is not permitted.
Cleaning and Storage
Wipe down with mild detergent and a clean cloth. Wipe dry the alloy steel hardware after cleaning to prevent corrosion. Do not machine wash, dry clean, or use harsh solvents. Store in a cool, dry environment, out of direct sunlight and away from heat sources, chemicals, vapors, and moisture.
Fall Clearance
Fall clearance below the anchor point is set by the lanyard or SRL, not the harness alone. Use the dorsal D-ring height relative to the work surface, the connector's deceleration distance, the harness stretch (Hs), and a safety factor. The Frontline user manual states a maximum Hs of 18 inches for clearance calculations on the 100CTB.
To run the math for your specific connector and anchor height, use our calculator: Fall Protection Clearance Calculator.
Frequently Asked Questions
What is the difference between the 100CTB and the 100RCTB?
The 100CTB and 100RCTB share the same chassis, alloy steel hardware, tongue-buckle leg straps, hip D-rings, work positioning belt, and integrated trauma straps. The 100RCTB adds 360-degree 25 mm reflective tape and uses safety-orange polyester webbing. The 100CTB uses black polyester webbing without reflective tape. The 100CTB was tested by INSPEC (Report 2.21.07.17). The 100RCTB was tested by SATRA (Report SPC0260480/1730/2).
Can the side D-rings be used for fall arrest?
No. The two hip side D-rings are rated and tested for work positioning and travel restraint only, used as a pair per ANSI Z359.11 section 3.2.6. The dorsal D-ring on the back is the only fall arrest attachment point on this harness.
What is the Fall Arrest Indicator and what do I do if it deploys?
Two FAIs are located in the dorsal area and deploy visibly and permanently when the harness is subjected to fall-arrest forces. If you see a deployed indicator, the harness must be immediately removed from service and destroyed. Internal webbing fiber damage from a fall event is not visible to the eye. INSPEC confirmed the indicators deployed correctly during dynamic testing.
What does the 310 lb capacity actually mean?
310 lb is the combined maximum of the user body weight plus everything they are carrying, including clothing, tools, and equipment. If the combined weight exceeds 310 lb but is under 400 lb, OSHA 1926.502(d)(16) requires the employer to modify criteria and protocols. Above 400 lb a higher-capacity harness system is required.
Can I use this harness in Canada?
The 100CTB is certified only to ANSI/ASSE Z359.11-2014. It is not certified to CSA Z259.10. Most Canadian provincial OH&S regulations require CSA Z259.10 certification for regulated work at height. Verify with your site safety officer or provincial authority before use on Canadian jobsites.
What lab tested the 100CTB and what accreditation do they hold?
The 100CTB was tested by INSPEC Technical Services (Kunshan) Co. Ltd. INSPEC holds ANAB accreditation certificate AT-1725 under the ANSI National Accreditation Board. Testing was conducted 7 June to 29 July 2021. Reference 2.21.07.17, issued 30 July 2021, signed by Steven Sum, Laboratory Manager.
Do you help spec complete fall protection systems?
Yes. We stock standing-seam roof anchors, lanyards, SRLs, and full fall-protection systems. Call before you order, and we will make sure the harness, connector, and anchor you select work correctly together for your application and site conditions.
Frontline 100CTB Submittal Documents
The following manufacturer documents are available for download to support procurement, safety planning, jobsite submittals, and Competent Person inspection records.
| Document | Description | Download |
|---|---|---|
| Frontline 100CTB Spec Sheet | One-page summary of features, material specifications, design specifications, and relevant standards. | Frontline 100CTB Spec Sheet (PDF) |
| Frontline 100CTB Test Report | Full INSPEC test report (Reference 2.21.07.17, issued 30 July 2021) verifying ANSI/ASSE Z359.11-2014 compliance. ANAB accredited laboratory, certificate AT-1725. | Frontline 100CTB Test Report (PDF) |
| Frontline Body Harness User Manual | Complete instruction manual covering 100VMB, 100VTB, 105CFTB, 50CTB, 50VTB, 100CTB, 100RCTB, 110CTB, 110VTB, 200RE, 100VTB-UN-3D, and 100VTB-UN-4D. Rev. October 2024. | Frontline Body Harness User Manual Rev. Oct 2024 (PDF) |
Building a complete fall protection system? Pair this harness with a Standing Seam Roof Anchor (SSRA1), a leading-edge Frontline RPGCLE SRL, or the reflective 100RCTB reflective harness alternate. Not sure what works together? Call us, we spec complete systems before you buy.
Questions before you order? We spec systems, not just products. Pre-sale support, compatibility confirmation, bulk pricing, call or email directly.
863-703-4522
Frontline warrants its products against manufacturing defects in workmanship and materials, as well as product recalls, for a period of one (1) year from the date of purchase. This warranty excludes normal wear and tear, misuse, and improper installation. The limited warranty is provided only to an end-user customer for the period set forth in an order accepted by Fall Protection Distributors, LLC.
