Malta X1270 Mobile Grabber: 45 ft High-Reach Road-Towable Overhead Anchor

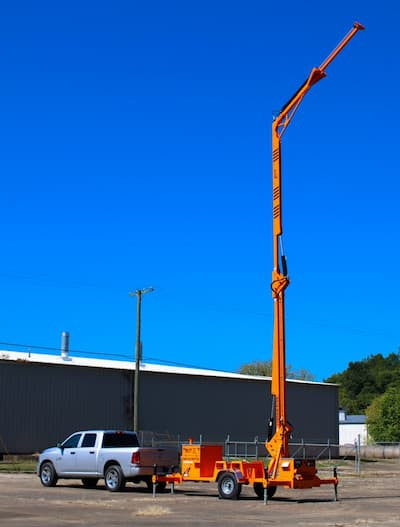

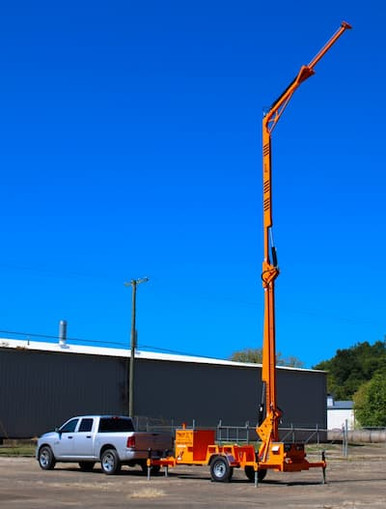

The Malta Dynamics X1270 is the high-reach road-towable mobile fall protection system, delivering overhead anchorage up to 45 ft with the mast fully extended for two-worker work at height, with no fixed building anchor and no ground penetration. An electric-powered hydraulic mast deploys by remote control, four outrigger jacks level the base, and the trailer tows at posted highway speed between jobsites.
Two workers, an electric-hydraulic mast up to 45 ft by remote control, and a road-towable trailer that deploys in minutes.
$Configure Your X1270: Instant Quote
Build your X1270 below and see your price update instantly. All prices are FOB Malta, OH. Delivery is available and is quoted separately once you share a delivery address.

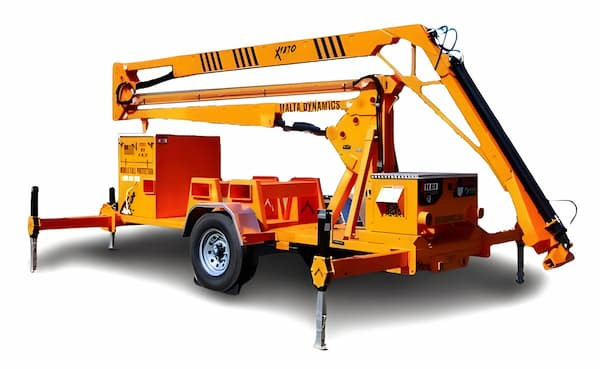

Base unit, road-towable trailer, electric-hydraulic high-reach overhead anchor up to 45 ft, up to 2 workers. FOB Malta, OH.

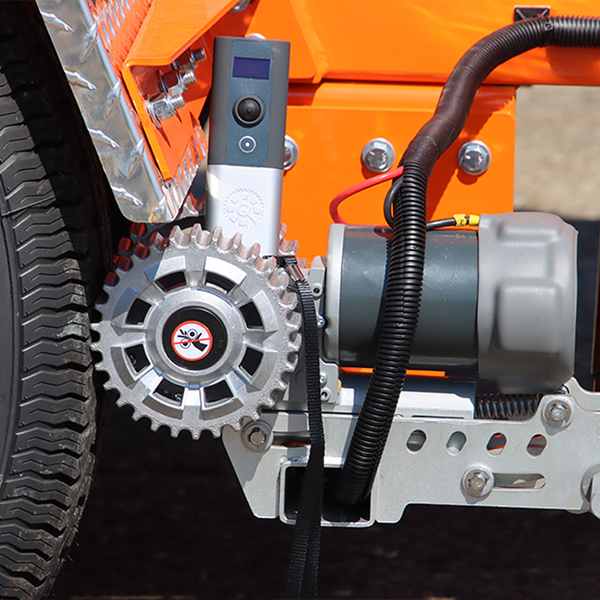

Two electric drive motors reposition the unit for fine placement without a tow vehicle attached.

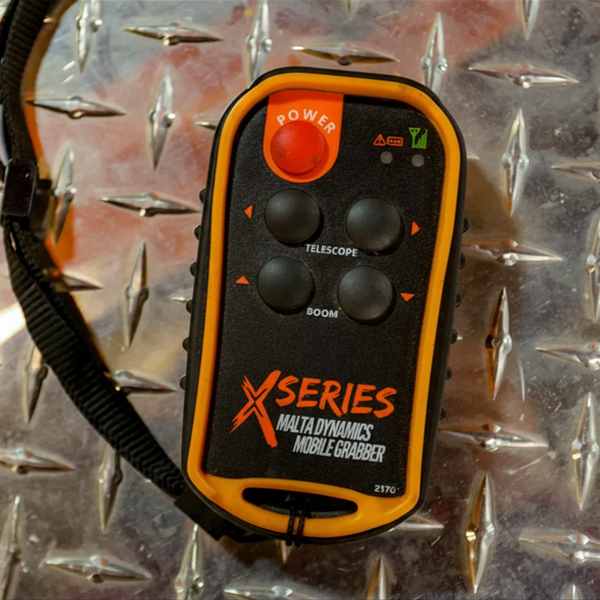

Compact wireless controller, range up to 100 ft, for mast and hydraulic control from a safe distance.

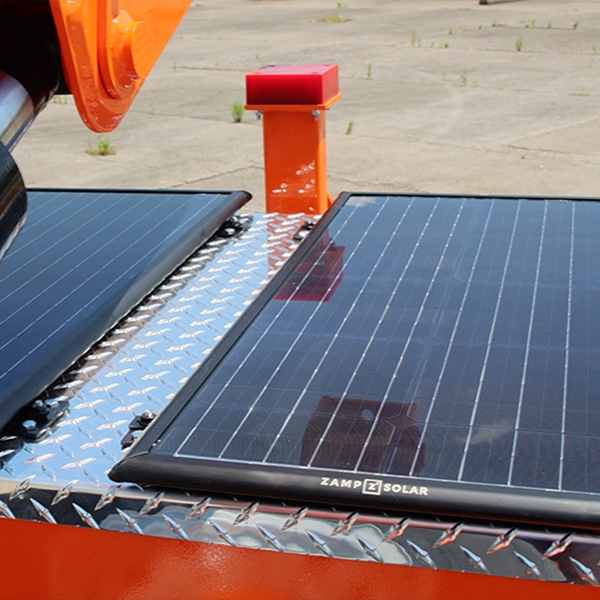

Twin crystalline solar panels keep the battery charged for extended shifts and remote sites.
Adds bi-directional winching and a 3-Way Recovery SRL so an attendant can raise or lower a worker, satisfying the OSHA confined space rescue and retrieval requirement.

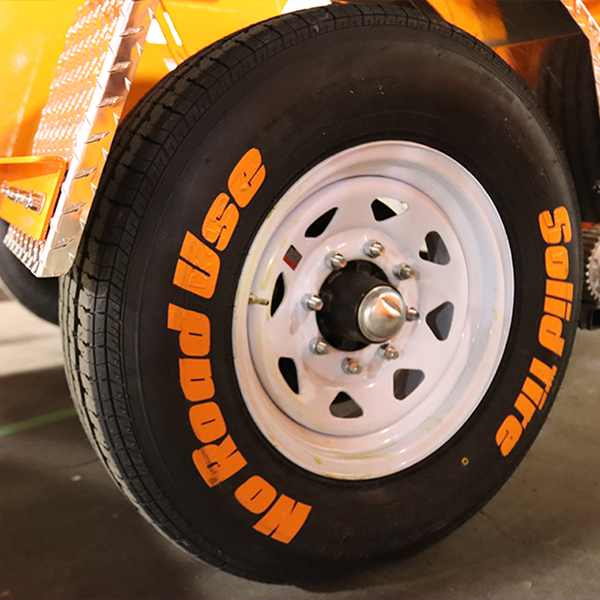

Puncture-proof solid tires for rough sites with hot metal or debris. Not rated for highway use.

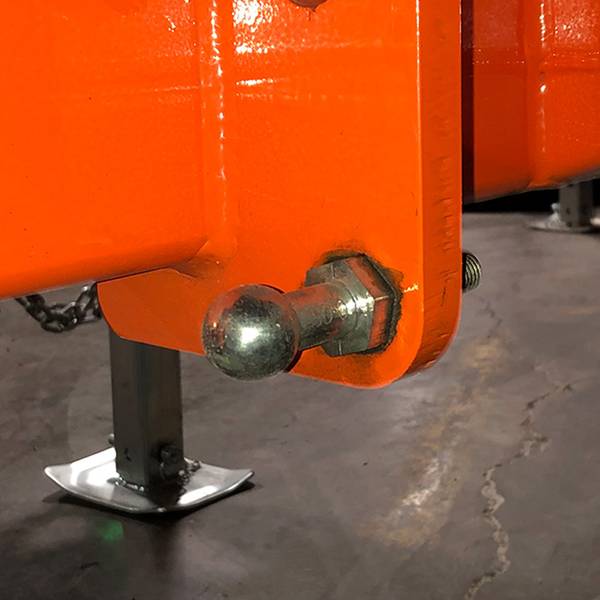

Two standardized studs for jobsites that require the unit to be electrically grounded.

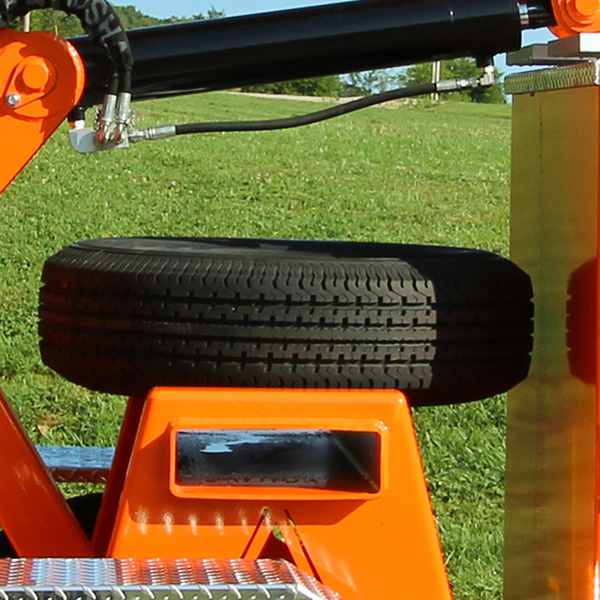

Spare tire and all mounting hardware so a road-towable unit is never stranded.

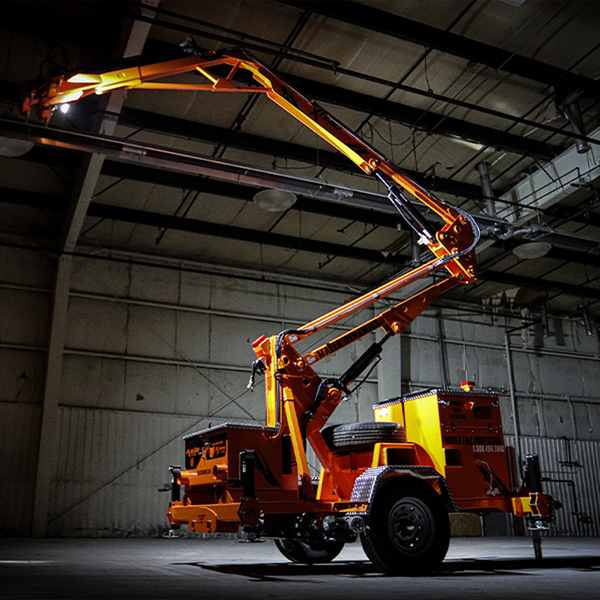

Two mast-top lights for 360 degrees of lit work area in confined, nighttime, or low-light conditions.
Oversized studded outrigger feet for secure traction when the unit is set up on snow or ice.

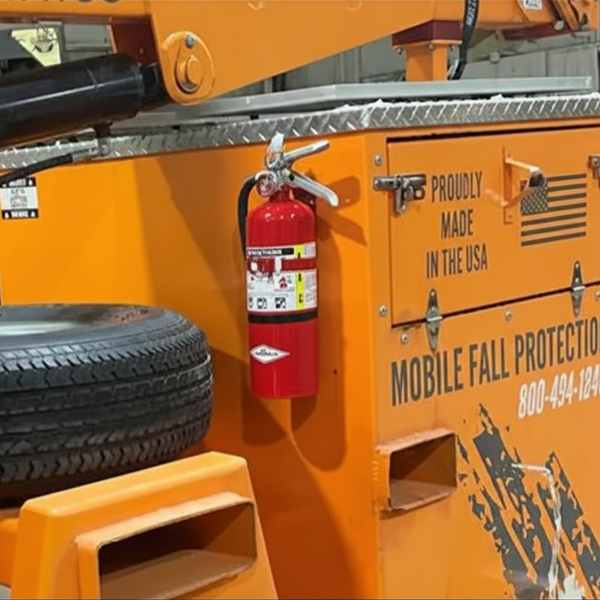

A mounted fire extinguisher as a first line of defense against jobsite fire hazards.

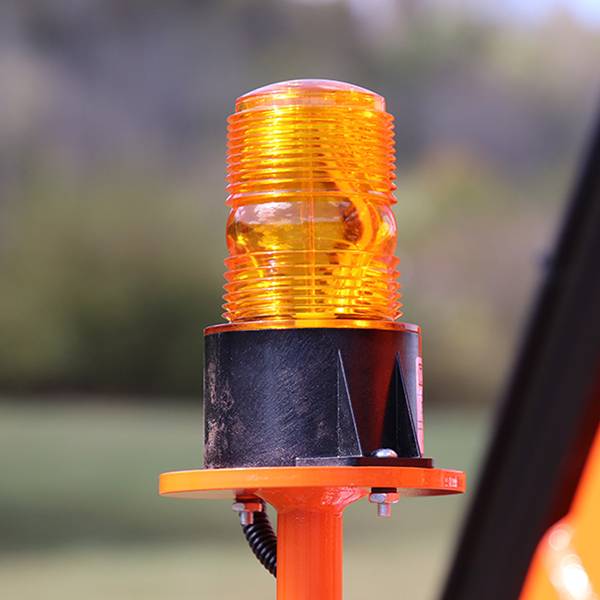

High-visibility strobe for awareness near aviation, vehicle, or foot traffic.
Big-foot tough-steel pads that spread the load on soft ground for a more stable setup, installed in seconds.

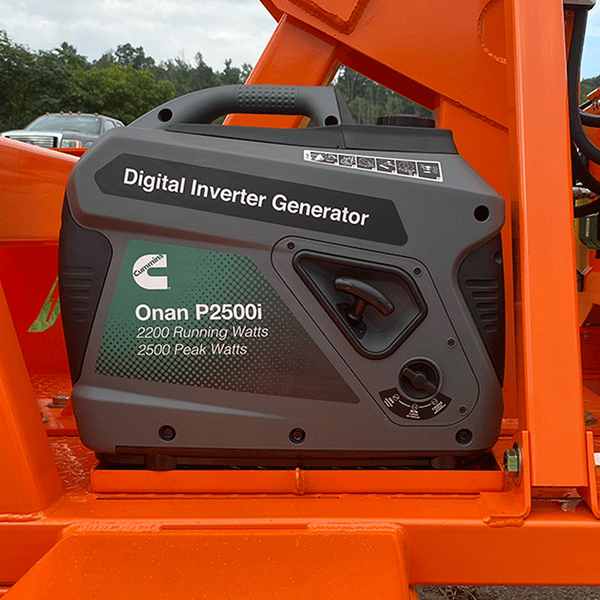

Versatile bracket that fits most small 2000-watt suitcase generators.

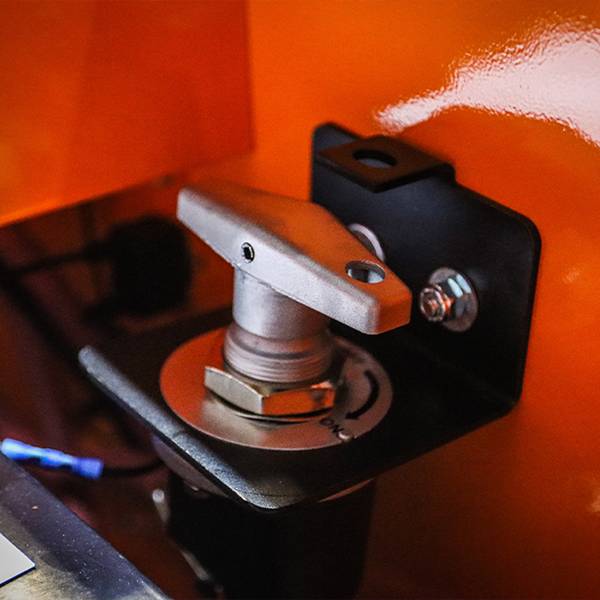

Lockout and tagout knob in the rear motor compartment so the unit cannot be powered on during work.
A certified instructor trains your crew on setup, deployment, tie-off, and inspection at your site. Flat rate anywhere in the continental US, instructor travel included.
This is a quote-request item. Build your configuration above, then request your quote, and our team will confirm pricing and lead time. Payment is made by ACH or wire transfer. If delivery is required, provide a ship-to address, and we will quote truck freight, typically ranging from $1,500 to over $10,000, depending on the unit, distance, and current fuel costs. Sales tax is calculated based on your delivery location unless a valid resale certificate is on file.
Who Needs the X1270
The X1270 is built for two-worker overhead tie-off where extra height is required and permanent anchorage is not available: tall trailers and tankers, aircraft and heavy equipment, and high-ceiling facilities. The electric-hydraulic mast raises by remote control to a full 45 ft, four outrigger jacks stabilize the base, and the trailer tows at posted highway speed when the job moves.
Watch: Malta X1270 in ActionSee how the X1270 tows to the jobsite, levels on its outrigger jacks, and raises its electric-hydraulic mast to a high overhead anchor point by remote control.
Features
Electric-hydraulic remote control
Raise, lower, and position the mast from a safe distance with a remote-operated electric hydraulic system.
Road-towable trailer
Tow at posted highway speed on a 7000 lb torsion axle with electric brakes and a 4-pole blade plug.
Two-worker capacity
Overhead tie-off points rated to 310 lbs each support the rated crew for fall arrest or fall restraint.
Up to 45 ft working height
An extending mast sets the overhead anchor high enough to clear trailers, rail cars, and large equipment.
Four outrigger jacks
Four manually adjustable jacks level and stabilize the base on uneven ground, with no drilling or ballast.
USA-made and tested
Built in a USA-based ISO 9001 certified facility and tested to meet and exceed OSHA anchorage requirements.
Tow only within the rated speed, set up on stable, level ground, and extend all four outrigger jacks before raising the mast or tying off. Confirm the unit is level, complete a daily visual inspection of the trailer, mast, jacks, and anchor points, and pair the unit with a compatible self-retracting lifeline; SRLs are not included.
Typical Applications
Trailer and railcar loading
Overhead tie-off for workers on top of trailers, tankers, and rail cars during loading and unloading.
Aircraft and heavy equipment
Position overhead anchors above aircraft or large machinery for maintenance and inspection.
High-ceiling facilities
Mobile overhead anchorage for service work where fixed roof or wall anchors are not available.
Remote and changing jobsites
Tow the unit between sites and deploy quickly with the electric-hydraulic mast and outrigger jacks.
Technical Specifications
| Product | Malta Dynamics XSeries X1270 Mobile Grabber |
|---|---|
| SKU | X1270 |
| Maximum working height | 45 ft (13.7 m) with mast fully extended |
| Minimum working height | 2 ft (0.6 m) |
| Maximum folded height | 8 ft 3 in (2.6 m) |
| Frame width | 5 ft 9 in (1.8 m) |
| Maximum arm reach out | 10 ft 9 in (3.3 m) |
| Overall length | 20 ft 10 in (6.4 m) |
| Maximum anchor point capacity | 310 lbs |
| Maximum allowable users | 2 |
| Actuating method | Electric-powered hydraulic system, pendant remote |
| Outrigger system | 4 manually adjustable jacks |
| Towing | Posted highway speed; 7000 lb torsion axle with electric brakes |
| Unit weight | Approximately 6,700 lbs |
| Self-retracting lifeline | Not included; pair with a compatible SRL |
| Compliance | OSHA fall arrest anchorage; tested in accordance with the ISO 17025 protocol; Declaration of Conformity |
| Origin | Made in the USA, ISO 9001 certified facility |
| Warranty | 1 year limited plus 5 year structural warranty (Malta Dynamics) |
Tested and Compliant Anchorage
The X1270 is documented to meet OSHA fall-arrest anchorage requirements, supported by a Malta Dynamics Declaration of Conformity (on file), with testing performed in accordance with the ISO 17025 protocol. Each unit is manufactured in a USA-based ISO 9001-certified facility. Download the spec sheet, declaration of conformity, instruction manual, working diameter charts, and annual inspection form below, and keep the inspection form on file as part of your documented fleet maintenance program.
Product Documents and Submittals
X1270 Spec Sheet (PDF)Dimensions, working height, capacity, and weight ratings.X1270 Declaration of Conformity (PDF)OSHA compliance and ISO 17025 testing statement.XSeries Instruction Manual (PDF)Towing, setup, mast deployment, and safe use.XSeries Working Diameter Charts (PDF)Anchor reach and working diameter reference.XSeries Annual Inspection Form (PDF)Documented inspection record for fleet maintenance.XSeries Brochure (PDF)Full XSeries mobile grabber lineup and add-on options.Frequently Asked Questions
Compare the Malta X-Series Mobile Grabbers
The X1270 is the 45 ft high-reach, two-worker road-towable grabber. For more workers or 360-degree rotation, compare the rest of the Malta XSeries line.
Ready to Configure Your X1270?
Build your unit in the instant quote tool above, add any options or on-site crew training, then request a delivered quote, and our team will price freight to your address. Mobile overhead protection, made in the USA.
