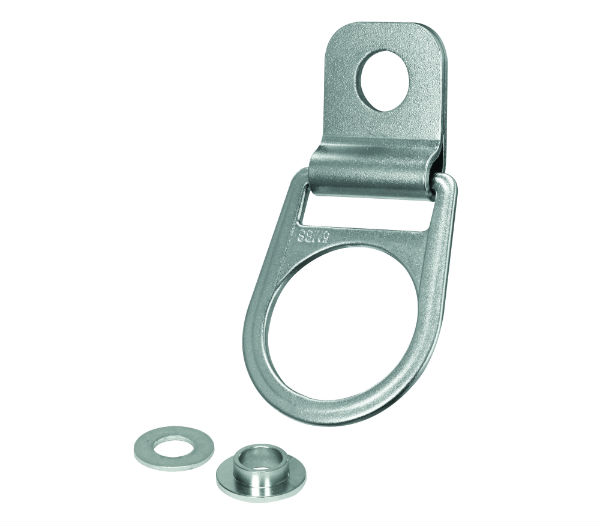

FallTech 7451AC Rotating D-Ring Anchor 2-Pack (Plate and Ring Only)
The FallTech 7451AC Rotating D-Ring Anchor 2-Pack is a premium, high-strength anchorage solution designed for professional integration into cured concrete structures. This specialized version features the heavy-duty zinc-coated alloy steel anchor bracket and high-strength forged alloy steel D-ring without pre-packaged fasteners, allowing safety managers to select the specific mounting hardware required for their unique 2026 job site conditions. The precision-engineered 360-degree rotation prevents lanyard twisting and reduces trip hazards, making it a critical safety component for complex construction and maintenance tasks.
Advanced Engineering and Rotational Performance
Each 7451AC anchor assembly is rated for a minimum static strength of 5,000 lbs, providing the robust mechanical link necessary for primary fall arrest. The precision-cut bushing allows the D-ring to rotate 360 degrees, which significantly reduces the "levering" forces on the anchor bolt during a fall. This rotational mobility ensures that the worker's Self-Retracting Lifeline or lanyard is always aligned with the direction of travel, minimizing wear on the equipment and maximizing the user's mobility.
Corrosion-Resistant Stainless Steel for Long-Term Service
The FallTech 7451AC utilizes a zinc-coated alloy steel bracket with a flanged bushing and large washer, required for proper fit and correct swivel function, resisting corrosion in outdoor concrete applications. This makes it an ideal choice for permanent installations on facades, bridges, or industrial silos where aesthetic preservation and material longevity are prioritized. The alloy steel D-ring is finished with protective plating to ensure durable performance in harsh, abrasive environments while maintaining compliance across multiple project phases.
Regulatory Compliance and Industrial Weight Capacities
The FallTech 7451AC meets and exceeds the stringent requirements of ANSI Z359.18-2017 and OSHA 1926.502 and 1910.140 regulations. It is rated for a single-user ANSI capacity of 130-310 lbs and an expanded OSHA capacity of up to 425 lbs (including tools and equipment). This dual-certification ensures that the 7451AC is ready for deployment in both general industry and specialized construction sectors, providing a 5,000 lb-rated anchorage point that meets the highest 2026 safety thresholds.
FallTech 7451AC Technical Submittals & Compliance Docs:
- FallTech 7451AC Specification Sheet: Full material data and torque requirements.
- FallTech 7451AC Instruction Manual: Detailed guide on fastener selection and drill bit sizing.
- FallTech 7451AC Declaration of Conformity: Safety certification and testing standards.
FallTech 7451AC Rotating Anchor FAQ
1. Does the 7451AC include the concrete bolts for installation?
No, the 7451AC is only the "Plate and D-Ring" assembly. This allows you to choose a dimensionally verified concrete screw or expansion bolt from Table 2 of the FallTech manual. If you require a kit that includes the bolts, we recommend the FallTech 7451A Concrete Anchor Kit.
2. What size fastener is required for the 7451AC?
The manual lists 5/8 in fasteners: the Hilti KWIK HUS-EZ 5/8 in x 5-1/2 in carbon steel concrete screw, the Hilti HSL-3-B M12 expansion bolt, or, for steel beam and plate installs, a user-supplied 5/8 in Grade 8 bolt with nut and lock washer through an 11/16 in hole. For specific torque and bit size requirements, please see the FallTech 7451AC Instruction Manual linked above.
3. Can this anchor be installed in concrete ceilings?
Yes. The FallTech 7451AC is rated for use in vertical (wall), floor, and overhead (ceiling) applications, provided the concrete has a minimum compressive strength of 4,000 psi, meets the manual thickness and edge-distance requirements (minimum 6-1/4 in to 7 in thick depending on fastener), and the fastener is properly installed.
4. Why is the 360-degree rotation a safety feature?
Standard fixed anchors can cause lifelines to tangle or create a dangerous side-load on the bolt. The 360-degree rotation ensures the D-ring is always pulling in a straight line with the user, maximizing the anchor's strength and preventing lanyard hockling.
5. Is the 7451AC reusable?
The anchor plate and D-ring are fully reusable. However, the concrete fasteners (wedge bolts or expansion anchors) must never be reused. You must install a new, uncompromised fastener every time the 7451AC is moved to a new location.
6. What is the static strength of this anchor?
The 7451AC features a minimum static strength of 5,000 lbs, meeting the 2:1 safety factor required for all OSHA-compliant fall arrest anchorage points.
7. How do I avoid common mistakes with the FallTech 7451AC?
- 1. Improper Fastener Choice: Never use standard "home-store" masonry screws; use only the dimensionally verified concrete screws and expansion bolts listed in Table 2 of the FallTech manual.
- 2. Misjudging Concrete Strength: Ensure the concrete is cured and does not have existing cracks or spalling in the installation area.
- 3. Reusing After a Fall: If an anchor is involved in a fall arrest, both the plate and the fastener must be removed from service and destroyed immediately.
