Falltech 7493B1 Ringed Plate Anchor
FallTech

FallTech 7493B1 Ringed Plate Anchor 2-Pack

(No reviews yet) Write a Review
$149.00
Brand:
FallTech
SKU:
7493B1
Availability:
Usually ships in 1 business
Shipping:
Calculated at Checkout
Availability:
In-Stock
Adding to cart… The item has been added
American Express Icon American Express Icon Discover Icon Discover Icon Mastercard Icon Mastercard Icon PayPal Icon PayPal Icon Visa Icon Visa Icon
FallTech Anchorage Connectors

FallTech 7493B1 Reusable D-Ring Plate Anchor for Wood

The FallTech 7493B1 is a reusable D-ring plate roof anchor for wood structures. The steel plate screws to a rafter or truss and carries a D-ring for tie-off, and the anchor can be removed and reused on the next job.

It meets OSHA fall protection requirements, rated to a 5,000 lb anchorage requirement, for one worker up to 310 lb, for wood roofing work.

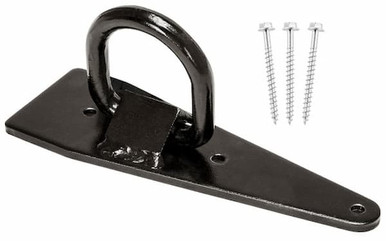

FallTech 7493B1 reusable D-ring plate roof anchor for wood framing
ReusableRing Plate Anchor
OSHACompliant
1 WorkerUp to 310 lb
Wood StructureScrew-Down
Steel PlateWith D-Ring
TemporaryRemovable
RoofingWood Framing
5,000 lbsAnchorage Requirement

Who Needs This Product

This product is a reusable D-ring plate roof anchor, the anchorage component of a personal fall arrest system for wood roofs. Roofers screw the plate to framing for a temporary tie-off point, then connect an SRL or lanyard. It is removed and reused. You still need a certified full-body harness and a compatible connecting device.

Features

Reusable plate anchor

Screw it down, use it, remove it, and reuse it on the next roof.

Steel plate with D-ring

Strong connection point that fastens flat to framing.

Wood roof mount

Fastens to sound rafters or trusses per the manual.

Low cost per use

An economical reusable anchor for roofing crews.

Durable steel

Stands up to repeated jobs.

OSHA compliant

Meets the OSHA anchorage requirement for one worker up to 310 lb.

⚠

Fasten to sound wood framing with the specified screws. Drive all required fasteners into solid rafters or trusses per the manual, not just sheathing, and patch the holes on removal. Confirm fall clearance and swing-fall with the Fall Protection Calculator below.

Compliance Standards

OSHA compliant

Meets OSHA fall protection anchorage requirements. Not ANSI-certified.

OSHA 29 CFR 1926.502

Federal construction fall protection anchorage requirements.

OSHA 29 CFR 1910

General industry personal fall protection requirements.

Rated 5,000 lb (22.2 kN)

Meets the OSHA anchorage strength requirement.

Typical Applications

Residential roofingTemporary tie-off on wood roofs.
Re-roofingReusable plate anchor across jobs.
Light commercialWood-framed roof work.
Solar installRoof anchor for panel work.
FramingTie-off during roof framing.
InspectionQuick temporary roof anchor.

How to Install

Follow the FallTech instruction manual. The sequence below is an overview only.

  1. Inspect. Check the anchor body, connection point, and hardware for damage before each use.
  2. Prepare the structure. Confirm the mounting surface is sound and rated to support the anchor per the manual.
  3. Install and secure. Mount the anchor as specified and set all fasteners to the required torque.
  4. Connect. Attach your SRL or energy-absorbing lanyard to the connection point.
  5. Check clearance. Confirm fall clearance and swing-fall with the calculator below.

Inspection and Retirement

Inspect before each use, with a documented competent-person inspection at least annually. Remove the anchor from service for any of the conditions below.

  • Anchor body and welds: cracks, bending, deformation, or corrosion.
  • D-ring or connection point: deformation, sharp edges, cracks, or corrosion.
  • Fasteners and hardware: damaged threads, loose or missing fasteners.
  • Labels: illegible or missing markings.

Remove the anchor from service immediately after any fall-arrest event, and destroy retired equipment so it cannot return to service.

Fall Protection Distributors logo Fall Protection
Distributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your lanyard or SRL setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k). Run the Numbers and Stay Safe Launch the Calculator ›

Technical Specifications

TypeReusable D-ring plate roof anchor for wood
MountingScrew-down to wood framing
ComplianceOSHA
ConnectionSteel plate with D-ring
Anchorage strengthMeets OSHA requirement (5,000 lb (22.2 kN))
Capacity (ANSI)One worker, 130 to 310 lb combined
Capacity (OSHA)One worker, up to 425 lb combined
StandardsOSHA 1926.502 and 1910
WarrantyFallTech 2-year limited warranty against defects in materials and workmanship

Frequently Asked Questions

Is the 7493B1 reusable?
Yes. The plate screws down for the job and is removed and reused on the next roof; patch the fastener holes when you take it off.
What does it fasten to?
Sound wood framing such as rafters or trusses, not just sheathing. The manual specifies three Grade 5 SPAX PowerLags or Simpson Strong-Tie Strong-Drive 1/4 in x 3 in lag screws driven into 3/16 in pilot holes, with at least 2-1/2 in of each screw engaging the truss or rafter.
Is it ANSI certified?
The 7493B1 meets OSHA fall protection requirements. Confirm it fits your fall protection plan; ANSI-certified roof anchors are also available.
What is the capacity?
It is rated for one worker up to 310 lb, meeting the 5,000 lb anchorage requirement.
How is it different from the hinged 7410?
The 7493B1 is a fixed plate with a D-ring, while the 7410 has a hinged D-ring that folds flat; both are reusable wood-roof anchors.
What do I connect to it?
Connect a compatible SRL or energy-absorbing lanyard to the connection point, used with a certified full-body harness.
Can it be reused after a fall?
No. Remove the anchor from service immediately after any fall-arrest event and destroy it so it cannot be reused.

FallTech 7493B1 Submittals and Documentation

7493B1 Instruction Manual (PDF)Installation, capacity, and inspection. 7493B1 Declaration of Conformity (PDF)Certification to OSHA requirements (FallTech test lab). 7493B1 Spec Sheet (PDF)One-page specifications summary.
