Fall Protection For Bryer Standing Seam Roof Systems
Posted by Howie Scarboro - CEO Fall Protection Distributors, LLC on Mar 16th 2026
See the Roof Anchor Compatibility Chart for Bryer Company Standing Seam Panels.
Who Is The Bryer Company?
The Bryer Company, headquartered in Auburn, Washington, is a long-standing manufacturer of architectural and commercial metal roofing, wall panels, and soffit systems. Their product range includes flat sheets, coils, engineered systems, fasteners, and an extensive collection of metal construction accessories. One of Bryer's unique capabilities is its in-house fastener-painting line. This system allows the company to color-match fasteners with exceptional accuracy, ensuring visual consistency across any metal roofing or siding project.
Their Auburn facility houses advanced equipment, including multiple roll formers capable of producing 15 standing-seam and wall-panel profiles. Bryer can fabricate steel panels up to 18 gauge and up to 80 feet in length at the plant, and its portable roll formers allow on-site production of panels exceeding 150 feet in length. Bryer's commitment to custom materials, heavy-gauge offerings, and non-standard colors showcases its dedication to meeting the needs of demanding architectural projects.
Non-Penetrating Fall Protection Solutions Are Critical For Bryer Standing Seam Systems
Non-penetrating anchors remain the only safe and compatible approach for Bryer's standing seam roof systems. These panels rely on concealed fasteners to stay weather-tight through seasonal temperature swings. They are not compatible with any fall protection method that requires penetrations through the metal.
That is why non-penetrating fall protection is the only responsible choice for Bryer's standing seam profiles. When the panel gauge and seam style permit it, a non-penetrating anchor provides a certified tie-off point for installers and maintenance crews without drilling into the roof or interfering with the concealed fastener system. This guide walks safety managers, installers, and building owners through each Bryer standing seam panel, explaining which fall protection systems best match the seam shape and substrate.
- SSRA1 Standing Seam Roof Anchor: A universal non-penetrating anchor that attaches to the seam using 12 stainless-steel set screws, providing a 5,000-lb certified tie-off point without drilling.
- SSRA2 Adjustable Roof Jack Adapters: Adapters that mount to SSRA1 anchors to support a 10-foot walk board, allowing workers to stand on a level surface on steep-slope roofs.
- SSRA3 Anchor Plate: A heavy-duty aluminum plate that spans two SSRA1 anchors to create a certified attachment point for horizontal lifeline systems.
- SSRA HLL 100-foot Temporary Horizontal Lifeline Kit: A complete, portable lifeline system for up to two workers that allows safe lateral movement across wide roof sections without panel penetrations.
- Super Anchor 120-foot Permanent Horizontal Lifeline Kit: A long-term safety solution featuring galvanized steel cables and non-penetrating riser posts for facilities requiring frequent maintenance access.
- Ridge Pro Steep Assist Anchor: A ridge-mounted anchorage device that hooks over the peak to provide safe vertical lifeline access on pitches from 6:12 to 12:12.
Proper Attachment: Set-Screws and Torque Requirements
- Cupped-Tip Stainless Steel Set-Screws: Use these screws exclusively on 22-gauge steel panels. Torque these screws to 90 inch-pounds.
- Nylon-Tipped Set-Screws: Apply these tips to 22-gauge or 24-gauge steel panels to achieve certified holding power without marking the finish. Torque these screws to 180-200 inch-pounds.
- Maintenance: Treat nylon tips as consumables. Replace these tips every 3 to 5 uses to maintain maximum grip strength.
CRITICAL WARNING: NO IMPACT GUNS
Never use an impact gun to install set-screws. Over-torquing with an impact driver crushes the standing-seam rib, causing permanent panel deformation and compromising the anchor's certified holding power. This error damages the anchor hardware, compromises worker safety, and voids The Bryer Company's manufacturer's warranty. Always use a calibrated torque wrench for final installation.
TBC-Ultra Snaplock Panels (SSRA Compatible 22/24 ga. Steel)
The TBC-Ultra panel is a premium snaplock standing-seam option available in 22-gauge and 24-gauge steel, as well as in aluminum and copper. The system uses a continuous interlocking seam with concealed clip fastening, so there are no exposed fasteners on the weather side of the roof. Coverage widths include 12, 16, and 18 inches, with standard continuous lengths reaching up to 80 feet. See the Roof Anchor Compatibility Chart for Bryer Company 22 Gauge and 24 Gauge TBC-Ultra Snaplock Standing Seam Panels.
Fall Protection for TBC-Ultra Panels
- SSRA1 Standing Seam Roof Anchor: Provides a secure, non-penetrating tie-off point on 22-gauge and 24-gauge steel panels.
- SSRA2 Adjustable Roof Jack Adapters: Mounts onto SSRA1 anchors to support a ten-foot walkboard on 22-gauge and 24-gauge steel TBC-Ultra systems.
- SSRA3 Anchor Plates: Provides the end mounts for temporary horizontal lifeline kits on 22-gauge and 24-gauge steel.
- SSRA HLL 100-foot Temporary Horizontal Lifeline Kit: Supports two workers in fall arrest while providing lateral mobility on 22-gauge and 24-gauge steel.
- Super Anchor 120-foot Permanent Horizontal Lifeline Kit: Creates a year-round galvanized steel lifeline for routine maintenance on 22-gauge and 24-gauge steel panels.
- Ridge Pro Steep Assist Anchor: Required for 26-gauge steel, aluminum, or copper versions of TBC-Ultra to protect panel integrity and ensure safe tie-off.

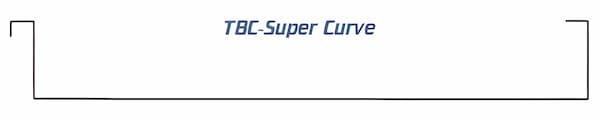

TBC-SuperCurve Mechanical Panels (SSRA Compatible 22/24 ga. Steel)
The TBC-SuperCurve is a mechanical standing seam panel available in 22-gauge and 24-gauge steel, as well as .032-inch and .040-inch aluminum and copper. It can be radiused to a 10-foot radius for barrel roofs and dramatic transitions. The system relies on mechanical seaming to lock the panels, which improves water shedding and wind resistance on complex roof shapes. See the Roof Anchor Compatibility Chart for Bryer Company 22 Gauge and 24 Gauge TBC-SuperCurve Mechanical Standing Seam Panels.
Fall Protection for TBC-SuperCurve Panels
- SSRA1 Standing Seam Roof Anchor: Clamps to straight, non-curved 22-gauge or 24-gauge steel seams without drilling.
- SSRA2 Adjustable Roof Jack Adapters: Supports walkboard staging on straight 22-gauge and 24-gauge steel sections.
- SSRA3 Anchor Plates: Serves as the foundation for temporary lifeline setups on straight 22-gauge and 24-gauge steel commercial projects.
- Super Anchor 120-foot Permanent Horizontal Lifeline Kit: Permanent tie-off solution for 22-gauge and 24-gauge steel mechanical seams.
- Ridge Pro Steep Assist Anchor: Preferred for 26-gauge steel, aluminum, or copper versions where seam-mounted anchorage is unsafe.
CRITICAL WARNING: For any curved TBC-SuperCurve project, regardless of gauge or material, a trained professional must review the roof before finalizing a safety plan.

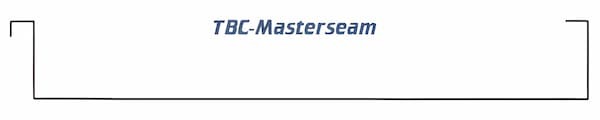

TBC-Masterseam Mechanical Panels (SSRA Compatible 22/24 ga. Steel)
The TBC-Masterseam forms a 1.5-inch mechanically locked standing seam, available in single- or double-lock configurations. It is manufactured on AZ50 Galvalume substrate and is available in copper, zinc, aluminum, and 22-gauge or 24-gauge steel. Coverage widths of 12, 16, and 18 inches provide flexibility for residential and commercial designs. See the Roof Anchor Compatibility Chart for Bryer Company 22 Gauge and 24 Gauge TBC-Masterseam Mechanical Standing Seam Panels.
Fall Protection for TBC-Masterseam Panels
- SSRA1 Standing Seam Roof Anchor: Clamps to non-curved 22-gauge and 24-gauge steel mechanical seams without penetrations.
- SSRA2 Adjustable Roof Jack Adapters: Mounts to SSRA1 anchors on 22-gauge or 24-gauge steel to create level walking surfaces.
- SSRA3 Anchor Plates: Used to anchor temporary lifeline kits for lateral worker movement on 22-gauge and 24-gauge steel.
- SSRA HLL 100-foot Temporary Horizontal Lifeline Kit: Turnkey fall protection for up to two workers on 22-gauge and 24-gauge steel.
- Super Anchor 120-foot Permanent Horizontal Lifeline Kit: A dependable long-term option for facilities with routine roof access on 22-gauge and 24-gauge steel.
- Ridge Pro Steep Assist Anchor: Required for 26-gauge steel, aluminum, copper, or zinc Masterseam panels.

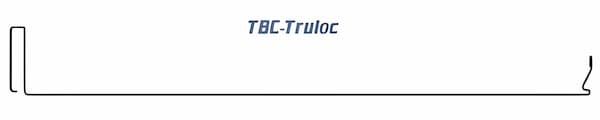

TBC-Truloc Snaplock Panels (SSRA Compatible 24 ga. Steel)
The TBC-Truloc Snaplock panel features a 1.5-inch seam and is available in 12-inch and 16-inch widths. Bryer offers this panel series in 24-gauge and 26-gauge steel, with AZ50 Galvalume substrate. The floating clip system allows the panel to expand naturally on longer runs while remaining weather-tight on slopes as low as 3:12. See the Roof Anchor Compatibility Chart for Bryer Company TBC-Truloc Snaplock Standing Seam Panels.
Fall Protection for TBC-Truloc Panels
- SSRA1 Standing Seam Roof Anchor: Clamps directly to 24-gauge steel seams without interfering with floating clip movement.
- SSRA2 Adjustable Roof Jack Adapters: Supports staging for ridge and trim work on 24-gauge steel Truloc systems.
- SSRA3 Anchor Plates: Provides the necessary base for lateral mobility using horizontal lifelines on 24-gauge steel.
- SSRA HLL 100-foot Temporary Horizontal Lifeline Kit: Portable lifeline system for 24-gauge steel Truloc applications.
- Super Anchor 120-foot Permanent Horizontal Lifeline Kit: Ideal for permanent maintenance access on 24-gauge steel snaplock seams.
- Ridge Pro Steep Assist Anchor: Required for 26-gauge steel TBC-Truloc panels, as they should not use seam-mounted anchors.

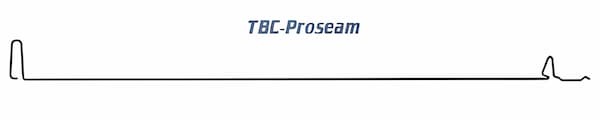

TBC-Proseam Nailstrip Panels (Ridge Pro Only)
TBC-Proseam offers a streamlined 1-inch nailstrip standing seam profile in 24-gauge and 26-gauge steel. It uses a concealed nail flange instead of a traditional floating clip. Because the nailstrip flange serves as the fastening point, it behaves differently under load than a clipped mechanical-lock panel. Seam shapes on nailstrip panels are often too narrow or tapered for reliable clamp attachment. See the Roof Anchor Compatibility Chart for Bryer Company TBC-Proseam Nailstrip Standing Seam Panels.
Fall Protection for TBC-Proseam Panels
- Ridge Pro Steep Assist Anchor: This is the only recommended tie-off method for 24-gauge and 26-gauge Proseam panels. It hooks over the ridge on 6:12 to 12:12 slopes.
- Constraint: Seam-mounted anchors (SSRA1, SSRA2, SSRA3) are not compatible with nailstrip flanges. You must use a ridge-mounted system to ensure safety.

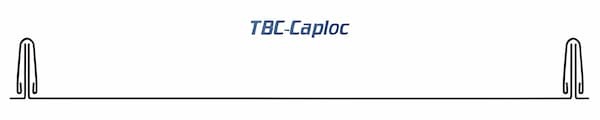

TBC-Caploc Batten-Cover Panels (Ridge Pro Only)
TBC-Caploc (1-inch seam) and Caploc Plus (1.5-inch seam) use a bold batten-cap seam to protect the concealed clip design. They are available in 22-gauge and 24-gauge steel, as well as .032-inch and .040-inch aluminum and copper. Because the batten cap covers the entire seam assembly, there is no exposed vertical standing seam leg for a clamp to grip. See the Roof Anchor Compatibility Chart for Bryer Company TBC-Caploc Batten-Cover Standing Seam Panels.
Fall Protection for TBC-Caploc Panels
- Ridge Pro Steep Assist Anchor: Provides a predictable, ridge-mounted tie-off path for all TBC-Caploc gauges and materials. It hooks over the ridge on 6:12 to 12:12 slopes.
- Constraint: Seam anchors (SSRA1, SSRA2, SSRA3) are incompatible with batten-cap families, regardless of metal gauge or material.
Standardizing Safety: Why Certified Testing Outperforms Budget Imports
The US market is currently seeing an influx of cheap, imported anchors that mimic the appearance of professional-grade hardware but lack the engineering and testing required for industrial fall arrest.
To give contractors absolute certainty, SSRA products offer complete transparency on our dedicated testing page. Every component in our system undergoes rigorous evaluation by an independent, ISO 17025-accredited laboratory. Our American-engineered hardware has been proven to exceed the 5,000-lb dynamic load requirement, ensuring compliance with the most demanding domestic safety protocols.
Metal Roof Anchor Panel Compatibility For The Bryer Company 22 Gauge Panels
| TBC-Ultra (22 Ga.) | TBC-SuperCurve (22 Ga.) | TBC-Masterseam (22 Ga.) | |
|---|---|---|---|
SSRA 1 |
YES | YES | YES |
SSRA1 Nylon Tip |
YES | YES | YES |
SSRA2 Roof Jack |
YES | YES | YES |
SSRA3 Anchor Plate |
YES | YES | YES |
The Ridge Pro |
YES | YES | YES |
Metal Roof Anchor Panel Compatibility For The Bryer Company 24 Gauge Panels
| TBC-Ultra (24 Ga.) | TBC-SuperCurve (24 Ga.) | TBC-Masterseam (24 Ga.) | TBC-Truloc (24 Ga.) | |
|---|---|---|---|---|
| SSRA 1 |
NO | NO | NO | NO |
| SSRA1 Nylon Tip |
YES | YES | YES | YES |
| SSRA2 Roof Jack |
YES | YES | YES | YES |
| SSRA3 Anchor Plate |
YES | YES | YES | YES |
| The Ridge Pro |
YES | YES | YES | YES |
Metal Roof Anchor Panel Compatibility For The Bryer Company Panels Cont.
| TBC-Proseam Nailstrip | TBC-Caploc | |
|---|---|---|
| SSRA 1 |
NO | NO |
| SSRA1 Nylon Tip |
NO | NO |
| SSRA2 Roof Jack |
NO | NO |
| SSRA3 Anchor Plate |
NO | NO |
| The Ridge Pro |
YES | YES |
Metal Roof Safety Tips For Bryer Company Standing Seam Roofs
- Promote a Culture of Safety: Crew safety improves dramatically when conversations happen before tools ever leave the truck. A quick check-in about weather, seam style, and tie-off locations prevents small mistakes from snowballing.
- Use Anchor Systems Built for Standing Seam Roofs: Bryer's systems rely on concealed clips. On 22-gauge or 24-gauge steel versions, the SSRA1 provides crews with a solid tie-off point without the need to locate hidden clips, thereby protecting panel integrity.
- Install Permanent Roof Anchor Systems: For buildings requiring repeated access, a permanent horizontal lifeline, such as the Super Anchor 120-Foot Kit, reduces setup time and minimizes unnecessary roof work.
- Ensure Proper Footwear for Stability: Roofing-grade boots with grippy rubber soles help workers stay planted on Bryer profiles and provide traction during transitions between anchor points.
- Develop OSHA-Compliant Safety Plans: A written plan should define tie-off points and rescue duties before anyone climbs. Mechanical-lock systems like TBC-Masterseam require different planning than nailstrip options.
- Encourage the Use of Trauma Straps: Trauma straps allow a suspended worker to stand and restore circulation while waiting for help, buying critical minutes during rescue operations.
- Equip Workers with High-Quality Safety Gear: Harnesses should fit the individual properly, and SRLs, such as the Malta Dynamics Edgehog, should be inspected daily.
- Set Up Protective Guardrails Near Hazards: Guardrails reduce the reliance on personal fall arrest by providing physical barriers around skylights and roof eave lines.
- Prioritize Ladder Safety Training: Review the 4-to-1 rule and secure a tie-off at the roof eave to prevent accidents before the worker ever steps onto the standing-seam surface.
- Consult Experts for Curved Metal Panels: Curved Bryer systems, such as TBC-SuperCurve, require careful evaluation. A trained professional should determine if ridge-mounted anchors or engineered solutions are required.
Contact Us for Expert Standing Seam Fall Protection Advice
For expert guidance on standing-seam roof anchors and lifeline kits that protect your crew and panels, contact us today at 863-703-4522 or visit www.StandingSeamRoofAnchor.com. For continued learning, download OSHA's 48-page Fall Protection Manual and our free Anchor Inspection Form. Together, we'll stay ahead of OSHA standards while preserving your roof's integrity.
