1017B Floor Joist Safety Bar

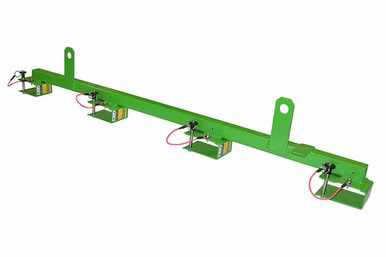

The Super Anchor 1017B is the floor joist safety bar for 16 inch on center floor joists: a safety green powder coated 1-1/2 x 1-1/2 x 1/8 inch A-36 steel cross-bar with 2 x 3/16 inch attachment stems, a 3/16 inch bump bar, and 3/8 inch stainless detent locking pins rated at 18,000 lb on coated cable tethers. It drops over 4x2 open web floor joists and roof trusses and locks in seconds.
2-person fall arrest capacity per bar with fall indicator attachment points and top chord centering holes for anti-skid nailing. Legs center on 1-3/4 inch OC hole patterns for a precise fit on the chords. Built to the same cross-bracing, framing strength, and inspection rules as the Super Anchor Safety Bar system under ANSI Z359.1 and OSHA 1926.502.
Who Needs This Product
Floor joist bars protect framing crews decking floor systems: the most common serious falls in residential framing happen through open web joists before subfloor goes down. The 1017B fits 16 inch on center floor joists. Two workers attach per bar with personal energy absorbers or SRLs, framing must be braced and capable of 5,000 lb or 2 times the load, and bars move ahead of the deck as sheathing advances. Not for work positioning.
Features
Locks to open web joists
Drop over the top chords and set the 18,000 lb stainless detent pins; remove and move in seconds.
16 inch fixed leg spacing
Fixed legs match 16 inch OC joist layouts.
Bump bar protection
The 3/16 inch bump bar keeps the cross-bar from rolling under load and protects the chord edge.
Fall indicator points
Dedicated attachment points show when the bar has taken a load and needs inspection.
Replaceable wear parts
Detent pins and cable tethers replace in the field, keeping bars in service for years.
Anti-skid centering holes
Top chord centering holes at 1-3/4 inch OC take duplex nails when the bar sits above bracing.
Technical Specifications
| Model | No. 1017B |
|---|---|
| Fits | 16 inch on center floor joists |
| Cross-Bar | 1-1/2 x 1-1/2 x 1/8 inch A-36 steel, safety green powder coated |
| Stems | 2 x 3/16 inch attachment stems with connector holes; 3/16 inch bump bar |
| Detent Pins | 3/8 inch stainless, 18,000 lb strength, coated cable tethers, replaceable |
| Capacity | 2-person fall arrest per bar; 310 lb per user including tools |
| Maximum Free Fall | 6 ft with required personal energy absorber or SRL |
| Bar Weight | 18 lb |
| Framing Requirement | 5,000 lb or 2 times the intended load per OSHA 1926.502(d)(15); joists braced per the truss manufacturer or engineer |
| Mandatory Bracing | Cross-bracing below the bar position; duplex nail anti-skid above bracing or sheathing |
| Compliance | ANSI Z359.1; OSHA 1926.502 |
Braced framing and locked pins required. Floor joists must be braced per the truss manufacturer or project engineer and capable of supporting 5,000 lb or 2 times the intended load. All detent locking pins must be in place before use, legs secured against skidding where required, and bars never placed over damaged framing or splices. Do not use for work positioning.
Compliance Standards
ANSI Z359.1 / OSHA 1926.502
Floor joist bar compliance per the Super Anchor safety bar documentation.
2-Person Fall Arrest
Rated for two attached workers per bar with compliant PPE.
18,000 lb Detent Pins
3/8 inch stainless detent locking pins with coated cable tethers.
A-36 Steel Construction
1-1/2 x 1-1/2 x 1/8 inch A-36 steel cross-bar with 2 x 3/16 inch stems.
Typical Applications
Installation Overview
Full figures, model tables, and bracing rules are in the manual linked below. The basics:
- Confirm joists are braced per the truss manufacturer or project engineer and capable of 5,000 lb or 2 times the intended load.
- Set the bar across the joist top chords with cross-bracing or strongbacks in place below.
- Seat all detent locking pins and confirm before tie-off.
- Pin the legs with duplex nails through the centering holes when the bar sits above bracing or sheathing.
- Connect up to 2 workers with personal energy absorbers or SRLs and compliant connectors.
- Move the bar ahead of the deck as sheathing advances, never loading it opposite the work direction.
Inspection and Retirement
Inspect before installation and each use, with documented annual inspections. Remove the anchor from service when any of the following apply:
- The cross-bar, stem, or legs are bent or deformed.
- Detent pins are missing, damaged, or replaced with uncertified hardware.
- Tethers or mounting hardware are broken.
- The bar was subjected to a fall; remove it from service and inspect the framing.
- The PID or warning label is missing or illegible.
Tag anchors removed from service to prevent further use until inspected by a qualified or competent person.
