Fall Protection Strategies For Apec Metal Express

Who Is Apec Metal Express?

Apec Metal Express is a premier metal roof manufacturer based in Dothan, Alabama. They specialize in high-quality metal roofing, siding, pole barns, and pre-engineered metal building components. The company serves a diverse customer base across Alabama, Florida, Georgia, Mississippi, and Tennessee. Whether for a residential roof, a commercial facility, or an agricultural barn, Apec Metal Express delivers reliable, durable products. Apec operates out of a 190,000-square-foot facility housing advanced roll-forming equipment. This technology produces standing seam panels engineered to meet stringent industry performance standards. Every panel undergoes meticulous testing to ensure it withstands the harsh environments of the Southeast. Their commitment to accurate deliveries and responsive support makes them a leading partner for contractors and property owners throughout the region.

Why Are Compatible Fall Protection Anchors Critical For Standing Seam Roofs?

Standing seam metal roofs offer exceptional longevity by concealing fasteners and protecting them from corrosion. This design offers superior water resistance but creates a unique challenge for fall protection. Traditional anchor points require drilling into the roof panels, which can undermine structural integrity and void manufacturer warranties. Contractors must use non-penetrating fall protection solutions to maintain the roof's performance. These systems clamp onto panel seams or lock over the ridge without penetrating the panel. This approach preserves the roof's watertightness while allowing natural thermal movement. Prevailing industry standards and warranties rely on these proper installation methods to keep the system and the workers secure.

The SSRA1 Standing Seam Roof Anchor serves as the primary solution for Apec Metal Express panels. This anchor provides a 5,000-pound-rated tie-off point by clamping to the seams with 12 set screws. You can expand the system with SSRA2 Adjustable Roof Jack Adapters to support 10-foot wooden walkboards for stable footing on steep slopes.

Adding SSRA3 Anchor Plates converts the anchors into connection points for horizontal lifelines. The 100-Foot SSRA Temporary HLL Kit allows multiple workers to move safely across the roof with continuous tie-off. For permanent maintenance requirements, the 120-Foot Super Anchor Permanent HLL Kit offers a cable solution that requires no roof penetrations.

For steep slopes between 6:12 and 12:12, or for non-steel substrates, the Ridge Pro Steep Assist is the most dependable option. It hooks securely over the roof peak to ensure 100% tie-off from the ladder to the ridge. Choosing the correct safety equipment prevents unwanted penetrations and protects the building owner's long-term investment.

Proper Attachment: Set Screws and Torque Requirements

Worker safety and the certified holding power of the SSRA1 anchor depend entirely on correct set-screw application. We provide specialized fastening options based on the material gauge of your metal panels:

• Cupped-Tip Stainless Steel Set Screws: Use these exclusively on 22-gauge steel panels. Torque them to 90 inch-pounds for a secure, non-penetrating lock.
• Nylon-Tipped Set Screws: Apply these to 22-gauge and 24-gauge steel panels to achieve certified holding power. Torque them to 180–200 inch-pounds for maximum strength.
• Maintenance: Treat nylon tips as consumables. Replace them every 3 to 5 uses to ensure they maintain the necessary coefficient of friction.

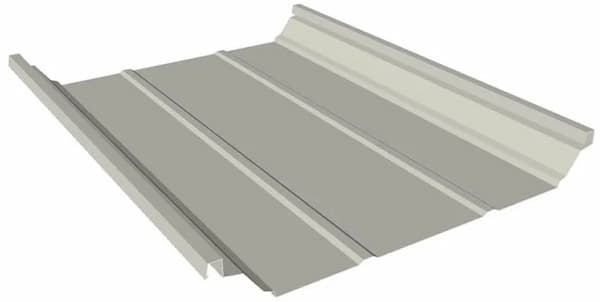

Apec TS324 Mechanical Trapezoidal Panels (SSRA Compatible 22/24 ga. Steel)

The TS324 panel from APEC Metal Express is rugged, high-strength, and versatile. This 24-inch mechanically seamed standing seam panel has a seam height of 3-1/16 inches. Manufactured from heavy-duty 22-gauge and 24-gauge steel, the TS324 utilizes a concealed fastener system to eliminate visible screws and potential leak points. This system creates a smooth, professional finish from eave to ridge. It performs exceptionally well on low-slope applications with a minimum slope of just ½:12. See the Roof Anchor Compatibility Chart for Apec Metal Express 22 Gauge and 24 Gauge TS324 Mechanical Trapezoidal Standing Seam Metal Roof Panels.

Fall Protection for TS324 Panels

For the TS324 in 22-gauge and 24-gauge steel, the SSRA family of seam-mounted anchors provides a secure, non-penetrating safety solution.

• Standing Seam Roof Anchor (SSRA1): This anchor serves as the foundation of the system. It clamps directly to the tall trapezoidal ribs without drilling, offering a tested 5,000-pound tie-off point that preserves the roof's watertight seal.
• SSRA2 Adjustable Roof Jack Adapters: These mount directly to the SSRA1 to support standard 10-foot wooden walkboards. This setup provides workers with a stable platform, which is invaluable on low-slope roofs where surfaces can become slick.
• SSRA3 Anchor Plates: These plates span two SSRA1 anchors to create connection points for temporary horizontal lifelines.
• 100-Foot SSRA Temporary HLL Kit: Using SSRA3 plates, this kit allows multiple workers to remain continuously tied off while moving freely along 100-foot sections of the roof.
• 120-Foot Super Anchor Permanent HLL Kit: This provides a permanent, non-penetrating cable lifeline solution for recurring maintenance and long-term facility safety.
• Ridge Pro Steep Assist: For substrates other than 22/24-gauge steel or slopes between 6:12 and 12:12, this anchor hooks over the ridge to provide 100% tie-off without penetrating the metal surface.

Apec PC216 Mechanical Panels (SSRA Compatible 22/24 ga. Steel)

The PC216 panel combines architectural appeal with high-performance weather resistance. This 16-inch panel has a mechanically locked 2-inch seam. The taller seam profile reinforces the roof against wind uplift and driving rain while providing a timeless vertical aesthetic. Built from 22-gauge or 24-gauge steel, the PC216 requires a mechanical seamer to lock the ribs together for maximum weathertightness. The concealed fastener system ensures there are no exposed screws to disrupt the surface. With a low minimum slope requirement of ½:12, the PC216 is ideal for Southeast environments where heat, humidity, and unpredictable storms are common. It is a preferred choice for modern retail centers, institutional buildings, and large-scale residential designs. See the Roof Anchor Compatibility Chart for Apec Metal Express 22 Gauge and 24 Gauge PC216 Mechanical Standing Seam Metal Roof Panels.

Fall Protection for PC216 Panels

Protecting workers on a PC216 roof requires a system that won't compromise the structure or void the Apec manufacturer's warranty.

• Standing Seam Roof Anchor (SSRA1): Clamps firmly to the 2-inch mechanical seam. It creates a fall arrest point without holes, allowing for natural thermal expansion and contraction.
• SSRA2 Adjustable Roof Jack Adapters: Mounted to the SSRA1, these adapters support 10-foot wooden walkboards, providing workers with a steady platform across the roof.
• SSRA3 Anchor Plates: These span two SSRA1 anchors to facilitate the use of horizontal lifeline systems.
• 100-Foot SSRA Temporary HLL Kit: This kit provides a 100-foot temporary lifeline for multiple workers, ensuring safety across wide roof sections without stressing the panels.
• 120-Foot Super Anchor Permanent HLL Kit: This system offers a permanent cable solution for long-term safety, featuring galvanized steel riser posts.
• Ridge Pro Steep Assist: For slopes between 6:12 and 12:12, this hooks over the ridge to allow for 100% tie-off during repairs or inspections.

Apec PC218 Mechanical Panels (SSRA Compatible 22/24 ga. Steel)

The PC218 panel offers a perfect balance of structural performance and clean visual lines. This 18-inch mechanically locked standing seam panel features a 2-inch seam height. Precision roll-formed in Dothan, Alabama, the PC218 is made from durable 22-gauge or 24-gauge steel. The tall seam height improves water shedding and wind resistance. Like other mechanical systems, it uses a concealed-fastener design, locked together with a seaming tool. This technique strengthens the joints and eliminates exposed fasteners. With a minimum slope requirement of ½:12, the PC218 performs exceptionally on expansive industrial roofs and custom home designs alike. See the Roof Anchor Compatibility Chart for Apec Metal Express 22 Gauge and 24 Gauge PC218 Mechanical Standing Seam Metal Roof Panels.

Fall Protection for PC218 Panels

For 22-gauge and 24-gauge steel PC218 models, the SSRA series provides an OSHA-compliant system that maintains the roof's integrity.

• Standing Seam Roof Anchor (SSRA1): The key starting point for the safety system. It clamps directly to the 2-inch seam without drilling, maintaining the watertight seal.
• SSRA2 Adjustable Roof Jack Adapters: These mount atop the SSRA1 units to support 10-foot wooden walkboards, providing a stable platform for detail work along ridges and eaves.
• SSRA3 Anchor Plates: These plates span between two SSRA1 anchors and serve as the anchorage point for temporary horizontal lifelines.
• 100-Foot SSRA Temporary HLL Kit: Allows multiple workers to remain connected across 100-foot roof sections, significantly improving job-site productivity.
• 120-Foot Super Anchor Permanent HLL Kit: A reliable permanent cable system for ongoing commercial maintenance that avoids roof penetrations.
• Ridge Pro Steep Assist: The recommended solution for slopes between 6:12 and 12:12. This device rests over the peak without penetrating the panel, ensuring 100% tie-off.

Apec SS675 Snaplock Panels (SSRA Compatible 22/24 ga. Steel)

The Apec SS675 Snaplock panel is a high-performance standing seam system that balances architectural beauty and structural rigor. This panel features a 1.75-inch seam height and provides 18 inches of steel coverage (16 inches in aluminum). The snaplock design allows for a secure installation without mechanical seaming tools, making it a favorite among contractors seeking efficiency without sacrificing quality. With UL 580 and UL 1897 testing for uplift resistance, the SS675 can withstand the extreme weather conditions common in Alabama and the Florida Panhandle. It carries a Class A hail rating and is FBC HVHZ approved for high-velocity hurricane zones. The 2/12 minimum slope requirement makes it an excellent choice for a wide variety of commercial and residential roof geometries. Available in 22-gauge and 24-gauge steel with smooth or optional embossed surfaces, this panel offers a sleek, modern finish that provides a premium look and superior protection. See the Roof Anchor Compatibility Chart for Apec Metal Express 22 Gauge and 24 Gauge SS675 Snaplock Standing Seam Metal Roof Panels.

Fall Protection for Apec SS675 Panels

For 22-gauge and 24-gauge steel SS675 panels, the SSRA product line offers a complete, non-penetrating safety solution. For aluminum panels (.040), the Ridge Pro is the required solution.

• Standing Seam Roof Anchor (SSRA1): Clamps directly onto the 1.75-inch Snaplock seam, providing a certified 5,000-pound tie-off point without drilling.
• SSRA2 Adjustable Roof Jack Adapters: These mount to the SSRA1 to support 10-foot wooden walkboards, creating level footing on sloped surfaces.
• SSRA3 Anchor Plates: These plates attach to the SSRA1 anchors to serve as connection points for horizontal lifelines.
• 100-Foot SSRA Temporary HLL Kit: Using SSRA3 plates, this kit provides a 100-foot temporary lifeline that allows multiple workers to remain protected across the roof.
• 120-Foot Super Anchor Permanent HLL Kit: A permanent, non-penetrating cable system designed for long-term facility maintenance and 100% tie-off compliance.
• Ridge Pro Steep Assist: For .040 aluminum panels or steel roofs with pitches between 6:12 and 12:12, the Ridge Pro hooks over the peak to provide immediate safety.

Apec SSR20 Mechanical Panels (SSRA Compatible 22/24 ga. Steel)

The Apec SSR20 is a heavy-duty, mechanically seamed standing seam panel engineered for maximum weather-tightness and structural performance. Featuring a 2-inch seam height, this panel provides 18 inches of steel coverage and 16 inches of aluminum coverage. The mechanical locking process creates a continuous, airtight seal that is exceptionally resistant to wind-driven rain, air infiltration, and water penetration, making it a premier choice for the challenging weather of the Southeast. The SSR20 is a versatile powerhouse, engineered for installation over multiple substrates, including open framing, plywood, or B-Deck with ISO insulation. Available in 22-gauge and 24-gauge steel, the panel supports a minimum slope of 2/12. Its combination of a high seam profile and mechanical seaming ensures superior structural integrity, carrying a Class 4 impact rating and UL Class A fire rating. See the Roof Anchor Compatibility Chart for Apec Metal Express 22 Gauge and 24 Gauge SSR20 Mechanical Standing Seam Metal Roof Panels.

Fall Protection for SSR20 Panels

The tall 2-inch mechanical seams of the SSR20 are perfectly suited for the following non-penetrating safety components on steel substrates. Aluminum panels (.040) require peak-mounted protection.

• Standing Seam Roof Anchor (SSRA1): Clamps securely to the mechanical seam without penetrations, ensuring the roof remains watertight.
• SSRA2 Adjustable Roof Jack: Mounts to the SSRA1 to provide stable support for 10-foot wooden walkboards.
• SSRA3 Anchor Plate: Provides the interface for connecting temporary horizontal lifeline systems to the SSRA1 anchors.
• 100-Foot SSRA Temporary HLL Kit: Enables continuous tie-off for multiple workers moving across expansive 100-foot sections of the SSR20 roof.
• 120-Foot Super Anchor Permanent HLL Kit: Offers a permanent, cable-based lifeline solution for ongoing maintenance without compromising the roof's integrity.
• Ridge Pro Steep Assist: The preferred solution for aluminum SSR20 panels or steel roofs with slopes from 6:12 to 12:12.

Apec FF100 Nailstrip Panels (Ridge Pro Only)

The Apec FF100 is a 16-inch wide nailstrip snaplock panel designed for ease of installation and a clean, concealed-fastener appearance. Featuring a 1-inch seam height, these panels are available in durable 22-gauge or 24-gauge steel. The nailstrip design integrates the fastening flange directly into the panel, allowing for quick attachment to the roof deck without clips. The FF100 requires a minimum pitch of 3/12. It is popular for residential and light commercial applications where a streamlined installation is desired. Because the subsequent panel's snaplock overlap hides the fasteners, the roof remains highly leak-resistant while providing a modern architectural finish. Precision-formed in Dothan, Alabama, the FF100 offers a balance of efficiency and long-term durability. See the Roof Anchor Compatibility Chart for Apec Metal Express Apec FF100 Nailstrip Standing Seam Metal Roof Panels.

Fall Protection for Apec FF100 Panels

Nailstrip panels like the FF100 present a unique challenge for fall protection because the seams are not always compatible with seam anchors. To ensure worker safety and prevent panel damage, we recommend a peak-mounted solution.

• Ridge Pro Steep Assist: This is the best fall protection solution for FF100 roofs with pitches between 6:12 and 12:12. The system hooks securely over the roof peak, providing a strong, stable tie-off point without requiring seam-mounted clamps or penetrations. This ridge anchor ensures workers maintain 100% tie-off from the moment they leave the ladder, protecting both the crew and the structural integrity of the steel nailstrip panels.

Certified American Quality: The SSRA Advantage for Apec Roofs

Investing in American-engineered fall protection is a proactive step toward safeguarding your crew and your professional reputation. While the market features various unbranded "look-alike" imports, the SSRA system stands apart as the gold standard of reliability. These bargain imports often lack the verifiable third-party engineering documentation required to meet strict OSHA and ANSI standards, creating unnecessary legal and financial risks for your business. In contrast, SSRA1 anchors are manufactured in the USA and rigorously tested at ISO 17025-accredited labs. While the industry standard requires a 5,000-pound capacity, the SSRA1 is certified to withstand an incredible 14,500 pounds without failure. By choosing SSRA, you gain more than just hardware; you secure access to a dedicated American support team, ensuring your crew operates with total confidence and returns home safely every single day.

Standing Seam Roof Anchor Compatibility for 22 Gauge Apec Metal Express

	TS324 (22 Ga.)	PC216 (22 Ga.)	PC218 (22 Ga.)	SS675 (22 Ga.)	SSR20 (22 ga.)
SSRA 1	YES	YES	YES	YES	YES
SSRA1 Nylon Tip	YES	YES	YES	YES	YES
SSRA2 Roof Jack	YES	YES	YES	YES	YES
SSRA3 Anchor Plate	YES	YES	YES	YES	YES
The Ridge Pro	YES	YES	YES	YES	YES

Standing Seam Roof Anchor Compatibility for 24 Gauge Apec Metal Express

	TS324 (24 Ga.)	PC216 (24 Ga.)	PC218 (24 Ga.)	SS675 (24 Ga.)	SSR20 (24 ga.)	Apec-FF100
SSRA 1	NO	NO	NO	NO	NO	NO
SSRA1 Nylon Tip	YES	YES	YES	YES	YES	NO
SSRA2 Roof Jack	YES	YES	YES	YES	YES	NO
SSRA3 Anchor Plate	YES	YES	YES	YES	YES	NO
The Ridge Pro	YES	YES	YES	YES	YES	YES

Contact Us For More Information

For further details on roofing solutions and fall protection systems, contact us at 863-703-4522 or visit www.StandingSeamRoofAnchor.com. Let's work together to make your roofing projects safe, beautiful, and built to last. For more safety tips, check out OSHA's 48-page fall protection manual. Once you have determined the most suitable anchors for your roof system, download our free Anchor Inspection Form.

Safety Tips for Standing Seam Roofs

• Use Specialized Anchor Systems for Standing Seam Roofs: Standing seam roofs require specialized anchoring. Traditional fasteners can puncture panels, jeopardizing safety and warranty coverage. That's where seam-mounted anchors come in; these non-penetrating systems clamp directly to the raised seams, preserving the integrity of the roof while offering a solid, tested tie-off point. Forget clip-style anchors that shift or fail under stress. With the right equipment, your crew stays secure, and the roof stays leak-free.
• Install Permanent Roof Anchor Systems: For rooftops that see routine inspections or service work, permanent anchor points are a smart investment. These fixed systems eliminate the need to install and remove temporary anchors for every visit, reducing setup time and streamlining your safety procedures. Facilities like warehouses and manufacturing plants benefit most, as consistent access demands consistent protection. Permanent anchors show a long-term commitment to both OSHA compliance and crew well-being.
• Encourage the Use of Trauma Straps: If a fall occurs, the aftermath can be just as dangerous. Suspension trauma is a real threat when a worker hangs immobile in a harness. Trauma straps help relieve pressure and restore circulation until help arrives. Every worker should know how to deploy them quickly and confidently, because in an emergency, every second counts.
• Promote a Culture of Safety: When everyone on site shares responsibility for identifying risks and speaking up, incidents drop and productivity climbs. Foster a culture where toolbox talks aren't just routine but meaningful, and where workers feel confident pointing out concerns. A strong safety culture builds trust, keeps morale high, and turns good crews into great ones.
• Prioritize Ladder Safety Training: Many roofing accidents happen before the first seam is even touched. Improper ladder use is a top hazard, so it pays to train workers on the basics. That includes proper placement, secure footing, and maintaining three points of contact. Drill in the 4-to-1 angle rule until it becomes second nature. Mastering ladder safety is the first step to mastering rooftop safety.
• Develop OSHA-Compliant Safety Plans: A strong OSHA safety plan outlines fall protection procedures, emergency response protocols, and task-specific hazards. When everyone knows the expectations and the steps to take, the site runs more smoothly and safely. It's the foundation that supports every crew member's confidence on the job.
• Ensure Proper Footwear for Stability: Even the most advanced harness won't help if a worker loses footing. On slick metal panels, slip-resistant boots are essential. Roofing-specific footwear with high-grip soles and proper support can make all the difference between confident movement and dangerous stumbles. Reliable shoes improve stability, reduce fatigue, and reinforce every step with confidence.
• Equip Workers with High-Quality Safety Gear: Fall protection gear should never be an afterthought. A well-fitted harness, proper lanyards, and dependable arrest devices can mean the difference between a scare and a tragedy.
• Set Up Protective Guardrail Barriers for Work Zones: On low-slope or large commercial roofs, they create a defined boundary that allows workers to move confidently. Near edges, skylights, or hatch openings, these barriers reduce distractions and mental strain by establishing a clear, safe zone. A simple rail can be the difference between routine work and a life-altering accident.
• Consult Experts for Curved Metal Panels: Curved standing-seam roofs add architectural flair but pose complex safety challenges. Standard anchors often aren't compatible, and the wrong setup can lead to roof damage or worse. When working on a radius or custom curve, consult a fall protection expert before setting foot on the surface.
