Fall Protection Strategies For Metal Alliance Standing Seam Panels

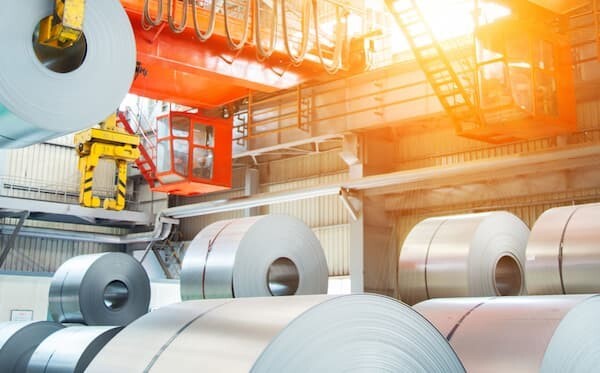

Who Is Metal Alliance?

Metal Alliance, based in Palm City, Florida, has earned a strong reputation in the architectural metal industry. This company supplies premium coil and sheet materials essential for manufacturing standing-seam roof panels and other metal systems used in high-performance construction. With additional facilities in Maryland and a growing network of authorized distributors throughout the United States and the Caribbean, Metal Alliance ensures that materials are consistently available for projects of all sizes.

Paul Filipe and Max Levin founded the company to close supply gaps in South Florida. Metal Alliance offers a wide selection of Galvalume steel, aluminum, copper, and MagnaGuard, which is a next-generation aluminum-zinc alloy coated with magnesium. Their product line includes multiple gauges, custom coil widths, and over 60 color choices. These materials feature durable coatings, such as Tedlar PVF film, to provide decades of environmental protection and color stability. Metal Alliance holds more than 40 Florida Product Approvals and supports 11 metal panel profiles with those certifications. This level of testing makes a significant difference in high-wind regions and coastal zones.

Why Are Compatible Fall Protection Anchors Critical for Standing Seam Roofs?

Standing-seam roofs are a popular choice because they are clean, modern, and tough. However, these roofs require a different approach to fall protection than other roofing systems. These panels rely on concealed clips and interlocking seams. Driving screws through a standing-seam panel is risky and can ruin the roof.

Puncturing a metal roof compromises the system's weather resistance. Water can seep through a tiny hole, and rust can spread over time. This damage occurs quickly in coastal climates, like those in most of Florida. Even if the roof looks fine initially, using the wrong type of anchor can void the warranty and lead to major repairs later.

This risk is why non-penetrating anchors are so important. These systems attach directly to the panel seams using set-screws so they do not breach the panels. When paired with the right panel type, these anchors provide OSHA-compliant fall protection without compromising roof performance.

The following specialized products provide the primary safety solutions for Metal Alliance systems:

• SSRA1 Standing Seam Roof Anchor: The core of the system. This anchor provides a non-penetrating, certified 5,000-pound tie-off point using 12 cupped-tip or nylon-tipped set-screws.
• SSRA2 Adjustable Roof Jack Adapters: These mount directly to the SSRA1 anchors. This setup allows the staging of 10-foot wooden walkboards to create level work platforms on steep slopes.
• SSRA3 Anchor Plates: These heavy-duty aluminum plates secure across two SSRA1 anchors. These plates serve as the certified endpoints for a temporary horizontal lifeline system.
• SSRA HLL 100-foot Temporary HLL Kit: This kit provides continuous tie-off for up to two workers in fall arrest. This assembly allows for safe lateral movement across large roof spans.
• 120-foot Super Anchor Permanent HLL Kit: This galvanized-steel-cable solution is for roofs requiring regular maintenance. This hardware provides a permanent safety backbone without penetrations.
• Ridge Pro Steep Assist: The ultimate solution for slopes between 6:12 and 12:12. This hook system secures over the ridge to provide 100% tie-off from the moment a worker leaves the ladder.

Proper Attachment: Set-Screws and Torque Requirements

Worker safety and the holding power of the SSRA1 anchor depend entirely on correct set-screw application:

• Cupped-Tip Stainless Steel Set-Screws: Use these screws exclusively on 22-gauge steel panels. Torque these screws to 90 inch-pounds for a secure, non-penetrating lock.
• Nylon-Tipped Set-Screws: Apply these tips to 22-gauge or 24-gauge steel panels to achieve certified holding power. Torque these screws to 180–200 inch-pounds for maximum strength.
• Maintenance: Treat nylon tips as consumables. Replace these tips every 3 to 5 uses to maintain maximum grip strength.

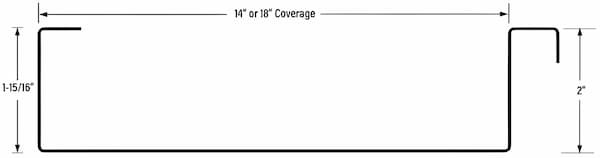

Metal Alliance 200MSAllSeam 2-Inch Mechanical Seam (SSRA Compatible 22/24 ga. Steel)

The 200MSAllSeam is a high-performance panel built for architectural projects with demanding structural requirements. This mechanically seamed panel features a 2-inch rib height and hidden clips that allow for thermal movement. It is available in 14-, 16-, or 18-inch widths. The available materials include 22-, 24-, and 26-gauge steel, aluminum, and copper. This system meets the strictest building codes in Florida and Miami-Dade County. See the Roof Anchor Compatibility Chart for 22 Gauge and 24 Gauge Metal Alliance 200MSAllSeam 2-Inch Mechanical Standing Seam Panels.

Fall Protection for 200MSAllSeam

For 22 and 24-gauge steel versions of this panel, the following products ensure worker safety:

• SSRA1 Seam Anchor: Provides a secure attachment point without drilling or damaging the panel.
• SSRA2 Adjustable Roof Jack Adapter: Mounts on top of the SSRA1 Anchor and supports 10-foot wooden planks for better footing.
• SSRA3 Anchor Plate: Attaches to the top of the SSRA1 Anchor to act as a connection point for temporary lifeline systems.
• SSRA HLL 100-foot Temporary HLL Kit: Enables safe lateral movement while keeping all components securely clamped to the seams.
• Super Anchor 120-foot Standing Seam HLL Kit: This permanent solution utilizes galvanized steel cable and seam clamps to span the roof without compromising the surface.
• Ridge Pro Steep Assist Anchor: This anchor offers a smart alternative for 26-gauge steel or aluminum. It hooks over the ridge for roofs with pitches from 6:12 to 12:12.

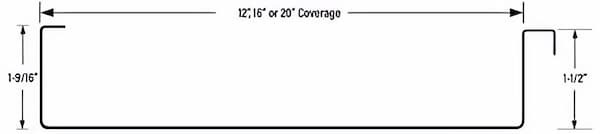

Metal Alliance 150MSAIISeam 1.5-Inch Mechanical Seam (SSRA Compatible 22/24 ga. Steel)

The 150MSAIISeam panel uses a 90- or 180-degree mechanical seam with a 1.5-inch height, locking panels together with concealed clips. This hidden system allows for natural expansion and contraction across temperature swings. It is available in coverage widths of 12, 16, or 20 inches. Material options include 22-, 24-, and 26-gauge steel, aluminum, and copper in 16- or 20-ounce sizes. Metal Alliance offers curved 150MSAIISeam 1.5-Inch Mechanical Seam panels as an option for creative roofing projects. See the Roof Anchor Compatibility Chart for 22 Gauge and 24 Gauge Metal Alliance 150MSAIISeam 1.5-Inch Mechanical Standing Seam Panels.

Fall Protection for 150MSAIISeam

For non-curved panels made from 22 or 24-gauge steel, the following non-penetrating solutions ensure OSHA compliance:

• SSRA1 Seam Anchor: Clamps directly to the panel seam without puncturing the metal to maintain a watertight barrier.
• SSRA2 Adjustable Roof Jack Adapter: Spreads the worker's weight across the seams using 10-foot wooden planks.
• SSRA3 Anchor Plate: Mounts on top of the SSRA1 for improved horizontal movement.
• SSRA HLL 100-foot Temporary HLL Kit: Workers can tie off to this temporary lifeline and move freely while staying secure.
• Super Anchor 120-foot Standing Seam HLL Kit: This kit supports long-term access while preserving the roof finish.
• Ridge Pro Steep Assist Anchor: Recommended for 26-gauge steel, aluminum, or copper on roofs with a pitch between 6:12 and 12:12.

Safety Warning: A trained professional should inspect curved panels before work begins. Curved roof panels can create anchor instability and require a custom strategy.

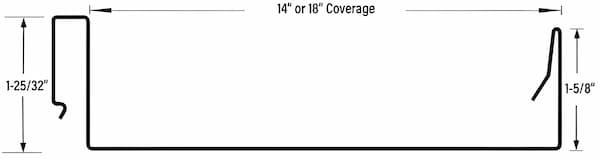

Metal Alliance 175SLAllSeam (SSRA Compatible 22/24 ga. Steel)

The 175SLAllSeam is a snap-together panel with a 1.75-inch seam height that delivers strong performance without mechanical seaming. This system maintains a sleek interlocking seam line and is available in coverage widths of 14, 16, or 18 inches. The 175 SLAllSeam panel is available in 22, 24, or 26-gauge steel and aluminum. See the Roof Anchor Compatibility Chart for 22 Gauge and 24 Gauge Metal Alliance 175SLAllSeam snap-together Standing Seam Panels.

Fall Protection for 175SLAllSeam

For 22 and 24-gauge steel panels, the following non-penetrating products are fully compatible:

• SSRA1 Seam Anchor: Clamps directly onto the seam without puncturing the panel to create a secure tie-off point.
• SSRA2 Adjustable Roof Jack Adapters: Create a secure footpath for navigating the roof using 10-foot wooden walkboards.
• SSRA3 Anchor Plate: Creates a strong anchor point for cable systems without deforming the snap-locked seam.
• SSRA HLL 100-foot Temporary HLL Kit: Allows multiple workers to stay tied off while moving horizontally.
• Super Anchor 120-foot Standing Seam HLL Kit: Ideal for commercial buildings requiring frequent access without drilling into the panel.
• Ridge Pro Steep Assist Anchor: The safest option for 26-gauge steel or aluminum on a roof slope between 6:12 and 12:12.

Metal Alliance 155SLAllSeam (SSRA Compatible 22/24 ga. Steel)

The 155SLAllSeam panel features a 1.5-inch snap-lock seam with a sleek 0.4375-inch width. These panels lock together via concealed clips to speed installation and accommodate thermal movement. It is available in coverage widths of 12, 16, or 20 inches. Material options include 22-, 24-, or 26-gauge steel and aluminum. See the Roof Anchor Compatibility Chart for 22 Gauge and 24 Gauge Metal Alliance 200MSAllSeam 2-Inch Mechanical Standing Seam Panels.

Fall Protection for 155SLAllSeam

For 22 and 24-gauge steel installations, the following products ensure a safe work environment:

• SSRA1 Seam Anchor: Attaches directly to the standing seam using high-strength clamping force without damaging the panel.
• SSRA2 Adjustable Roof Jack Adapter: Holds 10-foot wooden walkboards to provide workers with a comfortable path across long roof spans.
• SSRA3 Anchor Plate: Mounts on top of the SSRA1 for a temporary horizontal lifeline.
• SSRA HLL 100-foot Temporary HLL Kit: Allows multiple users to stay tied off while moving along the panel seams.
• Super Anchor 120-foot Standing Seam HLL Kit: Provides a long-term safety solution for buildings requiring ongoing access.
• Ridge Pro Steep Assist Anchor: Preferred for 26-gauge steel or aluminum on roof slopes ranging from 6:12 and 12:12.

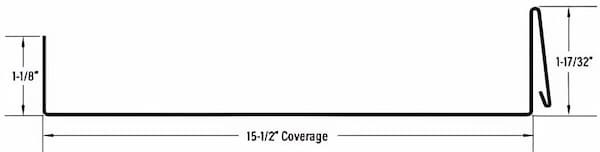

Metal Alliance 145SLAllSeam (SSRA Compatible 22/24 ga. Steel)

The 145SLAllSeam is a narrow-seam snap-lock panel with a 1.5-inch tall seam and a slim 0.156-inch width. The system snaps together over concealed clips and is available in a 15.5-inch coverage width. Material options include 22, 24, or 26-gauge steel, aluminum, and 0.7mm zinc. See the Roof Anchor Compatibility Chart for 22 Gauge and 24 Gauge Metal Alliance 200MSAllSeam 2-Inch Mechanical Standing Seam Panels.

Fall Protection for 145SLAllSeam

When this panel is 22 or 24-gauge steel, the following non-penetrating solutions protect the roof integrity:

• SSRA1 Seam Anchor: Provides a secure tie-off point while preserving the system's structural strength.
• SSRA2 Adjustable Roof Jack Adapter: Holds 10-foot walkboards to reduce fatigue and improve efficiency on steeper roof sections.
• SSRA3 Anchor Plate: Mounts on top of the SSRA1 seam anchors to support temporary horizontal lifelines.
• SSRA HLL 100-foot Temporary HLL Kit: Supports multiple users while ensuring the system remains watertight.
• Super Anchor 120-foot Standing Seam HLL Kit: Creates a reliable permanent lifeline without drilling.
• Ridge Pro Steep Assist Anchor: The better fit for 26-gauge steel, zinc, or aluminum on a 6:12 to 12:12 pitch.

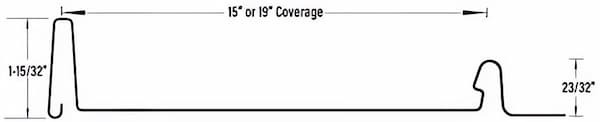

Metal Alliance 150SLAllSeam Nailstrip Panel (Ridge Pro Only)

The 150SLAllSeam is a cost-effective nailstrip panel featuring a 1.5-inch seam height. This profile is available in 15-inch and 19-inch coverage widths. It can be 24 or 26-gauge steel or aluminum. This panel is secured directly to the decking through a nail-strip flange. See the Roof Anchor Compatibility Chart for Metal Alliance 150SLAllSeam Nailstrip Standing Seam Panels.

Fall Protection for 150SLAllSeam

The integrated nailstrip flange makes this profile generally incompatible with seam clamps.

• Ridge Pro Steep Assist Anchor: This is the safest choice on a 6:12 to 12:12 pitch. This device hooks over the ridge to allow the worker to maintain 100% tie-off from the ladder to the peak.

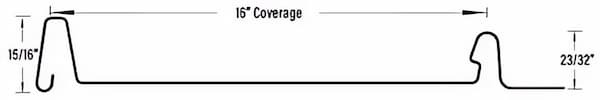

Metal Alliance 100SLAllSeam Nailstrip Panel (Ridge Pro Only)

The 100SLAllSeam is a low-profile nailstrip panel featuring a 1-inch seam height and a 16-inch coverage width. It is available in 22, 24, or 26-gauge steel and aluminum. These panels are fastened directly to the roof deck with hidden screws through a nail-strip flange and then snapped together. See the Roof Anchor Compatibility Chart for Metal Alliance 100SLAllSeam Nailstrip Standing Seam Panels.

Fall Protection for 100SLAllSeam

Because the panel is fastened directly through a nail-strip flange, you should not use seam-mounted anchors.

• Ridge Pro Steep Assist Anchor: This anchor hooks over the ridge and provides a stable tie-off point without relying on the seam. This product is an excellent choice for these lighter panels on a 6:12 to 12:12 slope.

Risks of Using Uncertified Imported Roof Anchors

While online marketplaces offer generic fall-protection products, these cheap imports often lack the verifiable third-party testing required to meet strict OSHA 1926.502 and ANSI Z359.18 standards. When protecting your crew, there is no room for the uncertainty that uncertified hardware creates.

The SSRA system eliminates this risk by providing transparency into domestic product development and testing. We manufacture and certify every component in the United States to provide customers with documented compliance. To ensure your crew has total peace of mind, you can review our official SSRA test reports to see the data for yourself. Investing in certified safety equipment is the only way to ensure the team remains protected by the highest reliability standards in the industry.

Metal Roof Anchor Panel Compatibility For 22 Gauge Metal Alliance Metal Building Supply

	200MSAllSeam (22 Ga.)	150MSAIISeam (22 Ga.)	175SLAllSeam (22 Ga.)	155SLAllSeam (22 Ga.)	145SLAllSeam (22 Ga.)	150SLAllSeam Nailstrip
SSRA 1	YES	YES	YES	YES	YES	NO
SSRA1 Nylon Tip	YES	YES	YES	YES	YES	NO
SSRA2 Roof Jack	YES	YES	YES	YES	YES	NO
SSRA3 Anchor Plate	YES	YES	YES	YES	YES	NO
The Ridge Pro	YES	YES	YES	YES	YES	YES

Metal Roof Anchor Panel Compatibility For 24 Gauge Metal Alliance Metal Building Supply

	200MSAllSeam (24 Ga.)	150MSAIISeam (24 Ga.)	175SLAllSeam (24 Ga.)	155SLAllSeam (24 Ga.)	145SLAllSeam (24 Ga.)	100SLAllSeam Nailstrip
SSRA 1	NO	NO	NO	NO	NO	NO
SSRA1 Nylon Tip	YES	YES	YES	YES	YES	NO
SSRA2 Roof Jack	YES	YES	YES	YES	YES	NO
SSRA3 Anchor Plate	YES	YES	YES	YES	YES	NO
The Ridge Pro	YES	YES	YES	YES	YES	YES

Contact Us For More Information

For further details on roofing solutions and fall-protection systems, please contact us at 863-703-4522 or visit www.StandingSeamRoofAnchor.com. Let's work together to make your roofing projects safe. For more safety tips, refer to the OSHA 48-page Fall Protection Manual. Once you have determined the most suitable anchors for your roof system, download our free Anchor Inspection Form.

Safety Tips For Standing Seam Roofs

Promote a Culture of Safety
Safety starts with mindset. When leadership models safe behavior and encourages open communication, the team follows. You should make safety part of every conversation. The best crews are those who look out for each other and treat safety as part of the job.

Use Specialized Anchor Systems for Standing Seam Roofs
Drilling into standing-seam panels quickly voids warranties and invites leaks. You should use seam-mounted anchors intended for these specific systems. These anchors clamp securely without penetrating the roof, keeping the roof intact while ensuring worker safety.

Prioritize Ladder Safety Training
Rooftop access is where most accidents happen. You should ensure that every crew member knows how to select the correct ladder and secure it properly. You must reinforce the 4-to-1 ladder angle rule and check each ladder before use. A safe job site starts at the ground.

Equip Workers with High-Quality Safety Gear
When gear is uncomfortable, workers tend to skip it or wear it incorrectly. You should invest in OSHA-approved equipment built to last. Harnesses and lifelines that fit right are more likely to be worn correctly every time someone steps onto a roof. In 2026, OSHA will actively enforce its rules requiring businesses to ensure that workers have properly fitting gear.

Set Up Protective Guardrail Barriers for Work Zones
Edges and skylights are not always obvious. Guardrails create clear physical barriers that help prevent accidental falls. These barriers are especially useful on large roofs where the perimeter can be difficult to see.

Encourage the Use of Trauma Straps
Hanging in a harness after a fall can be dangerous as the fall itself. Trauma straps let workers shift their weight and restore circulation while waiting for rescue. These straps are small and affordable. They should be standard on every harness.

Ensure Proper Footwear for Stability
Roofing demands footwear with superior grip and strong ankle support. Ordinary work boots do not cut it on slick metal panels. The right boots help prevent slips from becoming serious injuries.

Develop OSHA-Compliant Safety Plans
Generic safety plans do not suffice for custom jobs. Every roof needs a site-specific plan that highlights known hazards and defines emergency procedures. You should update the safety plan regularly to ensure the team remains familiar with the playbook for the current project.

Install Permanent Roof Anchor Systems
Permanent anchors are a wise investment for buildings that require frequent maintenance. These anchors provide ready-to-use tie-off points, reducing setup time. Commercial sites benefit from having fixed anchor systems that keep workers safe year after year.

Consult Experts for Curved Metal Panels
Curved roofs look great, but do not play by the same rules. Seam-mounted anchors may not sit flush on a radius. You should hire a fall-protection expert to evaluate the site and recommend gear that suits the roof.
