SSRA1 Standing Seam Roof Anchor – The Industry's Most Versatile Non-Penetrating Tie-Off Solution
The SSRA1 Standing Seam Roof Anchor weighs just 4.5 pounds and installs in approximately two minutes using a micro torque wrench. This device provides 5,000-lb certified fall protection without requiring any panel penetrations. Contractors, solar installers, maintenance crews, building owners, and even DIY homeowners trust the SSRA1 to deliver safe, code-compliant tie-off points while preserving the warranties and watertight integrity of the standing seam roof systems.
SSRA1 Standing Seam Roof Anchor Third-Party Testing
Independent ISO 17025/ANSI Z359.18 testing confirmed the SSRA1 Standing Seam Roof Anchor's unmatched strength and reliability.
While OSHA and ANSI require anchors to withstand 5,000 lbs., the SSRA1 endured an astonishing 14,500 lbs. before the Grade 8 top bolts sheared—leaving the solid aluminum body completely unharmed. This performance not only exceeds industry standards but also surpasses those of competitors, proving that the SSRA1 is in a league of its own.
SSRA1 Standing Seam Roof Anchor Patented Non-Penetrating Design
The SSRA1 Standing Seam Roof Anchor features a patented design with a solid 6061-T6 aluminum body secured by 12 stainless steel set screws.
This system provides a rock-solid attachment without damaging the seam. Unlike compression-style anchors that rely on plates to squeeze the seam with high torque, the SSRA1's set screws prevent sliding during impact and deliver consistent holding power at much lower torque settings.

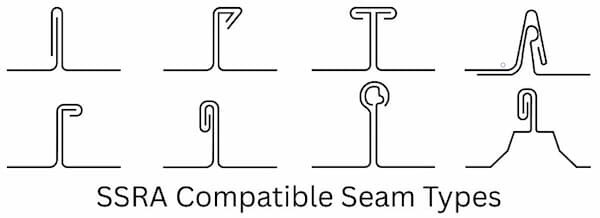

Each SSRA1 comes standard with a 5,000-lb certified D-ring for single-worker tie-off. The universal-fit SSRA1 anchor body adapts to more than 500 standing seam panel profiles—including T-seams, bulb seams, SnapLok, MR-24, single lok, and double lok—without requiring reassembly.
The SSRA1 has a unique removeable D-ring making it compatible with adapter plate components. The SSRA2 Adjustable Roof Jack Adapters mount on top of the SSRA1 to support 10-foot walkboards. Contractors can use the SSRA3 Anchor Plates connected to SSRA1 anchors to create temporary 100-foot horizontal lifeline systems. Together, these options make the SSRA1 the only certified component system for mounting multiple tools and safety solutions on standing seam roofs.
SSRA1 Standing Seam Roof Anchor Benefits for Fall Protection
- Weighs only 4.5 lbs. – the world's lightest OSHA/ANSI 5,000-lb tested roof anchor
- Installs in minutes with a micro micro torque wrench and 3/16" hex bit socket
- Universal-fit design works on over 500 standing seam panel profiles
- Non-penetrating installation protects roof warranties and watertight performance
- OSHA-tested to 5,000 lbs. in all directions, ensuring safety on both sides of the roof
- Made in the USA from durable aluminum and stainless steel, compliant with ANSI/ASTM B-117 salt spray resistance
- Clean, low-profile installation reduces tripping hazards on the jobsite
- Includes a Limited Lifetime Warranty
SSRA1 Standing Seam Roof Anchor Applications
The SSRA1 Standing Seam Roof Anchor is a versatile solution for many safety applications.
Workers can use it for attaching roof jacks for 10-foot wooden walkboards, self-retracting lifelines (SRLs), horizontal lifelines, and ladder anchoring. Workers using SSRA1 anchors must use inline shock absorbers or shock packs. For 22-gauge panels, both cupped-tip and nylon-tip set screws are available, while 24-gauge panels require nylon-tip set screws only.
What's Included with the SSRA1 Standing Seam Roof Anchor
- 12" solid 6061-T6 aluminum body with patented universal-fit design
- 5,000-lb certified forged D-Ring
- 12 stainless steel cupped-tip set screws (3/16" hex/Allen)
- Limited Lifetime Warranty
- Owner's Manual for SSRA1 Seam Anchors
Additional SSRA1 Anchor Resources
SSRA1 Anchor Cut Sheet
Spec Sheet for SSRA1 Anchors
Please review our Return Policy before ordering, as it contains helpful tips for confirming clamp fitment to your seams. The return policy is 7 days to inspect the equipment for defects, and there is a 25% restocking fee. Seam fitment, paint scratches, and dimpling are normal occurrences with seam anchors. They are not product defects or reasons for returns.
