Super Anchor 3200-50-US 50 ft Safety Kit: MAX-V Fall Protection Bucket Kit
The Super Anchor 3200-50-US MAX-V Safety Kit packs a complete, OSHA-compliant personal fall arrest system into one blue storage bucket. It pairs a 50 ft Maxima 3-strand lifeline with a universal-size Hi-Viz harness, a Max-Force energy absorber with an integral rope grab, and the reusable Hinge-2 roof anchor, providing a single worker with everything needed to tie off from the moment the bucket reaches the roof.

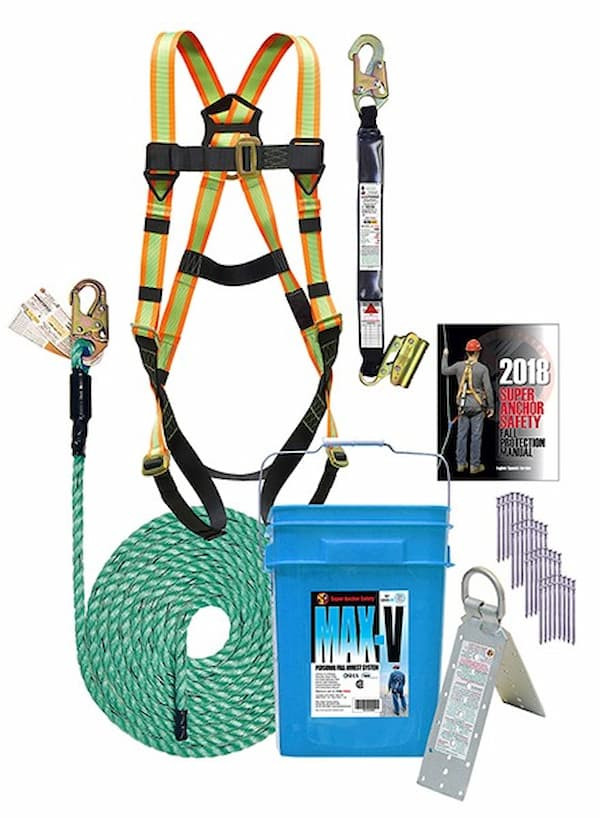

What is included: 50 ft Maxima Lifeline No. 4083-50, No. 6069 5pt Universal Size Hi-Viz Harness, No. 3004 Energy Absorber with No. 4015-M Rope Grab, and No. 3013-D Hinge-2 Anchor with 36ct duplex nails, all packed in a blue storage bucket.
Who Needs This Product
Residential roofing contractors, solar installers, gutter crews, chimney and skylight technicians, and property maintenance teams who need a ready-to-work personal fall arrest system for one worker. The 3200-50-US is the entry point in the Super Anchor kit lineup: every component is matched at the factory, so a crew leader can hand a new hire the bucket and know the harness, lifeline, rope grab, energy absorber, and anchor all comply together. The 50 ft lifeline suits most single-family and light-commercial roof planes.
Features
50 ft Maxima 3-Strand Lifeline
The No. 4083-50 lifeline is 5/8" co-polymer 3-strand rope with a minimum tensile strength of 10,582 lb and maximum elongation of 10% at 1,800 lb. A snaphook on the A-end connects directly to the anchor D-ring.
Max-Force Energy Absorber With Integral Rope Grab
The No. 3004 tear-webbing absorber meets ANSI Z359.13 and arrives factory-assembled to the No. 4015-M integral adjuster rope grab. Average peak force is limited to 900 lb, with a maximum tear-webbing deployment of 48".
Single-Direction Locking Rope Grab
The zinc-plated No. 4015-M fits 5/8" 3-strand synthetic rope, locks in one direction, and is captive on the lifeline so it cannot be dropped or installed backward. Breaking strength is 3,600 lb.
Universal-Size Hi-Viz Harness
The No. 6069 value fall arrester harness uses Hi-Viz webbing with 5-point adjustment and a dorsal D-ring, fitting a wide range of workers without size guessing at the supply house.
Hinge-2 Reusable Roof Anchor
The No. 3013-D anchor is 11ga steel with a forged, Dacromet-coated D-ring and a 19.0" hinged plate that follows the ridge or lays flat on the field of the roof. 36 16d duplex nails are included for installation and clean removal.
Everything in One Bucket
The blue storage bucket keeps the complete system together between jobs, simplifies gang-box inventory, and gives the crew a clean place to store the lifeline away from sunlight and chemicals.
Technical Specifications
| Kit Part Number | 3200-50 (MAX-V Bucket Kit, 50 ft) |
|---|---|
| Lifeline | No. 4083-50 Maxima 5/8" 3-strand co-polymer, 50 ft, snaphook A-end |
| Lifeline Tensile Strength | 10,582 lb minimum |
| Lifeline Elongation | 10% maximum at 1,800 lb |
| Rope Grab | No. 4015-M integral adjuster, zinc plated, single-direction locking, 3,600 lb breaking strength |
| Energy Absorber | No. 3004 Max-Force tear webbing, ANSI Z359.13, 900 lb average peak force, 48" maximum deployment |
| Harness | No. 6069 universal size Hi-Viz value fall arrester harness |
| Anchor | No. 3013-D Hinge-2, 11ga steel, forged D-ring, Dacromet coated, 19.0" x 3.0" legs |
| Anchor Tensile Strength | 5,000 lb minimum |
| Fasteners | 36ct 16d duplex nails (6 per leg required, 12 per installation) |
| Maximum Roof Slope | 12/12 with 16d duplex nails; 24/12 with WS 3.0" wood screws (sold separately) |
| User Capacity | One worker, 310 lb maximum including tools |
| Maximum Free Fall | 6 ft |
| Working Temperature | -30 F to 130 F |
| Compliance | OSHA 1926.502, ANSI Z359.1-07/15-14, ANSI Z359.13 (energy absorber) |
The Hinge-2 is a temporary anchor and must be removed after use. The wood structure at the anchorage must be capable of supporting 5,000 lb or 2x the intended fall protection load, with a minimum 2x4 top chord and 7/16" OSB sheathing. Fasteners must penetrate the top chord a minimum of 2.0", and the anchor must be installed at least 6 ft from any gable edge. Remove the entire kit from service immediately after arresting a fall.
Compliance Standards
OSHA 1926.502
Personal fall arrest system criteria for construction, including the 5,000 lb anchorage requirement and maximum arresting force limits this kit is built around.
ANSI Z359.1
The lifeline, harness, and connectors follow ANSI Z359.1 fall protection code requirements, with class 1 snaphooks rated at 3,600 lb gate strength.
ANSI Z359.13
The No. 3004 Max-Force energy absorber meets ANSI Z359.13 for personal energy absorbers, limiting average arrest force to 900 lb for a 130 lb to 310 lb user.
OSHA 1926.501
Requires fall protection for construction workers at 6 ft or more above a lower level. This kit provides a compliant one-worker solution for steep and low-slope residential roofs.
Typical Applications
Installation Overview
Typical installation for a pitched wood-framed roof. Read the complete instruction manuals supplied with the kit before use.
- Locate a rafter or truss within 30 degrees of vertical above the work area, at least 6 ft from any gable edge.
- Position the Hinge-2 anchor over the framing member, hinged over the ridge or flat on the field of the roof.
- Drive 6 16d duplex nails per leg (12 total) through the center-row small-diameter holes into the framing, with a minimum 2.0" penetration.
- Connect the Maxima lifeline snaphook to the anchor D-ring.
- Don the No. 6069 harness and adjust all 5 points for a snug fit.
- Attach the No. 3004 energy absorber snaphook to the dorsal D-ring; the No. 4015-M rope grab is already captive on the lifeline.
- Slide the rope grab to remove slack, keeping free fall to 6 ft or less, and verify the grab locks toward the fall hazard before starting work.
- Remove the anchor when work is complete; duplex nail heads allow clean extraction.
Inspection and Retirement
Inspect before installation and each use, with documented annual inspections. Remove the anchor from service when any of the following apply:
- Anchor legs are cut, bent, or deformed, or hinge shackle welds are cracked
- D-ring is deformed, cut, or shows corrosion beyond surface discoloration
- Lifeline shows cut strands, burns, glazing, chemical damage, or UV chalking
- Rope grab does not lock in the fall direction or slides with the cam engaged
- Energy absorber tear webbing shows any deployment or the clear cover is torn
- Harness webbing is cut, frayed, or stitching is broken, or buckles do not hold
- Warning or PID labels are missing or not legible
- The system arrested a fall or was loaded in any way
Tag anchors removed from service to prevent further use until inspected by a qualified or competent person.
