Fall Protection For Westform Metals Standing Seam Panels

See the Roof Anchor Compatibility Chart for Westform Metals Standing Seam Panels.

Who Is Westform Metals?

Westform Metals, established in 1961 in Chilliwack, British Columbia, has evolved from a family-owned lumber yard into a premier manufacturer of metal roofing and siding for Western Canada.

Operating from facilities in Chilliwack, BC, and Lacombe County, Alberta, they deliver custom-cut-to-length cladding for residential, commercial, and agricultural projects. Westform's Prolok 12" and Prolok 16" standing seam nailstrip panels offer a clean visual look with over 80 color options. With a focus on sustainability using 30% recycled steel, and support for contractors through CAD design and a visualizer tool, Westform Metals is a trusted choice for high-quality metal roofing solutions.

Why Are Compatible Fall Protection Anchors Critical for Prolok Standing Seam Panels?

Non-penetrating fall protection anchors are essential for Prolok 12-inch and 16-inch standing seam panels to maintain their weather-tight integrity and ensure worker safety.

Drilling into these panels risks water leaks, oil canning, and voided warranties, as it compromises the concealed fastening system. OSHA regulations require that employees use fall protection when working at heights. Seam-mounted anchors attach to the roof seams without penetrations through the metal. This strategy preserves the panel's integrity and warranty while providing safe tie-off points. This feature ensures crews can install or maintain Prolok panels efficiently, meeting safety standards and protecting the roof's performance.

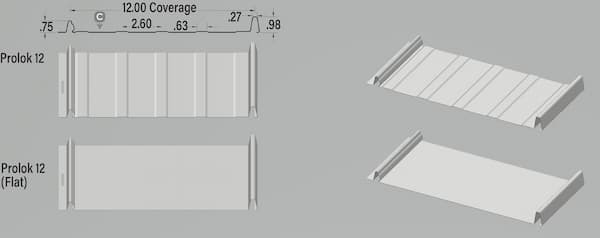

Prolok 12-Inch Nailstrip Panels

The Prolok 12-Inch panel delivers a sleek, durable solution for roofing and wall applications, blending ease of installation with a clean look.

Featuring a 12-inch coverage width and a 1-inch seam height, it uses a concealed nailstrip fastening system for a fastener-free, weather-tight finish. Crafted from 24-gauge or 26-gauge steel with a minimum of 30% recycled content, this panel withstands Western Canada's harsh weather conditions, including heavy snow and high winds. The Prolok 12 is available in flat panels or with striations. See the Roof Anchor Compatibility Chart for Westform Metals Prolok 12-Inch Nailstrip Standing Seam Panels.

Over 80 SMP and PVDF color options offer design flexibility for residential homes, commercial facades, or agricultural buildings. Tested for UL 580 uplift resistance and approved for weather-tight warranties, the Prolok 12" is ideal for a minimum 2:12 slope, ensuring long-lasting performance and contractor-friendly installation.

Fall Protection for Prolok 12-InchNailstrip Panels

Specialized fall protection systems clamp onto the Prolok 12-inch panel's 1-inch seams without penetration, safeguarding both workers and the roof's weather-tight integrity.

For 24-gauge versions, the SSRA1 Seam Anchor is an excellent option. This lightweight, universal-fit seam anchor is OSHA-compliant and features 12 non-penetrating set screws to grip the seam securely. It can be used as a single-worker tie-off anchor or as a mounting base for SSRA adapter plates. Its quick installation and repositionability make it ideal for crews installing or performing maintenance tasks. The SSRA system ensures worker safety without damaging the panel surface.

The SSRA2 Adjustable Roof Jack mounts onto the SSRA1 seam anchors to support 10-foot wooden walkboards, creating a level walking platform that distributes weight evenly to prevent dents or scratches on the panels. Adjustable for seam height and roof pitch, it enhances worker mobility and confidence.

For larger projects, the SSRA3 Anchor Plate mounts on top of two SSRA1 seam anchors, allowing for the mounting of temporary 100-foot horizontal lifelines. This process enables multiple workers to stay tied off across the roof without compromising the concealed fastening system. The Super Anchor 120-Foot Standing Seam HLL Kit provides a permanent lifeline solution, utilizing seam-clamped bases for galvanized steel cables and riser posts, ensuring long-term safety on buildings.

For 26-gauge panels with steeper slopes (6:12 to 12:12), the Ridge Pro Steep Assist hooks over the roof peak with a padded base, ensuring a non-penetrating anchor point without harming the panel's finish. The RidgePro is a "first man up" device, as it provides a 100% tie-off for workers while on the roof, until they are safely back on the ladder.

Together, these systems offer multiple fall protection options to protect workers from falls while maintaining the Prolok 12's durability and weather-tight performance.

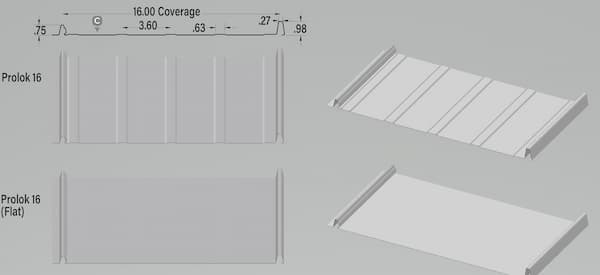

Prolok 16-Inch Nailstrip Panels

The Prolok 16-inch panel offers an excellent solution for large-scale roofing and cladding projects, delivering strength and a distinctive aesthetic.

With a 16-inch coverage width and a 1-inch rib height, it features a hidden nailstrip fastening system that ensures a smooth, watertight roof system. Constructed from 24-gauge or 26-gauge steel with at least 30% recycled content, this panel withstands extreme weather conditions, from blizzards to high winds, making it ideal for Western Canada's challenging climates. See the Roof Anchor Compatibility Chart for Westform Metals Prolok 16-Inch Nailstrip Standing Seam Panels.

Available in flat or striated finishes, it offers over 80 SMP and PVDF color choices. Perfect for versatile styling across commercial buildings, agricultural structures, or modern residences. Certified for UL 580 wind uplift resistance and backed by weather-tight warranties, the Prolok 16" supports a minimum 2:12 pitch, providing reliable performance and simplified installation for contractors.

Fall Protection for Prolok 16-Inch Nailstrip Panels

Non-penetrating fall protection solutions are available for the Prolok 16-inch panel.

For 24-gauge panels, the SSRA1 Seam Anchor provides a reliable foundation, utilizing twelve non-penetrating set screws to secure the seams, serving as a single-worker tie-off point or a base for adapter plates. You can easily install this OSHA-compliant, lightweight anchor in approximately two minutes and remove it in one minute.

The SSRA2 Adjustable Roof Jack adapters mount on top of the SSRA1 seam anchors for securing 10-foot wooden walkboards. These adapter plates adjust to accommodate various seam heights and roof pitches, providing a stable, level walking surface for the worker.

For roofing projects that require maximum worker mobility, we recommend the SSRA3 Anchor Plate. It simply mounts on top of two SSRA1 anchors on panels with seam widths of 12 to 24 inches. This assembly at each end of the roof will support a temporary 100-foot horizontal lifeline. This system allows two workers to move horizontally across the work area while maintaining a tie-off.

The Super Anchor 120-Foot Standing Seam HLL Kit provides a permanent safety solution, utilizing seam-clamped bases and riser posts to anchor galvanized steel cables, ensuring long-term protection for buildings with regular access requirements.

For 26-gauge panels on steeper pitches 6:12 to 12:12, the Ridge Pro Steep Assist, a "first man up" device, hooks over the roof ridge with a cushioned base, providing a secure, non-penetrating tie-off point for navigating challenging slopes without harming the panel's finish.

These solutions provide multiple options for contractors and safety managers responsible for ensuring worker safety on standing seam roof systems.

Metal Roof Anchor Panel Compatibility For Westform Metals

Contact Us For More Information

For further details on roofing solutions and fall protection systems, please contact us at 863-703-4522 or visit www.StandingSeamRoofAnchor.com. Let's work together to make your roofing projects safe. For more safety tips, refer to OSHA's 48-page Fall Protection Manual. Once you have determined the most suitable anchors for your roof system, download our free Anchor Inspection Form.

Safety Tips For Standing Seam Roofs

Promote a Culture of Safety

Foster a workplace where safety is a shared priority by encouraging open hazard reporting and daily safety briefings. Lead by example to ensure all team members, from rookies to veterans, prioritize vigilance. This approach fosters a cohesive team that protects everyone while working on metal roof panels, thereby reducing risks associated with slippery or sloped surfaces.

Use Specialized Anchor Systems for Standing Seam Roofs

Avoid drilling into standing seam panels to prevent leaks and warranty issues by using seam-mounted anchors, such as the SSRA1. These non-penetrating systems securely clamp to the seams, providing reliable tie-off points that keep workers safe and maintain the roof's weather-tight integrity.

Consult Experts for Curved Metal Panels

Curved roof panel installations require specialized safety solutions due to the unique anchoring challenges they present. Engage fall protection specialists to recommend equipment tailored to curved surfaces, ensuring secure tie-offs that do not compromise the panel's structure or aesthetic.

Encourage the Use of Trauma Straps

Equip every harness with trauma straps to prevent circulation issues that may occur during a fall. These lightweight, affordable devices allow workers to adjust their position while awaiting rescue, enhancing safety and comfort on metal roofing projects.

Set Up Protective Guardrail Barriers for Work Zones

Install temporary or permanent guardrails around roof edges and skylights to identify hazardous zones. These barriers enhance safety on metal panels by preventing accidental falls, allowing crews to focus on installation without worrying about perimeter risks.

Develop OSHA-Compliant Safety Plans

Create tailored safety plans for each project, identifying site-specific hazards, outlining rescue procedures, and defining crew responsibilities. Regularly review and update these plans to ensure compliance and preparedness, keeping workers safe on every job.

Install Permanent Roof Anchor Systems

For buildings with frequent roof access, such as commercial or institutional structures, install permanent anchors, like the Super Anchor 120-foot HLL Kit, on standing seam panels. These systems provide instant tie-off points, streamlining maintenance while protecting the roof from repeated damage to anchors.

Prioritize Ladder Safety Training

Train workers to choose, inspect, and set up ladders correctly, using the 4:1 angle rule and maintaining three points of contact. Proper ladder practices prevent accidents before reaching the roof surface, ensuring a safe start to every project.

Equip Workers with High-Quality Safety Gear

Provide OSHA-approved harnesses, lanyards, and self-retracting lifelines designed for comfort and reliability. Well-fitting gear encourages consistent use, ensuring workers are protected during metal panel installation or maintenance, regardless of job duration.

Ensure Proper Footwear for Stability

Require roofing boots with slip-resistant soles and strong ankle support to navigate metal panels safely. These specialized shoes withstand dust, moisture, and steep slopes, preventing slips and ensuring worker stability during installation or repairs.

Disclaimer

The views, recommendations, and information presented in this blog are solely those of the author and do not necessarily reflect the opinions or positions of the featured panel manufacturer, its brands, subsidiaries, or parent companies. Customers are strongly encouraged to contact the roof panel manufacturer directly for inquiries regarding fall protection compatibility with their products and to address any potential warranty issues that may arise after installing our products.
