Super Anchor 120 ft Permanent Standing Seam HLL Kit: Non-Penetrating Horizontal Lifeline System
This kit builds a permanent, engineered 120 ft horizontal lifeline on a standing seam metal roof without a single penetration. Five No. 1207 SSCA plate anchors clamp to the panel seams on RoofClamp RCT clamps, 1031-PG pass-thru intermediate posts carry the cable so workers never disconnect mid-span, and the 1050-G rigging package terminates both ends. Rated for 2-person fall arrest and 3-person fall restraint per the 2024 Super Anchor catalog, it is the engineered big brother of the SSRA1 ecosystem for crews that need tie-off on the roof every day, not just during construction.

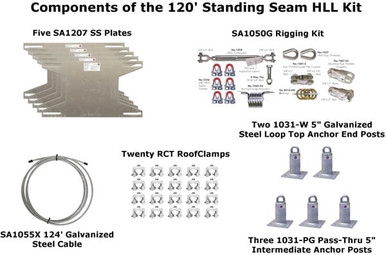

What is included: 5ea No. 1207 SSCA Standing Seam Plates (sized to your selected seam spacing), 20ea RoofClamp RCT seam clamps, 2ea No. 1031-W 5" Loop Top end anchor posts, 3ea No. 1031-PG CRA-PT5 Pass-Thru intermediate anchor posts, 124 ft of No. 1055-X 3/8" galvanized HLL cable, and 1ea No. 1050-G HLL Rigging Kit with turnbuckle, spring energy absorber, couplers, O-rings, eye thimbles, and cable clamps.
Who Needs This Product
Building owners, metal roofing contractors, and facility safety managers who need permanent, always-ready tie-off along a standing seam roof: solar arrays, rooftop HVAC corridors, standing seam maintenance paths, and any low-slope or gabled metal building where workers return regularly. Because every attachment point clamps to the seams, the panel warranty and weatherproofing stay intact, and the pass-thru intermediates give workers 100% hands-free travel across the full 120 ft span. If you already run SSRA1 anchors for construction-phase work, this kit is the permanent system you leave behind for the life of the roof.
Features
Non-Penetrating 1207 Plate Anchors
Five SSCA base plates in 3/8" 5052 aluminum spread loads across four seams each. Select the seam spacing option that matches your panels: 12" to 18", 14" to 22", or 18" to 24" on center.
RoofClamp RCT Seam Clamps

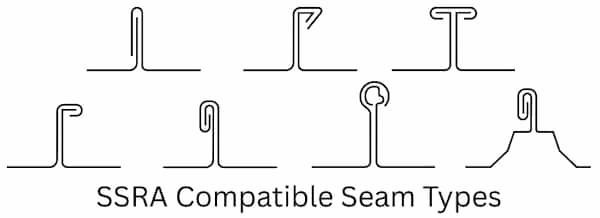

Twenty USA-made RCT clamps secure the plates using stainless steel set screws that grip the seam without piercing it, compatible with roughly 95% of standing seam profiles, including vertical, bulb, and snap-lock seams.
Pass-Thru Intermediate Posts
Three No. 1031-PG CRA-PT5 posts carry the cable in No. 1091 pass-thru tops, so a worker traveling the span never unclips. Two No. 1031-W loop top posts terminate the ends.
Engineered Rigging Package
The included 1050-G kit supplies the No. 1058 turnbuckle, No. 1065-AS 304SST spring energy absorber with tension gauge, stainless couplers, O-rings, eye thimbles, and cable clamps.
124 ft Galvanized HLL Cable
No. 1055-X 3/8" 7x19 galvanized wire rope with 14,000 lb tensile strength, supplied with extra length for field swaged terminations at both ends.
Part of the Standing Seam Ecosystem
Pairs with SSRA1 anchors for construction-phase tie-off, RCT clamps for accessories, and Super Anchor Swivel-D or SRL holders for single-point work zones off the same plates.
Technical Specifications
| Kit Part Number | SA120kit (Fall Protection Distributors exclusive bundle) |
|---|---|
| System Rating | 2-person fall arrest, 3-person fall restraint (2024 Super Anchor catalog), 310 lb per worker |
| Span | 120 ft protected run; multiple kits extend coverage |
| Plate Anchors | 5ea No. 1207 SSCA, 3/8" 5052 aluminum, seam spacing 12x18, 14x22, or 18x24 |
| Seam Clamps | 20ea RoofClamp RCT, aluminum with stainless steel set screws, non-penetrating |
| End Anchors | 2ea No. 1031-W HDG 5" Sch 40 posts with No. 1090 loop tops |
| Intermediate Anchors | 3ea No. 1031-PG HDG 5" Sch 40 posts with No. 1091 pass-thru tops |
| Cable | 124 ft No. 1055-X 3/8" 7x19 galvanized wire rope, 14,000 lb tensile |
| Rigging | No. 1050-G kit: 1058 turnbuckle, 1065-AS spring energy absorber, 1081-S and 1087-SC couplers, 5010-SM O-rings, 1057 thimbles, 1056 clamps |
| Minimum Panel | 24ga metal panel; qualified person must verify seam clamp compatibility |
| Roof Structure | Panel attachment and structure must support 5,000 lb or 2x intended load per OSHA 1910.140 |
| Corrosion Protection | Hot-dip galvanized steel, 5052 aluminum, and 304 stainless components |
| Compliance | OSHA 1926.502, ANSI Z359.18-17, CSA Z259.15:22 |
This is an engineered fall protection system: a qualified person must verify seam clamp compatibility with your specific panel profile and confirm the panel attachment and supporting structure can resist 5,000 lb or 2x the intended load. Workers on the lifeline must wear a personal energy absorber or use an SRL with an internal energy absorbing function. If the system arrests a fall, remove it from service and tag it DO NOT USE until inspected by a qualified or competent person.
Compliance Standards
OSHA 1926.502
Horizontal lifelines must be designed, installed, and used under the supervision of a qualified person; this kit follows the SAS rigging manual and SSCA engineering.
ANSI Z359.18-17
Anchorage connector requirements met by the SSCA plate anchor system per the manufacturer.
CSA Z259.15:22
Canadian anchorage connector standard listed by Super Anchor for the SSCA system.
OSHA 1910.140
General industry anchorage criteria: 5,000 lb or 2x the intended fall protection load for the panel attachment and structure.
Typical Applications
Installation Overview
Overview of the engineered installation sequence; the SSCA manual and CRA HLL Rigging Manual govern, and a qualified person must approve the layout.
- Verify panel profile compatibility with the RCT clamps using the panel matrix, and confirm 24ga minimum panel thickness and structure capacity.
- Lay out 5 plate locations: end anchors at each end of the 120 ft run and intermediates spaced approximately 30 ft on center.
- Clamp each No. 1207 plate to the seams with 4 RCT clamps, torquing the stainless set screws to the RCT specification.
- Bolt the two No. 1031-W loop top end posts and three No. 1031-PG pass-thru intermediate posts to the plates with the supplied stainless hardware.
- Rig the B-end eye thimble to the loop top through the No. 1081-S coupler, then feed the cable through the three pass-thru tops with the No. 5010-SM O-rings on the line.
- Build the A-end field swage and assemble the turnbuckle, No. 1087-SC couplers, and No. 1065-AS spring energy absorber chain to the far loop top.
- Tension the turnbuckle until the absorber gauge shows full deployment, torque all cable clamps to 45 ft-lb, and trim the dead end with a 10.0" tail.
- Document the installation and place the system on an annual inspection schedule.
Inspection and Retirement
Inspect before installation and each use, with documented annual inspections. Remove the anchor from service when any of the following apply:
- RCT set screws loose or seam shows slippage marks at any clamp
- Plate anchors shifted, deformed, or with missing attachment bolts
- Spring energy absorber deployed beyond its set-up gauge reading
- Cable shows broken wires, kinks, birdcaging, or corrosion
- Turnbuckle backed off or lock nuts without 1/8" thread penetration
- O-rings, couplers, or thimbles deformed or cracked
- Post loop tops or pass-thru tops bent or corroded
- The system arrested a fall or was struck by falling material
Tag anchors removed from service to prevent further use until inspected by a qualified or competent person.
