1031-PG CRA-PT 5 Inch HLL Pass-Thru Anchor Post

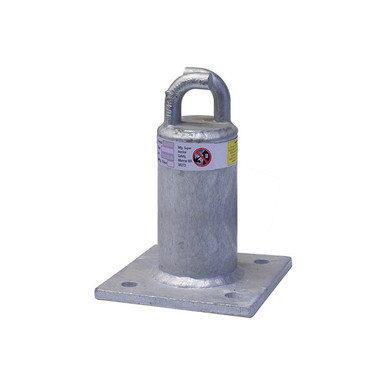

The Super Anchor 1031-PG is a 5 inch CRA-PT pass-thru anchor post: a No. 1091 cast steel pass-thru top on a foam filled, hot dip galvanized Schedule 40 riser with a 6x6x3/8 inch 4-hole base plate and included stainless attachment bolts. It is the intermediate anchor for CRA horizontal lifeline systems, letting the HLL cable run through the top so workers travel the entire span without disconnecting.
Space intermediate anchors at a maximum of 30 ft in CRA horizontal lifelines up to 240 ft, used with the No. 5010-SM connector ring for hands-free travel. The 4-hole base also bolts to the corner holes of the 1207 standing seam plate for HLL runs on metal roofs. 5,000 lb minimum tensile strength, ANSI Z359.18-17 and OSHA 1926.502 compliant per the 01-2023 CRA manual.
Who Needs This Product
The 1031-PG is for crews running engineered horizontal lifelines across commercial roofs and structures. It is an HLL intermediate anchor only: it supports the lifeline cable between end anchors and lets the traveling connector ring pass through without disconnecting, which keeps workers tied off across the full span. End anchorage uses loop top anchors such as the 1031-W, and every worker wears a full body harness with an energy absorber, lanyard, or SRL meeting current OSHA, ANSI, or CSA standards.
Features

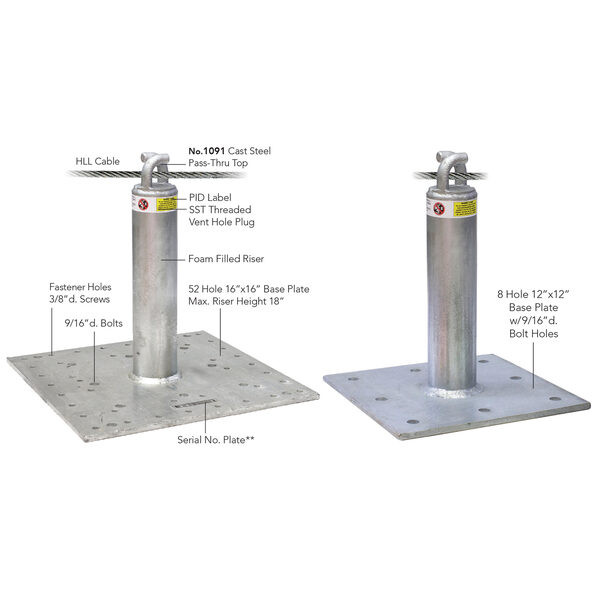

Pass-thru cable top
The No. 1091 cast steel top carries the HLL cable and passes the No. 5010-SM connector ring so workers travel the whole line without unclipping.
30 ft intermediate spacing
Intermediate anchors support CRA horizontal lifelines up to 240 ft with a maximum of 30 ft between anchors.
Foam filled galvanized riser
Polyurethane foam filling and ASTM 123 hot dip galvanizing protect the 3.0 inch Schedule 40 riser, rated -30 to +130 degrees F.
Bolts included
Ships with 4 stainless 1/2 x 1-3/4 inch attachment bolts with lock nuts and washers for the 4-hole base plate.

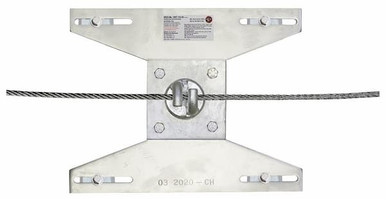

Mounts to the 1207 plate
The 6x6 base bolts to the 1207 standing seam plate corner holes for HLL runs on standing seam metal roofs.
Traceable and inspectable
PID specification label, stainless threaded vent hole plug, and serial traceability on every post.
Complete Your Standing Seam System
Add the 1207 plate this post bolts to, and RCT clamps for seam profiles the standard clamps cannot grab. Everything ships together.
Aluminum base plate only. Covers 8-1/2" to 18-1/2" panel seams.
Aluminum base plate only. Covers 12-1/2" to 23" panel seams.
Aluminum base plate only. Covers 16" to 26-1/2" panel seams.
Four RCT clamps attach the 1207 plate to seam profiles the 1208 clamps cannot grab.
RCT clamps require a 1207 plate in the cart. The post bolts to the plate corner holes with the included stainless bolts.
Technical Specifications
| Pass-Thru Top | No. 1091 Q235 cast steel, designed for use with the No. 5010-SM connector ring |
|---|---|
| Riser | 5 inch height, 3.0 inch O.D. Schedule 40, polyurethane foam filled, ASTM 123 hot dip galvanized |
| Base Plate | 6 x 6 x 3/8 inch with 4 bolt holes; includes 4 stainless 1/2 x 1-3/4 inch bolts with lock nuts and washers |
| Function | Horizontal lifeline intermediate anchor only |
| HLL System | CRA horizontal lifelines up to 240 ft; maximum 30 ft between intermediate anchors |
| Minimum Tensile Strength | 5,000 lb |
| User Capacity | 1 person at 340 lb maximum including tools and equipment on the system; 6 ft maximum free fall |
| Temperature Rating | -30 to +130 degrees F |
| Structural Requirement | 5,000 lb or 2 times the intended fall protection load per OSHA 1910.140 |
| Attachment | Bolted, field welded, or concrete embedded; HLL anchors must not be screw attached |
| Compliance | ANSI Z359.18-17 Type A/T; OSHA 1926.502 and 1910.140; CSA Z259.15:22 Type A/T; HLL third-party engineering by DH Glabe and Associates |
Intermediate anchor only. The 1031-PG pass-thru top is not a tie-off point and not an HLL end anchor. Use loop top anchors for end anchorage and PPE connections, and rig the system to the CRA Horizontal Lifeline Rigging Manual. HLL anchors must be bolted, field welded, or concrete embedded, never screw attached, and the structure must hold 5,000 lb or 2 times the intended load per OSHA 1910.140.
Compliance Standards
ANSI Z359.18-17 Type A/T
Anchorage connector compliance per the 01-2023 CRA manual and Intertek lab reports.
OSHA 1926.502 / 1910.140
Meets construction anchorage criteria with 5,000 lb structural support requirements.
CSA Z259.15:22 Type A/T
Canadian anchorage connector conformity for cross-border crews.
DH Glabe HLL Engineering
CRA horizontal lifeline systems carry third-party engineering with reports available on request.
Typical Applications
Installation Overview
Full procedures, fastener tables, and HLL layout are in the CRA manual and HLL Rigging Manual linked below. The essentials:
- Lay out the HLL with end anchors at the span ends and intermediate pass-thru anchors spaced a maximum of 30 ft, per the project engineer or SAS plan service.
- Bolt the 4-hole base with the included stainless bolts, or field weld or concrete embed per the manual; never screw attach HLL anchors.
- On the 1207 standing seam plate, bolt the base to the plate corner holes with the supplied bolts.
- Route the HLL cable through the 1091 pass-thru tops and rig end anchorage, tensioner, and energy absorber per the CRA HLL Rigging Manual.
- Install the No. 5010-SM connector ring on the cable as the traveling PPE connection point.
- Have the completed installation inspected and certified by a qualified or competent person before use.
Inspection and Retirement
Inspect before installation and each use, with documented annual inspections. Remove the anchor from service when any of the following apply:
- The riser is bent or deformed.
- Weld cracks are present.
- Rust that does not clean up with cold zinc coating.
- Fasteners are missing; do not use until the installation is corrected.
- The PID label or vent hole plug is missing and cannot be replaced.
- The anchor was subjected to a fall load or the supporting structure is damaged.
Tag anchors removed from service to prevent further use until inspected by a qualified or competent person.
