1031-W CRA 5 Inch Loop Top Anchor Post

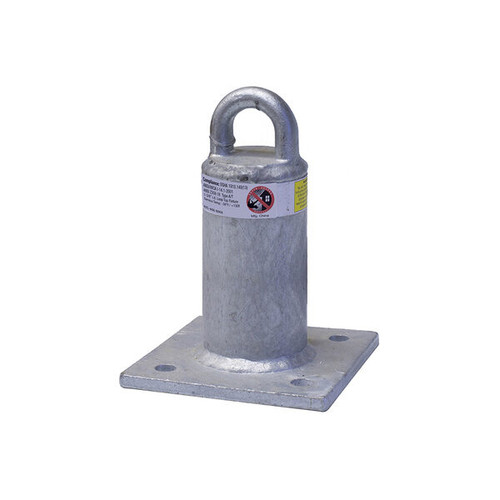

The Super Anchor 1031-W is a 5 inch CRA anchor post with a No. 1090 cast steel loop top rated at 10,000 lb tensile strength on a foam filled, hot dip galvanized Schedule 40 riser. The 6x6x3/8 inch 4-hole base plate bolts to structure with the included 4 stainless 1/2 x 1-3/4 inch bolts with lock nuts and washers, and the anchor is third-party certified with a 5,000 lb ultimate strength in any load direction.
Use it as a single person tie-off point, a window washing tie-back, or an end anchor in CRA horizontal lifeline systems up to 240 ft. The 4-hole base also bolts to the corner holes of the 1207 standing seam plate for loop top anchorage on metal roofs. Compliant with ANSI Z359.18-17 and OSHA 1926.502, with CSA Z259.15:22 conformity per the 01-2023 manual.
Who Needs This Product
The 1031-W is a commercial anchorage connector for one worker at up to 340 lb including tools and equipment, for fall arrest, work positioning, and fall restraint with a maximum 6 ft free fall. Roofing, maintenance, and window washing contractors use the loop top as a compatible connection point for snaphooks, carabiners, and Super Anchor HLL end anchor components. Each worker still wears a full body harness with an energy absorber, lanyard, or SRL that meets current OSHA, ANSI, or CSA standards. Single person and HLL anchors are spaced 20 to 30 ft on center per the manual.
Features
10,000 lb cast steel loop top
The No. 1090 Q235 cast loop top is rated to 10,000 lb minimum tensile strength and accepts snaphooks, carabiners, and SAS HLL end anchor hardware.
Foam filled galvanized riser
Polyurethane foam filling and ASTM 123 hot dip galvanizing protect the 3.0 inch Schedule 40 riser inside and out, rated for -30 to +130 degrees F.
Bolts included
Ships with 4 stainless 1/2 x 1-3/4 inch attachment bolts with lock nuts and washers for the 4-hole base plate.
HLL end anchor rated
Serves as an end anchor for CRA horizontal lifelines up to 240 ft, rigged to the CRA HLL Rigging Manual.
Mounts to the 1207 plate
The 6x6 base bolts to the 1207 standing seam plate corner holes for non-penetrating metal roof anchorage.
Traceable and inspectable
PID specification label, stainless threaded vent hole plug, and stamped traceability on every post.
Complete Your Standing Seam System
Add the 1207 plate this post bolts to, and RCT clamps for seam profiles the standard clamps cannot grab. Everything ships together.

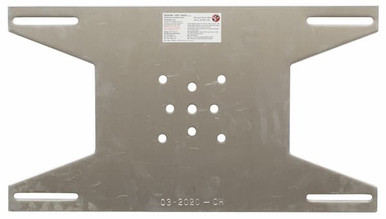

Aluminum base plate only. Covers 8-1/2" to 18-1/2" panel seams.
Aluminum base plate only. Covers 12-1/2" to 23" panel seams.
Aluminum base plate only. Covers 16" to 26-1/2" panel seams.

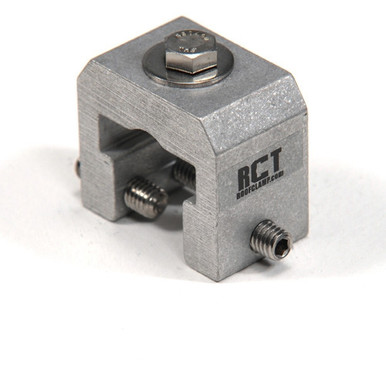

Four RCT clamps attach the 1207 plate to seam profiles the 1208 clamps cannot grab.
RCT clamps require a 1207 plate in the cart. The post bolts to the plate corner holes with the included stainless bolts.
Technical Specifications
| Loop Top | No. 1090 Q235 cast steel, 1-3/8 inch inside diameter, 10,000 lb minimum tensile strength |
|---|---|
| Riser | 5 inch height, 3.0 inch O.D. Schedule 40, polyurethane foam filled, ASTM 123 hot dip galvanized |
| Base Plate | 6 x 6 x 3/8 inch with 4 bolt holes; includes 4 stainless 1/2 x 1-3/4 inch bolts with lock nuts and washers |
| Ultimate Strength | 5,000 lb minimum in any direction the load is applied to the loop top |
| Proof Load | Maximum 2,500 lb on site; do not proof load screw attached anchors |
| Design Load | 1,250 lb at a 4 to 1 design factor |
| User Capacity | 1 person at 340 lb maximum including tools and equipment; 6 ft maximum free fall |
| Anchor Spacing | 20 to 30 ft on center for single person and HLL anchors; 12 ft or less for window washing |
| Temperature Rating | -30 to +130 degrees F |
| Structural Requirement | 5,000 lb or 2 times the intended fall protection load per OSHA 1910.140 |
| Compliance | ANSI Z359.18-17 Type A/T; OSHA 1926.502 and 1910.140; CSA Z259.15:22 Type A/T; ANSI/IWCA 1-14.1 window washing; Intertek lab reports; third-party engineering by DH Glabe and Associates |
Bolted attachment required for HLL end anchors and window washing. Screw attachment is only permitted for single person anchors with risers 18 inches or shorter. HLL end anchors and window washing anchors must be bolted, field welded, or concrete embedded, and the supporting structure must hold 5,000 lb or 2 times the intended load per OSHA 1910.140. Field welds require a certified welder and inspection by a qualified person.
Compliance Standards
ANSI Z359.18-17 Type A/T
Anchorage connector compliance verified by Intertek lab reports per the 01-2023 CRA manual.
OSHA 1926.502 / 1910.140
Meets construction anchorage criteria with 5,000 lb structural support requirements.
CSA Z259.15:22 Type A/T
Canadian anchorage connector conformity for cross-border crews.
ANSI/IWCA 1-14.1
Window washing anchor requirements including engineering analysis and 10 year recertification.
Typical Applications
Installation Overview
Full procedures, fastener tables, and substrate figures are in the CRA manual linked below. The essentials:
- Confirm the attachment point supports 5,000 lb or 2 times the intended load, with locations specified by the project architect, engineer, or safety consultant.
- For bolted installations use a minimum of 4 certified 1/2 inch grade 8, grade 5, or 18-8 stainless bolts or A307 rod with matching lock nuts; the supplied stainless bolts fit the 4-hole base.
- Add a backer plate when the substrate cannot carry the load alone, such as concrete slabs under 4 inches.

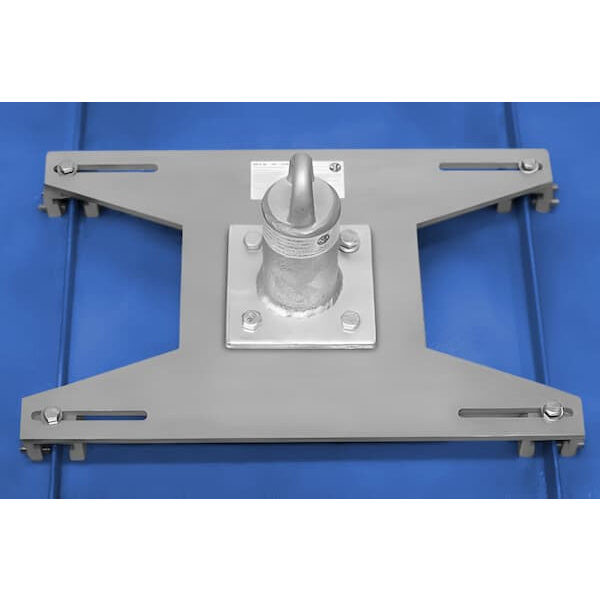

- On the 1207 standing seam plate, bolt the 4-hole base to the plate corner holes with the supplied bolts.
- For concrete, use 1/2 inch or larger wedge bolts per Table 2.0 with flat washers in 2,500 PSI minimum cured concrete.
- Do not proof load screw attached anchors; bolted window washing anchors must be proof loaded to 2,500 lb before fall protection use.
Inspection and Retirement
Inspect before installation and each use, with documented annual inspections. Remove the anchor from service when any of the following apply:
- The riser is bent or deformed.
- Weld cracks are present.
- Rust that does not clean up with cold zinc coating.
- Fasteners are missing; do not use until the installation is corrected.
- The PID label or vent hole plug is missing and cannot be replaced.
- The anchor was subjected to a free fall or the supporting structure is damaged.
Tag anchors removed from service to prevent further use until inspected by a qualified or competent person.
