Super Anchor 1207 Standing Seam Plate – High-Strength HLL Base Component
The Super Anchor 1207 Standing Seam Plate is the industry-leading, non-penetrating anchorage foundation designed specifically for permanent horizontal lifeline (HLL) systems. When paired with four RoofClamp RCT units, this high-grade aluminum base plate is compatible with approximately 95% of modern standing-seam profiles, providing a 5,000-lb-rated anchor point without a single roof penetration.
Need a Professional Layout? Let us provide a free custom quote for your Permanent Horizontal Lifeline project. HLL Quote Request Form

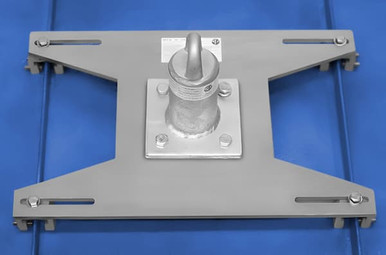

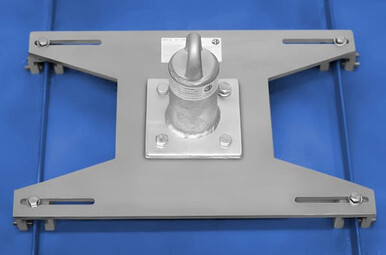

Image shown with optional RoofClamp RCT units and Super Anchor 1031-W Loop Post Anchor.
The 1207 Plate is the primary base component in our Super Anchor 120' Permanent Standing Seam HLL Kit. It is engineered to support end posts and intermediate bypass posts, ensuring the integrity of the lifeline's tension and the roof's waterproofing.
Key Features and HLL Integration
- Zero Roof Penetration: Attaches securely to the seams, preserving the manufacturer’s warranty and preventing potential leaks.
- Versatile HLL Foundation: Supports intermediate posts for long spans or end-anchor posts for cable tensioning. For a complete single-point setup, see the 1207 Plate with RoofClamp RCT and Swivel D-Ring Kit.
- Certified Strength: Third-party tested for 5,000-lb minimum breaking strength, meeting all OSHA 1926 Subpart M, ANSI Z359, and CSA standards.
Product Selection: Match Your Panel Width
To ensure a proper fit for your horizontal lifeline spans, select the plate width that matches your panel spacing:
| Model Number | Panel Width Range |
|---|---|
| 1207-12x18 | Fits seam spacing from 12" to 18." |
| 1207-14x22 | Fits seam spacing from 14" to 22." |
| 1207-18x24 | Fits seam spacing from 18" to 24." |
HLL Technical Resources
Ensure your permanent horizontal lifeline meets engineering requirements by reviewing these documents:
- Super Anchor Lifeline Rigging Manual: Technical specs for cable tension and span distances.
- Super Anchor 1207 SSCA Manual: Detailed base plate installation and clamp orientation.
- Warranty and Compliance Statement: Certification of OSHA and ANSI testing standards.
Super Anchor 1207 Base Plate FAQ
1. Can the 1207 Plate be used as a standalone anchor?
While the 1207 is a structural base, it requires a top attachment—such as a D-Ring or a post anchor—to function. It is most commonly used to mount the posts for a permanent horizontal lifeline system.

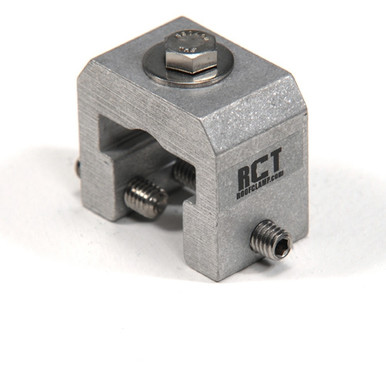

2. How many RoofClamp RCT units are required for HLL use?
Each 1207 Plate requires four RoofClamp RCT clamps to meet the 5,000-lb strength requirement. Using fewer clamps or unauthorized fasteners will void the fall-arrest certification.
3. Is this plate compatible with Starlink mounting?
While technically strong enough, the 1207 is a specialized fall protection component. For satellite mounting, we recommend our SataMount RCT, which is more cost-effective for non-safety applications.
4. What is the maximum span between 1207 plates in an HLL system?
Standard engineering allows for up to 30-foot spans between plates using intermediate bypass posts. For spans exceeding this, or for systems longer than 120 feet, a custom quote is recommended.
5. Does this plate allow for thermal expansion of the roof?
Yes. Because the plate attaches to the seams via non-penetrating RoofClamp RCT units, it does not pin the metal panels to the structure, allowing the roof to expand and contract as intended.
6. Can I use the 1207 on a bulb-style standing seam?
Yes. The 1207 plate is universal, and the RoofClamp RCT fits 95% of profiles, including large bulb and T-style standing seams.
7. How do I avoid common problems during HLL setup?
- 1. Torque Check: Ensure all 12 set screws (3 per clamp) are torqued to 90 in-lbs to prevent the plate from shifting under cable tension.
- 2. Check Alignment: Ensure the plate is centered across the seams so the cable runs in a straight line, reducing friction on intermediate posts.
- 3. Anchor Mounting: Be sure to secure the top anchor according to the manufacturer's instructions.
