Fall Protection Strategies For Firestone/Elevate Standing Seam Roofs

See the Roof Anchor Compatibility Chart for Firestone- Elevate Standing Seam Panels.

Who Is Firestone- Elevate?

Firestone Building Products, now operating under the name Elevate, is a key player in the standing seam roofing industry. The company has rebranded its roofing products under the Elevate name, which includes their renowned UNA-CLAD line of standing seam metal roof panels. Over the past 30 years, Elevate has earned recognition across North America for its innovative product construction and design.

Elevate offers a comprehensive range of metal roofing systems and accessories, available in various materials like copper, zinc, acrylume, and 31 standard PVDF-painted aluminum and steel colors. Their products are designed to integrate seamlessly with all Elevate Roofing Systems and Elevate ISO 95+ polyiso insulation. Known for their durability, aesthetic appeal, and ability to meet complex architectural requirements, Elevate's standing seam roof panels provide lightweight construction, low maintenance, fire retardant properties, long life expectancy, and architectural beauty. These features make them a popular choice for large structures and commercial roofing projects.

What Are The Most Compatible Fall Protection Products For Firestone-Elevate Standing Seam Roof Systems?

Ensuring proper fall protection is essential when working on Elevate's standing seam roof systems. The unique design and material properties of these panels require specific  fall protection products to maintain safety and integrity.

Steel Panels (22-gauge steel and 24-gauge steel)

For Elevate's steel panels, including the 22 and 24-gauge varieties, the Standing Seam Roof Anchor (SSRA1) is highly compatible. This anchor attaches securely to the standing seam without penetrating the roof, maintaining the panel's integrity. Additionally, the SSRA2 Adjustable Roof Jack Adapter can be used with SSRA1 anchors to support 10-foot walkboards without roof penetrations. This setup offers adjustable height options for different seam heights, enhancing safety and flexibility on the job.

The  SSRA3 Anchor Plates, in combination with the Malta Dynamics HLL3001 100' Horizontal Lifeline System, provide a robust solution for creating temporary horizontal lifelines. This configuration supports up to two workers, ensuring comprehensive fall protection and mobility during extensive roofing projects.

Aluminum and Copper Panels

For aluminum and copper panels, the Ridge Pro Steep Assist Anchor is recommended. This anchor hooks over the ridge, creating a secure anchorage point that ensures workers remain tied off while navigating steep slopes. The Ridge Pro system is particularly effective for roofs with pitches ranging from 6/12 to 12/12, providing stability and safety during high-risk tasks.

Curved Panels

For curved standing seam panels, such as those used in barrel vaults and other curved applications, it is essential to have a trained safety professional conduct a site inspection. This ensures the most appropriate fall protection strategy is employed, as standard SSRA and Ridge Pro products are not designed for curved panels. A comprehensive safety plan tailored to the specific challenges of curved surfaces is crucial for maintaining worker safety and the integrity of the roofing system.

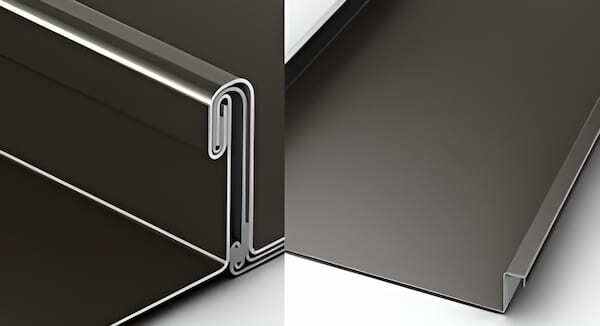

UC-3 Panel

The Elevate UNA-CLAD UC-3 Roofing Panel is a standout choice for architectural standing seam metal roofing, combining traditional aesthetics with modern performance. This factory-formed double-lock panel is known for its mechanical seaming, which enhances its design capabilities and provides a sleek, secure finish. With its high wind performance, the UC-3 is built to withstand severe weather conditions, making it an excellent option for regions prone to strong winds. Additionally, this panel can be curved and tapered to fit complex architectural geometries, offering versatility for various building designs. See the Roof Anchor Compatibility Chart for Firestone- Elevate UC-3 Standing Seam Panels.

Available in 22-gauge and 24-gauge steel, as well as .032" and .040" aluminum, the UC-3 panel caters to a range of project needs. Standard widths include 12", 16", and 18", and the panel can be installed over substrates such as open framing, rigid insulation, corrugated steel decks, and plywood sheathing. Its adaptability makes it suitable for diverse construction environments. To top it off, the UC-3 panel may qualify for a 30-Year Platinum Warranty, ensuring long-term performance and durability.

Fall Protection for UC-3 Panels

When it comes to fall protection for the UC-3 panels, the best solutions depend on the material of the panels. For the steel versions (22-gauge and 24-gauge), the Standing Seam Roof Anchor (SSRA1) is highly compatible. This anchor attaches securely to the standing seam without penetrating the roof, preserving the panel's integrity while providing a reliable anchorage point for fall protection equipment. In addition to the SSRA1, the SSRA2 Adjustable Roof Jack Adapter can support 10' walkboards without needing roof penetrations, offering adjustable height options that enhance safety and flexibility during installation and maintenance. The SSRA3 Anchor Plates, used with the Malta Dynamics HLL3001 100' Horizontal Lifeline System, offer a robust solution for temporary horizontal lifelines, supporting up to two workers and providing comprehensive fall protection and mobility during extensive roofing projects.

For the aluminum versions of the UC-3 panel, the  Ridge Pro Steep Assist Anchor is recommended. This anchor hooks over the ridge, creating a secure anchorage point and ensuring workers remain tied off while navigating steep slopes. The Ridge Pro system is particularly effective for roofs with pitches ranging from 6/12 to 12/12, providing the necessary stability and safety for high-risk tasks.

For curved applications of the UC-3 panel, it's essential to have a trained safety professional conduct a site inspection to determine the most appropriate fall protection strategy, as standard SSRA and Ridge Pro products are not designed for curved panels.

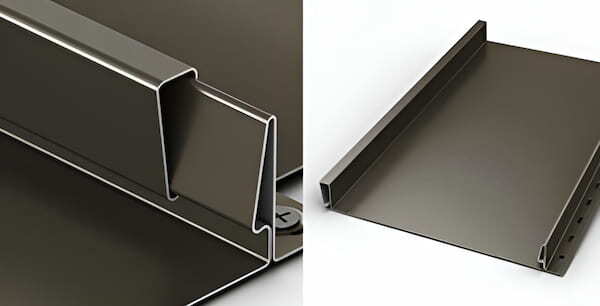

UC-4 Panel

The Elevate UNA-CLAD™ UC-4 Roofing Panel is a modern architectural standing seam metal roof panel that offers a sleek, self-locking design, eliminating the need for traditional clips. This innovative system features an integral fastening flange that accommodates thermal movement, allowing the panels to expand and contract with temperature changes without compromising their integrity. See the Roof Anchor Compatibility Chart for Firestone- Elevate UC-4 Standing Seam Panels.

The UC-4 panel's easy snap-together seam design significantly reduces installation time and labor costs, making it a cost-effective choice for various projects. With its premium seam design, the UC-4 locks securely into place, providing superior leak resistance and ensuring long-lasting performance. This panel is available in both 22-gauge and 24-gauge steel, as well as .032" and .040" aluminum, offering flexibility to meet different project needs.

The panel widths typically range from 12" to 18", and it can be installed over substrates like rigid insulation, plywood sheathing, and nail base insulation. The UC-4 panel is also eligible for Elevate's extensive warranty options, including the 25-year Medallion Warranty and the 30-Year Platinum Warranty, offering additional peace of mind and protection.

Fall Protection for UC-4 Panels

When working with UC-4 panels, the appropriate fall protection measures are crucial to ensure worker safety during installation and maintenance. For the steel versions (22-gauge and 24-gauge), the Standing Seam Roof Anchor (SSRA1) is an ideal solution. This anchor attaches firmly to the standing seam without penetrating the roof, maintaining the integrity of the panels while providing a secure anchorage point for fall protection equipment.

Additionally, the SSRA2 Adjustable Roof Jack Adapter can be used alongside SSRA1 anchors to support 10' walkboards, enhancing safety and flexibility without requiring roof penetrations. The SSRA3 Anchor Plates, used in conjunction with the Malta Dynamics HLL3001 100' Horizontal Lifeline System, offer a comprehensive fall protection solution, allowing up to two workers to move safely along the roofing system during extensive projects.

For the aluminum versions of the UC-4 panel, the Ridge Pro Steep Assist Anchor is recommended. This anchor hooks securely over the ridge, ensuring workers remain tied off while navigating steep slopes, making it especially effective for roofs with pitches ranging from 6/12 to 12/12. In cases where the UC-4 panels are used in curved applications, a site inspection by a trained safety professional is necessary to determine the best fall protection strategy, as standard SSRA and Ridge Pro products are not suitable for curved panels.

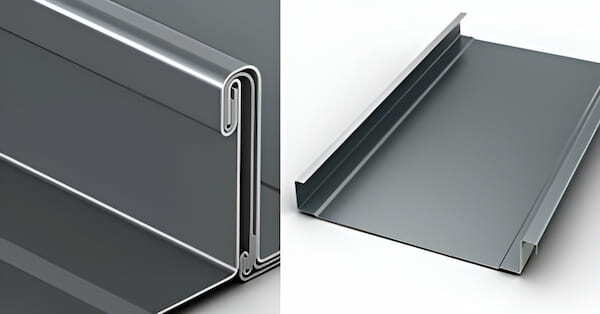

UC-6 Panel

The Elevate UNA-CLAD UC-6 Double-Lock Standing Seam Roofing Panel offers a robust and reliable roofing solution, utilizing the proven Pittsburgh Locking seam process along with the floating action of a concealed clip and assembly. This innovative design accommodates natural expansion and contraction due to weather changes, ensuring a virtually leak-proof roof with outstanding uplift ratings. See the Roof Anchor Compatibility Chart for Firestone- Elevate UC-6 Standing Seam Panels.

The UC-6 panel provides excellent protection and durability, making it a preferred choice for various architectural projects. Available in 22-gauge and 24-gauge steel, as well as .032" and .040" aluminum, this panel meets diverse project requirements. The panel widths typically range from 12" to 18", allowing for flexibility in design and application. Furthermore, the UC-6 panel may qualify for Elevate's 30-Year Platinum Warranty, offering long-term security and peace of mind for building owners.

Fall Protection for UC-6 Panels

Ensuring proper fall protection is essential when working with UC-6 panels. For the steel versions (22-gauge and 24-gauge), the Standing Seam Roof Anchor (SSRA1) is highly recommended. This anchor attaches securely to the standing seam without penetrating the roof, preserving the panel's integrity while providing a safe anchorage point for fall protection equipment. The SSRA2 Adjustable Roof Jack Adapter can be used in conjunction with SSRA1 anchors to support 10' walkboards, enhancing safety and flexibility without roof penetrations.

Additionally, the SSRA3 Anchor Plates, paired with the Malta Dynamics HLL3001 100' Horizontal Lifeline System, offer a comprehensive fall protection solution, allowing up to two workers to move safely along the roofing system during extensive projects. For aluminum versions of the UC-6 panel, the Ridge Pro Steep Assist Anchor is the recommended solution. This anchor hooks securely over the ridge, ensuring workers remain tied off while navigating steep slopes, particularly effective for roofs with pitches ranging from 6/12 to 12/12.

In scenarios where the UC-6 panels are used in curved applications, a site inspection by a trained safety professional is necessary to determine the most appropriate fall protection strategy, as standard SSRA and Ridge Pro products are not suitable for curved panels.

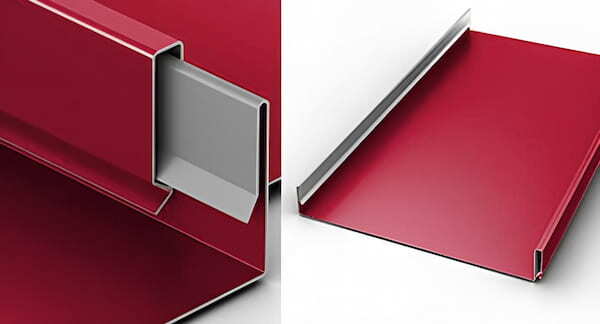

UC-14 Panel

The Elevate UNA-CLAD UC-14 Roofing Panel is an architectural standing seam metal roof panel known for its ease of installation and robust performance. The UC-14 features a 1 3/4" tall continuous interlocking seam that snaps together, simplifying the installation process. This system utilizes a concealed clip fastening mechanism, providing additional protection and allowing for significant thermal expansion. See the Roof Anchor Compatibility Chart for Firestone- Elevate UC-14 Standing Seam Panels.

The UC-14 panel can accommodate very long panels, making it an ideal choice for various architectural applications. Available in 22-gauge and 24-gauge steel, as well as .032" and .040" aluminum, this panel offers flexibility in design and durability. The UC-14 panel may also qualify for Elevate's 30-Year Platinum Warranty, ensuring long-term reliability and peace of mind for building owners.

Fall Protection for UC-14 Panels

When working with UC-14 panels, implementing proper fall protection measures is crucial. For the steel versions (22-gauge and 24-gauge), the Standing Seam Roof Anchor (SSRA1) is an excellent choice. This anchor securely attaches to the standing seam without penetrating the roof, maintaining the panel's integrity while offering a reliable anchorage point for fall protection equipment.

The SSRA2 Adjustable Roof Jack Adapter can be used alongside SSRA1 anchors to support 10' walkboards, enhancing safety and flexibility without the need for roof penetrations. Additionally, the SSRA3 Anchor Plates, in combination with the Malta Dynamics HLL3001 100' Horizontal Lifeline System, provide a comprehensive fall protection solution, allowing up to two workers to move safely along the roofing system during extensive projects.

For the aluminum versions of the UC-14 panel, the Ridge Pro Steep Assist Anchor is recommended. This anchor hooks securely over the ridge, ensuring workers remain tied off while navigating steep slopes, particularly effective for roofs with pitches ranging from 6/12 to 12/12.

In cases where the UC-14 panels are used in curved applications, a site inspection by a trained safety professional is necessary to determine the most suitable fall protection strategy, as standard SSRA and Ridge Pro products are not appropriate for curved panels.

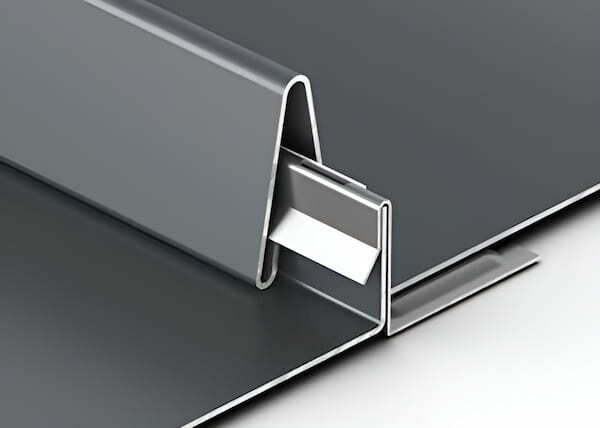

UC-7 Panel

The Elevate UNA-CLAD UC-7 Snap-On Standing Seam Roofing Panel features a 1" profile, allowing designers to create high-profile features in their projects. These versatile panels can be curved for radius applications, providing a seamless and aesthetic finish for various architectural designs. The UC-7 panels are available in copper, acrylume, and 31 standard PVDF-painted aluminum and steel colors, offering a wide range of options to meet specific design needs. Delivered in rolls, these panels can handle high-radius curvatures, making them suitable for complex architectural applications. See the Roof Anchor Compatibility Chart for Firestone- Elevate UC-7 Standing Seam Panels.

Fall Protection for UC-7 Panels

For UC-7 panels used on flat roof systems (non-curved), the Ridge Pro Steep Assist Anchor is a suitable fall protection solution. The Ridge Pro can be effectively utilized to provide a secure anchorage point, ensuring workers remain fully tied off while navigating the roof. This system is particularly beneficial for roofs with pitches ranging from 6/12 to 12/12, offering stability and safety during high-risk tasks.

However, for curved roof systems, the Ridge Pro and SSRA products are not compatible. In these cases, it's essential to conduct a site inspection by a trained safety professional to determine the most appropriate fall protection equipment. This careful planning ensures that safety measures align with the panel's unique architectural and structural requirements, providing a secure environment for workers on complex installations.

Standing Seam Metal Roof Anchor Panel Compatibility Chart For Rigid Global Buildings

Get in Touch for More Information

We'd love to learn more about your project! Call us at 863-703-4522 to discuss your requirements, or visit our website at www.StandingSeamRoofAnchor.com for more information. For further details on fall protection, consult OSHA's 48-page manual.

General Safety Guidelines for Standing Seam Roofs

Wear Appropriate Footwear

Ensure workers wear non-slip shoes designed for smooth metal roof systems and avoid working on wet roofs. Proper footwear enhances stability and reduces the risk of slips and falls.

Utilize Tailored Roof Anchor Systems

Use roof anchor systems specifically designed for standing seam roofs. Follow the manufacturer's guidelines for proper sizing and installation, ensuring accurate seam placement and correct torque settings. Avoid seam anchors that need attachment over clips, as locating clips on existing roofs can be impractical.

Encourage the Use of Trauma Straps

Encourage the use of trauma straps on harnesses and provide regular training on their proper use. Trauma straps are crucial for preventing severe injuries or fatalities after a fall by reducing suspension trauma.

Equip Workers with High-Quality Safety Gear

Provide workers with premium full-body harnesses and shock-absorbing lanyards. These items significantly reduce impact loads during falls, minimizing the risk of serious injuries or fatalities.

Establish Secure Work Zones

Install guardrails, warning lines, or other barriers on low-slope roofs to prevent falls and create secure work zones. These measures help ensure a safer environment and reduce the risk of accidents.

Develop a Comprehensive OSHA Safety Plan

Before starting work, the safety manager or project manager should develop an OSHA-compliant safety plan. This plan must include a detailed rescue strategy to protect workers in case of an accident.

Take Precautions for Curved Panels

Avoid using seam-mounted anchors on curved metal panels. For curved roof systems, have a trained safety professional conduct site inspections and create a comprehensive safety strategy tailored to the unique challenges of curved surfaces.

Foster a Safety-Conscious Workplace

Encourage regular equipment inspections and ongoing training sessions to promote a safety-first environment. A strong safety culture helps maintain high standards and reduces the likelihood of accidents.

Invest in Permanent Roof Anchor Systems

Consider installing permanent roof anchor systems that remain in place to facilitate future roof work and inspections. Permanent systems enhance long-term safety measures and ensure ongoing protection.

Ensure Stable Access Points

Properly position ladders and scaffolding, ensuring they are free of obstacles. Conduct thorough OSHA-compliant ladder training for workers and always follow the 4-1 rule for ladder positioning to provide stability and safety.
