Fall Protection Anchors For Dean Steel Buildings

See the Roof Anchor Compatibility Chart for Dean Steel Buildings Standing Seam Metal Roofing.

Who Is Dean Steel Buildings?

Dean Steel Buildings is a premier manufacturer of pre-engineered metal building systems and high-performance metal roofing. Founded in 1953 and based in Fort Myers, Florida, they have built a reputation for engineering excellence and structural durability. They operate multiple manufacturing facilities, including a major plant in Cedartown, Georgia. Multiple geographical locations allow them to serve contractors and developers across the Eastern United States with precision-engineered building components.

Their standing seam roof systems provide maximum weather tightness and long-term asset protection. Dean Steel Buildings utilizes advanced roll-forming technology to produce the Pro-Lok, Pro-Seam, and Pro VR series. These systems can effectively handle the high wind loads and tropical environments of the coastal regions. By focusing on structural integrity and ease of assembly, they have become a trusted name for industrial, commercial, and agricultural metal buildings.

Why Is Compatible Fall Protection So Critical for Dean Steel Roofs?

Fall protection for Dean Steel Buildings' floating standing seam roofs requires specialized hardware. These roof systems expand and contract with temperature changes. If you use a traditional safety anchor that penetrates the roof panel, you will compromise the system's thermal movement capability. This mistake often leads to oil-canning and hidden leaks at the fastener points. You must prioritize non-penetrating seam compatibility to protect the worker and the roof warranty.

The Pro-Lok, Pro-Seam, and Pro VR profiles feature a substantial 3-inch seam height. This profile height is much larger than standard residential snaplock systems. You must use an anchor that can accommodate this industrial-scale rib without damaging the finish. In this guide, we examine technical solutions for maintaining a 100% tie-off on these massive trapezoidal and architectural standing seam panels.

Understanding the SSRA Modular System Configurations

To ensure 100% tie-off without voiding Dean Steel warranties, we recommend the modular SSRA system. The foundation of this system is the SSRA1 Seam Anchor. It features a one-piece body with no moving parts. It fits 95% of today's standing seam profiles, including the large Pro-Seam ribs. For Dean Steel Buildings projects, you have two primary fastening options:

• Cupped Tip Stainless Steel Set Screws: Use these for standard 24-gauge steel panels. The cupped tip creates a mechanical lock on the 3-inch seam. You must torque these to 90 inch-pounds using a calibrated torque wrench.
• Nylon Tipped Set Screws: Use these for 22- or 24-gauge steel panels. You must torque these to 180-200 inch-pounds. You must treat nylon tips as consumables and replace them after 3 to 5 installations.

The SSRA Component System: Expandable Functionality for Every Job Site

The SSRA1 seam anchor provides a distinct financial advantage for contractors by functioning as a universal-fit foundation for an entire suite of safety equipment. Its patented design fits 95% of today's standing seam profiles. This solution eliminates the need to purchase separate, seam-specific clamps for each building manufacturer. This universal compatibility means a single investment in SSRA1 hardware allows a crew to transition seamlessly from a Dean Steel roof on one job to a different profile on the next.

Be cautious of similar anchors that have limited seam compatibility across standing seam panel styles. Some manufacturers offer multiple anchor models to accommodate different seam types, which increases your overhead and equipment inventory. The SSRA1 is the most universal-fit seam anchor solution in the world. It fits the vast majority of standing seam panels on the market, offering a more versatile, cost-effective solution for your crew.

Beyond simple tie-off points, the system can expand into specialized configurations, such as walkboard platforms and horizontal lifelines, using the same interchangeable seam anchors. By utilizing these modular components, contractors can solve complex jobsite challenges without investing in redundant or expensive single-use equipment. Ultimately, this adaptability maximizes the return on investment while ensuring the crew always has a certified safety solution for any roof they encounter.

For various job-site requirements, the SSRA1 serves as an adaptable mounting solution for several configurations:

• SSRA2 Adjustable Roof Jack Adapters: Steep-slope projects require stable footing to prevent worker fatigue and slips. These SSRA2 Adjustable Roof Jack Adapters mount directly to the SSRA1. They allow you to install 10-foot wooden walk-boards to create a level walking surface and a stable staging area for materials.
• SSRA3 Anchor Plates: When your project requires maximum worker mobility, these high-strength aluminum SSRA3 Anchor Plates connect two SSRA1 anchors into one assembly. This configuration converts individual tie-off points into heavy-duty endpoints for horizontal lifelines.
• 100-foot SSRA Horizontal Lifeline Kit: This 100-foot HLL kit is the gold standard for efficiency on larger Dean Steel roofs. By connecting a 100-foot temporary kernmantle rope between SSRA3 assemblies, you allow two workers to move the entire length of the roof without ever having to disconnect their lanyards.
• 120-foot Super Anchor Permanent HLL: This 120-foot Super Anchor Kit provides a reliable, long-term solution by using non-penetrating 5-inch riser posts. These posts allow the floating roof to move naturally during thermal expansion and contraction while providing permanent fall protection for maintenance crews.
• The Ridge Pro Steep Assist: To achieve 100% tie-off from the moment a worker leaves the ladder, The Ridge Pro serves as the first-man-up solution. It secures to the roof peak to provide an anchor point for the worker while the rest of the crew installs the primary fall protection anchors.

Dean Steel Pro-Lok Mechanical Panels (SSRA Compatible)

The Pro-Lok mechanical panel offers an economical solution for commercial and residential projects. It features a 3-inch seam height and utilizes 3 seaming configurations. The available panel widths for the Pro-Lok panels are 12, 16, and 24 inches. Dean Steel offers Pro-Lok panels in 22- and 24-gauge steel, aluminum, and copper. See the Roof Anchor Compatibility Chart for Dean Steel Buildings Pro-Lok Standing Seam Metal Roofing.

Fall Protection Solution for Pro-Lok

The SSRA1 Seam Anchor fits the Pro-Lok profile perfectly. On steeper slopes, contractors should utilize the SSRA2 Roof Jack Adapters to create level walkboards. For maximum worker mobility, the SSRA3 Anchor Plates can span two seams and support the temporary SSRA 100-foot Horizontal Lifeline Kit. For buildings requiring frequent access, the 120-foot Super Anchor Permanent Kit provides a non-penetrating, long-term solution. To ensure 100% tie-off from the start of the climb, the Ridge Pro serves as the essential first-man-up anchor.

Dean Steel Pro-Seam Mechanical Panels (SSRA Compatible)

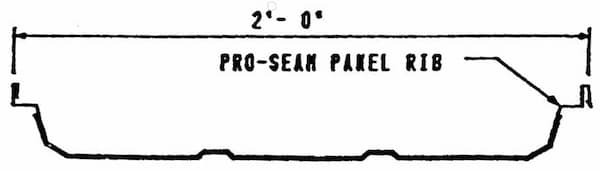

The Pro-Seam is a high-performance, mechanically seamed roofing system available in 12-inch, 18-inch, and 24-inch widths. The 3-inch high seam is for low-slope applications where water shedding is critical. This structural panel is 24-gauge Galvalume steel. See the Roof Anchor Compatibility Chart for Dean Steel Buildings Pro-Seam Standing Seam Metal Roofing.

Fall Protection Solution for Pro-Seam

For the Pro-Seam system, the SSRA1 Seam Anchor is the primary solution. The SSRA3 Anchor Plate assembly connects to SSRA1 seam anchors for maximum stability. This configuration is compatible with the SSRA 100-foot Horizontal Lifeline Kit for wide-area coverage. Contractors can also use SSRA2 Roof Jack Adapters to mount walkboards on steeper pitches. The 120-foot Super Anchor Permanent Kit is the preferred choice for long-term maintenance fall protection. The Ridge Pro ensures safety during the initial ladder-to-roof transition in First-Man-Up situations on 6:12- to 12:12-pitch roofs.

Dean Steel Pro VR Mechanical Panels (SSRA Compatible)

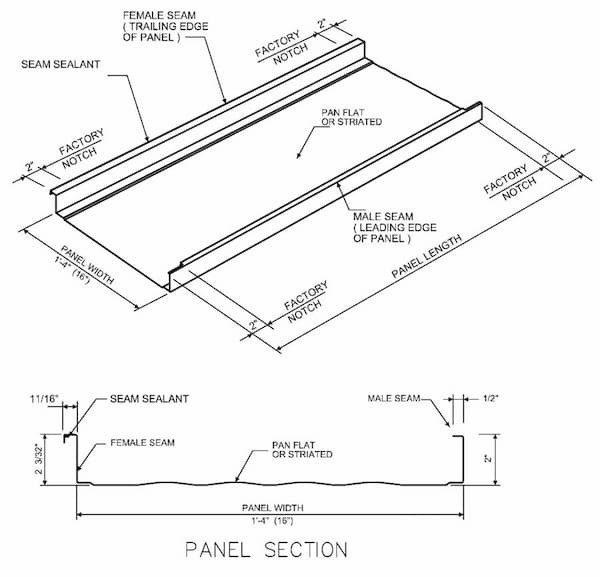

The Pro VR is a structural standing seam panel designed for commercial and industrial building applications. It features a 2-inch high rib with a 16-inch panel width. This panel floats on a system of sliding clips, allowing for up to 2.5 inches of thermal expansion and contraction. The standard panel material is 24-gauge Galvalume. See the Roof Anchor Compatibility Chart for Dean Steel Buildings Steel Pro VR Standing Seam Metal Roofing.

Fall Protection Solution for Pro VR

The SSRA1 Seam Anchor is an excellent solution for seam-mounted tie-off on Pro VR panels. We recommend using SSRA3 Anchor Plates to bridge two Pro VR seams for horizontal lifeline mounting. This setup supports the 100-foot SSRA Horizontal Lifeline Kit for temporary projects. For more permanent needs, the 120-foot Super Anchor Permanent HLL uses non-penetrating seam anchors to support 5-inch riser posts and galvanized steel cable lifelines. Additionally, the SSRA2 Roof Jack Adapters provide stabilized walkboards, and the Ridge Pro anchor offers the necessary protection for the first man up.

Insider Pro Tip: The Financial Trap of Unbranded Safety Hardware

Cutting costs on fall protection can lead to a devastating financial liability in the metal roofing industry. OSHA inspectors are currently targeting unbranded and imported seam anchors that lack verifiable testing documentation. If you cannot produce an OSHA or ANSI test report or material certifications during an inspection, you face a Willful Violation. These citations carry fines of over $100,000 and typically trigger an immediate site shutdown. When a violation results in a worker fatality, the Department of Justice can pursue criminal prosecution against the employer.

Before your crew steps onto a Dean Steel roof, you must ensure your anchors have a verifiable paper trail. You need instant access to third-party test reports proving the hardware meets OSHA 1926.502 standards. Buying from a company without a domestic support team or engineered testing data is a massive risk. You aren't just saving a few dollars; you are personally assuming the manufacturer's liability. Protecting your company means choosing tested, American-made hardware that stands up to rugged workplace abuse and inspector scrutiny.

Standing Seam Metal Roof Anchor Panel Compatibility Chart For Dean Steel Buildings

	Pro-Lok (22 Ga.)	Pro-Lok (24 Ga.)	Pro-Seam (24 Ga.)	Steel Pro VR (24 Ga.)
SSRA 1	YES	NO	NO	NO
SSRA1 Nylon Tip	YES	YES	YES	YES
SSRA2 Roof Jack	YES	YES	YES	YES
SSRA3 Anchor Plate	YES	YES	YES	YES
The Ridge Pro	YES	YES	YES	YES

Contact Us For More Information

For further details on roofing solutions and fall protection systems, contact us at 863-703-4522 or www.StandingSeamRoofAnchor.com. Let's work together to make your roofing projects safe, beautiful, and built to last. For more safety tips, check out OSHA's 48-page fall protection manual. Once you have determined the most suitable anchors for your roof system, download our Anchor Inspection Form.

10 Essential Safety Guidelines for Dean Steel Buildings Projects

1. Reject Unverified Imports to Reduce Liability
Choose American-made, 3rd-party-tested SSRA1 anchors to meet the OSHA 1926.502 requirements for a 5,000-pound certified tie-off.

2. Prioritize Low-Torque Fasteners to Prevent Seam Failure
The SSRA1 utilizes a 12-point set screw system requiring only 90 inch-pounds of torque to preserve the structural rib of Dean Steel panels.

3. Mandate First-Man-Up Ridge Protection
Securing a ridge anchor before leaving the ladder is critical for worker safety. The first person to ascend a roof is considered the "First Man Up" by OSHA standards. For roof slopes between 6:12 and 12:12, utilize The Ridge Pro to satisfy OSHA ladder-to-roof transition requirements.

4. The SSRA1 Advantage: No More Searching for Hidden Clips
The SSRA1 eliminates the impossible task of mounting directly over a hidden roof clip. It secures safely to the profile using its own 12-point set screw system.

5. Calculate Dynamic Sag on Fall Distance Calculations
Always calculate the total fall distance to prevent workers from striking lower levels. Limit HLL systems to 4:12-pitch roofs.

6. Prevent Galvanic Corrosion on Galvalume Finishes
Use 100% stainless steel set screws, as found on the SSRA1, to prevent galvanic reactions and premature roof corrosion.

7. Respect Roof System Thermal Expansion
Use non-penetrating clamps, such as the SSRA1, to allow the floating roof to move without stressing the seams or buckling the panels.

8. Implement Daily Torque Verification
As part of your mandatory daily inspection, use a torque wrench to verify all set screws remain at their calibrated settings.

9. Prevent Suspension Trauma with Trauma Straps
Suspension trauma can set in within 5 to 10 minutes. To protect your crew, we strongly recommend equipping every harness with Suspension Trauma Straps.

10. Eliminate the Pendulum Effect: Managing Swing Fall Hazards
Keep your work zone within a 30-degree arc of your anchor point to prevent dangerous pendulum-style swing falls.
