Fall Protection Strategies For AMS Standing Seam Roofs

Who Is AMS?

Architectural Metal Solutions supplies standing seam metal panels and exterior envelope systems for demanding residential and commercial projects.

AMS, short for Architectural Metal Solutions, manufactures architectural metal roofing, siding, and soffit systems built for long-term performance and clean visual impact. The company supports architects, contractors, and building owners from early design conversations through final installation, keeping constructability and durability front and center.

Based in the Pacific Northwest, AMS built its reputation by supplying exterior cladding and envelope solutions that perform in harsh, wet climates. Their product lineup extends beyond metal roofing and siding to include high-density fiber cement panels, phenolic cladding, extruded aluminum systems, and advanced pressure-equalized rainscreen assemblies.

AMS also operates with a curated network of trusted manufacturing partners. That approach gives designers and contractors access to a broad range of exterior solutions without sacrificing quality control.

Why Are Non-Penetrating Anchors Required for AMS Standing Seam Roofs?

Non-penetrating fall protection anchors preserve AMS standing seam roof performance while keeping workers safely tied off.

AMS standing seam roof systems rely on engineered seams and concealed fastening methods to achieve their weather resistance and clean architectural appearance. That design helps panels shed water efficiently and handle thermal expansion, especially in regions where wind, rain, and temperature swings challenge the building envelope.

Penetrating a standing seam panel introduces unnecessary risk. Penetrations can damage seam integrity, interfere with concealed clips, and create hidden leaks. In a climate like the Pacific Northwest, those mistakes tend to show up at the worst possible time. Penetrations also raise warranty concerns that no one wants to untangle after the job is complete.

Non-penetrating fall protection systems eliminate those risks by clamping directly to the standing seam without puncturing the panel. Seam-mounted anchors provide secure tie-off points while allowing the roof system to expand, contract, and drain as designed. This approach protects workers during installation and maintenance while preserving the roof's long-term performance.

Compatible fall protection for AMS standing seam roofs typically includes seam-mounted anchors, such as the SSRA1 Standing Seam Roof Anchor, and accessory options, such as SSRA2 Adjustable Roof Jack Adapters for walkboards and SSRA3 Anchor Plates for horizontal lifeline setups. For crew-based protection, the SSRA HLL 100' Temporary Horizontal Lifeline Kit supports short-term projects. The Super Anchor 120' Permanent Horizontal Lifeline Kit works well for buildings that require repeated roof access. On steeper slopes between 6:12 and 12:12, the Ridge Pro Steep Assist allows workers to establish a tie-off from the ladder before stepping onto the metal surface.

In the sections that follow, this blog breaks down each AMS standing seam panel. It highlights the most compatible fall protection systems for that specific profile. The objective stays simple. Protect the crew, protect the roof, and avoid shortcuts that turn into leaks, callbacks, or warranty headaches down the road.

AMS Snap Lock Panel (SSRA Compatible)

The AMS Snap Lock standing seam panel combines architectural flexibility with reliable wind and water performance across a wide range of applications.

The AMS Snap Lock Panel remains a go-to option for architects and contractors who want clean lines without sacrificing performance. This snap lock style standing seam system installs efficiently. It performs well on commercial, industrial, and residential projects where appearance and durability both matter.

The panel features a 1.75-inch leg height and a continuous interlocking seam that increases resistance to wind uplift and water intrusion. Concealed fastener clips secure the panels while allowing controlled thermal expansion and contraction, which helps the roof perform consistently through seasonal temperature swings. That concealed attachment method also eliminates exposed fasteners, keeping the finished roof surface clean and weathertight.

AMS produces the Snap Lock panel in seam widths ranging from 12 to 24 inches, giving designers the flexibility to match scale and proportion across different building types. Material options include steel in 30- through 22-gauge, galvanized or Zincalume; aluminum from 0.019 to 0.040 inches; stainless steel; copper; terne-coated steel; and cold-rolled steel. Finish options run deep, with more than 50 Kynar colors, 33 SMP colors, 25 polyester colors, plus custom finishes. Optional weather-tightness warranties of up to 20 years make the Snap Lock panel a trusted choice for roofing, mansards, fascia, and sidewall applications.

Fall Protection for AMS Snap Lock Panels

Non-penetrating fall protection systems preserve concealed fastener performance while keeping crews safely tied off on AMS Snap Lock roofs.

AMS Snap Lock panels rely on concealed clips and engineered seams to remain weathertight, making non-penetrating fall protection essential. Drilling into the panels or clips introduces unnecessary risk, from damaged seams to leaks and warranty concerns that surface long after installation.

For 22-gauge and 24-gauge steel Snap Lock panels, all SSRA products provide compatible, non-penetrating fall protection options. The SSRA1 Standing Seam Roof Anchor clamps directly to the seam without puncturing the panel, creating a dependable tie-off point while preserving the roof's integrity. When crews need a stable working surface, the SSRA2 Adjustable Roof Jack Adapters mount on top of SSRA1 anchors and support 10-foot walkboards, giving installers a level platform that adjusts to seam height and roof pitch.

For projects that involve multiple workers or longer roof runs, the SSRA3 Anchor Plate mounts over SSRA1 anchors. It provides a secure attachment point for horizontal lifelines. Snap Lock panels in compatible steel gauges work with both the SSRA HLL 100' Temporary Horizontal Lifeline Kit and the Super Anchor 120' Permanent Horizontal Lifeline Kit. The 100-foot temporary system is suitable for short-duration construction work. In contrast, the 120-foot permanent system supports buildings that require ongoing roof access for maintenance and inspections.

For lighter steel gauges, aluminum, copper, or other non-steel substrates, the Ridge Pro Steep Assist becomes the preferred fall protection option. This non-penetrating system hooks over the roof ridge. It allows workers to tie off from the ladder using an extension pole. It works exceptionally well on roofs with slopes between 6:12 and 12:12, protecting crews during the most vulnerable transitions while leaving the roof untouched.

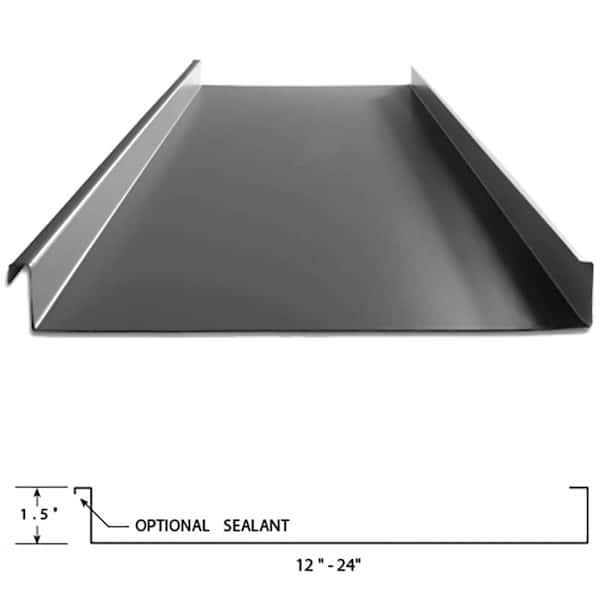

AMS Pro Lock Mechanical Panel (SSRA Compatible)

The AMS Pro Lock mechanical standing seam panel delivers superior strength, clean architectural lines, and reliable weather performance across demanding building applications.

The AMS Pro Lock panel balances structural performance with architectural flexibility, making it a strong fit for commercial, industrial, institutional, and residential buildings.

The 1.5-inch-high mechanical seam increases resistance to wind uplift and water intrusion, especially valuable in regions with frequent storms or sustained exposure to weather. Panel widths range from 12 inches to 24 inches, giving designers freedom to match scale, proportion, and performance requirements across different roof sizes and building styles.

AMS manufactures Pro Lock panels in a wide range of materials, including 22- through 30-gauge galvanized steel, Zincalume, aluminum, stainless steel, copper, terne-coated steel, and cold-rolled steel. Finish options include more than 50 Kynar colors, 33 SMP colors, 25 polyester colors, plus custom finishes when a project demands something specific. Concealed fastener clips secure the panels without exposed penetrations, allowing thermal movement while maintaining a clean, uninterrupted roof surface.

Installers can place the Pro Lock system over open framing, solid decking, or rigid insulation, which adds flexibility during construction. Optional weather-tightness warranties ranging from 20 to 40 years reinforce the panel's reputation as a long-term solution for roofing, mansards, fascia, and sidewall applications.

Fall Protection for AMS Pro Lock Panels

Non-penetrating seam-mounted anchors and horizontal lifeline systems protect AMS Pro Lock roofs while keeping crews safely tied off.

AMS Pro Lock panels rely on concealed clips and mechanically seamed ribs to achieve their performance, which makes non-penetrating fall protection essential. Drilling into panels or clips risks damaging seams, creating hidden leaks, and triggering warranty issues that often surface years after installation.

For 22-gauge and 24-gauge steel Pro Lock panels, the SSRA Standing Seam Roof Anchor products are fully compatible. The SSRA1 Standing Seam Roof Anchor clamps directly to the seam without puncturing the panel, creating a dependable tie-off point while preserving the roof's watertight integrity. When crews need a stable working surface, the SSRA2 Adjustable Roof Jack Adapters mount on top of SSRA1 anchors and support 10-foot wooden walkboards, giving workers a level platform that adjusts to seam height and roof pitch.

For projects involving multiple workers or extended movement across the roof, the SSRA3 Anchor Plate mounts over SSRA1 anchors. It provides a secure attachment point for horizontal lifelines. Pro Lock panels in compatible steel gauges work with both the SSRA HLL 100' Temporary Horizontal Lifeline Kit and the Super Anchor 120' Permanent Horizontal Lifeline Kit. The 100-foot temporary system is suitable for short-duration construction and installation work. In contrast, the 120-foot permanent system supports buildings that require repeated roof access for inspections, maintenance, or service calls.

For lighter steel gauges, aluminum, copper, and other non-steel Pro Lock panels, the Ridge Pro Steep Assist becomes the recommended fall protection solution. This non-penetrating device hooks over the roof ridge and allows workers to establish a tie-off from the ladder using an extension pole. It performs exceptionally well on roof slopes between 6:12 and 12:12, protecting workers during the most vulnerable transitions while leaving the roof system untouched.

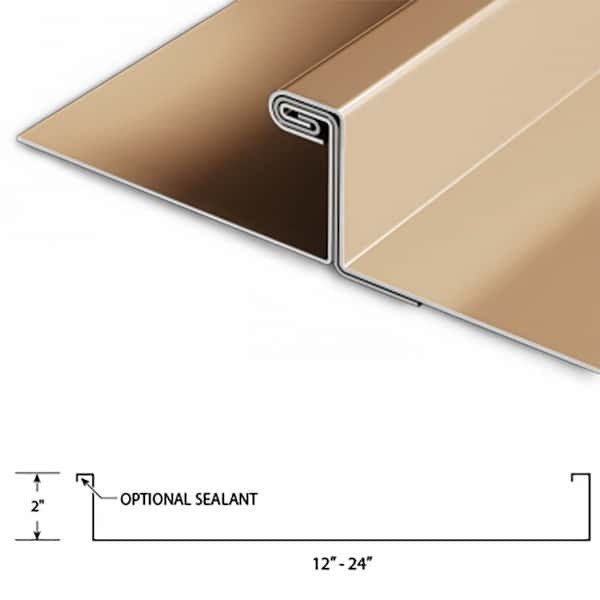

AMS Armor Lock Mechanical Panel (SSRA Compatible)

The AMS Armor Lock mechanical standing seam panel delivers exceptional low-slope weather performance using a 2-inch mechanically seamed profile built for demanding environments.

The AMS Armor Lock Panel serves projects where long-term performance matters as much as architectural appearance. The Armor Lock panel is a mechanically seamed standing seam system featuring a 2-inch leg height requiring single-lock or double-lock field seaming. That added seam security makes Armor Lock a strong choice for low-slope roofs and buildings exposed to harsh or persistent weather conditions.

Panel widths range from 12 inches to 24 inches, giving designers flexibility across a wide variety of roof layouts. Concealed fastener clips secure the panels without exposed penetrations, allowing controlled thermal expansion and contraction while protecting seam geometry over time. Crews can install Armor Lock panels over open framing, solid substrates, or rigid insulation, which adds flexibility during construction without sacrificing weathertight performance.

AMS produces the Armor Lock panel in a wide range of materials, including 22- through 30-gauge galvanized steel, Zincalume, aluminum, stainless steel, copper, terne-coated steel, and cold-rolled steel. Finish options include more than 50 Kynar colors, 33 SMP colors, 25 polyester colors, plus custom finishes when a project demands a specific look. Optional weathertightness warranties of up to 40 years reinforce why Armor Lock remains one of AMS's most frequently specified standing seam systems for commercial, industrial, and institutional buildings.

Fall Protection for AMS Armor Lock Panels

Non-penetrating seam-mounted anchors and horizontal lifeline systems protect AMS Armor Lock roofs while preserving low-slope weathertight performance.

Armor Lock panels rely on concealed clips and mechanically locked seams to achieve their weather resistance, which makes non-penetrating fall protection essential. Drilling into the panel or clip system risks damaging seams, introducing hidden leaks, and creating warranty concerns that often surface long after installation.

For 22-gauge and 24-gauge steel Armor Lock panels, all SSRA Standing Seam Roof Anchor products are fully compatible. The SSRA1 Standing Seam Roof Anchor clamps directly to the seam without puncturing the panel, providing a dependable tie-off point while preserving the roof's weathertight seal. When crews need a stable working surface, the SSRA2 Adjustable Roof Jack Adapters mount on top of SSRA1 anchors and support 10-foot wooden walkboards, giving workers a level platform that adjusts to seam height and roof pitch.

For projects that require greater mobility or multiple workers on the roof, the SSRA3 Anchor Plate mounts over SSRA1 anchors and supports horizontal lifeline systems. Armor Lock panels in compatible steel gauges work with both the SSRA HLL 100' Temporary Horizontal Lifeline Kit and the Super Anchor 120' Permanent Horizontal Lifeline Kit. The temporary system is suitable for short-term construction and installation work, and the permanent system supports buildings that require repeated roof access for maintenance, inspections, or service work throughout the structure's life.

For lighter steel gauges, aluminum, and copper Armor Lock panels, the Ridge Pro Steep Assist becomes the recommended fall protection solution. This non-penetrating device hooks over the roof ridge and allows workers to establish a tie-off from the ladder using an extension pole. It performs exceptionally well on roof slopes between 6:12 and 12:12, protecting workers during critical transitions while leaving the roof system untouched.

Contact Us for Expert Standing Seam Fall Protection Advice

For expert guidance on standing seam roof anchors, lifeline kits, and fall protection systems that protect both your crew and your panels, contact us today at 863-703-4522 or visit www.StandingSeamRoofAnchor.com. Our safety specialists can help you match the right non-penetrating anchor to your specific roof profile and slope. Let's make your next metal roofing project safe, compliant, and built to last. For continued learning, download OSHA's 48-page Fall Protection Manual and our free Anchor Inspection Form once you've selected the ideal anchors for your roof system. Together, we'll help you stay ahead of OSHA standards while preserving your roof's weather-tight seal.

Safety Tips For Standing Seam Roofs

Develop OSHA-Compliant Safety Plans

AMS projects often involve complex roof shapes, mixed roofing materials, and long commercial roof spans. A written safety plan establishes where anchors and lifelines go, how crews access the roof, and who manages rescue if something goes wrong. As weather shifts or work moves from one elevation to another, the plan should adapt.

Ensure Proper Footwear for Stability

Morning moisture, airborne dust, or smooth coatings can reduce traction without warning. Footwear with aggressive tread and firm ankle support helps workers stay balanced while carrying tools or moving between tie-off points.

Use Specialized Anchor Systems for Standing Seam Roofs

AMS standing seam panels rely on engineered seams and concealed clips to achieve their weather performance and clean appearance. Fall protection that clamps directly to the seam without puncturing the panel protects workers while allowing natural thermal expansion.

Prioritize Ladder Safety Training

Many fall incidents occur during the transition from ladder to roof. Improper ladder angles, unstable bases, or unsecured tops turn access into a high-risk moment before work even begins. Reinforcing ladder setup, securing the ladder to the structure, and maintaining three points of contact reduces risk during the most overlooked phase of the job.

Install Permanent Roof Anchor Systems

Buildings with AMS roof systems often require future access for inspections, maintenance, or equipment servicing. Permanent horizontal lifeline systems provide consistent tie-off points every time crews return. They streamline setup, reduce the need to repeatedly handle temporary gear, and create safer long-term maintenance routines throughout the building's life.

Equip Workers with High-Quality Safety Gear

Harnesses that fit correctly and SRLs that function smoothly help workers move confidently across architectural metal panels. Poorly fitting gear causes fatigue and distraction, which increases the risk on smooth roof surfaces. OSHA reinforced in 2025 that employers must provide appropriately sized equipment for each worker, and ignoring fit requirements exposes crews and companies to serious liabilities.

Set Up Protective Guardrail Barriers for Work Zones

Guardrails provide passive protection that does not rely on constant attention. Around skylights, roof edges, or equipment clusters, they establish visual boundaries that crews instinctively respect. Guardrails reduce exposure in high-risk areas and allow workers to focus on installation or service tasks without continuously tracking fall hazards.

Promote a Culture of Safety

The safest AMS job sites are the ones where crews communicate early and often. Daily conversations about access routes, wind conditions, roof layouts, and tie-off plans reduce surprises once work starts. When workers feel comfortable raising concerns, hazards get addressed before they turn into incidents.

Encourage the Use of Trauma Straps

After a fall arrest, suspension trauma becomes the next concern. Trauma straps allow a suspended worker to remain in the harness and maintain circulation while rescue procedures take place. Small and easy to carry, they provide critical protection during real-world emergencies when response time matters.

Consult Experts for Curved Metal Panels

Curved standing seam roofs introduce anchor attachment variables that standard anchors cannot always accommodate. A fall protection professional familiar with curved AMS systems can evaluate the roof and recommend solutions that respect the panel style. That added step protects workers, preserves the roof system, and prevents costly mistakes before the job begins.

Disclaimer

The views, recommendations, and information presented in this blog are solely those of the author and do not necessarily reflect the opinions or positions of the featured panel manufacturer, its brands, subsidiaries, or parent companies. Customers are strongly encouraged to contact the roof panel manufacturer directly for inquiries regarding fall protection compatibility with their products and to address any potential warranty issues that may arise after installing our products.
