Fall Protection Strategies For Corle Building Systems Roofs

See the Roof Anchor Compatibility Chart for Corle Building Systems Standing Seam Panels.

Who Is Corle Building Systems?

Corle Building Systems began in 1972 to design and manufacture metal buildings that outperformed the rest.

What started as a single structure under the leadership of John Corle steadily evolved into a national operation serving customers across the United States and Canada. That growth did not happen by accident. It came from consistent investment in engineering and manufacturing disciplines, and a willingness to adapt as the metal building industry changed.

In the late 1990s, Corle consolidated its operations in Imler, Pennsylvania, creating a centralized manufacturing and engineering hub that remains the heart of the company today. By 2022, Corle had completed more than 500 metal building projects and marked 50 years in business, a milestone that reflects longevity, consistency, and technical expertise rather than short-term expansion.

Corle Building Systems maintains CIAS AC472 accreditation in the United States and CSA A660-10 certification in Canada. These certifications require annual third-party audits of management systems, order processing, design procedures, and manufacturing operations. For Corle, these credentials represent more than compliance. They reflect a company-wide commitment to delivering metal building systems that meet strict performance, quality, and safety standards, reinforcing Corle's long-standing commitment to excellence.

Why Are Compatible Fall Protection Products Required for Corle Standing Seam Roofs?

Corle standing seam roof systems require non-penetrating fall protection solutions that protect workers while preserving the roof's concealed fastener design.

Standing seam roofs manufactured by Corle rely on structural seam styles and concealed clips to deliver long-term performance. That design improves weather resistance and durability, but it also removes the attachment points that traditional fall protection systems depend on. Drilling through panels or using incompatible anchors risks seam damage, restricted thermal movement, causes hidden water leaks, and warranty issues.

That is why fall protection on Corle roofs must use non-penetrating systems designed specifically for standing seam panels. Seam-mounted anchors such as the SSRA1 Standing Seam Roof Anchor clamp directly to compatible steel seams without piercing the panel. The twelve stainless-steel set screws provide a solid connection to the standing seam without crushing the vertical legs. The SSRA2 Adjustable Roof Jack Adapters mount on top of SSRA1 anchors to support 10-foot walkboards. The SSRA3 Anchor Plates install over SSRA1 anchors to create attachment points for horizontal lifelines.

For projects that require worker mobility across steep roof runs, horizontal lifeline systems provide continuous tie-off. The SSRA HLL 100-foot Temporary Horizontal Lifeline Kit pairs SSRA3 Anchor Plates with a kernmantle rope for short-term construction use. The Super Anchor 120-foot Permanent Horizontal Lifeline Kit offers a long-term solution using galvanized steel cable and riser posts for repeated roof access.

On steeper slopes or panel types where seam-mounted anchors are not appropriate, the Ridge Pro Steep Assist provides a ridge-mounted tie-off solution. By hooking over the roof peak without fasteners, the Ridge Pro allows workers to establish a 100 percent tie-off from the ladder while avoiding seam attachment.

In the sections that follow, we will break down Corle's standing seam roof profiles and identify which fall protection system works best for each. Matching the anchor, adapter, or lifeline to the specific panel ensures crews stay protected and the roof performs precisely as Corle engineered it to.

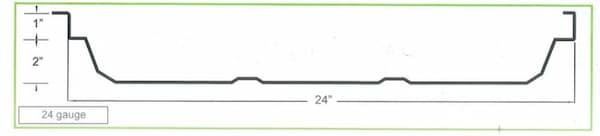

Seam-Lok Mechanical Standing Seam Panel (SSRA Compatible)

The Corle Seam-Lok mechanical panel delivers structural performance and long-term weather resistance for low-slope industrial roofing applications.

The Seam-Lok Premium Standing Seam Roof System serves demanding industrial and commercial projects where durability matters. Corle manufactures these panels from 24-gauge Galvalume steel, giving the system strong corrosion resistance and consistent long-term performance. Each trapezoidal panel features 3-inch-high seams spaced 24 inches apart, creating a tall, rigid seam style that improves wind resistance and sheds water efficiently on low-slope roofs. See the Roof Anchor Compatibility Chart for Corle Building Systems Seam-Lok Mechanical Standing Seam Panels.

Field-seaming locks each panel together during installation, forming a continuous, weather-tight roof surface that withstands harsh environments. The trapezoidal panel shape adds structural stiffness while supporting reliable drainage across large roof areas. Corle finishes Seam-Lok panels with Trinar® coatings backed by a 40-year limited warranty, helping the system maintain color stability and reduce long-term maintenance. UL ratings and FM approvals further reinforce Seam-Lok as a trusted solution for facilities that require proven performance rather than decorative appeal.

Fall Protection for Seam-Lok Panels

Seam-Lok panels use a tall mechanical seam and heavy 24-gauge steel, allowing crews to deploy fall protection without stressing the roof system.

SSRA1 Standing Seam Roof Anchors clamp directly to the seam, providing a dependable connection point without drilling. This anchor allows workers to tie off while keeping the Galvalume substrate and Trinar® finish intact.

When the work requires level walkboards across the panels, workers can install SSRA2 Adjustable Roof Jack Adapters on top of SSRA1 anchors. This setup supports 10-foot walkboards and provides crews with a level surface for tools and materials, reducing fatigue and improving footing on large roof areas.

On projects where multiple workers need to move along the roof simultaneously, SSRA3 Anchor Plates are installed over SSRA1 anchors and serve as connection points for horizontal lifelines. Seam-Lok panels work with the SSRA HLL 100-foot Temporary Horizontal Lifeline Kit for short-term construction phases. Facilities that expect routine rooftop access often choose the Super Anchor 120-foot Permanent Horizontal Lifeline Kit to establish a long-term tie-off path for maintenance crews.

For Seam-Lok slopes between 6:12 and 12:12, the Ridge Pro Steep Assist provides a ridge-mounted tie-off solution that does not rely on seam attachment. By hooking over the roof peak, workers can establish a tie-off before stepping onto the panels and stay connected throughout the roof access.

Snap-Seal SnapLock Standing Seam Panels (SSRA Compatible)

Snap-Seal panels play an essential role in Corle's standing seam lineup by providing reliable weather protection without the need for field-seaming equipment.

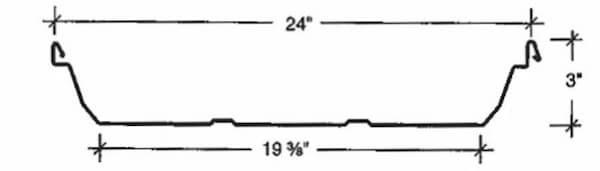

Built from 24-gauge Galvalume steel, these panels feature a trapezoidal profile with 3-inch-high seams spaced 24 inches apart. That seam style provides strength and water control while keeping installation costs down. See the Roof Anchor Compatibility Chart for Corle Building Systems Snap-Seal SnapLock Standing Seam Panels.

Contractors frequently specify Snap-Seal panels for canopies, mini-storage buildings, and accessory structures where installation speed and efficiency matter. The snap-together design reduces labor time while still producing a clean, professional roof surface. Combined with the corrosion resistance of the Galvalume substrate, Snap-Seal panels deliver a durable solution that performs well in long-term service without unnecessary complexity.

Fall Protection for Snap-Seal Panels

Snap-Seal panels allow the use of non-penetrating fall protection systems that attach directly to the standing seam.

The SSRA1 Standing Seam Roof Anchor clamps securely to the Snap-Seal seam without drilling, providing a dependable tie-off point with six pairs of set screws that lock the anchor in place on the seam. When work requires level walkboards, workers can install SSRA2 Adjustable Roof Jack Adapters on top of SSRA1 anchors. This setup improves footing and material handling on smaller structures where staging space is limited.

For tasks requiring maximum worker mobility, SSRA3 Anchor Plates are installed over SSRA1 anchors and serve as attachment points for horizontal lifelines. Snap-Seal panels work with the SSRA HLL 100-foot Temporary Horizontal Lifeline Kit during construction phases, while buildings that require ongoing access benefit from the Super Anchor 120-foot Permanent Horizontal Lifeline Kit, which establishes a consistent tie-off path for future maintenance.

On Snap-Seal roofs with slopes between 6:12 and 12:12, the Ridge Pro Steep Assist offers a practical alternative to seam-mounted systems. Hooking over the roof peak allows workers to establish a tie-off before stepping onto the panels and maintain continuous protection while moving on steeper surfaces.

Vertical Lok Architectural Standing Seam Panels (SSRA Compatible)

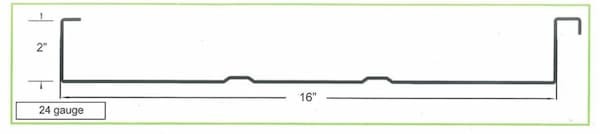

Vertical Lok panels feature a 2-inch seam height and 16-inch spacing. This system creates a tighter seam layout that designers often choose for commercial façades, mixed-use buildings, and high-visibility residential projects.

The panels are formed from 24-gauge Galvalume steel, giving them strong corrosion resistance while maintaining a clean, precise profile. Each Vertical Lok panel includes a factory-applied sealant, providing an additional layer of protection against water intrusion and wind-driven rain. The concealed clip system allows panels to move as temperatures change, while the 360-degree field seaming locks each panel together into a continuous, weather-tight surface. UL listings confirm the system meets established performance benchmarks rather than relying on appearance alone. See the Roof Anchor Compatibility Chart for Corle Building Systems Vertical Lok Architectural Standing Seam Panels.

Corle finishes Vertical Lok panels with Trinar® coatings backed by a 40-year limited warranty, ensuring long-term color stability. The ability to color-match roof and wall panels allows architects to extend the same finish across the entire building envelope, creating a cohesive exterior without visual breaks.

Fall Protection for Vertical Lok Panels

Vertical Lok panels allow the use of non-penetrating fall protection systems that attach directly to the seam shape.

The SSRA1 Standing Seam Roof Anchor clamps to the Vertical Lok seam without drilling, creating a secure tie-off point while preserving the factory sealant and seam integrity. When crews need a stable footing for installation or service work, SSRA2 Adjustable Roof Jack Adapters mount on top of SSRA1 anchors and support walkboards, with adjustability for roof pitch and seam height.

For larger roof areas or when multiple workers need to remain tied off, SSRA3 Anchor Plates are installed over SSRA1 anchors and serve as connection points for horizontal lifelines. Vertical Lok panels are compatible with the SSRA HLL 100-foot Temporary Horizontal Lifeline Kit during construction or retrofit phases. Buildings with ongoing rooftop access often benefit from the Super Anchor 120-foot Permanent Horizontal Lifeline Kit, which establishes a fixed, repeatable tie-off route for maintenance crews. The permanent kit provides galvanized steel cable, 5-inch riser posts, and non-penetrating seam clamps.

On Vertical Lok roofs with slopes between 6:12 and 12:12, the Ridge Pro Steep Assist offers an alternative tie-off method that avoids seam attachment altogether. Hooking over the roof peak allows workers to establish a tie-off before stepping onto the panels and remain connected while working on steeper sections.

Vertical Lok panels emphasize precision and finish quality, and fall protection should follow the same approach. Choosing systems that integrate cleanly with the seam style keeps workers safe while preserving the roof's architectural intent.

Standing Seam Metal Roof Anchor Panel Compatibility Chart For Corle Building Systems

	Seam-Lok (24 Ga.)	Snap-Seal (24 Ga.)	Vertical Lok (24 Ga.)
SSRA 1	NO	NO	NO
SSRA1 Nylon Tip	YES	YES	YES
SSRA2 Roof Jack	YES	YES	YES
SSRA3 Anchor Plate	YES	YES	YES
The Ridge Pro	YES	YES	YES

Contact Us for Expert Standing Seam Fall Protection Advice

For expert guidance on standing seam roof anchors, lifeline kits, and fall protection systems that protect both your crew and your panels, contact us today at 863-703-4522 or visit www.StandingSeamRoofAnchor.com. Our safety specialists can help you match the right non-penetrating anchor to your specific roof profile and slope. Let's make your next metal roofing project safe, compliant, and built to last. For continued learning, download OSHA's 48-page Fall Protection Manual and our free Anchor Inspection Form once you've selected the ideal anchors for your roof system. Together, we'll help you stay ahead of OSHA standards while preserving your roof's weather-tight seal.

Safety Tips For Standing Seam Roofs

Promote a Culture of Safety

The safest Corle job sites share one common trait: crews talk before they climb. Brief conversations about roof access, seam layout, weather changes, and work sequencing help everyone anticipate risk rather than react to it. When workers feel comfortable raising concerns early, hazards get addressed while they are still manageable.

Prioritize Ladder Safety Training

Roof safety starts at ground level. Ladders set at the wrong angle, placed on uneven surfaces, or left unsecured create risk before tools ever reach the roof. Taking a few minutes to confirm ladder condition, footing, and tie-in reduces exposure during the most overlooked phase of the job.

Use Specialized Anchor Systems for Standing Seam Roofs

Corle standing seam panels rely on concealed attachment and watertight seam designs to perform as intended. Fall protection anchors built specifically for these systems attach without penetrating the roof or restricting thermal movement. Choosing the correct anchor prevents crushed seams, damaged clips, and water intrusion that often result from improvised solutions.

Equip Workers with High-Quality Safety Gear

Harnesses that fit correctly and SRLs that deploy smoothly make a noticeable difference on metal roofs. Comfortable, properly sized gear allows workers to focus on footing, transitions, and task execution rather than fighting their equipment. OSHA's 2025 guidance reinforced that fit matters, and overlooking it creates unnecessary risk for everyone involved.

Develop OSHA-Compliant Safety Plans

A written safety plan keeps the job site organized when conditions change. Clearly identifying tie-off locations, walkboard placement, lifeline routing, and rescue responsibilities reduces hesitation during critical moments. Updating the plan as work progresses helps crews stay aligned from start to finish.

Ensure Proper Footwear for Stability

Standing seam panels can become slick without warning due to condensation, dust, or temperature swings. Boots with non-slip tread, firm ankle support, and intact soles help workers maintain balance while carrying materials or moving between tie-off points.

Install Permanent Roof Anchor Systems

Many Corle buildings require ongoing rooftop access for maintenance, inspections, or equipment service. Permanent anchor and lifeline systems provide predictable tie-off points each time crews return, reducing setup time and discouraging unsafe shortcuts. Over the life of the building, permanent systems improve both safety and efficiency.

Set Up Protective Guardrail Barriers for Work Zones

Guardrails provide passive protection that does not depend on worker action. Around skylights, roof edges, and service areas, they establish clear boundaries that crews instinctively respect. On larger Corle roofs, guardrails help control movement and clearly define high-risk areas.

Encourage the Use of Trauma Straps

When a fall arrest system activates, suspension trauma becomes the next concern. Trauma straps allow a suspended worker to stand in the harness, relieve leg pressure, and maintain circulation while rescue procedures begin. Lightweight and easy to carry, they play a critical role during real-world rescue situations.

Consult Experts for Curved Metal Panels

Curved standing seam roofs require a different approach to fall protection. A qualified safety professional familiar with curved systems should evaluate the roof structure and components before work begins. That added review protects workers, preserves the roof system, and prevents costly mistakes on complex Corle projects.
