Fall Protection Anchors For Fabral Standing Seam Systems
Posted by Howie Scarboro - CEO Fall Protection Distributors, LLC on Mar 12th 2026
See the Roof Anchor Compatibility Chart for Fabral Standing Seam Panels.

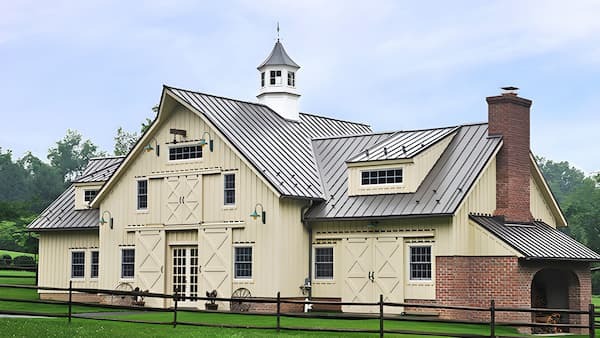

Who Is Fabral Roofing Systems?
Fabral has shaped the American metal roofing industry for more than fifty years. Founded in 1967, the company began as a regional supplier of durable steel panels. It grew into one of the nation's most respected names in metal building systems. From its early contributions during the Vietnam War to its leadership in today's energy-efficient construction movement, Fabral has built a reputation for craftsmanship, quality, and performance. Headquartered in Lancaster, Pennsylvania, Fabral Roofing Systems manufactures lightweight, weather-resistant, and environmentally responsible metal panels used across agricultural, residential, commercial, and architectural projects.
In 2023, Flack Global Metals (FGM) acquired Fabral, marking its strategic entry into manufacturing. The acquisition also included CopperCraft, Fabral's architectural metals brand, expanding product capabilities for decorative and high-performance applications. Today, Fabral operates eight facilities across the United States, employs more than 200 specialists, and serves over 500 customers nationwide, maintaining its position as a trusted supplier in the metal building industry.
Why Are Non-Penetrating Fall Protection Anchors Critical For Fabral Standing Seam Roofs?
Non-penetrating fall protection anchors protect Fabral standing-seam roof systems while maintaining weather-tight performance and full OSHA compliance. Working safely on Fabral standing seam roofs requires fall protection systems that secure workers without damaging the panels. Because most of Fabral's roofs are floating systems, the seams and concealed clips expand slightly with temperature changes. Drilling or screwing directly into the panels restricts movement, eventually leading to leaks, oil canning, and loss of warranty coverage. By pairing Fabral's standing-seam roof systems with non-penetrating fall-protection anchors, contractors can protect the structure, preserve warranties, and ensure total worker safety across every jobsite.
Fall Protection Systems for Fabral Panels
To maintain the integrity of these high-performance systems, specialized fall protection is required. The following products provide the primary safety solutions for Fabral installations:
- SSRA1 Standing Seam Roof Anchor: The foundation of the system. This anchor provides a non-penetrating, certified 5,000-pound tie-off point using 12 cupped-tip or nylon-tipped set screws.
- SSRA2 Adjustable Roof Jack Adapters: Mount directly to the SSRA1 anchors to create level work platforms on steep slopes using 10-foot wooden walkboards.
- SSRA3 Anchor Plate: Heavy-duty aluminum plates that secure across two SSRA1 anchors to serve as certified endpoints for horizontal lifelines.
- SSRA HLL 100-foot Temporary HLL Kit: A complete turnkey system providing continuous tie-off for up to two workers in fall arrest, allowing safe lateral movement across wide spans.
- 120-foot Super Anchor Permanent HLL Kit: An industry-exclusive galvanized-steel-cable solution for roofs requiring regular maintenance without penetrations.
- Ridge Pro Steep Assist: A peak-mounted system for slopes between 6:12 and 12:12, providing 100% tie-off from the ladder to the ridge.
Proper Attachment: Set-Screws and Torque Requirements
- Cupped-Tip Stainless Steel Set-Screws: Use these screws exclusively on 22-gauge steel panels. Torque these screws to 90 inch-pounds.
- Nylon-Tipped Set-Screws: Apply these tips to 22-gauge or 24-gauge steel panels to achieve certified holding power without marking the finish. Torque these screws to 180-200 inch-pounds.
- Maintenance: Treat nylon tips as consumables. Replace these tips every 3 to 5 uses to maintain maximum grip strength.
CRITICAL WARNING: NO IMPACT GUNS
Never use an impact gun to install set-screws. Over-torquing with an impact driver crushes the standing-seam rib. This installation error damages the anchor hardware and voids the manufacturer's warranty. Always use a calibrated torque wrench for final installation.

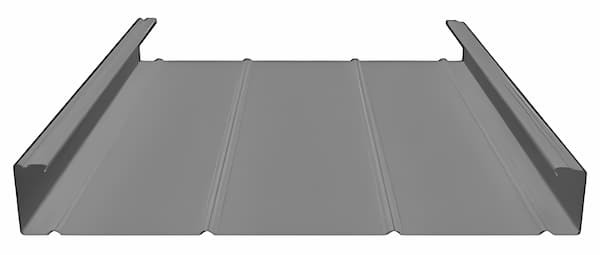

Fabral 2-1/2-inch SSR Batten T-Seam Panels (SSRA Compatible 22/24 ga. Steel)
Fabral's tall 2-1/2-inch batten seam panel delivers structural strength, low-slope performance, and a wide range of material options for demanding architectural metal roofs. Each panel provides 18 inches of coverage and rises to a 2-1/2 inch seam height. The elevated seam allows this system to function on slopes as low as ½:12. Fabral manufactures this panel in 18-, 20-, 22-, and 24-gauge steel, as well as .032-, .040-, and .050-gauge aluminum. See the Roof Anchor Compatibility Chart for Fabral 22 gauge and 24 gauge 2-1/2-inch SSR Batten T-Seam Standing Seam Panels.
Fall Protection For Fabral 2-1/2-inch SSR Batten T-Seam Panels
- SSRA1 Standing Seam Roof Anchor: A non-penetrating, 5,000-lb rated anchor that clamps to the tall batten seam.
- SSRA2 Adjustable Roof Jack Adapter: An adapter for SSRA1 anchors that supports 10-foot wooden walkboards on steep slopes.
- SSRA3 Anchor Plate: A structural plate that joins two SSRA1 anchors to serve as a horizontal lifeline endpoint.
- SSRA HLL 100-foot Temporary HLL Kit: A complete turnkey horizontal lifeline system for up to two workers.
- Super Anchor 120-foot Permanent HLL Kit: A permanent galvanized steel cable lifeline for long-term maintenance access.
- Ridge Pro Steep Assist Anchor: A ridge-mounted anchor for initial access and safety on 6:12 to 12:12 pitches (Preferred for Aluminum).

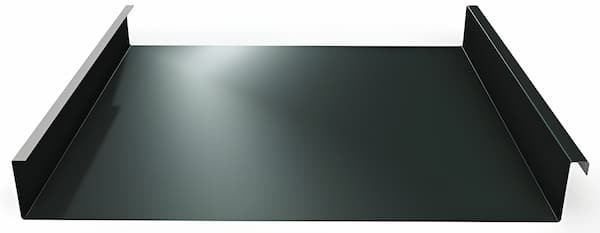

Fabral Twin-Fold Mechanical Panels (SSRA Compatible 22/24 ga. Steel)
Produced in 22-gauge steel, 24-gauge steel, or .032 aluminum in 12-, 16-, and 18-inch widths. The Twin-Fold requires a minimum slope of 3:12. Roof lengths range from 6 to 47 feet. Fabral offers curving and tapering for this panel. See the Roof Anchor Compatibility Chart for Fabral 22 gauge and 24 gauge Twin-Fold Mechanical Standing Seam Panels.
Fall Protection For Fabral Twin-Fold Mechanical Panels
- SSRA1 Standing Seam Roof Anchor: A non-penetrating, 5,000-lb rated anchor that clamps to the mechanical seam.
- SSRA2 Adjustable Roof Jack Adapter: An adapter for SSRA1 anchors that supports 10-foot wooden walkboards on steep slopes.
- SSRA3 Anchor Plate: A structural plate that joins two SSRA1 anchors to serve as a horizontal lifeline endpoint.
- SSRA HLL 100-foot Temporary HLL Kit: A complete turnkey horizontal lifeline system for up to two workers.
- Super Anchor 120-foot Permanent HLL Kit: A permanent galvanized steel cable lifeline for long-term maintenance access.
- Ridge Pro Steep Assist Anchor: A ridge-mounted anchor for initial access and safety on 6:12 to 12:12 pitches (Preferred for Aluminum).
CRITICAL WARNING: For curved or tapered panels, we recommend that a trained fall protection expert perform a site inspection before determining the appropriate fall protection plan.

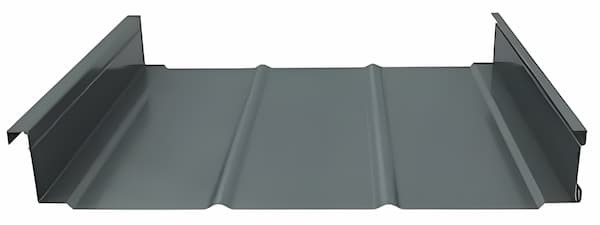

Fabral Stand N Seam Mechanical Panels (SSRA Compatible 22/24 ga. Steel)
Double-locked mechanical seam with exceptional wind uplift ratings. Manufactures Stand N Seam in 12-inch and 16-inch widths, with a seam height of 2-1/2 inches. Minimum slopes as low as 1/2:12. Available in 22-gauge steel, 24-gauge steel, aluminum, and copper. See the Roof Anchor Compatibility Chart for Fabral 22 gauge and 24 gauge Twin-Fold Mechanical Standing Seam Panels.
Fall Protection For Fabral Stand N Seam Mechanical Panels
- SSRA1 Standing Seam Roof Anchor: A non-penetrating, 5,000-lb rated anchor that clamps to the 2-1/2 inch mechanical seam.
- SSRA2 Adjustable Roof Jack Adapter: An adapter for SSRA1 anchors that supports 10-foot wooden walkboards on steep slopes.
- SSRA3 Anchor Plate: A structural plate that joins two SSRA1 anchors to serve as a horizontal lifeline endpoint.
- SSRA HLL 100-foot Temporary HLL Kit: A complete turnkey horizontal lifeline system for up to two workers.
- Super Anchor 120-foot Permanent HLL Kit: A permanent galvanized steel cable lifeline for long-term maintenance access.
- Ridge Pro Steep Assist Anchor: A ridge-mounted anchor for initial access and safety on 6:12 to 12:12 pitches (Preferred for Aluminum/Copper).

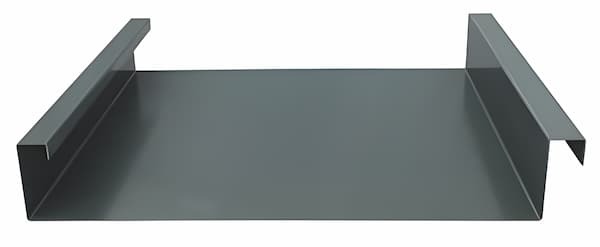

Fabral Powerseam Mechanical Panels (SSRA Compatible 22/24 ga. Steel)
Powerseam panels come in 12-inch, 16-inch, and 18-inch coverage widths with a 2-inch seam height. Performs on slopes as low as 1:12 pitch. Order panels in 22-gauge steel, 24-gauge steel, or aluminum. Fabral offers curving as an option on this panel. See the Roof Anchor Compatibility Chart for Fabral 22 gauge and 24 gauge Powerseam Mechanical Standing Seam Panels.
Fall Protection For Fabral Powerseam Mechanical Panels
- SSRA1 Standing Seam Roof Anchor: A non-penetrating, 5,000-lb rated anchor that clamps to the 2-inch mechanical seam.
- SSRA2 Adjustable Roof Jack Adapter: An adapter for SSRA1 anchors that supports 10-foot wooden walkboards on steep slopes.
- SSRA3 Anchor Plate: A structural plate that joins two SSRA1 anchors to serve as a horizontal lifeline endpoint.
- SSRA HLL 100-foot Temporary HLL Kit: A complete turnkey horizontal lifeline system for up to two workers.
- Super Anchor 120-foot Permanent HLL Kit: A permanent galvanized steel cable lifeline for long-term maintenance access.
- Ridge Pro Steep Assist Anchor: A ridge-mounted anchor for initial access and safety on 6:12 to 12:12 pitches (Preferred for Aluminum).
CRITICAL WARNING: For curved or tapered panels, we recommend that a trained fall protection expert perform a site inspection before determining the appropriate fall protection plan.

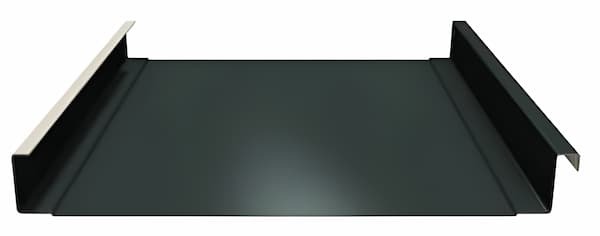

Fabral Powerseam II Mechanical Panels (SSRA Compatible 22/24 ga. Steel)
Powerseam II is available in 12-, 16-, and 18-inch widths, with a minimum slope of 1:12. Available in 22-gauge and 24-gauge steel, as well as aluminum. Fabral offers curving as an option on this panel. See the Roof Anchor Compatibility Chart for Fabral 22 gauge and 24 gauge Powerseam II Mechanical Standing Seam Panels.
Fall Protection For Fabral Powerseam II Mechanical Panels
- SSRA1 Standing Seam Roof Anchor: A non-penetrating, 5,000-lb rated anchor that clamps to the mechanical seam.
- SSRA2 Adjustable Roof Jack Adapter: An adapter for SSRA1 anchors that supports 10-foot wooden walkboards on steep slopes.
- SSRA3 Anchor Plate: A structural plate that joins two SSRA1 anchors to serve as a horizontal lifeline endpoint.
- SSRA HLL 100-foot Temporary HLL Kit: A complete turnkey horizontal lifeline system for up to two workers.
- Super Anchor 120-foot Permanent HLL Kit: A permanent galvanized steel cable lifeline for long-term maintenance access.
- Ridge Pro Steep Assist Anchor: A ridge-mounted anchor for initial access and safety on 6:12 to 12:12 pitches (Preferred for Aluminum).
CRITICAL WARNING: For curved or tapered panels, we recommend that a trained fall protection expert perform a site inspection before determining the appropriate fall protection plan.
Fabral Thin Seam Snaplock Panels (SSRA Compatible 22/24 ga. Steel)
Versatile snaplock panel with a 1-3/4-inch rib height. Performs on low-slope roofs with a 1:12 pitch. Produced in 22-gauge or 24-gauge steel, aluminum, or copper, in 12-, 16-, or 18-inch widths. Fabral offers curving and tapering for this panel. See the Roof Anchor Compatibility Chart for Fabral 22 gauge and 24 gauge Thin Seam Snaplock Standing Seam Panels.
Fall Protection For Fabral Thin Seam Snaplock Panels
- SSRA1 Standing Seam Roof Anchor: A non-penetrating, 5,000-lb rated anchor that clamps to the 1-3/4 inch snaplock rib.
- SSRA2 Adjustable Roof Jack Adapter: An adapter for SSRA1 anchors that supports 10-foot wooden walkboards on steep slopes.
- SSRA3 Anchor Plate: A structural plate that joins two SSRA1 anchors to serve as a horizontal lifeline endpoint.
- SSRA HLL 100-foot Temporary HLL Kit: A complete turnkey horizontal lifeline system for up to two workers.
- Super Anchor 120-foot Permanent HLL Kit: A permanent galvanized steel cable lifeline for long-term maintenance access.
- Ridge Pro Steep Assist Anchor: A ridge-mounted anchor for initial access and safety on 6:12 to 12:12 pitches (Preferred for Aluminum/Copper).
CRITICAL WARNING: For curved or tapered panels, we recommend that a trained fall protection expert perform a site inspection before determining the appropriate fall protection plan.
Fabral IP Seam 3 Panels (SSRA Compatible 22/24 ga. Steel)
Uses a 3-inch tall trapezoidal rib on a minimum 1:12 pitch. Manufactured in 22-gauge and 24-gauge steel. Smart fit for distribution centers and large commercial footprints. See the Roof Anchor Compatibility Chart for Fabral 22 gauge and 24 gauge IP Seam 3 Standing Seam Panels.
Fall Protection For Fabral IP Seam 3 Panels
- SSRA1 Standing Seam Roof Anchor: A non-penetrating, 5,000-lb rated anchor that clamps to the 3-inch trapezoidal rib.
- SSRA2 Adjustable Roof Jack Adapter: An adapter for SSRA1 anchors that supports 10-foot wooden walkboards on steep slopes.
- SSRA3 Anchor Plate: A structural plate that joins two SSRA1 anchors to serve as a horizontal lifeline endpoint.
- SSRA HLL 100-foot Temporary HLL Kit: A complete turnkey horizontal lifeline system for up to two workers.
- Super Anchor 120-foot Permanent HLL Kit: A permanent galvanized steel cable lifeline for long-term maintenance access.
- Ridge Pro Steep Assist Anchor: A ridge-mounted anchor for initial access and safety on 6:12 to 12:12 pitches.

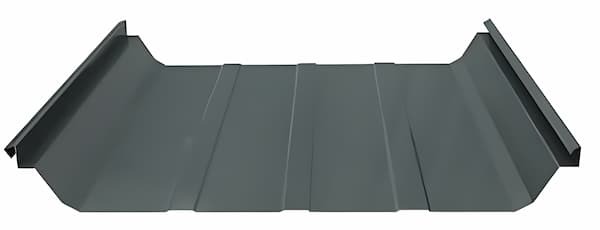

Fabral IP Snap 3 Panels (SSRA Compatible 22/24 ga. Steel)
Formed in 22- and 24-gauge steel with a 3-inch-tall trapezoidal rib. Sheds water efficiently on pitches as low as 1/2:12. Provides full 24 inches of coverage. See the Roof Anchor Compatibility Chart for Fabral 22 gauge and 24 gauge IP Snap 3 Standing Seam Panels.
Fall Protection For Fabral IP Snap 3 Panels
- SSRA1 Standing Seam Roof Anchor: A non-penetrating, 5,000-lb rated anchor that clamps to the 3-inch trapezoidal rib.
- SSRA2 Adjustable Roof Jack Adapter: An adapter for SSRA1 anchors that supports 10-foot wooden walkboards on steep slopes.
- SSRA3 Anchor Plate: A structural plate that joins two SSRA1 anchors to serve as a horizontal lifeline endpoint.
- SSRA HLL 100-foot Temporary HLL Kit: A complete turnkey horizontal lifeline system for up to two workers.
- Super Anchor 120-foot Permanent HLL Kit: A permanent galvanized steel cable lifeline for long-term maintenance access.
- Ridge Pro Steep Assist Anchor: A ridge-mounted anchor for initial access and safety on 6:12 to 12:12 pitches.

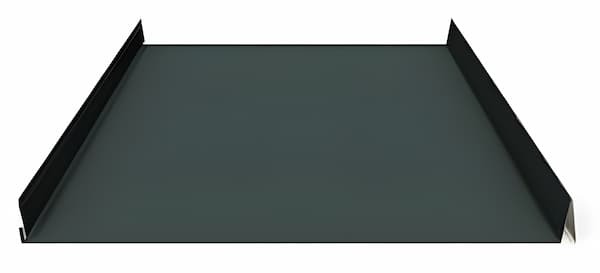

Fabral 1-1/2-inch SSR Snaplock Panels (SSRA Compatible 24 ga. Steel)
Formed from 24-gauge steel in 16-inch widths. Snaps with a 1-1/2 inch seam. Factory-applied seam sealant allows installation on slopes as low as 1:12. Standard shadow lines add stiffness. See the Roof Anchor Compatibility Chart for Fabral SSR Snaplock Standing Seam Panels.
Fall Protection For Fabral 1-1/2-inch SSR Snaplock Panels
- SSRA1 Standing Seam Roof Anchor: A non-penetrating, 5,000-lb rated anchor that clamps to the 1-1/2 inch snaplock rib.
- SSRA2 Adjustable Roof Jack Adapter: An adapter for SSRA1 anchors that supports 10-foot wooden walkboards on steep slopes.
- SSRA3 Anchor Plate: A structural plate that joins two SSRA1 anchors to serve as a horizontal lifeline endpoint.
- SSRA HLL 100-foot Temporary HLL Kit: A complete turnkey horizontal lifeline system for up to two workers.
- Super Anchor 120-foot Permanent HLL Kit: A permanent galvanized steel cable lifeline for long-term maintenance access.
- Ridge Pro Steep Assist Anchor: A ridge-mounted anchor for initial access and safety on 6:12 to 12:12 pitches.
Fabral 1-1/2-inch SSR 150 Snaplock Panels (SSRA Compatible 24 ga. Steel)
Rolled from 24-gauge steel with 16-inch coverage and 1-1/2 inch seam height. Reliable watertightness on slopes as low as 1:12. Panel lengths up to 40 feet. Certifications: UL2218 Class 4 hail, UL790 Class A fire, and UL580 Class 90 uplift. See the Roof Anchor Compatibility Chart for Fabral SSR 150 Snaplock Standing Seam Panels.
Fall Protection For Fabral 1-1/2-inch SSR 150 Snaplock Panels
- SSRA1 Standing Seam Roof Anchor: A non-penetrating, 5,000-lb rated anchor that clamps to the 1-1/2 inch snaplock rib.
- SSRA2 Adjustable Roof Jack Adapter: An adapter for SSRA1 anchors that supports 10-foot wooden walkboards on steep slopes.
- SSRA3 Anchor Plate: A structural plate that joins two SSRA1 anchors to serve as a horizontal lifeline endpoint.
- SSRA HLL 100-foot Temporary HLL Kit: A complete turnkey horizontal lifeline system for up to two workers.
- Super Anchor 120-foot Permanent HLL Kit: A permanent galvanized steel cable lifeline for long-term maintenance access.
- Ridge Pro Steep Assist Anchor: A ridge-mounted anchor for initial access and safety on 6:12 to 12:12 pitches.

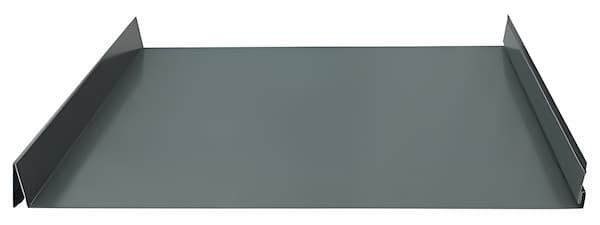

Fabral Slim Seam Snaplock Panels (SSRA Compatible 24 ga. Steel)
1-1/2-inch snaplock seam for slopes down to 1:12. Available in 12-inch and 16-inch widths. Produced from 24-gauge steel. Fabral offers curving for this panel. See the Roof Anchor Compatibility Chart for Fabral Slim Seam Snaplock Standing Seam Panels.
Fall Protection For Fabral Slim Seam Snaplock Panels
- SSRA1 Standing Seam Roof Anchor: A non-penetrating, 5,000-lb rated anchor that clamps to the 1-1/2 inch snaplock rib.
- SSRA2 Adjustable Roof Jack Adapter: An adapter for SSRA1 anchors that supports 10-foot wooden walkboards on steep slopes.
- SSRA3 Anchor Plate: A structural plate that joins two SSRA1 anchors to serve as a horizontal lifeline endpoint.
- SSRA HLL 100-foot Temporary HLL Kit: A complete turnkey horizontal lifeline system for up to two workers.
- Super Anchor 120-foot Permanent HLL Kit: A permanent galvanized steel cable lifeline for long-term maintenance access.
- Ridge Pro Steep Assist Anchor: A ridge-mounted anchor for initial access and safety on 6:12 to 12:12 pitches (Preferred for Aluminum/Copper).
CRITICAL WARNING: For curved or tapered panels, we recommend that a trained fall protection expert perform a site inspection before determining the appropriate fall protection plan.

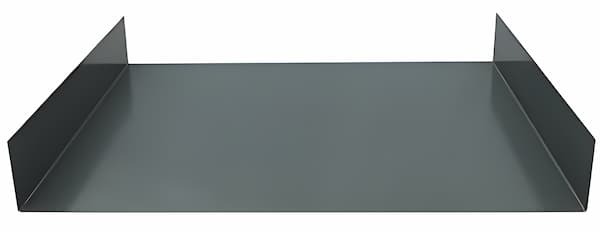

Fabral Snap-On Batten Panels (Ridge Pro Only)
Architectural profile with a 1-7/8-inch seam height. Available in 12, 16, 18, and 20-inch widths. Manufactured in aluminum and 22- or 24-gauge steel. Minimum slope requirement is 3:12. See the Roof Anchor Compatibility Chart for Fabral Snap-On Batten Standing Seam Panels.
Fall Protection For Fabral Snap-On Batten Panels
Fabral Snap-On Seam Panels (Ridge Pro Only)
A separate batten cap covers the joint. Available in steel or aluminum, widths from 12 to 20 inches, and heights of 1 inch or 1-3/4-inches. Minimum slope 3:12. Fabral offers curving and tapering for this panel. See the Roof Anchor Compatibility Chart for Fabral Snap-On Seam Standing Seam Panels.
Fall Protection For Fabral Snap-On Seam Panels
- Ridge Pro Steep Assist Anchor: A ridge-mounted anchor for initial access and safety on 6:12 to 12:12 pitches. Seam-mounted anchors are incompatible with the non-structural snap-on batten cap.
CRITICAL WARNING: For curved or tapered panels, we recommend that a trained fall protection expert perform a site inspection before determining the appropriate fall protection plan.

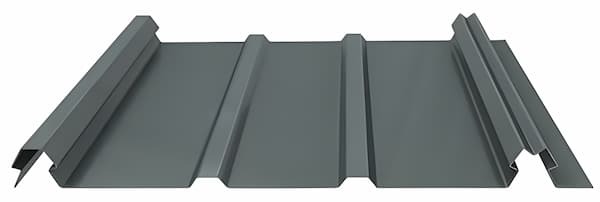

Fabral Ultra Loc Panels (Ridge Pro Only)
16-inch coverage with 1-inch rib height. Produced in 26-gauge steel with lengths up to 40 feet. Best on slopes of 3:12 or greater. See the Roof Anchor Compatibility Chart for Fabral Ultra Loc Standing Seam Panels.
Fall Protection For Fabral Ultra Loc Panels
Fabral Horizon S Panels (Ridge Pro Only)
The Horizon S Snaplock Panel remains one of Fabral's most popular standing-seam systems, especially for residential, post-frame, and light-commercial construction. The 16-inch panel width and 1-inch seam height create a clean profile that fits traditional and modern home designs. A built-in nailstrip flange allows installers to fasten the panel directly to solid decking. Fabral produces Horizon S in 26-gauge steel. Minimum roof pitch requirement is 3:12. See the Roof Anchor Compatibility Chart for Fabral Horizon S Standing Seam Panels.
Fall Protection For Fabral Horizon S Panels

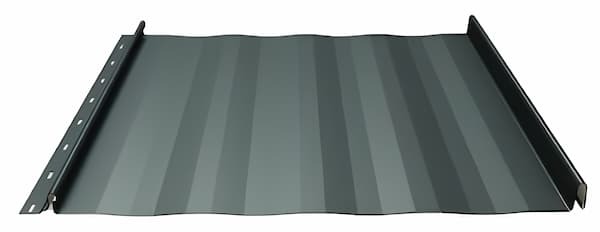

Fabral Horizon S100 Panels (Ridge Pro Only)
The Horizon S100 Snaplock Nailstrip Panel expands Fabral's residential lineup by blending visual appeal with practical installation features. This system keeps the 16-inch panel width and the 1-inch seam height while incorporating a revised nailstrip configuration. Manufactured in 26-gauge steel. Minimum pitch of 3:12. See the Roof Anchor Compatibility Chart for Fabral Horizon S100 Standing Seam Panels.
Fall Protection For Fabral Horizon S100 Panels

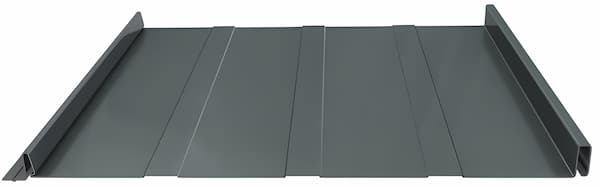

Fabral Horizon 16 Panels (Ridge Pro Only)
The Horizon 16 Snaplock Nailstrip Panel rounds out Fabral's residential standing-seam lineup with a profile tailored for homeowners and light-commercial builders. This panel keeps the 16-inch width and 1-inch seam height. It uses a nailstrip and a snaplock seam. Produced in 26-gauge steel. Minimum pitch of 3:12. See the Roof Anchor Compatibility Chart for Fabral Horizon 16 Standing Seam Panels.
Fall Protection For Fabral Horizon 16 Panels
- Ridge Pro Steep Assist Anchor: A ridge-mounted anchor for initial access and safety on 6:12 to 12:12 pitches. This system provides a secure connection before the worker transitions from the ladder to the metal surface. 26-gauge metal lacks the structural rigidity for seam-mounted clamp systems.
Engineering Certainty: The Value of Independent 3rd Party Testing
We replace the compliance mysteries of cheap imported anchors by providing direct access to our SSRA ISO 17025-accredited laboratory results. Our American-engineered SSRA hardware is 3rd-party laboratory-tested to withstand dynamic loads exceeding 5,000 lbs. By insisting on hardware backed by transparent, domestic engineering, you ensure that your fall protection is every bit as advanced and reliable as the Fabral building envelope it protects.
Standing Seam Metal Roof Anchor Panel Compatibility Chart For Fabral 22 Ga. Panels
| Batten-T-Seam (22 Ga.) | Twin-Fold (22 Ga.) | Stand-N-Seam (22 Ga.) | Powerseam (22 Ga.) | Powerseam II (22 Ga.) | Thin-Seam (22 Ga.) | IP Seam-3 (22 Ga.) | |
|---|---|---|---|---|---|---|---|
SSRA 1 |
YES | YES | YES | YES | YES | YES | YES |
SSRA1 Nylon Tip |
YES | YES | YES | YES | YES | YES | YES |
SSRA2 Roof Jack |
YES | YES | YES | YES | YES | YES | YES |
SSRA3 Anchor Plate |
YES | YES | YES | YES | YES | YES | YES |
The Ridge Pro |
YES | YES | YES | YES | YES | YES | YES |
Standing Seam Metal Roof Anchor Panel Compatibility Chart For Fabral 24 Ga. Panels
| Batten-T-Seam (24 Ga.) | Twin-Fold (24 Ga.) | Stand-N-Seam (24 Ga.) | Powerseam (24 Ga.) | Powerseam II (24 Ga.) | Thin-Seam (24 Ga.) | IP Seam-3 (24 Ga.) | |
|---|---|---|---|---|---|---|---|
| SSRA 1 |
NO | NO | NO | NO | NO | NO | NO |
| SSRA1 Nylon Tip |
YES | YES | YES | YES | YES | YES | YES |
| SSRA2 Roof Jack |
YES | YES | YES | YES | YES | YES | YES |
| SSRA3 Anchor Plate |
YES | YES | YES | YES | YES | YES | YES |
| The Ridge Pro |
YES | YES | YES | YES | YES | YES | YES |
Standing Seam Metal Roof Anchor Panel Compatibility Chart For Fabral Panels Cont.
| IP-Snap-3 (22 Ga.) | IP-Snap-3 (24 Ga.) | SSR (24 Ga.) | SSR-150 (24 Ga.) | Slim-Seam (24 Ga.) | |
|---|---|---|---|---|---|
| SSRA 1 |
YES | NO | NO | NO | NO |
| SSRA1 Nylon Tip |
YES | YES | YES | YES | YES |
| SSRA2 Roof Jack |
YES | YES | YES | YES | YES |
| SSRA3 Anchor Plate |
YES | YES | YES | YES | YES |
| The Ridge Pro |
YES | YES | YES | YES | YES |
Standing Seam Metal Roof Anchor Panel Compatibility For Fabral Panels (RidgePro)
| Snap-On Batten | Snap-On Seam | Ultra Loc | Horizon S | Horizon S100 | Horizon 16 | |
|---|---|---|---|---|---|---|
| SSRA 1 |
NO | NO | NO | NO | NO | NO |
| SSRA1 Nylon Tip |
NO | NO | NO | NO | NO | NO |
| SSRA2 Roof Jack |
NO | NO | NO | NO | NO | NO |
| SSRA3 Anchor Plate |
NO | NO | NO | NO | NO | NO |
| The Ridge Pro |
YES | YES | YES | YES | YES | YES |
Contact Us For More Information
For expert guidance on standing-seam roof anchors, lifeline kits, and fall-protection systems that protect both your crew and your panels, contact us today at 863-703-4522 or visit www.StandingSeamRoofAnchor.com. Our safety specialists can help you match the right non-penetrating anchor to your specific roof profile and slope. Let's make your next metal roofing project safe, compliant, and built to last. For continued learning, download OSHA's 48-page Fall Protection Manual and our free OSHA Anchor Inspection Form once you've selected the ideal anchors for your roof system. Together, we'll help you stay ahead of OSHA standards while preserving your roof's weather-tight seal.
Safety Tips For Standing Seam Roofs
Cultivate a Safety Culture
Safety on a standing-seam roof begins long before the first anchor is installed. The most successful teams treat safety as a shared responsibility rather than a checkbox. Implementing a 10-minute morning "toolbox talk" to discuss specific site hazards, such as morning dew on Kynar finishes or incoming weather, keeps the crew alert. When team members feel empowered to call out risks, the entire jobsite becomes more efficient and secure.
Deploy Precision-Engineered Non-Penetrating Anchors
Using standard anchors undermines this functionality and causes costly leaks. Always use non-penetrating clamps, such as the SSRA1, which use cupped-tip or nylon-tipped set screws to grip the seam. These systems provide OSHA-compliant, 5,000-lb certified tie-off points while preserving the roof's structural integrity and factory warranty.
Implement Site-Specific OSHA Compliance Plans
Every metal roofing project presents unique challenges, from varying pitches to complex valley transitions. A written fall protection plan is essential. It should clearly define primary tie-off locations, verify that the selected anchors are compatible with the specific panel gauge, and outline a clear rescue procedure. Planning for the "what if" ensures the crew can act with confidence and speed in an emergency.
Invest in High-Performance Personal Fall Arrest Systems (PFAS)
Your safety system is only as strong as its weakest link. Prioritize high-quality, breathable harnesses and responsive self-retracting lifelines (SRLs) from trusted brands like Malta Dynamics. Ensure that all gear is properly sized for each worker and is inspected daily for webbing fraying or mechanical lock-up. Modern, lightweight gear reduces fatigue, which is a leading contributor to jobsite accidents.
Mandate the Use of Suspension Trauma Straps
Stopping a fall is only the first half of a successful rescue. Every harness should be equipped with trauma straps, allowing the suspended worker to stand up and relieve leg pressure. This simple, affordable addition buys the rescue team critical time to arrive safely.
Utilize Guardrails for Passive Fall Protection
On large-scale commercial roofs or long-duration projects, guardrails offer an excellent passive safety solution. When installed around leading edges, skylights, or roof hatches, they create a physical barrier that prevents a fall from occurring in the first place. Guardrails are particularly effective in high-traffic work zones, reducing the need for constant active tie-off systems for every movement.
Require Specialized High-Traction Footwear
Metal panels can be incredibly slick when wet or covered in pollen or dust. Standard work boots often lack the traction needed for a superior grip on painted steel. Require crews to wear roofing-specific boots with slip-resistant outsoles and firm ankle support. Maintaining a stable center of gravity is your first line of defense against a slip-and-fall incident.
Master the Fundamentals of Ladder Safety
The transition from the ladder to the roof is one of the most dangerous moments of the job. Always follow the 4-to-1 rule (1 foot out for every 4 feet of height) and ensure the ladder extends at least 3 feet above the roof edge. Secure the ladder at the base and the top to prevent kickouts, and always maintain three points of contact. Training your crew on proper setup eliminates risks before they even reach the panels.
Consult Experts for Curved and Tapered Panel Systems
Architectural roofs with curved-radius panels or tapered seams pose attachment challenges for fall-protection anchors. Because load distribution changes on a curved surface, it is vital to have a fall protection specialist evaluate the site. They can determine if a specialized HLL configuration is the safest way to ensure compliance without damaging the roof's aesthetics.
Prioritize Permanent Lifeline Systems for Recurring Access
For buildings requiring regular maintenance (such as HVAC service or solar panel cleaning), a permanent horizontal lifeline system is a superior investment. Systems like the Super Anchor 120-foot Permanent HLL stay in place year-round, offering ready-to-use tie-off points for service teams.
Disclaimer
The views, recommendations, and information presented in this blog are solely those of the author and do not necessarily reflect the opinions or positions of the featured panel manufacturer, its brands, subsidiaries, or parent companies. Customers are strongly encouraged to contact the roof panel manufacturer directly for inquiries about fall-protection compatibility with their products and to address any potential warranty issues that may arise after installing our products.
