Fall Protection For B&M Metal Roofing Panels

See the Roof Anchor Compatibility Chart for B&M Metals Standing Seam Panels.

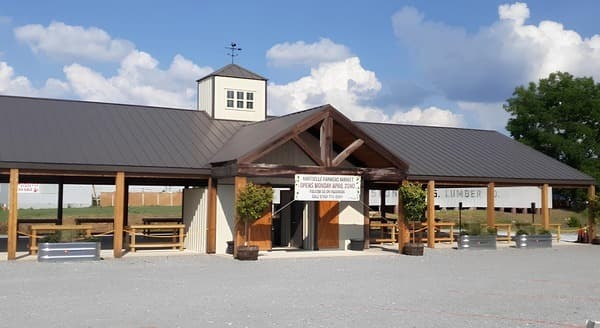

Who Is B&M Metal Roofing?

With over 50 years of experience, B&M Metals is a trusted manufacturer of standing seam roofing systems built for strength and style.

B&M Metals, headquartered in Ellijay, Georgia, is a third-generation, family-owned company that has established itself as a recognized leader in the Southeastern metal roofing industry. For more than five decades, they've specialized in manufacturing high-quality roofing panels and accessories for both residential and commercial applications. While the company serves a broad customer base, its foundation is rooted in personal service, regional expertise, and attention to detail.

B&M's standing seam panel line is the heart of their roofing catalog. They offer eight distinct profiles: 1″ Snap Lock, 1½″ Snap Lock, Medallion Lok, ML90, 1″ Nailstrip, 1½″ Nailstrip, 1″ Mechanical Seam, and 1½″ Mechanical Seam—all designed for superior weather performance and clean architectural lines. These concealed fastener systems offer long-lasting protection without exposed screws, making them ideal for homeowners, contractors, and architects who seek both durability and curb appeal in a single package.

Beyond standing seam panels, B&M Metals also manufactures traditional profiles like Tuff-Rib, R-Panel, and Corrugated, along with trim packages, soffit, gutters, and even framing components.

Why Are Compatible Fall Protection Anchors Critical for Standing Seam Roofs?

Standing seam roofs need fall protection anchors that clamp—never puncture—to keep both the system and the worker secure.

Standing seam metal roofs are a popular choice due to their sleek appearance, long lifespan, and weathertight design. Using a traditional anchor that requires screws, drilling, or direct deck attachment on a standing seam roof is a recipe for trouble. Not only can it void the manufacturer's warranty, but it may also lead to water infiltration, seam distortion, or even anchor failure under load. That's why it's essential to use panel-compatible fall protection systems, such as seam-mounted anchors that clamp to the ribs without piercing the panel.

Products like the SSRA1 Seam Anchor are engineered specifically for standing seam systems and meet OSHA's 5,000-pound strength requirement without compromising the roof's integrity. These anchors maintain the integrity of the panel while offering secure tie-off points. Paired with accessories like SSRA2 Roof Jack Adapters for walkboards or SSRA3 Anchor Plates for temporary horizontal lifelines, they form a complete safety system designed around the roof's architecture—not against it.

Ultimately, protecting workers starts with respecting the roof system. Matching the anchor to the panel profile and gauge ensures long-term safety. It keeps the roof system performing exactly as designed.

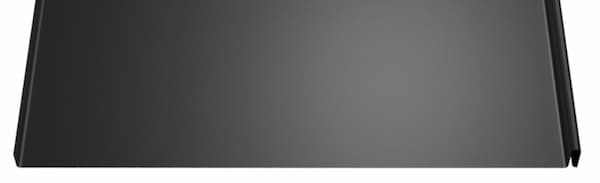

1-Inch SnapLock Panels

B&M's 1-inch SnapLock panel combines clean aesthetics with fast installation, making it a popular choice for residential and light commercial roofs.

See the Roof Anchor Compatibility Chart for B&M Metals 1-Inch SnapLock Standing Seam Panels.

The 1″ SnapLock Standing Seam Panel from B&M Metals is a precision-formed roofing solution designed for both performance and visual appeal. Manufactured in Ellijay, Georgia, these panels are available in 24- or 26-gauge galvanized steel or aluminum, with widths ranging from 12 to 18 inches—most commonly 16 inches for homes and 18 inches for commercial jobs. The 1-inch high seam gives a refined look while maintaining a low profile, making it an excellent fit for residential re-roofs, porches, and light commercial buildings.

The SnapLock profile enables tool-free panel engagement, accelerating installation while maintaining a clean, uninterrupted surface. The concealed fastener design prevents leaks and helps the roof retain its weathertight seal over time. Panels are available in Kynar 500 or SMP paint systems, offering long-term color retention, UV resistance, and compatibility with solar panels. Certified installations can qualify for weathertightness warranties of up to 20 years, in addition to finish warranties of up to 40 years. For design flexibility, the system even supports curved and tapered applications, making it ideal for architectural projects that require precision and performance.

Fall Protection for 1-Inch SnapLock Panels

Non-penetrating anchors ensure full OSHA compliance while preserving the strength and clean lines of the SnapLock panel system.

When working on 24-gauge steel 1" SnapLock panels, it's essential to use seam-mounted anchors that don't pierce or deform the standing seam. The SSRA1 Seam Anchor clamps directly to the seam without penetrating the panel or compromising weather resistance. It's OSHA-rated for 5,000 lbs and serves as the foundation for a modular fall protection system specifically designed for standing seam roofing.

Workers can mount the SSRA2 Adjustable Roof Jack Adapters directly onto the SSRA1. This setup supports 10-foot wooden walkboards, creating a stable platform across the roof for carrying materials, staging tools, or performing precision work on sloped surfaces. If the job requires lateral movement, the SSRA3 Anchor Plate connects two SSRA1 anchors, providing secure endpoints for a 100-foot temporary horizontal lifeline. This feature keeps workers continuously tied off while navigating the roofline.

For permanent roof access—ideal for properties with HVAC systems or future solar installs—the Super Anchor 120-foot Standing Seam Horizontal Lifeline Kit creates a long-term cable tie-off system that mounts without a single roof penetration.

On 26-gauge steel or aluminum SnapLock panels or when working on roofs with a 6/12 to 12/12 pitch, the Ridge Pro Steep Assist is the best choice. It hooks over the ridge, allowing you to tie off before stepping onto the roof and maintain 100% tie-off throughout the job—without touching the panel seams at all.

1.5-inch SnapLock Panels

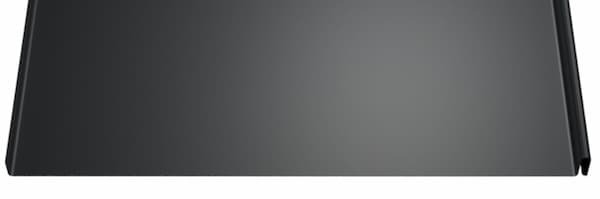

The 1.5-inch SnapLock panel offers extra seam height and strength for more demanding residential and light commercial applications.

See the Roof Anchor Compatibility Chart for B&M Metals 1.5-Inch SnapLock Standing Seam Panels.

The 1.5-inch Snap Lock Standing Seam Panel from B&M Metals combines bold architectural lines with functional weather resistance, making it an excellent fit for residential and light commercial roofing projects. Manufactured in 24- or 26-gauge galvanized steel or aluminum, this panel delivers a higher profile seam that enhances visual depth while improving structural rigidity. With widths available from 12 to 18 inches and standard sizes of 16 inches (residential) and 18 inches (commercial), the panel offers flexibility for both large roofs and custom architectural builds.

The snap-lock installation system enables tool-free panel engagement, significantly reducing labor time and costs. This system also ensures a secure, concealed fastener installation that protects against leaks and enhances curb appeal. Finished in Kynar 500 or SMP paint systems, the panels resist UV fading, chalking, and corrosion while reflecting solar heat to improve energy efficiency. The system is certified for weathertightness warranties of up to 20 years, with additional coverage for materials and finish longevity. Precision roll-forming ensures that each panel is accurate and consistent, and the product can even accommodate curved or tapered applications for design-driven projects.

Fall Protection for 1.5-Inch SnapLock Panels

Secure fall protection begins with non-penetrating anchors that preserve seam integrity while providing workers with safe and reliable tie-off points.

When working on 24-gauge steel 1.5″ SnapLock panels, safety starts with the SSRA1 Seam Anchor. This non-penetrating anchor clamps directly to the standing seam rib, providing a 5,000 lb-rated tie-off point without drilling or damaging the panel. It forms the base for a comprehensive fall protection system that's fully OSHA-compliant and roof-friendly.

You can enhance the SSRA1's functionality by adding the SSRA2 Adjustable Roof Jack Adapters, which mount on top of the anchors to support 10-foot wooden walkboards. These staging platforms provide workers with safe, level footing and facilitate efficient material handling across the roof. For jobs that require more horizontal movement, the SSRA3 Anchor Plates connect between two SSRA1 anchors, forming certified endpoints for a 100-foot temporary horizontal lifeline. This advantage keeps crews tied off while covering longer spans of the roofline.

For permanent safety installations—especially for buildings requiring regular rooftop access—the Super Anchor 120′ Standing Seam Horizontal Lifeline Kit installs a galvanized steel cable lifeline that can be left in place long-term, all without penetrating the panel system.

If your project involves 26-gauge steel or aluminum SnapLock panels, or you're working on slopes between 6/12 and 12/12, the Ridge Pro Steep Assist is the safest choice. It hooks over the peak of the roof, allowing you to clip in and stay protected from the first step up the ladder—no seam contact is required.

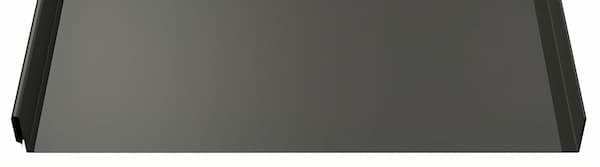

Medallion-Lok Panels

Medallion-Lok delivers elegance, durability, and energy efficiency with a bold, refined seam profile ideal for premium residential and commercial projects.

See the Roof Anchor Compatibility Chart for B&M Metals Medallion-Lok Standing Seam Panels.

The Medallion-Lok Standing Seam Panel from B&M Metals offers the perfect combination of structural integrity and high-end design. Manufactured in Ellijay, Georgia, this panel features a 1.75-inch-high snap-lock seam engineered for sleek aesthetics and excellent performance. Made from 24-gauge galvanized steel or 0.032-inch aluminum, Medallion-Lok is both lightweight and exceptionally strong, withstanding the Southeastern climate with ease.

The system is available in 12″ or 16″ panel widths, providing design flexibility for a range of applications, from modern homes to upscale commercial structures. Its snap-together seam and hidden clip system eliminate the need for mechanical seaming tools, speeding up installation without sacrificing weather tightness. This panel can be installed on solid decking or open framing with a minimum slope of 1:12, making it versatile across architectural applications. Factory-applied finishes, such as Kynar 500 or SMP, ensure long-term color retention, UV resistance, and energy efficiency through their solar reflectivity properties. For those aiming to add solar panels, Medallion-Lok offers full compatibility.

With factory eave notching, optional curved or tapered panel configurations, and weather tightness warranties of up to 20 years, Medallion-Lok isn't just a roof—it's an architectural upgrade that delivers both beauty and long-term value.

Fall Protection for Medallion-Lok Panels

Seam-mounted safety equipment preserves the strength and style of Medallion-Lok roofs while keeping crews secure and ensuring compliance with OSHA regulations.

Because Medallion-Lok panels are 24-gauge galvanized steel, they are fully compatible with the SSRA1 Seam Anchor. This non-penetrating tie-off solution clamps securely onto the standing seam without deforming or damaging the panel. This anchor meets OSHA's 5,000-pound load requirement and forms the core of a modular fall protection system designed specifically for standing seam roofs.

Workers can choose to mount the SSRA2 Adjustable Roof Jack Adapters on top of the SSRA1 anchors. These support 10-foot wooden walkboards, providing a safe and level work surface on steep or slick metal panels. For jobs requiring horizontal movement—such as installation, painting, or maintenance—the SSRA3 Anchor Plate connects two SSRA1 anchors to form certified endpoints for a 100-foot temporary horizontal lifeline.

For long-term access, especially on high-end buildings where roof integrity and repeated access are priorities, the Super Anchor 120'' Standing Seam Horizontal Lifeline Kit offers a permanent solution. It installs using a non-penetrating system that keeps the seam intact, providing future crews with reliable tie-off points.

If your Medallion-Lok roof is aluminum or another lightweight substrate, or if you're working on a slope of 6/12 to 12/12, the Ridge Pro Steep Assist is the best option. It hooks over the ridge, offering a fast and secure tie-off without ever touching or stressing the panel seams. It's a favorite among roofers and inspectors who prioritize quick deployment with full fall protection coverage.

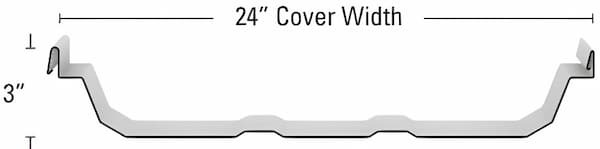

ML90 Panels

The ML90 panel delivers strength, low-slope performance, and bold architectural lines with a 3-inch trapezoidal seam.

See the Roof Anchor Compatibility Chart for B&M Metals ML90 Standing Seam Panels.

The ML90 Standing Seam Panel from B&M Metals is a heavy-duty solution built for low-slope commercial and residential roofs that demand both visual impact and structural integrity. Manufactured in Ellijay, Georgia, this panel features a 3-inch-high trapezoidal seam—one of the tallest profiles in B&M's lineup. Available in 12" and 16" widths, ML90 panels are precision roll-formed from 24-gauge galvanized steel or 0.032-inch aluminum, offering excellent strength-to-weight ratio and corrosion resistance.

What makes the ML90 stand out is its ability to perform on roofs with a minimum pitch as low as ¼:12, making it ideal for modern architectural designs and commercial buildings where water drainage is a critical concern. Its snap-lock seam system with hidden clips allows for fast installation without mechanical seaming tools while maintaining a weathertight, concealed fastener design. This feature enhances the roof's appearance and minimizes the risk of leaks.

Coated in Kynar 500® or SMP finishes, the ML90 panel provides exceptional UV resistance, long-term color retention, and energy savings by reflecting solar heat. It's also compatible with solar panel systems and qualifies for weathertightness warranties of up to 20 years with certified installations. For custom architectural applications, the ML90 supports curved or tapered configurations, allowing builders to meet demanding design specifications.

Fall Protection for ML90 Panels

Non-penetrating anchors are critical for securing crews while preserving the integrity of ML90's tall trapezoidal seams.

Because ML90 panels are 24-gauge steel, they are fully compatible with the SSRA1 Seam Anchor, which clamps securely to the 3-inch seam without penetrating the panel or altering its structural integrity. This non-penetrating anchor is OSHA-rated to 5,000 lbs, making it a reliable tie-off point for personal fall arrest systems on low-slope roofs.

Workers can mount the SSRA2 Adjustable Roof Jack Adapters directly on top of the SSRA1 anchors. These adapters support 10-foot wooden walkboards, providing a stable work platform on what is often a slick or shallow-pitched surface. For projects that involve extended horizontal movement—such as panel installation or mechanical work—the SSRA3 Anchor Plate connects two SSRA1 anchors to form secure endpoints for 100-foot temporary horizontal lifelines, keeping multiple workers tied off while traversing long spans.

For long-term access needs, the Super Anchor 120′ Standing Seam Horizontal Lifeline Kit provides a permanent fall protection solution, utilizing galvanized steel cable that installs without damaging the panel seams. This system is perfect for commercial buildings with recurring rooftop maintenance, inspections, or servicing needs.

If you're working on aluminum ML90 panels or if the roof has a slope between 6/12 and 12/12, the best solution is the Ridge Pro Steep Assist. This peak-mounted anchor allows 100% tie-off by hooking over the roof ridge—no clamping, drilling, or seam contact is required.

1-Inch Nailstrip SnapLock Panels

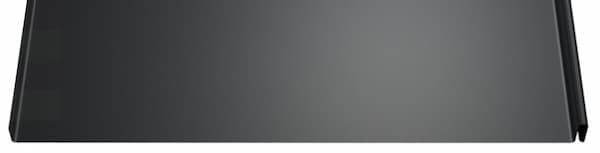

The 1″ Nailstrip panel combines streamlined aesthetics with fast, direct-deck installation for modern residential and light commercial projects.

See the Roof Anchor Compatibility Chart for B&M Metals 1-Inch Nailstrip Standing Seam Panels.

B&M Metals' 1-inch Nailstrip SnapLock Panel is a clean and efficient roofing solution designed for residential and light commercial use, particularly where quick installation and low maintenance are key priorities. Manufactured in Ellijay, Georgia, this panel features a 1-inch-high seam. It is available in 12-inch or 16-inch widths, offering flexibility for various architectural styles. It is precision roll-formed from 24-gauge galvanized steel or 0.032" aluminum, providing long-term strength, corrosion resistance, and lightweight handling.

Unlike traditional standing seam panels, which use clips, Nailstrip panels fasten directly to the roof deck through slotted nail flanges and then snap into place using the adjacent panel seam. This design eliminates the need for special tools, making installation faster—ideal for solid substrate applications with slopes of 3:12 or greater. The concealed fastener system protects against moisture intrusion and contributes to the panel's sleek, uninterrupted appearance.

Available in a full range of Kynar 500 and SMP color finishes, the 1″ Nailstrip panel offers UV resistance, solar reflectivity, and compatibility with solar panels. Certified installations can qualify for weather-tightness warranties of up to 20 years, making this panel a wise investment for both new builds and retrofit projects.

Fall Protection for 1-inch Nailstrip Panels

Seam-mounted anchors give crews safe tie-off options while protecting the integrity of B&M's Nailstrip panel system.

For 24-gauge steel Nailstrip panels, the SSRA1 Seam Anchor provides a safe, non-penetrating tie-off point that clamps securely to the panel seam without compromising the roof's structural integrity or waterproofing. This anchor is OSHA-rated to 5,000 lbs, making it ideal for use in personal fall arrest, restraint, or work positioning systems.

To expand its safety capabilities, you can add the SSRA2 Adjustable Roof Jack Adapters, which are installed on top of the SSRA1 anchors to support 10-foot wooden walkboards. This ability creates stable work surfaces on sloped metal roofs—perfect for staging tools or providing extra footing during complex tasks. For crews that need to move horizontally across the roof, the SSRA3 Anchor Plates connect two SSRA1 anchors to create certified endpoints for 100-foot temporary horizontal lifelines.

For permanent tie-off systems, especially on buildings with repeat rooftop access, the Super Anchor 120'' Standing Seam Horizontal Lifeline Kit offers a long-term fall protection solution. This system installs without any panel penetrations, preserving roof warranties and performance while protecting future workers.

On 26-gauge steel or aluminum Nailstrip panels or for roofs with slopes between 6/12 and 12/12, the Ridge Pro Steep Assist provides a simple, non-invasive alternative. It hooks securely over the ridge, allowing crews to maintain 100% tie-off from the moment they step onto the roof—all without touching the panel seams.

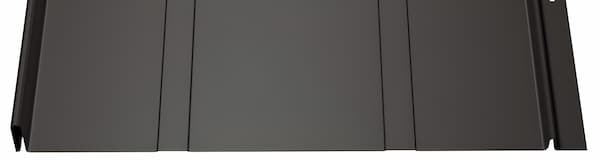

1.5-Inch Nailstrip Panels

This taller-profile Nailstrip panel offers bold aesthetics and quick installation for residential and light commercial roofs.

See the Roof Anchor Compatibility Chart for B&M Metals 1.5-Inch Nailstrip Standing Seam Panels.

The 1.5″ Nailstrip Standing Seam Panel from B&M Metals, manufactured in Ellijay, Georgia, delivers strength, speed, and style in one streamlined product. With a 1.5-inch-high seam, this panel offers a more prominent architectural profile than its 1-inch counterpart, making it ideal for residential builds that call for sharper lines or commercial projects that demand both durability and design.

Made from 24- or 26-gauge galvanized steel or 0.032-inch aluminum, the panel's 16-inch standard width strikes a balance between coverage and ease of handling, with custom widths available for unique builds. The system's integrated fastening flange eliminates the need for clips, allowing panels to be fastened directly to the substrate through the nail strip using screws or nails. This feature accelerates installation and reduces hardware costs, making it ideal for projects with tight deadlines or budget constraints.

Thanks to its concealed fastener design, the panel maintains a sleek, uninterrupted look while offering excellent leak resistance. The interlocking seam not only enhances wind performance but also makes the roof solar-ready. Finished in Kynar 500® or SMP coatings and backed by warranties of up to 40 years, this panel offers color stability, UV resistance, and long-term value. Whether it's a custom home, barn-style build, or commercial storefront, this panel delivers the durability of standing seam with the simplicity of direct-deck installation.

Fall Protection for 1.5-inch Nailstrip Panels

Seam-mounted anchors keep crews safe while protecting the structure and appearance of the roof system.

For 24-gauge steel 1.5-inch Nailstrip panels, fall protection begins with the SSRA1 Seam Anchor. This non-penetrating, OSHA-compliant anchor clamps to the seam without damaging the panel or compromising its warranty. With a 5,000-pound load rating, the SSRA1 is a strong and safe tie-off point for workers using personal fall arrest systems on sloped metal roofing.

To expand the system's coverage for broader safety, workers can mount the SSRA2 Adjustable Roof Jack Adapters directly onto the SSRA1 anchors. These adapters support 10-foot wooden walkboards, providing a steady work surface across the roof—a significant benefit for staging materials, moving safely across slick metal panels, or completing detail work at height.

For extended horizontal mobility, the SSRA3 Anchor Plates connect two SSRA1 anchors and form the endpoints for a 100-foot temporary horizontal lifeline, keeping workers tied off while allowing freedom of movement along the roofline.

If the project requires long-term roof access—whether for future maintenance, solar installation, or inspections—the Super Anchor 120′ Standing Seam Horizontal Lifeline Kit provides a permanent, non-penetrating cable system that meets OSHA regulations and protects both workers and roofing materials.

For 26-gauge panels or aluminum Nailstrip panels or on 6/12 to 12/12 pitched roofs, the Ridge Pro Steep Assist is the ideal solution. It hooks securely over the ridge and provides 100% tie-off coverage without clamping or penetrating the seam, offering maximum safety with zero compromise to the roof system.

1-1.5 Inch Mechanical Seam Panels

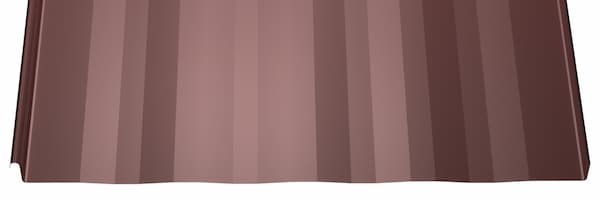

The 1" Mechanical Seam panel offers a low-profile look with high-performance strength, ideal for high-wind zones and sleek architectural builds.

See the Roof Anchor Compatibility Chart for B&M Metals 1-1.5 Inch Mechanical Seam Standing Seam Panels.

The 1-1.5 Inch Mechanical Seam Standing Seam Panel from B&M Metals, precision roll-formed in Ellijay, Georgia, brings together sleek aesthetics, structural durability, and tight weather resistance in one innovative design. These panels feature a 1-inch-high seam and are available in 12-inch and 16-inch widths, offering the right balance for both residential projects and commercial structures that require a modern, low-profile metal roof system.

The 1-1.5 Inch Mechanical Seam panels are 24- or 26-gauge galvanized steel or 0.032-inch aluminum. The system works well on roofs with a minimum slope of 3:12, installed over solid decking or open framing.

This panel'spanel's concealed fastener design hides screws and hardware beneath the seam, delivering a clean, uninterrupted look while minimizing potential leak paths. Optional Kynar 500 or SMP finishes offer solar reflectivity, fade resistance, and enhanced energy efficiency. With warranties ranging up to 40 years for finishes and 20 years for materials, the 1″ Mechanical Seam panel offers architects, builders, and homeowners a low-maintenance, high-performance option that accommodates curved or tapered applications.

Fall Protection for 1-1.5 Inch Mechanical Seam Panels

Fall protection anchors must match the seam profile to preserve roof integrity while keeping crews safely tied off.

When installed on 24-gauge steel mechanical seam panels, the SSRA1 Seam Anchor offers the most compatible and secure tie-off solution. This non-penetrating anchor clamps tightly to the standing seam rib without compromising the panel's structural integrity, paint finish, or warranty with a 5,000 lb. OSHA-rated capacity, the SSRA1 provides a dependable base for all major fall protection systems.

To build on this foundation, workers can mount the SSRA2 Adjustable Roof Jack Adapters to the SSRA1 anchors to support 10-foot wooden walkboards. This feature enables roofers or maintenance crews to move more confidently across steep or slick metal panels, particularly during extended installation or repair sessions. When maximum worker mobility is required, the SSRA3 Anchor Plate bridges two SSRA1 anchors to form OSHA-compliant endpoints for a 100-foot temporary horizontal lifeline, allowing multiple workers to move freely while remaining continuously tied off.

For roofs with ongoing access needs, the Super Anchor 120′ Standing Seam Horizontal Lifeline Kit provides a permanent, galvanized steel cable system that installs without puncturing the panel seams, offering long-term safety without sacrificing the roof'sroof's performance or weather tightness.

If the panel is 26-gauge steel or aluminum, or the slope is between 6/12 and 12/12, the Ridge Pro Steep Assist is the ideal solution. This anchor hooks over the peak and provides a 100% tie-off without contacting or damaging the seams, offering fast and compliant fall protection for temporary jobs or recurring service calls.

1.5-Inch Mechanical Seam Panels

This taller mechanical seam panel combines strength, style, and airtight seam performance for high-wind, high-visibility roofing applications.

See the Roof Anchor Compatibility Chart for B&M Metals 1.5-Inch Mechanical Seam Standing Seam Panels.

The 1.5″ Mechanical Seam Standing Seam Panel from B&M Metals, crafted in Ellijay, Georgia, is engineered for maximum wind uplift resistance and sleek architectural appeal. Built from 24- or 26-gauge galvanized steel or 0.032" aluminum, these panels perform in the demanding conditions of the Southeast, resisting corrosion, UV damage, and extreme weather with ease.

Available in 12″ and 16″ widths, the panel is roll-formed with a 1.5-inch-high seam and installed using a mechanical seam tool to lock the ribs together—either in a single or double lock configuration depending on wind load requirements. This method provides one of the most secure, weathertight seals in the metal roofing world. Its concealed fastener system, featuring hidden clips, keeps the roof surface clean and seamless while preventing fastener-related leaks over time. Workers can install these panels over solid substrates or open framing with a minimum roof pitch of 3:12.

Coated in Kynar 500 or SMP finishes, the 1.5″ mechanical seam panel is compatible with solar panels and features a highly reflective surface, enhancing energy efficiency. It comes with warranties of up to 40 years for finish performance and 20 years for material durability. Whether used on modern homes, commercial buildings, or custom projects, this panel delivers outstanding strength with elegant lines.

Fall Protection for 1.5-inch Mechanical Seam Panels

Specialized seam anchors protect workers at height while preserving the performance and appearance of the 1.5" mechanical seam.

For 24-gauge steel 1.5" Mechanical Seam panels, the SSRA1 Seam Anchor provides a non-penetrating, OSHA-rated tie-off point rated for 5,000 pounds. This anchor clamps securely to the tall seam profile without damaging the panel surface or compromising the roofing system's weathertight integrity.

To enhance worksite safety and staging, workers can attach the SSRA2 Adjustable Roof Jack Adapters to SSRA1 anchors, supporting 10-foot wooden walkboards. This advantage provides roofers with a safe and level working platform for maneuvering tools and materials. When maximum worker mobility is required, the SSRA3 Anchor Plates connect two SSRA1 anchors to form certified endpoints for 100-foot temporary horizontal lifelines—perfect for installation crews working in teams.

For permanent access needs, the Super Anchor 120′ Standing Seam Horizontal Lifeline Kit allows for the installation of a non-invasive, galvanized steel cable system that keeps future workers safely tied off without altering or damaging the seam structure.

On 26-gauge steel or aluminum panels or for roofs pitched between 6/12 and 12/12, the Ridge Pro Steep Assist is the best option. This ridge-mounted anchor hooks over the peak, allowing for a 100% tie-off without touching the panel seam, thereby preserving both safety and roof performance.

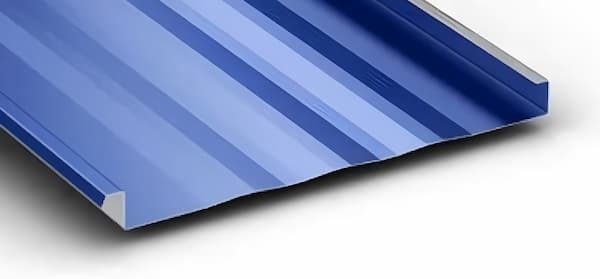

Maxima Panels

The Maxima panel pairs bold 2-inch seams with mechanical lock strength, delivering elite performance for high-wind and architecturally driven projects.

See the Roof Anchor Compatibility Chart for B&M Metals Maxima Standing Seam Panels.

The Maxima Standing Seam Panel from B&M Metals, roll-formed in Ellijay, Georgia, is a standout option for residential, commercial, and industrial roofing applications where appearance, wind resistance, and lifespan are of the utmost importance. With a striking 2-inch-high vertical seam, this panel offers the tallest profile in B&M's lineup—making it the go-to choice for bold lines and superior weatherproofing.

Crafted from 22- or 24-gauge galvanized steel or 0.032-inch aluminum, Maxima panels perform in harsh environments, resisting corrosion and impact with ease. Available in 12″ and 16″ widths, with custom sizes available upon request, these panels are suitable for a range of applications, from residential homes to long-span commercial projects. Installation requires a mechanical seam tool to create either a single- or double-lock seam, offering exceptional wind uplift resistance, ideal for coastal and storm-prone areas.

The concealed clip system creates a seamless surface free of exposed fasteners, which improves both water resistance and curb appeal. Finish options include Kynar 500® and SMP coatings, providing fade resistance, UV protection, and energy efficiency through solar heat reflection. Panels are also compatible with solar arrays and curved roof designs, with a minimum 12' radius for steel.

Fall Protection for Maxima Panels

Curved Maxima roofs require specialized fall protection strategies. The following recommendations are for straight, non-curved panels.

Seam-specific anchors protect both the roof system and the workers, ensuring safety without voiding warranties or risking roof damage.

For 24-gauge Maxima panels, the SSRA1 Seam Anchor provides a non-penetrating, OSHA-rated 5,000 lb. tie-off point. This specialized anchor clamps directly to the tall, 2-inch seam without damaging the panel's structure or coating. It provides a reliable foundation for safe tie-off during roofing, maintenance, or solar installations.

When job site conditions demand safer mobility or tool staging, the SSRA2 Adjustable Roof Jack Adapters mount directly onto the SSRA1 anchors to support 10-foot wooden walkboards. This feature allows workers to access steeper sections of the roof with confidence and stable footing. For wider job zones, SSRA3 Anchor Plates connect two SSRA1 anchors to serve as certified endpoints for a 100-foot temporary horizontal lifeline, keeping crews securely tied off while moving laterally across the panel system.

For long-term fall protection, the Super Anchor 120′ Standing Seam Horizontal Lifeline Kit delivers a permanent steel cable system that installs with zero penetrations—preserving both the Maxima panel's aesthetic and its weathertight performance.

When working on aluminum panels or 22-gauge steel or on slopes ranging from 6/12 to 12/12, the Ridge Pro Steep Assist is the safest option. This ridge-mounted anchor hooks securely over the roof peak, providing a 100% tie-off without making contact with the seam, making it ideal for temporary setups or steep-pitch access.

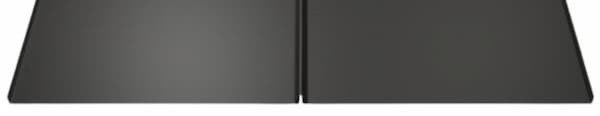

Medallion I Panels

The Medallion I panel offers refined, batten-style aesthetics with mechanical seam strength and superior weathertight performance.

See the Roof Anchor Compatibility Chart for B&M Metals Medallion I Standing Seam Panels.

The Medallion I Panel from B&M Metals, roll-formed in Ellijay, Georgia, is a batten-style standing seam roofing system designed to deliver both visual sophistication and top-tier performance. With a 1.5-inch-high seam and a concealed fastener system, these panels create a distinctive vertical profile ideal for upscale residential homes, institutional buildings, and commercial projects where architectural detail is a priority.

Available in 12" and 16" widths, the Medallion I is made from 24-gauge galvanized steel or 0.032-inch aluminum and features a mechanical seam with separate batten caps for a clean finish and added weather resistance. This system is suited for roof pitches as low as 3:12. It can be installed over solid decking, making it an excellent option for custom-designed structures or curved applications in flat pan configurations.

Aesthetically, Medallion I stands apart with its elegant, uniform lines and the flexibility to be finished in a wide range of Kynar 500® or SMP color options, providing fade resistance and excellent solar reflectivity. It's also solar panel compatible, highly durable, and backed by a 40-year finish warranty and a 10- to 20-year weather-tightness warranty for certified installations.

Whether the goal is a sleek architectural appeal or long-term low-maintenance protection, Medallion I panels provide a refined, high-performance roofing solution that checks all the boxes.

Fall Protection for Medallion I Panels

For Medallion panels, the SSRA1 Seam Anchor system is incompatible due to the batten-style seams. However, for slopes between 6/12 and 12/12, the Ridge Pro Steep Assist offers a versatile, ridge-mounted tie-off solution that eliminates contact with the seam, ensuring full compatibility and 100% tie-off compliance across the entire roof.

Medallion II Panels

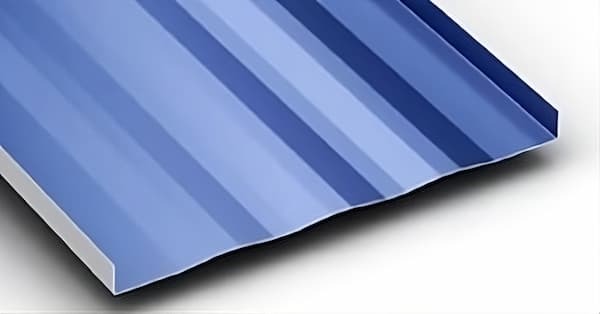

Medallion II boasts a bold architectural look with wide batten caps and superior weather resistance, making it an ideal choice for high-end roofing applications.

See the Roof Anchor Compatibility Chart for B&M Metals Medallion II Standing Seam Panels.

The Medallion II Panel from B&M Metals, manufactured in Ellijay, Georgia, is a premium architectural metal roofing system designed for projects that demand both distinctive aesthetics and reliable performance. With a 1.5-inch seam height and wide batten cap profile, it delivers a clean, modern look that stands out on custom homes, institutional buildings, and upscale commercial properties.

Available in 12" and 16" widths, this panel is made from 24-gauge galvanized steel or 0.032" aluminum, combining lightweight construction with long-lasting strength and corrosion resistance. The panel system features concealed fasteners and a detachable batten cap that covers the seam, locking it into place for a tight, water-resistant fit. It installs over solid decking and performs best on roofs with a minimum pitch of 3:12.

Finished in Kynar 500® or SMP coatings across a wide range of color options, Medallion II panels offer excellent UV protection, solar reflectivity, and compatibility with rooftop solar systems.

Precision roll-formed in-house, this panel offers architectural flexibility, including custom widths and curved configurations, making it an ideal solution for projects seeking bold visual impact and long-term performance.

Fall Protection For Medallion II Panels

For Medallion panels, the SSRA1 Seam Anchor system is incompatible due to the batten-style seams. However, for slopes between 6/12 and 12/12, the Ridge Pro Steep Assist offers a versatile, ridge-mounted tie-off solution that eliminates contact with the seam, ensuring full compatibility and 100% tie-off compliance across the entire roof.

Metal Roof Anchor Panel Compatibility For B&M Metal Roofing



Contact Us For More Information

For further details on roofing solutions and fall protection systems, please get in touch with us at 863-703-4522 or www.StandingSeamRoofAnchor.com. Let's work together to make your roofing projects safe, beautiful, and built to last. For more safety tips, refer to OSHA's 48-page Fall Protection Manual. Once you have determined the most suitable anchors for your roof system, download our free Anchor Inspection Form.

Safety Tips For Standing Seam Roofs

Use Specialized Anchor Systems for Standing Seam Roofs

Standard penetrating anchors can compromise seam structure, void warranties, and create long-term leak risks. Seam-mounted anchors clamp securely without damaging the panel, offering a clean tie-off point that protects both the worker and the roof. Compatibility isn't optional—it's essential for safety and long-term roof performance.

Equip Workers with High-Quality Safety Gear

Sending someone onto a roof without the right gear is like asking a pilot to fly without instruments. Harnesses, lanyards, and self-retracting lifelines (SRLs) form the foundation of personal fall protection, but the gear is only effective if it's comfortable, properly fitted, and worn correctly. Invest in OSHA-approved equipment that your team trusts—and they'll use it every time they climb.

Develop OSHA-Compliant Safety Plans

A strong safety plan isn't a formality—it's your crew'screw's daily roadmap. It should outline hazard zones, fall protection systems, rescue procedures, and every worker'sworker's role in maintaining safety. By updating plans regularly and ensuring every crew member understands them, you not only meet OSHA standards but also set the tone for clear communication and consistent performance on every job.

Encourage the Use of Trauma Straps

Stopping a fall is only half the battle—what comes next can be just as dangerous. Suspension trauma sets in fast when blood flow is restricted by hanging in a harness. Trauma straps let a worker shift weight, relieve pressure, and stay upright until help arrives. Lightweight and affordable, they're one of the most innovative additions to any harness setup.

Prioritize Ladder Safety Training

Ladder accidents are one of the most common—and most preventable—sources of job site injuries. Every crew member should know how to inspect, position, and secure a ladder using the 4-to-1 rule. Reinforce safe climbing habits, such as maintaining three points of contact and wearing proper footwear. It all starts with a safe step before anyone reaches the roof.

Promote a Culture of Safety

Safety isn't just a set of rules—it's a mindset shaped by leadership and buy-in from the entire crew. Hold quick safety huddles, encourage feedback, and take every near-miss seriously. When workers feel empowered to speak up and look out for one another, a job site transforms from compliant to truly safe.

Install Permanent Roof Anchor Systems

If workers are returning to the same roof repeatedly—for maintenance, inspections, or repairs—permanent anchors are the smartest investment you can make. These systems provide a fixed, secure tie-off point that reduces setup time and ensures compliance without damaging the roof. They're especially valuable for commercial and institutional buildings that see regular rooftop traffic.

Set Up Protective Guardrail Barriers for Work Zones

Guardrails are one of the easiest and most effective ways to prevent falls—especially in areas where active tie-off isn't always practical. Whether you're working near skylights, access hatches, or the roof perimeter, guardrails create a clear visual and physical boundary that lets crews work safely with peace of mind.

Consult Experts for Curved Metal Panels

Curved or radiused metal roofs introduce variables that many anchors can't handle. Using the wrong system can deform panels or lead to anchor failure. When faced with a complex roof design, consult a fall protection expert who can recommend custom solutions that strike a balance between safety and structural integrity. Guesswork has no place at the edge of a curved roof.

Ensure Proper Footwear for Stability

The difference between a confident step and a dangerous slip often comes down to footwear. On metal roofs—especially those with a slope—grip matters. Choose boots with slip-resistant soles, firm ankle support, and good flexibility. Proper footwear prevents falls, reduces fatigue, and helps your crew stay on a sure footing from start to finish.

Disclaimer

The views, recommendations, and information presented in this blog are solely those of the author and do not necessarily reflect the opinions or positions of the featured panel manufacturer, its brands, subsidiaries, or parent companies. Customers are strongly encouraged to contact the roof panel manufacturer directly for inquiries regarding fall protection compatibility with their products and to address any potential warranty issues that may arise after installing our products.
