Fall Protection for Coastal Metal Roofing Supply

See the Roof Anchor Compatibility Chart for Coastal Metal Roofing Supply Standing Seam Panels.

Who Is Coastal Metal Roofing Supply?

Coastal Metal Roofing Supply, located in Ladson, South Carolina, has quickly established itself as a trusted name among roofing contractors, builders, and homeowners across the Lowcountry.

That knowledge matters in South Carolina, where the coast experiences heavy rain, salt air, and hurricane-force winds. Coastal Metal Roofing Supply meets those challenges with materials built to last.

One of the biggest strengths of Coastal Metal Roofing Supply is its production of standing seam panels. These systems have become the go-to choice for roofing in Charleston and its surrounding areas due to their exceptional wind uplift resistance, clean aesthetics, and long service life. In addition to standing seam profiles, they also manufacture R-panels and multi-rib panels, offering customers flexibility for a range of applications, from residential homes to agricultural and commercial buildings. Each panel is custom-cut to fit the project's exact specifications, eliminating wasted material and ensuring efficient installation.

Why Are Compatible Fall Protection Anchors Critical For Standing Seam Roof Systems?

Standing seam roofs provide decades of protection but require a precise approach to worker safety.

Drilling holes through the seams or clamping with the wrong type of device can cause permanent damage to the system. Once the watertight seal is compromised, problems like corrosion, leaks, and warranty voids aren't far behind. That's why compatible fall protection anchors are critical when working on these roofs.

The SSRA1 Standing Seam Roof Anchor is a prime example. Instead of penetrating the panels, it clamps directly to the seams with twelve set screws, providing a 5,000-pound-rated tie-off point without jeopardizing roof integrity. Roofers remain OSHA-compliant while building owners retain peace of mind that their investment stays protected.

From there, the system grows with the job. SSRA2 Adjustable Roof Jack Adapters mount directly on top of the SSRA1 anchors, allowing crews to set up 10-foot wooden walkboards. That safe, stable footing is advantageous on steep pitches. Add SSRA3 Anchor Plates, and those same anchors become connection points for temporary horizontal lifelines up to 100 feet in length. This feature allows multiple workers to move safely across the roof with continuous tie-off.

Not every roof can handle seam clamping, however. Lighter 26-gauge steel panels don't have the structural strength for set screw anchors. In those situations, the Ridge Pro Steep Assist offers a proven alternative. It hooks over the ridge with the help of a lightweight extension pole, ensuring workers are tied off before they ever step onto the panels. With 100% tie-off from ladder to ridge, it's one of the most dependable options available for steep residential standing seam roofs.

The takeaway is simple: standing seam systems, like those manufactured and sold by Coastal Metal Roofing Supply, deliver decades of performance only when paired with the proper safety equipment. Choosing compatible anchors ensures worker safety, maintains the watertight integrity of the roof, and preserves roof warranties.

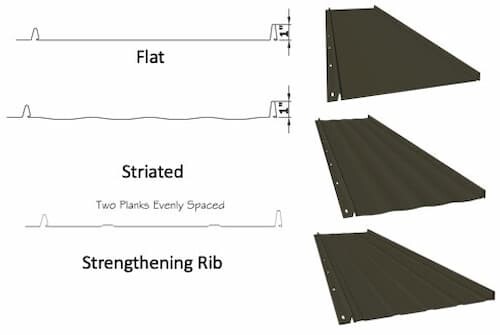

Nail Strip Panels

Coastal Metal Roofing Supply's nailstrip standing seam panels are a favorite for residential builds and light commercial projects, thanks to their clipless, snap-lock design.

This system eliminates the need for mechanical seamers or specialized tools, making installation quicker and easier. Workers fasten directly through the slotted flange into a solid substrate, such as plywood or steel decking. This method reduces installation time and cost. See the Roof Anchor Compatibility Chart for Coastal Metal Roofing Supply nailstrip Standing Seam Panels.

Standard widths are 16 inches, with a 1-inch seam height. This profile provides the roof with a sleek, architectural appearance while maintaining its strength. In terms of materials, panels are made from 24- or 26-gauge steel.

PVDF finishes, such as Kynar 500, strengthen durability by resisting fading, chalking, and weathering, even in the harshest coastal conditions. With over 40 standard and premium color choices, customers can match their panels to any project style. Warranties on color and substrate often extend to 40 years, giving long-term confidence in both performance and appearance.

The panels also meet some of the most stringent building requirements, holding Miami-Dade Impact Approval, Florida Building Code Approval, and UL ratings, including UL 580 and UL 1897. With a minimum slope requirement of 3:12, nailstrip panels are installed over a solid deck with proper underlayment, ensuring both strength and weather resistance. Trim and accessories are custom-cut to order, with lengths reaching up to 40 feet, allowing for streamlined installations and fewer seams.

Fall Protection For Nail Strip Panels

24-gauge Nail Strip panels are compatible with the complete SSRA product line. The SSRA1 Standing Seam Roof Anchor provides a non-penetrating tie-off point rated for 5,000 pounds.

After installation, the anchors accept SSRA2 Adjustable Roof Jack Adapters that attach directly over the SSRA1 units. This setup supports 10-foot wooden walkboards, providing crews with stable and secure footing on steep or extended roof spans. To expand coverage further, the SSRA3 Anchor Plate converts the SSRA1 into an attachment point for temporary horizontal lifelines up to 100 feet in length, allowing multiple workers to remain tied off as they move across the roof.

For long-term safety needs, the Super Anchor 120-foot Standing Seam HLL Kit offers a permanent solution. This system installs galvanized steel cable lifelines directly onto standing seam roofs without penetrations, creating a ready-to-use anchor system that remains in place for maintenance crews or any recurring rooftop access.

The Ridge Pro Steep Assist Anchor is the ideal option for fall protection on 26-gauge steel roofs with pitches ranging from 6:12 to 12:12. This tool hooks over the roof ridge. It is installed with a lightweight extension pole, keeping workers tied off before they ever step onto the panels. It maintains 100% tie-off from the ladder to the ridge and back, delivering dependable safety while preserving the watertight integrity of the nailstrip system.

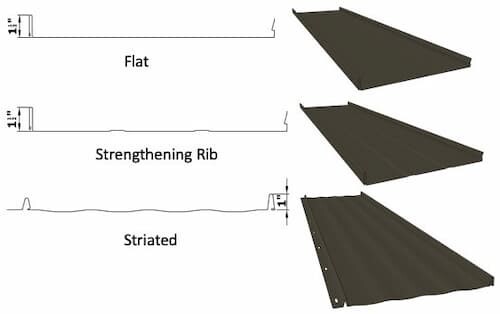

Series 1000 Snap Lock Panels

The Series 1000 panels offered by Coastal Metal Roofing Supply are a versatile snap-lock standing seam roof system built for residential and light commercial projects.

Their integral seam design utilizes specialized clips for attachment, resulting in a secure installation with a refined architectural finish. The 1.5-inch seam height provides clean shadow lines and a modern profile, while also contributing to the panel's robust structural performance. See the Roof Anchor Compatibility Chart for Coastal Metal Roofing Supply Series 1000 Standing Seam Panels.

These panels are available in widths ranging from 12 to 20 inches and are made from either 24-gauge steel or .032 aluminum. The hidden fastener system ensures that clips are securely anchored to a solid substrate—typically plywood or steel decking—while the panel snaps over the clips, providing a concealed and watertight finish. This method allows for natural thermal movement, reducing oil-canning and preserving the crisp look of the roof over time.

Color options are extensive, with over 40 finishes available, all coated with high-performance PVDF systems, such as Kynar 500. These finishes withstand chalking, fading, and UV exposure, backed by warranties that extend for up to 40 years. Beyond aesthetics, Series 1000 panels meet or exceed rigorous performance standards, including UL Class 90 Wind Uplift ratings, ASTM testing for air infiltration (E1680) and water penetration (E1646), and ASTM E-1592 for wind uplift resistance. Many configurations qualify for ENERGY STAR recognition and LEED credits, making them a sustainable and practical choice. With a minimum slope requirement of 3:12 and proper underlayment, these panels deliver reliable protection in even the most demanding coastal and high-wind environments.

Fall Protection For Series 1000 Snap Lock Panels

For 24-gauge steel versions of the Series 1000 panels, the complete SSRA product line offers a safe, non-penetrating fall protection solution.

The SSRA1 Standing Seam Roof Anchor clamps directly onto the panel seam, providing a 5,000-pound-rated tie-off point without compromising the system's watertight integrity. With the anchors in place, crews can position SSRA2 Adjustable Roof Jack Adapters on the SSRA1s to create stable walkboard support. This assembly allows crews to install 10-foot wooden walkboards for stable, level footing on steep spans. Adding SSRA3 Anchor Plates further expands the system, converting the SSRA1 anchors into secure connection points for temporary horizontal lifelines up to 100 feet in length. This setup supports multiple workers across the roof while maintaining OSHA compliance and preserving the roof's integrity.

For long-term safety needs, the Super Anchor 120-foot Standing Seam HLL Kit provides a permanent solution. This system installs galvanized steel lifelines across the roof without penetrations, creating a ready-to-use tie-off system for ongoing maintenance or repeated access.

For Series 1000 panels other than those made of 24-gauge steel, the Ridge Pro Steep Assist performs best on slopes ranging from 6:12 to 12:12. It hooks securely over the ridge using a lightweight extension pole, keeping workers tied off before they step onto the roof surface. This benefit ensures 100% tie-off from the ladder to the ridge and back down again, delivering dependable safety without risking damage to the roof system.

Series 2000 Snap Lock Panels

Coastal Metal Roofing Supply's Series 2000 panels are a heavy-duty snap-lock standing seam system built for projects that demand strength and durability.

With a 1.75-inch seam height, these panels create a bold architectural profile while also providing the structural integrity needed for commercial, institutional, and high-end residential roofs. See the Roof Anchor Compatibility Chart for Coastal Metal Roofing Supply Series 2000 Standing Seam Panels.

These panels come in widths from 12 to 20 inches, with 16 inches the most common. Each is cut to precise lengths in 22-gauge or 24-gauge steel for added strength, or in aluminum. Whether formed in the shop or roll-formed on site, the Series 2000 offers flexibility for jobs of any size or complexity.

A concealed clip system secures the panels to a solid deck or open framing when proper underlayment is in place. The snap-lock seams then secure over the clips, producing a clean architectural finish while still allowing for natural thermal expansion and contraction. The minimum slope requirement is 3:12.

For design flexibility, panels have optional pencil ribs, planks, and striations to achieve the preferred look. Over 40 PVDF finish options are available, manufactured with Sherwin-Williams Kynar 500 coatings for superior UV stability and weather resistance. Steel and aluminum versions are backed by warranties up to 35 years, ensuring long-term performance.

The Series 2000 system also meets some of the industry's strictest codes and certifications. Testing includes ASTM E1592 for wind uplift, ASTM E1680 for air infiltration, ASTM E1646 for water penetration, and UL 580/1897 for wind uplift performance. These certifications make the Series 2000 an excellent choice for coastal and high-wind environments while also qualifying for ENERGY STAR and LEED credits.

Fall Protection For Series 2000 Panels

When manufactured in 22- or 24-gauge steel, the Series 2000 panels are fully compatible with the SSRA product line.

The SSRA1 Standing Seam Roof Anchor clamps directly to the panel seam, creating a non-penetrating tie-off point rated to 5,000 pounds. Once in place, crews can expand their setup with SSRA2 Adjustable Roof Jack Adapters, which mount on top of the SSRA1 anchors and support 10-foot wooden walkboards. This ability provides safe, level footing even on steep or extended roof spans. Adding SSRA3 Anchor Plates allows those same anchors to serve as secure connection points for temporary horizontal lifelines up to 100 feet long, enabling multiple workers to move safely across the roof.

For long-term applications, the Super Anchor 120-foot Standing Seam HLL Kit is the best choice. This permanent system installs galvanized steel cable lifelines across the roof without any penetrations, creating a ready-to-use safety solution for facilities with frequent rooftop access.

Series 2000 panels, available in aluminum or copper, are not suitable for seam clamping. In these cases, the Ridge Pro Steep Assist is the most appropriate option for roof pitches between 6:12 and 12:12. This system securely hooks over the ridge using a lightweight extension pole, ensuring workers remain tied off before stepping onto the panels. It delivers a 100% tie-off from the ladder to the ridge and back again, providing dependable fall protection without compromising roof integrity.

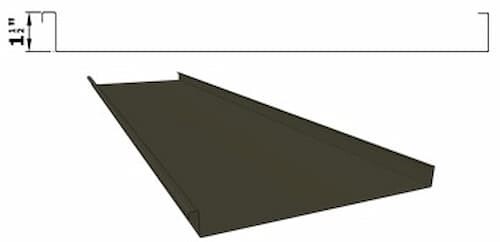

Mechanical Seam Panels

Coastal Metal Roofing Supply's mechanical seam panels are a structural-grade standing seam system designed for projects that demand maximum durability.

The 1-inch seam and 17-inch width provide exceptional strength, allowing the panels to endure high winds, harsh climates, and the long-term demands of commercial, industrial, and residential buildings. An optional 1.5-inch seam height is available with a 16-inch width. See the Roof Anchor Compatibility Chart for Coastal Metal Roofing Supply Mechanical Seam Standing Seam Panels.

Panels are available in 22-gauge and 24-gauge Galvalume steel, as well as .032- and .040-inch aluminum, or premium metals such as 16- and 20-ounce copper. Coastal can also produce custom lengths exceeding 40 feet, making the Mechanical Seams suitable for large-scale or complex projects.

Color and finish options are extensive, with over 40 PVDF coatings available, manufactured with Sherwin-Williams Kynar 500 systems. Durable finishes withstand corrosion, fading, and chalking in coastal environments, supported by long-term warranties. Striations and stress ribs are available to enhance panel strength and minimize oil canning on wider panels.

The Mechanical Seam Series panels meet or exceed strict certifications, including UL 580 and UL 1897 for wind uplift, UL 2218 for hail impact, and ASTM standards for water penetration, air infiltration, and structural performance. They are also compliant with the Florida Building Code and other regional regulations, ensuring they withstand hurricane-prone conditions.

Fall Protection For Mechanical Seam Panels

22- or 24-gauge steel panels are fully compatible with SSRA anchors and accessories.

The SSRA1 Standing Seam Roof Anchor clamps directly onto the seam without penetrations, creating a 5,000-pound-rated tie-off point that preserves the roof's integrity. To expand the system, the SSRA2 Adjustable Roof Jack Adapters mount directly on top of the SSRA1 anchors, supporting 10-foot wooden walkboards that provide crews with stable footing on steep spans or extended runs. The SSRA3 Anchor Plate adds another layer of versatility by converting the SSRA1 into a connection point for temporary horizontal lifelines up to 100 feet, ensuring multiple workers can move safely across the roof while tied off.

For permanent systems, the Super Anchor 120-foot Standing Seam HLL Kit offers a ready-made solution. This kit installs galvanized steel lifelines across the roof without penetrations, providing long-term fall protection for facilities that require regular rooftop access.

Panels made from materials other than 22- or 24-gauge steel, including aluminum and copper, are not recommended for seam clamping. In these cases, the Ridge Pro Steep Assist is the safest option for roof slopes between 6:12 and 12:12. It is installed by hooking over the ridge with a lightweight extension pole, ensuring that workers are tied off before they step onto the roof. The system maintains a 100% tie-off from the ladder to the ridge and back, delivering dependable safety while preserving the performance of the mechanical seam system.

Metal Roof Anchor Panel Compatibility For Coastal Metal Roofing Supply





Contact Us For More Information

For further details on roofing solutions and fall protection systems, please contact us at 863-703-4522 or www.StandingSeamRoofAnchor.com. Let's work together to make your roofing projects safe, beautiful, and built to last. For more safety tips, refer to OSHA's 48-page Fall Protection Manual. Once you have determined the most suitable anchors for your roof system, download our free Anchor Inspection Form.

Safety Tips For Standing Seam Roofs

Promote a Culture of Safety

Safety isn't just a checklist—it's a mindset. Crews that talk openly about risks, share near misses, and respect each other's input build an environment where safety becomes second nature. When everyone feels ownership, hazards get spotted earlier, accidents get avoided, and the whole team performs with more confidence.

Prioritize Ladder Safety Training

Most serious accidents don't even happen on the roof—they start on the ladder. Every climb should begin with a thorough inspection, a secure setup using the 4-to-1 rule, and the discipline to maintain three points of contact at all times. It may sound simple, but disciplined ladder use prevents countless injuries that sideline workers and delay projects.

Use Specialized Anchor Systems for Standing Seam Roofs

Standing seam roofing requires anchors that do not rely on penetrations through the roof. Clamp-on anchors lock to the seam, preserving the roof's integrity and meeting OSHA tie-off requirements. Proper anchorage safeguards workers while also protecting the long-term value of the roof. Be sure to avoid seam anchors that require attachment over clips, as they are nearly impossible to locate once the roofers have installed the panels.

Encourage the Use of Trauma Straps

A fall arrest system stops the fall, but suspension trauma can quickly turn dangerous. Trauma straps give a suspended worker the ability to relieve pressure and restore circulation until rescue arrives. Compact and inexpensive, they're one of the most overlooked but vital add-ons to every harness.

Equip Workers with High-Quality Safety Gear

Workers trust their lives to their equipment, so cutting corners isn't an option. A comfortable harness, reliable SRLs, and adequately maintained lanyards make the difference between confidence and hesitation. When crews know their gear will hold, they use it consistently and correctly. Regular inspections keep that trust intact. OSHA's 2025 mandate requires employers to provide equipment sized adequately for each worker, so expect inspectors to check compliance.

Develop OSHA-Compliant Safety Plans

Every job needs a roadmap. A solid safety plan defines tie-off points, outlines rescue steps, and clarifies roles, ensuring that no one is left guessing in a critical moment. Far more than paperwork, a clear plan keeps crews coordinated, reduces confusion, and ensures compliance from the outset.

Install Permanent Roof Anchor Systems

For facilities with recurring roof access, permanent anchors are a wise investment. They eliminate the need for repetitive setups, provide maintenance crews with immediate tie-off points, and reduce the mistakes associated with temporary systems. Installed once, they provide years of reliable protection without compromising the building's appearance or structure.

Ensure Proper Footwear for Stability

The wrong boots make every step a gamble. Roofing footwear should have aggressive tread, supportive ankles, and lightweight flexibility that grips slick metal surfaces. Good boots also reduce fatigue, keeping workers sharp and steady throughout the day.

Set Up Protective Guardrail Barriers for Work Zones

Guardrails are the quiet workhorses of fall protection. By creating a physical barrier around edges, skylights, and access points, they prevent falls before they start. On crowded jobsites, guardrails double as visual reminders of danger zones, adding a layer of protection that doesn't depend on a harness or lanyard.

Consult Experts for Curved Metal Panels

Curved roofing brings unique safety issues. A highly trained fall protection expert should inspect the curved roof work areas and create a custom fall protection plan that safeguards both the workers and the panels.
