Fall Protection For Freedom Metals Standing Seam Roofs

Who Is Freedom Metal?

Freedom Metal has built its name on vision, resilience, and a relentless drive to grow. The company's story began in 1995 when owner Matthew Will purchased a small metal roofing business near Berlin, Pennsylvania. With little more than a handful of old machines and a 3,500-square-foot warehouse, he threw himself into every part of the business. By 1999, the operation moved to Roaring Spring to accommodate rapid expansion.

Today, the company operates out of a 20,000-square-foot facility equipped with modern machinery. Their expanded lineup extends far beyond roofing to include residential metal siding panels, interior trim such as crown molding, and custom-fabricated panels for large-scale commercial projects, such as hospitals and schools. With retail locations in Ridgeley, West Virginia, and Shamong, New Jersey, Freedom Metal continues to grow its footprint across the Mid-Atlantic region. Their mission remains unchanged since 1995: to continue building, creating, and advancing the industry.

Why Are Non-Penetrating Anchors Important for Standing Seam Roofs?

Compatible fall protection anchors are crucial for Freedom Metal roofs, as improper equipment can compromise both worker safety and the roof system. Freedom Metal produces a wide range of standing seam panels and custom-fabricated profiles that deliver strength and lasting weather resistance. However, their performance depends on maintaining the integrity of the seams and fasteners. Using anchors that require drilling or fastening through the panels would puncture the system, compromise watertightness, and potentially void warranties.

OSHA requires 100% fall protection when working at height, and roofing remains one of the most hazardous trades. Crews on Freedom Metal roofs often deal with steep pitches and slick surfaces. Properly matched anchors grip the seam securely, providing dependable tie-off points without damaging the panel. By choosing anchors specifically designed for standing seam roofs, contractors ensure compliance with safety regulations while protecting the building owner's investment.

Fall Protection Systems for Freedom Metal Panels

To maintain the integrity of these high-performance systems, specialized fall protection is required. The following products provide the primary safety solutions for Freedom Metal installations:

• SSRA1 Standing Seam Roof Anchor: The foundation of the system. This anchor provides a non-penetrating, certified 5,000-pound tie-off point using 12 cupped-tip or nylon-tipped set screws.
• SSRA2 Adjustable Roof Jack Adapters: Mount directly to the SSRA1 anchors to create level work platforms on steep slopes using 10-foot wooden walkboards.
• SSRA3 Anchor Plates: Heavy-duty aluminum plates that secure across two SSRA1 anchors to serve as certified endpoints for horizontal lifelines.
• SSRA HLL 100-foot Temporary HLL Kit: A complete turnkey system providing continuous tie-off for up to two workers in fall arrest, allowing safe lateral movement across wide spans.
• 120-foot Super Anchor Permanent HLL Kit: An industry-exclusive galvanized-steel-cable solution for roofs requiring regular maintenance without penetrations.
• Ridge Pro Steep Assist: A peak-mounted system for slopes between 6:12 and 12:12, providing 100% tie-off from the ladder to the ridge.

Proper Attachment: Set-Screws and Torque Requirements

Worker safety and the holding power of the SSRA1 anchor depend entirely on correct set-screw application:

• Cupped-Tip Stainless Steel Set-Screws: Use these screws exclusively on 22-gauge steel panels. Torque these screws to 90 inch-pounds.
• Nylon-Tipped Set-Screws: Apply these tips to 22-gauge or 24-gauge steel panels to achieve certified holding power. Torque these screws to 180-200 inch-pounds for maximum strength.
• Maintenance: Treat nylon tips as consumables. Replace these tips every 3 to 5 uses to maintain maximum grip strength.

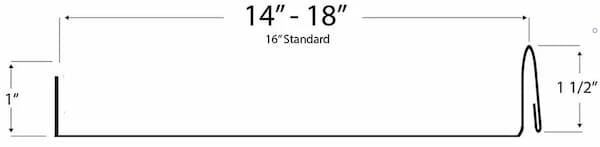

Freedom Metals 1.5 Inch Snap Lock Panels (SSRA Compatible 24 ga. Steel)

Freedom Metal's 1.5 Inch Snap Lock Panels bring real versatility to standing seam projects that need strength and clean lines. These panels lock together with clips, keeping fasteners hidden and preserving a tight weather seal. See the Roof Anchor Compatibility Chart for Freedom Metal 1.5 Inch Snap Lock Standing Seam Panels.

• Material Specs: Offered in 24 and 26-gauge steel.
• Finishes: Available in SMP or premium Fluropon (PVDF) finishes.
• Installation: Best results occur on a 2:12 pitch or greater over solid decking.
• Design: A hidden fastener system provides a refined look while shedding water effectively.

Fall Protection For 1.5 Inch Snap Lock Panels:

• SSRA1 Seam Anchor: Clamps to the 24-gauge seam to create an OSHA-compliant tie-off point without panel penetration.
• SSRA2 Adjustable Roof Jack Adapter: Mounts on top of anchors to support 10-foot wooden walkboards for stable footing on steep slopes.
• SSRA3 Anchor Plate: Provides a heavy-duty attachment point for lifeline systems by mounting across two SSRA1 anchors.
• SSRA HLL 100-foot Temporary HLL Kit: A complete package that provides continuous lateral mobility for up to two workers.
• Super Anchor 120-foot Permanent HLL Kit: Provides a permanent, non-penetrating cable system for facilities needing repeated access.
• Ridge Pro Steep Assist: The primary solution for 26-gauge panels or steeper pitches between 6:12 and 12:12.

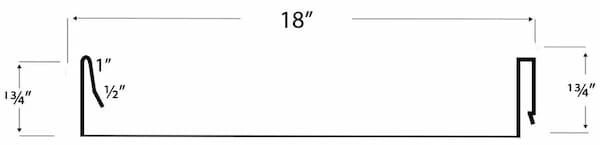

Freedom Metals 1.75 Inch Snap Lock Panels (SSRA Compatible 24 ga. Steel)

Freedom Metal's 1.75-inch Snap Lock Panel elevates the features of the 1.5-inch system with added strength and adaptability. The taller seam height enhances structural integrity, making it a strong choice for regions with high winds. See the Roof Anchor Compatibility Chart for Freedom Metal 1.75 Inch Snap Lock Standing Seam Panels.

• Material Build: Manufactured exclusively from 24-gauge steel in Galvalume or premium Fluropon (PVDF) finishes.
• Dimensions: Features an 18-inch coverage width and a 1.75-inch rib height.
• Versatility: Performs well on pitches as low as 1:12 and can span purlins up to 4 feet apart.
• Aesthetics: Options like striations, pencil ribs, or crinkle finishes help minimize oil canning.

Fall Protection For 1.75 Inch Snap Lock Panels:

• SSRA1 Seam Anchor: Provides a secure, non-penetrating tie-off point for this 24-gauge profile.
• SSRA2 Adjustable Roof Jack Adapter: Allows staging 10-foot walkboards for safe work positioning.
• SSRA3 Anchor Plate: Acts as a certified endpoint for horizontal lifeline assemblies on taller seams.
• SSRA HLL 100-foot Temporary HLL Kit: Protects two workers while allowing for maximum mobility across long spans.
• Super Anchor 120-foot Permanent HLL Kit: Includes 5-inch riser posts and non-penetrating clamps for long-term safety.
• Ridge Pro Steep Assist: Provides 100% tie-off from the ladder to the ridge on slopes ranging from 6:12 to 12:12.

Freedom Metals 1-Inch Nailstrip Panels (Ridge Pro Only)

Freedom Metal's 1-Inch Nailstrip Panels combine simplicity with strength, making them a reliable option for residential applications. This design uses hidden fasteners, eliminating the need for clips and enabling faster installation. See the Roof Anchor Compatibility Chart for Freedom Metal 1-Inch Nailstrip Standing Seam Panels.

• Material Profile: Manufactured in 24 and 26-gauge steel with SMP or Fluropon (PVDF) paint systems.
• Panel Width: Standard 16-inch width with optional striations or pencil ribs.
• Slope Requirement: Can be installed on pitches as low as 1:12 when placed over purlins at 12-inch spacing.

Fall Protection For 1-Inch Nailstrip Panels:

• Ridge Pro Steep Assist: Due to the specific seam shape of this nailstrip system, seam-mounted clamps are not compatible. The Ridge Pro is the safest solution, setting over the peak to provide continuous fall protection on slopes between 6:12 and 12:12 without puncturing the metal.

Why Domestic Engineering Outperforms Generic Imports

In the professional roofing industry, choosing safety equipment based solely on price is a gamble with worker safety and company liability. While unbranded, generic imports often flood the market at lower price points, they rarely offer the documented performance pedigree required for OSHA compliance. These budget clamps often lack the traceable metallurgical testing and ISO 17025 lab verification required to ensure a breaking strength of 5,000 pounds.

Investing in American-engineered SSRA hardware provides you with a safety plan backed by verifiable data. Our anchors are precision-machined to match the specific tolerances of standing seam ribs, ensuring a secure grip that generic alternatives cannot replicate. We encourage you to review our official SSRA test reports to see the transparent performance benchmarks that define professional-grade equipment.

Metal Roof Anchor Panel Compatibility For Freedom Metal

	Freedom 1.5 In Snap-Lock (24 Ga.)	Freedom 1.75 In Snap-Lock (24 Ga.)	Freedom 1-In NailStrip
SSRA 1	NO	NO	NO
SSRA1 Nylon Tip	YES	YES	NO
SSRA2 Roof Jack	YES	YES	NO
SSRA3 Anchor Plate	YES	YES	NO
The Ridge Pro	YES	YES	YES

Contact Us For More Information

For further details on roofing solutions and fall protection systems, contact us at 863-703-4522 or visit www.StandingSeamRoofAnchor.com. Let's work together to make your roofing projects safe, beautiful, and built to last. For more safety tips, refer to the OSHA 48-page Fall Protection Manual. Once you have determined the most suitable anchors for your roof system, download our free Anchor Inspection Form.

Safety Tips For Standing Seam Roofs

Ensure Proper Footwear for Stability
Roofing boots with slip-resistant soles, supportive ankles, and flexible construction provide a secure grip on slick panels. Proper footwear helps crews stay balanced on slopes and reduces physical fatigue.

Equip Workers with High-Quality Safety Gear
Harnesses, SRLs, and lanyards are only effective when they are comfortable and well-fitted. OSHA clarified in 2025 that employers must provide properly fitting PPE to ensure consistent protection.

Set Up Protective Guardrail Barriers for Work Zones
Guardrails deliver constant, passive protection once installed around roof edges, hatches, or skylights. These barriers provide clear boundaries that prevent missteps without requiring workers to take action.

Encourage the Use of Trauma Straps
After a fall, the leg straps can restrict blood flow, leading to suspension trauma. Trauma straps allow a suspended worker to stand up in their harness to restore circulation while waiting for rescue.

Install Permanent Roof Anchor Systems
For roofs that see repeated service, such as those with solar panels or HVAC units, permanent anchors are invaluable. These fixed tie-off points remain ready year-round and eliminate repetitive setup time.

Prioritize Ladder Safety Training
Safe work begins with proper ladder use. Teaching the 4-to-1 setup rule and maintaining three points of contact helps crews avoid injuries before they even reach the panels.

Consult Experts for Curved Metal Panels
Curved roof systems feature seam shapes that standard anchors cannot always accommodate. A trained fall protection specialist can select the right gear to ensure safety remains uncompromised.

Develop OSHA-Compliant Safety Plans
A well-written safety plan defines how a crew will work together. Identifying hazards, assigning responsibilities, and outlining rescue steps keep everyone aligned on the job site.

Use Specialized Anchor Systems for Standing Seam Roofs
Penetrating anchors damage seams, void warranties, and lead to leaks. Seam-mounted anchors built for standing seam panels clamp securely without a single puncture, protecting the roof system.

Promote a Culture of Safety
Safety grows from everyday actions. When crews share responsibility, speak up about concerns, and hold regular safety huddles, protection becomes second nature for every worker.
