Fall Protection For Pinnacle Structures Roofs

Who Is Pinnacle Structures, Inc.?

Pinnacle Structures, Inc., headquartered in Cabot, Arkansas, is a premier manufacturer of pre-engineered metal building systems. The company delivers customized solutions for agricultural, commercial, industrial, and residential projects across the Midwest and Southeastern United States. Founded in August 1994 by Will Feland and a team of visionaries, Pinnacle began with a mission to provide unmatched quality, rapid delivery, and exceptional service. Under Feland's leadership, the company evolved into the largest pre-engineered steel building manufacturer in Arkansas within just four years.

Today, Pinnacle employs a specialized staff of up to 200 professionals and generates significant annual revenue by upholding rigorous engineering standards. As a member of the Metal Building Manufacturers Association (MBMA) and an accredited participant in the International Accreditation Service (IAS) AC472 program, the company maintains a commitment to excellence. Pinnacle invests heavily in community initiatives through local scholarships and support for Habitat for Humanity. With over 30 years of experience, Pinnacle Structures, Inc. remains dedicated to engineering excellence and customer satisfaction.

Why Are Compatible Fall Protection Anchors Critical For Standing-Seam Roofs?

Standing-seam metal roofs are durable and weather-resistant. However, their unique construction features concealed fasteners and floating clip systems that present distinct challenges for worker safety. Using compatible fall-protection anchors is necessary to ensure safety, preserve roof integrity, and maintain compliance with industry standards.

Standing-seam panels rely on hidden clips and floating seams to accommodate thermal expansion and contraction. Penetrative anchors cause severe damage by puncturing the metal, which compromises the weather-tight seal and structural strength. Such damage leads to leaks, reduced wind resistance, and voided manufacturer warranties.

More critically, an incompatible anchor poses a direct threat to worker safety. If an anchor fails to secure correctly to the seam by slipping or breaking under load, it cannot support a fall-arrest system. OSHA regulations mandate secure tie-off points, and using incorrect equipment exposes crews to physical and legal risks. Specialized, non-penetrating anchors clamp securely to the standing-seam ribs, preserving the roof's performance while providing a dependable safety lifeline.

To ensure OSHA compliance while protecting the structural integrity of a Pinnacle Structures roof, we recommend the following specialized components:

• Standing Seam Roof Anchor (SSRA1): This anchor serves as the foundation of the safety system. It clamps securely to compatible standing seams without drilling, preserving the warranty and the roof's weather-tight seal.
• SSRA2 Adjustable Roof Jacks: These mount directly to the SSRA1 to support 10-foot walkboards. This setup provides workers with a stable and level platform for navigating sloped roofs.
• SSRA3 Anchor Plates: These aluminum spanner plates provide attachment points for temporary horizontal lifelines, facilitating 100% tie-off compliance for multiple workers.
• 100-Foot SSRA Temporary HLL Kit: This kit provides a complete and non-penetrating lifeline solution for rapid deployment on expansive industrial or commercial projects.
• 120-Foot Super Anchor Permanent HLL Kit: This system provides a permanent, non-penetrating cable solution for long-term facility maintenance, using 5-inch galvanized steel riser posts.
• Ridge Pro Steep Assist Anchor: This anchor hooks securely over the roof peak to provide a reliable tie-off point for slopes between 6:12 and 12:12 where seam-mounted anchors may not be compatible.

Proper Attachment: Set Screws and Torque Requirements

Worker safety and the certified holding power of the SSRA1 anchor depend on correct set-screw application. We provide specialized fastening options based on the material gauge of the Pinnacle Structures panels:

• Cupped-Tip Stainless Steel Set Screws: Use these exclusively on 22-gauge steel panels. Torque them to 90 inch-pounds for a secure and non-destructive lock.
• Nylon-Tipped Set Screws: Apply these to 22-gauge and 24-gauge steel panels to achieve certified holding power. Torque them to 180–200 inch-pounds for maximum strength.
• Maintenance: Treat nylon tips as consumables. Replace them every 3 to 5 uses to ensure they maintain the necessary coefficient of friction.

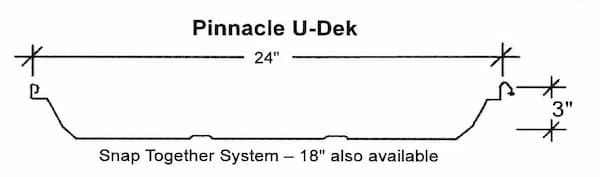

Pinnacle U-Dek Snaplock Trapezoidal Panels (SSRA Compatible 24 ga. Steel)

The Pinnacle U-Dek Panel is a high-performance snaplock standing-seam system designed for commercial applications, blending structural strength with architectural versatility. This panel has a bold 3-inch seam height and is available in 18-inch and 24-inch widths. Crafted from 26-gauge or 24-gauge steel, the U-Dek Panel adapts to varying environmental conditions. Its snaplock design ensures fast, secure installation without exposed fasteners, making it ideal for warehouses and retail centers. See the Roof Anchor Compatibility Chart for Pinnacle Structures U-Dek Snaplock Trapezoidal Standing Seam Metal Roofing.

Fall Protection For Pinnacle U-Dek Panels

Safety on the U-Dek Panel demands non-penetrating fall-protection systems. For 24-gauge steel panels, the following components form a complete safety network:

• SSRA1 Seam Anchor: Clamps directly onto the 3-inch ribs without drilling to preserve the weather-tight seal.
• SSRA2 Adjustable Roof Jack: Supports 10-foot wooden walkboards for safe movement.
• SSRA3 Anchor Plate: Enables temporary 100-foot horizontal lifelines for multi-worker efficiency.
• 100-foot SSRA Temporary HLL Kit: Complete temporary safety setup for expansive decks.
• 120-foot Super Anchor Permanent HLL Kit: Permanent cable solution for facility maintenance.
• Ridge Pro Steep Assist: Excellent peak-mounted alternative for roof pitches of 6:12 to 12:12.

Pinnacle D-Lok Mechanical Trapezoidal Panels (SSRA Compatible 24 ga. Steel)

The Pinnacle D-Lok Panel is a premium field-seamed system engineered for commercial applications, offering exceptional strength. With a commanding 3-inch seam height, this panel is mechanically seamed onsite to ensure a tight, weatherproof seal. Constructed from 26-gauge or 24-gauge steel, it is a top choice for industrial facilities and warehouses requiring a uniform aesthetic and robust performance. See the Roof Anchor Compatibility Chart for Pinnacle Structures D-Lok Mechanical Trapezoidal Standing Seam Metal Roofing.

Fall Protection For Pinnacle D-Lok Panels

The D-Lok's field-seamed design requires anchorage that bypasses panel penetrations. For 24-gauge steel panels, utilize the SSRA1 Seam Anchor, SSRA2 Adjustable Roof Jack, and SSRA3 Anchor Plate for full OSHA compliance. For expansive projects, the 100-foot Temporary HLL Kit or 120-foot Permanent HLL Kit provide continuous safety coverage. For 26-gauge panels on steeper pitches (6:12 to 12:12), the Ridge Pro Steep Assist hooks over the peak to avoid seam interaction entirely.

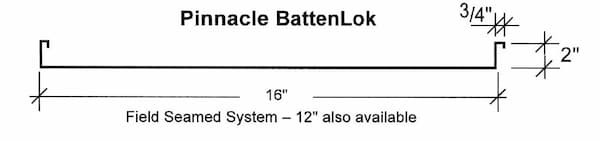

Pinnacle BattenLok Mechanical Panels (SSRA Compatible 24 ga. Steel)

The Pinnacle BattenLok Panel is a field-seamed standing-seam system designed for durability and architectural appeal. This panel offers flexibility in 12-inch and 16-inch widths with a 2-inch seam height. Its field-seamed construction ensures a secure, weather-tight seal for retail centers and offices requiring a blend of structural strength and modern style. See the Roof Anchor Compatibility Chart for Pinnacle Structures BattenLok Mechanical Standing Seam Metal Roofing.

Fall Protection For Pinnacle BattenLok Panels

To protect the BattenLok's 2-inch ribs, use the SSRA1 Seam Anchor for a non-penetrating tie-off. Pair it with the SSRA2 Adjustable Roof Jack for walkboard support or the SSRA3 Anchor Plate for temporary horizontal lifelines. For industrial access, the 100-foot and 120-foot HLL kits provide maximum mobility. For 26-gauge panels on steeper slopes, the Ridge Pro Steep Assist hooks over the ridge to ensure safety without risking panel damage.

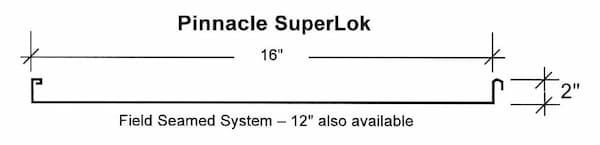

Pinnacle SuperLok Mechanical Panels (SSRA Compatible 24 ga. Steel)

The Pinnacle SuperLok Panel is a field-seamed standing-seam system engineered for superior strength and versatility. Available in 12-inch and 16-inch widths with a 2-inch seam height, its construction ensures a robust, weather-tight seal. Built with Pinnacle's precision craftsmanship, the SuperLok Panel delivers reliable performance for manufacturing facilities and architectural showcases. See the Roof Anchor Compatibility Chart for Pinnacle Structures SuperLok Mechanical Standing Seam Metal Roofing.

Fall Protection For Pinnacle SuperLok Panels

For 24-gauge SuperLok panels, the SSRA1 Seam Anchor, SSRA2 Adjustable Roof Jack, and SSRA3 Anchor Plate form a comprehensive safety system. The 100-foot SSRA Temporary HLL Kit and 120-foot Super Anchor Permanent HLL Kit facilitate continuous protection for large crews. For 26-gauge panels on roof pitches between 6:12 and 12:12, the Ridge Pro Steep Assist bypasses the seams by hooking over the roof peak.

Certified American Engineering vs. Cheap Imports

Investing in American-made fall protection is a proactive step toward safeguarding your crew and your professional reputation. While the market features various unbranded imports, our American-engineered SSRA system stands apart by providing the verifiable third-party documentation required to meet strict OSHA and ANSI standards. SSRA1 anchors undergo rigorous testing at ISO 17025-accredited labs to ensure they can withstand extreme dynamic loads. Choosing quality hardware ensures that your team operates with total confidence and returns home safely every single day.

Standing Seam Roof Anchor Compatibility for Pinnacle Structures

	U-Dek (24 Ga.)	D-Lok (24 Ga.)	BattenLok (24 Ga.)	SuperLok (24 ga.)
SSRA 1	NO	NO	NO	NO
SSRA1 Nylon Tip	YES	YES	YES	YES
SSRA2 Roof Jack	YES	YES	YES	YES
SSRA3 Anchor Plate	YES	YES	YES	YES
The Ridge Pro	YES	YES	YES	YES

Contact Us For More Information

For further details on roofing solutions and fall protection systems, contact us at 863-703-4522 or visit www.StandingSeamRoofAnchor.com. Let's work together to make your roofing projects safe, beautiful, and built to last. For more safety tips, check out OSHA's 48-page fall protection manual. Once you have determined the most suitable anchors for your roof system, download our free Anchor Inspection Form.

Safety Tips For Standing Seam Roofs

• Install Permanent Roof Anchor Systems: Fixed points offer a dependable, always-ready tie-off solution for high-traffic roofs needing regular access.
• Ensure Proper Footwear for Stability: Quality slip-resistant roofing boots give workers the grip to stay steady on steep or slick panels.
• Promote a Culture of Safety: Build a culture where safety leads every conversation through toolbox talks and a team-first mindset.
• Consult Experts for Curved Metal Panels: A seasoned safety pro can pinpoint the perfect approach for unique curved surfaces to ensure worker coverage.
• Use Specialized Anchor Systems for Standing Seam Roofs: Non-penetrating seam clamps provide a solid tie-off without piercing the panel's weather-tight shield.
• Equip Workers with High-Quality Safety Gear: Top-tier, OSHA-approved harnesses and fall-arrest kits are non-negotiable for keeping workers secure and focused.
• Set Up Protective Guardrail Barriers for Work Zones: Physical barriers define safe zones on low-slope commercial roofs, sharpening awareness and slashing fall risks.
• Develop OSHA-Compliant Safety Plans: A rock-solid, site-specific plan outlines fall protection and emergency procedures for any scenario.
• Encourage the Use of Trauma Straps: These straps let a worker ease leg strain and improve blood circulation while awaiting rescue after a fall.
• Prioritize Ladder Safety Training: Perfect the 4-to-1 ladder placement strategy to dodge injuries before the rooftop work even starts.
