Fall Protection For Zimmerman Metals Standing Seam Panels

See the Roof Anchor Compatibility Chart for Zimmerman Metals Standing Seam Metal Roof Panels.

Who Is Zimmerman Metals?

Zimmerman Metals is a third-generation, family-owned metal fabrication and machining company that has shaped the industry since 1936. Founded by William George Zimmerman, the company has grown from a small metalworking shop into a leading manufacturer of roll-forming machines and structural steel components. Based in Denver, Colorado, Zimmerman Metals operates from a 150,000-square-foot facility on a 10-acre site, employing over 100 skilled professionals dedicated to precision engineering and innovation.

The company's legacy comprises craftsmanship, adaptability, and a commitment to producing high-quality metal products. From its early days crafting roof trusses, metal doors, and architectural elements—such as the original entryway of the Denver Art Museum—Zimmerman Metals has continuously evolved to meet the demands of modern construction. Today, co-owners Mark Zimmerman and Taryn Christison lead the company, combining deep-rooted family values with cutting-edge technology to serve industries ranging from structural steel to roofing.

One of Zimmerman Metals' key specialties is manufacturing roll-forming machines to produce standing seam metal roof panels. These American-made machines are engineered for durability, efficiency, and precision, making them a top choice for contractors and roofing professionals. By incorporating advanced features such as independent drive systems and stainless steel forming rollers, Zimmerman rollformers help reduce oil canning and ensure a smooth, high-quality panel finish.

While Zimmerman Metals is in the Rocky Mountain region, their machines can withstand diverse weather conditions, making them a trusted solution for roofing companies nationwide. With a focus on customization, Zimmerman offers a variety of portable and stationary roll-forming machines that allow contractors to produce panels on-site, minimizing waste and maximizing efficiency. As a company rooted in innovation and quality craftsmanship, Zimmerman Metals continues to set the standard for roll-forming technology in the metal roofing industry.

Why Are Compatible Fall Protection Anchors Critical for Standing Seam Panels?

Standing seam metal roofs are known for their durability, energy efficiency, and long-term weather resistance. However, their unique design presents specific challenges regarding fall protection. Unlike traditional roofing materials, which allow for direct anchor attachment to the structural decking, standing seam panels rely on concealed clips to secure the roof system. These floating connections accommodate thermal expansion and contraction, making standard fall protection systems unsuitable for these roofs.

Drilling into a standing seam panel to install an anchor can compromise the roof's structural integrity, leading to leaks, corrosion, and potential warranty voids. This issue is especially true for roofs made from weathering steel, such as Corten, where punctures can accelerate rusting and reduce the material's longevity. Instead, non-penetrating seam-mounted anchors are the safest and most effective solution.

Clamp-style seam anchors, such as the SSRA1 Seam Anchor, provide secure tie-off points without requiring panel modifications. These anchors grip the raised seams without piercing the metal, maintaining the roof's weather resistance while ensuring compliance with OSHA fall protection standards. The SSRA2 Adjustable Roof Jacks work in conjunction with these anchors, allowing the installation of 10-foot wooden walkboards that create a stable work platform for roofing crews. Additionally, the SSRA3 Anchor Plate enables the setup of a temporary 100-foot horizontal lifeline system, ensuring continuous fall protection for multiple workers.

For roofs with pitches between 6/12 and 12/12, the Ridge Pro Steep Assist offers an alternative solution. This system hooks securely over the roof peak, providing a reliable tie-off point that allows workers to remain fully secured without requiring seam-mounted clamps. The Ridge Pro is particularly beneficial for standing seam panels made from aluminum, copper, or other lightweight materials where clamp-based anchors may not provide sufficient grip.

Choosing the correct fall protection system isn't just about compliance—it's about safeguarding workers while preserving the roof's integrity. By using non-penetrating solutions tailored for standing seam panels, contractors and building owners can ensure safe and efficient roofing operations without compromising the long-term performance of their metal roof system.

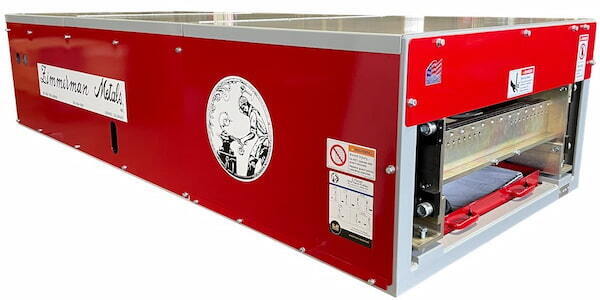

The Zimmerman Z-Panel Rollforming Machine

The Zimmerman Z-Panel Rollforming Machine is a high-performance, compact system designed for residential roofing professionals who demand precision, efficiency, and portability. This machine is engineered for on-site roll forming, allowing contractors to quickly produce custom standing seam panels. By eliminating the need for pre-fabricated panels, the Z-Panel machine reduces waste, lowers transportation costs, and provides greater flexibility for roofers working on projects with unique specifications. See the Roof Anchor Compatibility Chart for Z-Panel Rollforming Machine

One of its standout features is its infinitely adjustable panel width, ranging from 12 to 24 inches. This advantage means contractors can produce panels tailored to specific job requirements without being restricted to standard sizes. The independent drive system, centered on the panel, ensures consistent pressure throughout the roll-forming process, significantly reducing the risk of oil canning. This common issue affects the visual appeal and integrity of metal panels. The Z-Panel machine has 304 stainless steel forming rollers that spin freely, further contributing to a smooth, high-quality finish.

The Z-Panel Machine features a 2-inch welded tubular steel frame, powder-coated and zinc-plated components, and an industrial-grade hydraulic system with a 17-gallon stainless steel tank. It also features a guillotine-type shear with heat-treated tool steel blades, ensuring clean, precise cuts on every panel. The machine's quick tooling changeover—taking approximately one hour—makes it versatile for roofing crews working with different panel profiles throughout the day.

The Z-Panel machine can process various materials, including steel up to 24 gauge, aluminum up to 0.032 inches, and copper up to 20 oz. This versatility allows roofing professionals to produce high-quality standing seam panels for residential and light commercial applications. With its industrial-grade hydraulic system, 110V electric motor, and handheld remote controls, the Z-Panel machine offers user-friendly operation while maintaining professional-grade performance.

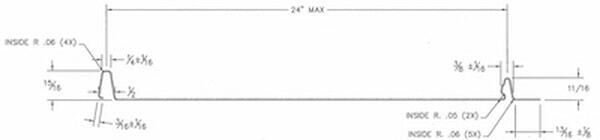

FF1000 1-inch Nail Strip Panel

The FF1000 Nail Strip Panel features a 1-inch tall seam, accommodating panel widths of up to 24 inches. This panel is particularly popular for residential applications, providing a sleek, modern look with a fastener-free appearance. The nail strip fastening system eliminates the need for clips, allowing quicker installation while maintaining strong wind resistance. See the Roof Anchor Compatibility Chart for Zimmerman Metals FF1000 Standing Seam Metal Roof Panels.

For fall protection on FF1000 Nail Strip Panels, SSRA1 Seam Anchors provide a secure, non-penetrating tie-off point, preserving the panel's integrity. SSRA2 Adjustable Roof Jacks allow for installing 10-foot wooden walkboards, giving workers a stable surface to move across the roof safely. The SSRA3 Anchor Plate can create a temporary 100-foot horizontal lifeline system, ensuring continuous tie-off for multiple workers. Some nail strip seams may not be compatible with SSRA products, so workers should perform a test fit. The Ridge Pro Steep Assist is the best option for roofs with slopes between 6/12 and 12/12 for all other substrates, including aluminum and copper.

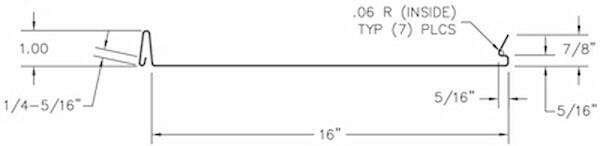

SL1000 1-inch Snap Lock Panel

The SL1000 Snap Lock Panel features a 1-inch seam height and a 16-inch panel width. This profile is known for its ease of installation, as the panels snap together without requiring mechanical seaming. The SL1000 offers a balance of aesthetic appeal and structural strength, making it an excellent choice for residential and light commercial applications. See the Roof Anchor Compatibility Chart for Zimmerman Metals SL1000 Standing Seam Metal Roof Panels.

Since the SL1000 Snap Lock Panel is a standing seam system, it is fully compatible with SSRA1 Seam Anchors, SSRA2 Adjustable Roof Jacks, and SSRA3 Anchor Plates for 22 and 24-gauge steel. These products work together to create a secure, non-penetrating fall protection system that allows for the installation of walkboards and temporary horizontal lifelines. Workers should perform a test fit for all snap lock panels to confirm compatibility. The Ridge Pro Steep Assist is the safest option for steep roof slopes for aluminum, copper, or other substrates.

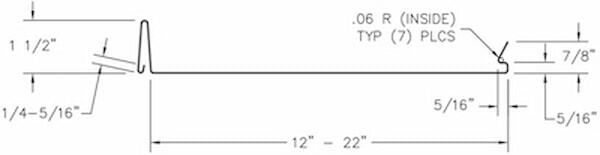

SL1500 1.5-inch Snap Lock Panel

The SL1500 Snap Lock Panel is similar in design to the SL1000. Still, it features a taller 1.5-inch seam and adjustable widths ranging from 12 to 22 inches. The increased seam height provides additional structural strength, making this panel a preferred choice for projects that require higher wind resistance. See the Roof Anchor Compatibility Chart for Zimmerman Metals SL1500 Standing Seam Metal Roof Panels.

Like the SL1000, the SL1500 is compatible with SSRA1 Seam Anchors, SSRA2 Adjustable Roof Jacks, and SSRA3 Anchor Plates when installed on 22—or 24-gauge steel. These fall protection solutions provide secure tie-off points, allowing walkboards and horizontal lifelines on standing seam roof systems. Contractors working with aluminum, copper, or other lightweight materials should opt for the Ridge Pro Steep Assist for steep roof slopes. Workers should perform test fit to ensure proper seam compatibility before anchoring.

SS1000 1-inch Mechanical Lock Panel

The SS1000 Mechanical Lock Panel is a traditional standing seam profile featuring a 1-inch seam height and adjustable panel widths between 12 and 24 inches. This mechanically seamed panel provides superior weather resistance, making it an excellent choice for projects in areas with heavy rainfall or extreme wind conditions. Unlike snap lock systems, mechanical lock panels require a seaming tool to engage the panels, creating a fully watertight seal. See the Roof Anchor Compatibility Chart for Zimmerman Metals SS1000 Standing Seam Metal Roof Panels.

SSRA1 Seam Anchors, SSRA2 Adjustable Roof Jacks, and SSRA3 Anchor Plates work seamlessly with the SS1000 when fabricated in 22—or 24-gauge steel. These products allow for the secure attachment of horizontal lifelines and walkboards, providing a safe working environment for roofing professionals. The Ridge Pro Steep Assist maintains 100% worker tie-off on steep-sloped roofs for aluminum, copper, or alternative substrates.

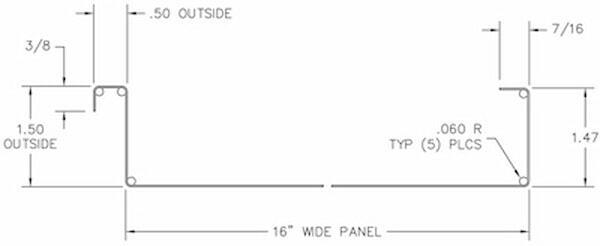

SS1500 1.5-inch Mechanical Lock Panel

The SS1500 Mechanical Lock Panel is a more robust version of the SS1000, featuring a taller 1.5-inch seam height and a standard panel width of 16 inches. This profile is for projects that demand maximum strength and water resistance. The higher seam adds rigidity, making the SS1500 an excellent choice for high-wind zones and regions with extreme weather conditions. See the Roof Anchor Compatibility Chart for Zimmerman Metals SS1500 Standing Seam Metal Roof Panels.

For fall protection, SSRA1 Seam Anchors, SSRA2 Adjustable Roof Jacks, and SSRA3 Anchor Plates are fully compatible with 22—or 24-gauge steel panels. These products provide secure tie-off points while maintaining the integrity of the standing seam system. The Ridge Pro Steep Assist is an excellent alternative for aluminum, copper, and other non-steel substrates on steep-sloped roofs, as with all mechanical lock panels.

Standing Seam Roof Anchor Point Compatibility for Zimmerman Z-Panel Rollforming Machine

Conclusion

The Zimmerman Z-Panel Rollforming Machine allows roofing professionals to produce high-quality standing seam panels on-site, improving efficiency and reducing costs. Its versatility in panel width adjustments and material capabilities make it a valuable asset for contractors handling residential roofing projects. Each of the five-panel profiles fabricated by this machine offers unique advantages, from quick-install snap lock designs to high-strength mechanical lock systems.

Proper fall protection is critical for safety and roof longevity when working on these standing seam panels. SSRA products provide secure, non-penetrating tie-off points for 22—and 24-gauge steel panels. At the same time, the Ridge Pro Steep Assist ensures safe access on steep roofs with aluminum or copper substrates. By utilizing proper fall protection solutions, roofing professionals can work confidently without compromising the structural integrity of the panels.

The Zimmerman Commercial Roof Panel Machine (CRPM)

The Zimmerman Commercial Roof Panel Machine (CRPM) is a powerful, high-capacity rollformer designed to produce standing seam panels suitable for residential and commercial applications. This machine allows contractors to fabricate a variety of larger panel profiles, making it an ideal choice for mid-sized to large roofing projects. See the Roof Anchor Compatibility Chart for Commercial Roof Panel Machine (CRPM)

One of its most valuable features is its ability to produce panel widths ranging from 12 to 24 inches. This flexibility gives contractors greater control over panel sizing, ensuring a custom fit for each job. The machine incorporates an independent drive system and free-spinning 304 stainless steel forming rollers, which reduce the risk of oil canning, a common issue in metal roofing that affects aesthetics and structural integrity.

The CRPM's primary strength is its durability. Its 2-inch welded tubular steel frame provides a strong foundation for heavy-duty roll forming. In contrast, the industrial-grade hydraulic system, with an 18-gallon stainless steel tank, ensures consistent performance. The machine has a guillotine-style shear with heat-treated tool steel blades, delivering clean, precise cuts on every panel. The tooling changeover takes approximately one hour, allowing quick transitions between panel profiles.

The CRPM can handle steel up to 22 gauge, aluminum up to 0.040 inches, and copper up to 20 oz. This range of material capabilities makes it suitable for commercial roofing applications, where weather resistance and structural strength require larger panel sizes and higher seam heights.

With a 13-horsepower electric start gas engine, a 4,000-pound expandable decoiler, and user-friendly remote controls, the CRPM delivers efficiency and reliability. Whether producing traditional standing seam panels or specialized profiles, this machine ensures contractors can fabricate high-quality roofing materials on-site, reducing waste and transportation costs while increasing installation speed.

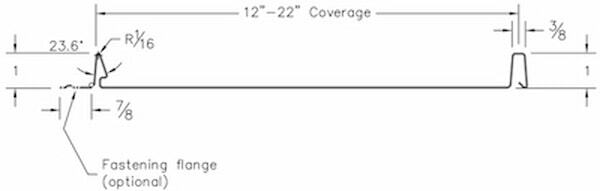

SLC1000 1-inch Snap Lock Panel

The SLC1000 Snap Lock Panel features a 1-inch seam height and panel widths ranging from 12 to 22 inches. Its snap-locking design allows for quick installation without the need for mechanical seaming. This profile is well-suited for residential and light commercial projects, offering a clean, streamlined appearance with secure wind resistance. See the Roof Anchor Compatibility Chart for Zimmerman Metals SLC1000 Standing Seam Metal Roof Panels.

For fall protection, SSRA1 Seam Anchors, SSRA2 Adjustable Roof Jacks, and SSRA3 Anchor Plates work seamlessly with SLC1000 panels when fabricated in 22-gauge steel. These systems allow workers to safely navigate the roof using walk boards and horizontal lifelines without penetrating the panels. Since some snap-lock profiles may not be compatible, workers should perform a test fit. The Ridge Pro Steep Assist is the best option for roof slopes between 6/12 and 12/12 for aluminum, copper, or other non-steel substrates.

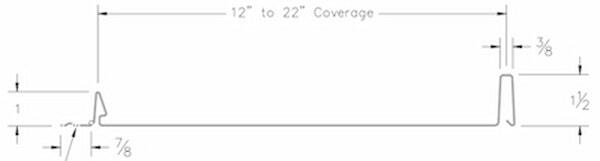

SLC1500 1-1/2-inch Snap Lock Panel

The SLC1500 Snap Lock Panel builds on the SLC1000 design, featuring a taller 1.5-inch seam height and adjustable panel widths between 12 and 22 inches. The increased seam height provides greater structural strength, making it a preferred option for projects requiring enhanced weather resistance. See the Roof Anchor Compatibility Chart for Zimmerman Metals SLC1500 Standing Seam Metal Roof Panels.

Like the SLC1000, the SLC1500 is fully compatible with SSRA1 Seam Anchors, SSRA2 Adjustable Roof Jacks, and SSRA3 Anchor Plates when fabricated in 22-gauge steel. These fall protection solutions ensure a secure, OSHA-compliant working environment. Since snap-lock seams can vary in design, it's best to conduct a test fit before installation. The Ridge Pro Steep Assist provides the safest option for non-steel materials for steep-sloped roofs.

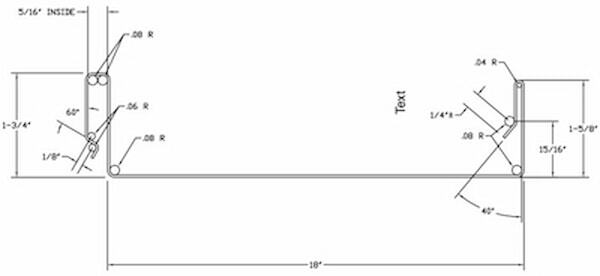

SL1750 1-3/4-inch Snap Lock Panel

The SL1750 Snap Lock Panel features a 1.75-inch seam height and a standard 18-inch panel width. This profile is for larger residential or commercial roofing applications requiring visual appeal and structural integrity. The snap-lock connection ensures ease of installation while maintaining strong wind and water resistance. See the Roof Anchor Compatibility Chart for Zimmerman Metals SL1750 Standing Seam Metal Roof Panels.

For 22-gauge steel panels, SSRA1 Seam Anchors, SSRA2 Adjustable Roof Jacks, and SSRA3 Anchor Plates create a secure, non-penetrating fall protection system. These products allow for walk-board installation and temporary horizontal lifelines, providing continuous tie-off points for roofing professionals. Workers should perform test fit to ensure panel compatibility on snap-lock seams. For alternative materials, including aluminum and copper, the Ridge Pro Steep Assist ensures workers remain securely tied off without compromising the roof's integrity.

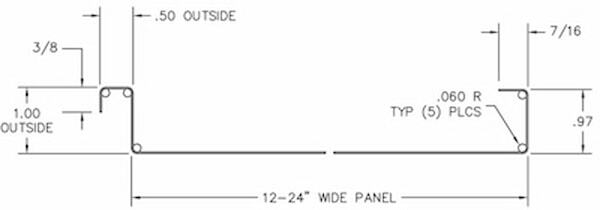

SS10 1-inch Standing Seam Panel

The SS10 Standing Seam Panel is a mechanically seamed profile with a 1-inch seam height and panel widths ranging from 12 to 24 inches. This highly versatile panel offers strong resistance to extreme weather conditions while maintaining a low-profile appearance. Because it requires mechanical seaming, it provides superior watertight performance compared to snap-lock systems. See the Roof Anchor Compatibility Chart for Zimmerman Metals SS10 Standing Seam Metal Roof Panels.

SSRA1 Seam Anchors, SSRA2 Adjustable Roof Jacks, and SSRA3 Anchor Plates are fully compatible with SS10 panels in 22-gauge steel. These products create a stable, non-invasive fall protection system, allowing workers to install walkboards and horizontal lifelines without damaging the roof. The Ridge Pro Steep Assist is recommended for non-steel substrates, ensuring 100% tie-off for workers on steep-sloped roofs.

SS15 1-1/2-inch Standing Seam Panel

The SS15 Standing Seam Panel offers a 1.5-inch seam height with a standard panel width of 16 inches. This profile is ideal for commercial applications requiring additional structural strength and weather resistance. Because of its mechanically seamed connection, it provides a highly secure, watertight seal. See the Roof Anchor Compatibility Chart for Zimmerman Metals SS15 Standing Seam Metal Roof Panels.

For fall protection, SSRA1 Seam Anchors, SSRA2 Adjustable Roof Jacks, and SSRA3 Anchor Plates are fully compatible with SS15 panels in 22-gauge steel. These products create a reliable fall protection system without penetrating the roof. The Ridge Pro Steep Assist remains the best option for non-steel materials, ensuring worker safety on steep-sloped roofs.

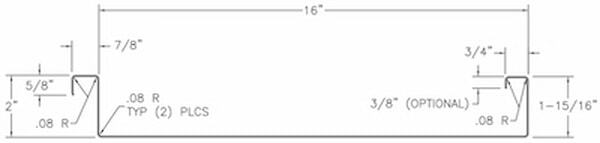

SS2000 2-inch Standing Seam Panel

The SS2000 Standing Seam Panel features a 2-inch seam height and a 16-inch panel width. This profile is for high-wind areas where maximum strength and durability are essential. Its taller seam height provides superior wind uplift resistance, making it a preferred choice for industrial and commercial roofing applications. See the Roof Anchor Compatibility Chart for Zimmerman Metals SS2000 Standing Seam Metal Roof Panels.

SSRA1 Seam Anchors, SSRA2 Adjustable Roof Jacks, and SSRA3 Anchor Plates provide a secure fall protection system for 22-gauge steel SS2000 panels. These products allow for safe movement across the roof without causing damage to the standing seams. The Ridge Pro Steep Assist is the ideal solution for non-steel materials, providing 100% tie-off on steep-sloped installations.

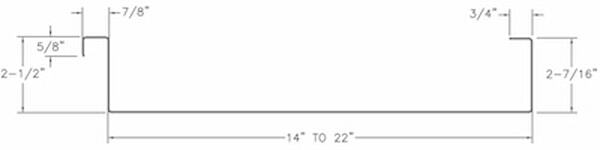

SS2500 2-1/2-inch Standing Seam Panel

The SS2500 Standing Seam Panel offers a 2.5-inch seam height and panel widths ranging from 14 to 22 inches. This profile is one of the strongest in the lineup, designed for commercial and industrial buildings requiring extreme durability. Its tall seam height enhances structural performance, ensuring long-term weather resistance. See the Roof Anchor Compatibility Chart for Zimmerman Metals SS2500 Standing Seam Metal Roof Panels.

For 22-gauge steel SS2500 panels, SSRA1 Seam Anchors, SSRA2 Adjustable Roof Jacks, and SSRA3 Anchor Plates offer a non-invasive fall protection solution. These products maintain worker safety while protecting the integrity of the roof. The Ridge Pro Steep Assist ensures secure tie-off for non-steel materials without affecting the panel's structural performance.

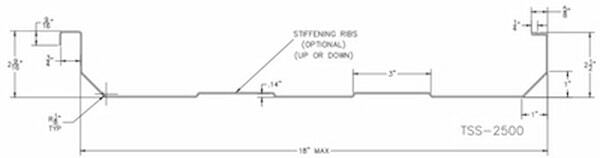

TSS2500 2-1/2-inch Trapezoidal Standing Seam Panel

The TSS2500 Trapezoidal Standing Seam Panel features a 2.5-inch seam height and an 18-inch panel width. This profile is commonly used in large-scale commercial and industrial roofing applications, requiring additional strength and wind uplift resistance. The trapezoidal shape enhances panel rigidity, making it suitable for extreme weather conditions. See the Roof Anchor Compatibility Chart for Zimmerman Metals TSS2500 Standing Seam Metal Roof Panels.

For fall protection on TSS2500 panels, SSRA1 Seam Anchors, SSRA2 Adjustable Roof Jacks, and SSRA3 Anchor Plates provide a secure, OSHA-compliant system for 22-gauge steel panels. These products create a safe working environment while maintaining the panel's structural integrity. The Ridge Pro Steep Assist ensures workers remain securely tied off during the installation and maintenance of alternative materials.

Standing Seam Roof Anchor Point Compatibility for Zimmerman Commercial Roof Panel Machine (CRPM)

Conclusion

The Zimmerman Commercial Roof Panel Machine is a versatile roll former designed to produce a wide range of standing seam panels for residential and commercial projects. With eight distinct profiles, this machine allows contractors to fabricate high-quality roofing materials on-site. Proper fall protection is essential when working on these panels. SSRA products or the Ridge Pro Steep Assist ensure worker safety without compromising the roof's integrity.

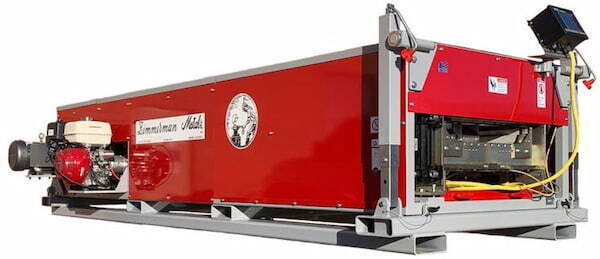

The Zimmerman Structural Roof Panel Machine (SRPM)

The Zimmerman Structural Roof Panel Machine (SRPM) is a high-capacity roll-forming system for large-scale industrial and commercial roofing projects. The SRPM machine produces heavy-duty standing seam panels that meet the demanding structural requirements of warehouses, factories, and commercial buildings. See the Roof Anchor Compatibility Chart for Structural Roof Panel Machine (SRPM)

A key feature of the SRPM is its ability to form thicker and wider panels, ensuring superior strength and longevity. It accommodates steel up to 20 gauge, aluminum up to 0.040 inches, and copper up to 32 ounces, making it one of the most versatile rollformers for structural applications. The machine's independent drive system and free-spinning 304 stainless steel rollers ensure a smooth, high-quality panel finish, minimizing defects like oil canning.

With a welded 2-inch tubular steel frame and powder-coated or zinc-plated components, the SRPM is for long-term performance in high-production environments. Its hydraulic guillotine shear, equipped with heat-treated tool steel blades, provides clean and precise cuts, essential for maintaining panel consistency on large-scale projects. The SRPM operates at an impressive speed of 60 feet per minute, allowing contractors to produce panels efficiently without sacrificing quality.

The machine handles coil widths ranging from 22 to 30 inches, making it ideal for forming wide structural panels. Powered by a 13-horsepower electric start gasoline engine, it delivers reliable operation in field or factory settings. The SRPM is for contractors needing to fabricate deep-ribbed and mechanically seamed panels that offer superior wind uplift resistance and long-term structural integrity.

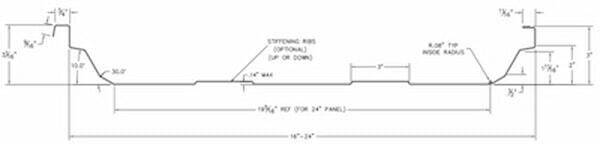

TSS3000A 3-inch Trapezoidal Standing Seam Panel

The TSS3000A Trapezoidal Standing Seam Panel is a heavy-duty roofing profile with a 3-inch seam height and adjustable panel widths ranging from 16 to 24 inches. Designed for large commercial and industrial applications, this panel provides exceptional load-bearing capacity and wind resistance, making it a go-to choice for buildings exposed to extreme weather conditions. See the Roof Anchor Compatibility Chart for Zimmerman Metals TSS3000A Standing Seam Metal Roof Panels.

Unlike traditional standing seam panels, the trapezoidal rib design enhances panel rigidity, reducing the need for additional structural support. This profile is for large warehouses, distribution centers, and manufacturing facilities where durability is paramount. The mechanically seamed connection ensures watertight performance, preventing leaks and corrosion over time.

For fall protection on TSS3000A panels, SSRA1 Seam Anchors, SSRA2 Adjustable Roof Jacks, and SSRA3 Anchor Plates offer an OSHA-compliant, non-penetrating solution when working with 22-gauge steel panels. These anchors create secure tie-off points, allowing for safe roof navigation using wooden walkboards and horizontal lifelines without compromising panel integrity. The Ridge Pro Steep Assist is the most effective fall protection option for aluminum, copper, or other non-steel substrates, providing a secure tie-off system for roof pitches between 6/12 and 12/12.

TSS3000B 3-inch Trapezoidal Standing Seam Panel

The TSS3000B Trapezoidal Standing Seam Panel shares the same robust 3-inch seam height as the TSS3000A but for slightly wider panel widths, ranging from 18 to 24 inches. This wider profile offers additional coverage per panel, reducing installation time while maintaining the strength needed for industrial and commercial buildings. See the Roof Anchor Compatibility Chart for Zimmerman Metals TSS3000B Standing Seam Metal Roof Panels.

This profile is for large-scale structures requiring extreme wind uplift resistance and long-term performance. The mechanically seamed connection creates a continuous weather-resistant seal, making it a preferred choice for projects where water intrusion prevention is critical.

Like the TSS3000A, the TSS3000B is fully compatible with SSRA1 Seam Anchors, SSRA2 Adjustable Roof Jacks, and SSRA3 Anchor Plates when fabricated in 22-gauge steel. These fall protection solutions ensure roofing professionals can work safely without penetrating the panels. For non-steel substrates, the Ridge Pro Steep Assist provides a secure, non-invasive anchoring system for steep-sloped roofs, ensuring workers maintain 100% tie-off.

Standing Seam Roof Anchor Point Compatibility for Zimmerman Structural Roof Panel Machine (SRPM)

Conclusion

The Zimmerman Structural Roof Panel Machine is a powerhouse rollformer designed for large-scale industrial applications. Producing deep-ribbed, mechanically seamed panels with 3-inch seam heights offers superior strength and weather resistance, making it a preferred choice for warehouses, factories, and other high-performance structures. Proper fall protection is essential when working on these panels. SSRA products or the Ridge Pro Steep Assist provide safe, non-invasive solutions protecting workers and the roof's structural integrity.

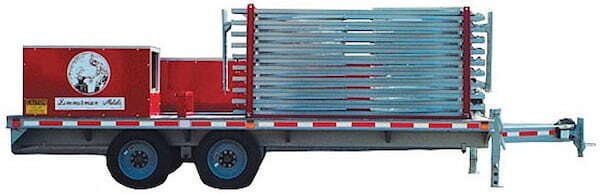

The Zimmerman Arch Roofing Machine (Quick Span System)

The Zimmerman Arch Roofing Machine, the Quick Span System, is a specialized roll-forming machine engineered to produce self-supporting, mechanically seamed arch panels. This system is for rapid construction in applications such as aviation hangars, military silos, agricultural storage facilities, and other large-scale buildings requiring a durable, curved roof structure. See the Roof Anchor Compatibility Chart for Arch Roofing Machine (Quick Span System)

What sets the Quick Span System apart is its ability to continuously form and curve standing seam panels on-site, allowing for seamless construction with minimal labor. Unlike traditional standing seam roofs, which rely on purlins and structural supports, arch-style roofs formed by this machine can span long distances without requiring additional framing. This design produces a highly efficient, cost-effective solution that delivers strength and weather resistance.

The Arch machine features a 12-station panel forming system with an independent drive and 304 stainless steel forming rollers. It also includes a panel curving system with 4140 heat-treated, hard chrome-plated crimping rollers, ensuring precision and consistency in each curved panel. The system is mounted on a heavy-duty tandem-axle trailer with an 18,000-pound capacity, making it easily transportable for on-site fabrication.

With a powerful 24-horsepower gasoline engine and hydraulic drive system, the Quick Span System can operate virtually anywhere, making it a preferred choice for remote job sites. The included run-out table system provides 100 feet of straight panel support and 100 feet of curved panel tables, ensuring smooth handling throughout the forming process. The machine also comes with specialized lifting equipment, seaming tools, and a coil rack capable of handling 5,000-pound coils, enabling continuous production with minimal downtime.

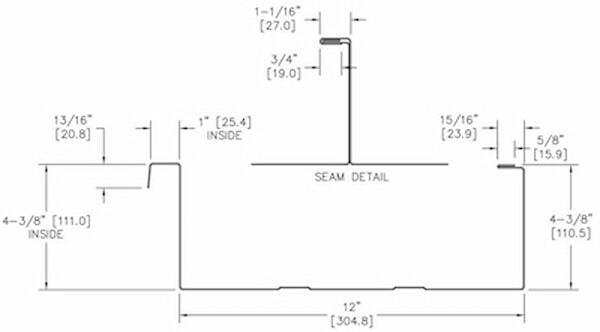

Arch12 Quick Span Panel

The Arch12 Quick Span Panel is a 12-inch-wide mechanically seamed roofing panel with a substantial 4-3/8-inch seam height. Designed for self-supporting arch structures, this panel offers exceptional load-bearing capacity and wind resistance, making it ideal for high-performance applications where conventional framing methods are impractical. See the Roof Anchor Compatibility Chart for Zimmerman Metals Arch12 Standing Seam Metal Roof Panels.

One of the primary benefits of the Arch12 panel is its seamless integration into long-span structures. It is mechanically sealed during installation, creating a continuous, watertight system that eliminates the risk of leaks. The deep 4-3/8-inch seam height further enhances its strength, ensuring long-term durability even in extreme weather conditions.

While the Arch12 panel offers unparalleled structural performance, its curved design presents unique fall protection challenges. Traditional standing seam anchors are incompatible with curved panels, as bending can alter seam dimensions and reduce clamping effectiveness. Due to this, the best approach to fall protection for Arch12 panels involves non-traditional anchoring methods.

For straight roof sections, SSRA1 Seam Anchors, SSRA2 Adjustable Roof Jacks, and SSRA3 Anchor Plates provide a non-penetrating solution when working with 22-gauge steel substrates. These anchors allow for the safe installation of walk boards and temporary horizontal lifelines, ensuring workers remain protected while navigating straight panel sections. However, alternative solutions are required when transitioning to the curved portions of the roof.

The Ridge Pro Steep Assist can also be utilized on the highest points of the arch, ensuring workers maintain 100% tie-off during installation. Consulting with a safety professional before working on a curved roof is essential to ensure compliance with OSHA regulations and to identify the safest fall protection approach.

Standing Seam Roof Anchor Point Compatibility for Zimmerman Arch Roofing Machine (Quick Span System)

Conclusion

The Zimmerman Arch Roofing Machine is an industry-leading solution for fabricating self-supporting, mechanically seamed arch panels. Designed for speed and efficiency, it enables rapid construction of durable, weather-resistant structures without additional framing. The Arch12 Quick Span Panel, with its 4-3/8-inch seam height, delivers exceptional structural performance, making it ideal for aviation, military, and industrial applications.

Proper fall protection is crucial when working on these unique curved panels. While SSRA products provide excellent safety for straight sections, additional planning is required for arched areas to maintain compliance and worker safety. By integrating the proper fall protection strategies, contractors can safely and efficiently install Zimmerman's Quick Span System while preserving the integrity of these specialized roofing structures.

Contact Us For More Information

For further details on roofing solutions and fall protection systems, contact us at 863-703-4522 or www.StandingSeamRoofAnchor.com. Let's work together to make your roofing projects safe, beautiful, and built to last. For more safety tips, check out OSHA's 48-page fall protection manual. Once you have determined the most suitable anchors for your roof system, download our free Anchor Inspection Form.

Safety Tips For Standing Seam Roofs

Promote a Culture of Safety

A strong safety culture starts at the top and filters down through every level of a job site. Leaders must consistently reinforce safe work habits, encourage open discussions about potential hazards, and provide ongoing training. When safety becomes second nature, workers are more likely to identify risks before accidents happen, creating a more secure and productive environment.

Use Specialized Anchor Systems for Standing Seam Roofs

Standard fall protection anchors often require drilling, compromising the integrity of standing seam metal roofs. Instead, workers should use seam-mounted anchors designed for non-penetrating attachment. Clamp-style seam anchors provide secure tie-off points without damaging the roof panels. Avoid relying on hidden clips, as they may not provide adequate support during a fall.

Set Up Protective Guardrail Barriers for Work Zones

Guardrails and warning lines act as passive fall protection measures, helping define safe work zones and preventing workers from unintentionally stepping too close to roof edges, skylights, or other openings. A well-placed guardrail system allows workers to focus on their tasks without the constant concern of fall hazards.

Equip Workers with High-Quality Safety Gear

Reliable fall protection starts with adequately fitted, OSHA-compliant safety equipment. Harnesses, lanyards, and retractable lifelines must provide comfort and security to ensure workers wear them correctly for extended periods. Investing in high-quality gear encourages compliance and enhances overall job site safety.

Ensure Proper Footwear for Stability

Roofing demands sturdy, slip-resistant footwear to prevent falls on slick or uneven surfaces. High-traction boots provide stability, reduce fatigue, and help workers maintain secure footing, especially on steep metal roofs. Choosing footwear designed for roofing applications minimizes the risk of slips and injuries.

Develop OSHA-Compliant Safety Plans

Every roofing project should have a detailed fall protection plan outlining safety procedures, emergency response actions, and OSHA compliance requirements. Regular safety meetings reinforce these protocols and inform workers about the best fall prevention practices. A well-documented plan not only enhances safety but also ensures legal compliance.

Encourage the Use of Trauma Straps

Suspension trauma can be life-threatening if a fallen worker is left hanging in a harness for too long. Harnesses should include trauma straps that allow workers to relieve pressure on their legs while awaiting rescue. Training employees on their proper use ensures they can deploy them quickly in an emergency.

Prioritize Ladder Safety Training

Falls from ladders remain one of the leading causes of roofing injuries. Safety managers must train workers to inspect, position, and use ladders correctly, emphasizing the 4-to-1 rule, maintaining three contact points, and ensuring the base is on a stable surface. Proper ladder safety prevents many avoidable accidents.

Install Permanent Roof Anchor Systems

Permanent anchor systems benefit buildings that require frequent rooftop access. These fixed tie-off points make it easier for maintenance crews to secure themselves without repeatedly installing temporary anchors. A permanent system enhances safety while preserving the roof's structural integrity.

Consult Experts for Curved Metal Panels

Due to their unique shape, curved metal roofs require specialized fall protection. A trained safety professional can evaluate the structure and recommend the most effective anchor points and tie-off systems. Expert guidance ensures that workers remain secure while maintaining the integrity of the architectural design.
