Fall Protection Strategies for 5280 Standing Seam Roofs

See the Roof Anchor Compatibility Chart for 5280 Metal Supply Standing Seam Panels.

Who Is 5280 Metal Supply?

5280 Metal Supply has earned a reputation for providing premium products and exceptional service in the metal roofing and siding industry over the past 30 years.

They specialize in roofing systems designed to endure Colorado's unique weather conditions. Their panels are capable of withstanding snow, wind, and intense summer heat. With various profiles available, including snap lock, nail strip, and mechanical seam, they cater to both residential and commercial projects.

Why Are Compatible Fall Protection Anchors Critical For Standing Seam Roofs?

Standing seam panels are among the most durable roofing systems available for buildings.

Their strength is precisely why specialized fall protection anchors are essential. Another advantage of the standing seam roof system is the absence of unnecessary penetrations. Avoiding penetrations with fasteners is crucial, as it helps prevent voided warranties and potential roof leaks. Additionally, it can protect the integrity of the panel itself from weakening.

Non-penetrating anchors clamp onto the seam to create a safe, OSHA-approved tie-off point. Workers can enhance the functionality of the SSRA1 by adding the SSRA2 Roof Jack Adapters, which support 10-foot wooden walkboards. For a temporary 100-foot horizontal lifeline system, the SSRA3 Anchor Plates provide a solution. When the roof pitch ranges between 6:12 and 12:12, the Ridge Pro Steep Assist allows workers to maintain a secure tie-off from the ladder to the ridge and back down again. 100% tie-off anchors, like the Ridge Pro, keep workers safe during first-man-up operations.

Using compatible anchors is crucial for keeping workers safe while protecting the integrity of the roof. Compatible anchors protect workers and panel warranties while avoiding the costly mistakes that arise from using an incompatible system.

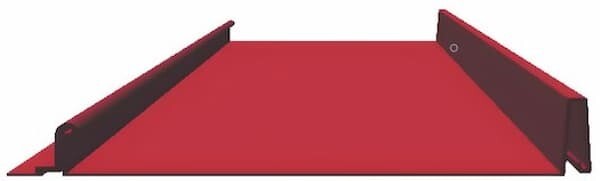

1-inch Nailstrip Panels

The 1-inch Nailstrip standing seam panel from 5280 Metal Supply is a popular choice among roofers and homeowners looking for a combination of clean aesthetics, strong performance, and easy installation.

Unlike older roofing systems that use exposed fasteners, this panel features a concealed fastening system that locks securely into place, resulting in a smooth, modern appearance without visible screws on the surface. See the Roof Anchor Compatibility for 22 ga. or Roof Anchor Compatibility for 24 ga. for 5280 Metal Supply 1-inch Nailstrip Standing Seam Panels.

These panels are available in multiple widths like 12, 16, and 20 inches, providing builders with design flexibility. Materials include painted steel, Galvalume, and high-end options such as copper, suitable for architectural projects. Contractors can choose from various gauges, including 22, 24, and 26, allowing them to find the right balance between cost and strength for their specific needs.

Manufacturers offer paint systems such as Durapon 70 PVDF and ULTRA CLAD Kynar 500/Hylar 5000, which provide excellent fade resistance and long-lasting durability. Customers can also benefit from warranties ranging from 20 years on Zincalume AZ50 to 35 years on premium finishes, giving peace of mind that the roof will perform well for decades to come.

The lightweight design and concealed fastening system make the 1-inch Nailstrip an attractive option for residential projects, garages, and light commercial buildings. Whether the objective is modern curb appeal or dependable weather resistance, the 1-inch Nailstrip delivers. Additionally, the innovative nail flange simplifies the installation process by eliminating the need for clips.

Fall Protection For 1-inch Nailstrip Panels

Fall protection is crucial when working with Nail Strip systems, as their unique seam profile differs slightly from that of traditional mechanical or snap-lock panels.

It is essential to note that attaching seam-mounted anchors to certain Nail Strip panels can be challenging. Workers should perform a test fit before the workday to confirm proper fitment, especially when working on Nail Strip panels.

For 22 and 24-gauge steel versions, the entire SSRA product line is fully compatible. The SSRA1 Seam Anchor clamps directly onto the seam using non-penetrating set screws. This feature eliminates the need for penetrations, providing workers with a reliable tie-off point. From there, crews can add SSRA2 Adjustable Roof Jack Adapters on top of the anchors to support 10-foot wooden walkboards, creating safer footing on steeper slopes. The SSRA3 Anchor Plates expand safety options by enabling the temporary setup of 100-foot horizontal lifelines across the roof. For larger roof spans, the 120-foot Super Anchor permanent horizontal lifeline kit and the SSRA HLL temporary 100-foot kit are also excellent solutions.

Seam-mounted anchors are not recommended for 26-gauge steel, as the lighter material lacks the structural integrity necessary for a secure hold. In this case, the Ridge Pro Steep Assist is the best option for roofs with slopes between 6:12 and 12:12. Installed over the ridge with a lightweight extension pole, the Ridge Pro allows workers to tie off before stepping onto the roof, ensuring continuous 100 percent tie-off from the ladder to the ridge and back down again.

The right choice of equipment depends on the gauge of the steel. Heavier 22- and 24-gauge steel panels offer contractors complete flexibility when using SSRA anchors and lifeline kits. In contrast, 26-gauge panels require the Ridge Pro. Each option protects workers while preserving the roof system's performance.

1-1/2 Inch Nailstrip Panels

The 1-1/2 inch Nailstrip panel offers a combination of strength, clean aesthetics, and ease of installation.

With its concealed fastener system, both roofers and homeowners benefit from a sleek finish that eliminates the need for exposed screws. Buckeye provides widths of 15 and 18 inches, making this panel versatile for residential, commercial, or light agricultural projects. Each panel is custom-rolled to length, ensuring precision and minimal waste on the job site. See the Roof Anchor Compatibility for 22 ga. or Roof Anchor Compatibility for 24 ga. for 5280 Metal Supply 1.5-inch Nailstrip Standing Seam Panels.

These panels are manufactured from AZ-50 Galvalume, Grade D steel, with a yield strength of 50,000 psi, delivering long-lasting durability. Customers can also choose premium materials, such as Galvalume, ReziBond, and copper, which offer both performance and visual flexibility in 22-gauge, 24-gauge, and 26-gauge steel panels.

The available color options include high-performance paint systems, such as Duraplan 70 PVDF and Ultra Clad Kynar 500/Hylar 5000. These finishes offer fade resistance, chalk protection, and energy efficiency that can last for decades. Warranties range from 20 to 35 years, depending on the finish, providing buyers with confidence in the product's long-term performance.

Many homeowners and businesses prefer this panel system for its ease of installation, the lack of specialized tools required, its affordable price, and its ability to meet today's demanding roofing performance standards.

Fall Protection For 1-1/2 Inch Nailstrip Panels

For 22- and 24-gauge steel panels, the entire SSRA product line is compatible with the 1-1/2 inch Nailstrip panels.

The SSRA1 Seam Anchor securely clamps to the seam without penetrating the material, creating a strong tie-off point that maintains roofing warranties.

Crews can expand the SSRA system with SSRA2 Adjustable Roof Jack Adapters, which mount on top of SSRA1 Anchors. These adapters provide stable support for a 10-foot walkboard, ensuring safer footing on steep pitches. Additionally, you can attach the SSRA3 Anchor Plate to SSRA1 Anchors to create temporary lifeline attachment points that extend up to 100 feet.

For longer spans, the SSRA HLL 100-foot Temporary Horizontal Lifeline Kit offers mobility for two workers. This complete SSRA HLL kit includes four SSRA1 Anchors, two SSRA3 Anchor Plates, a 100-foot lifeline, an energy absorber, and a tensioning system. This setup complies with OSHA regulations, allowing crews to move along the entire roof length without needing to unclip the equipment.

Larger projects can benefit from the permanent Super Anchor 120-Foot Horizontal Lifeline Kit. Similar to the SSRA HLL, it supports two workers, but its longer length is ideal for commercial buildings and expansive roof sections. The galvanized steel cable withstands long-term weather exposure in permanent installations.

It is essential to note that seam clamping is not recommended for 26-gauge steel panels, as the lighter material lacks the strength to hold anchors in place securely. In such cases, the Ridge Pro Steep Assist Anchor is the safest option. Installed with a lightweight extension pole, it allows workers to tie off before stepping onto the roof. This anchor provides continuous protection on pitches ranging from 6:12 to 12:12, ensuring safety from the ladder to the ridge and back down again.

By selecting the appropriate anchor system for the designated panel gauge, contractors can ensure reliable fall protection that maintains both worker safety and the integrity of the roof system.

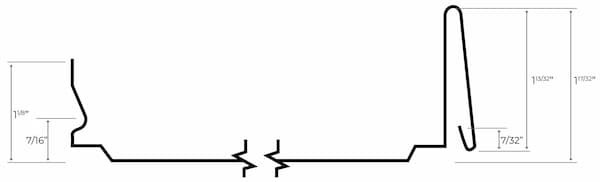

1-1/2 Inch Snap Lock Panels

The 1-1/2 inch Snap Lock panel is known for its strength and efficient installation, making it one of the most popular standing seam options in the industry.

These panels feature interlocking male and female legs that snap together tightly to create a weathertight seal without the need for mechanical seaming. The concealed clips are secured directly to the deck beneath the panels, which helps maintain the roof's sleek appearance while ensuring long-term durability. The clips create a floating roof system that can expand and contract in response to temperature fluctuations. See the Roof Anchor Compatibility for 22 ga. or Roof Anchor Compatibility for 24 ga. for 5280 Metal Supply 1.5-inch Snap Lock Standing Seam Panels.

Snap Lock panels are available in 16- and 20-inch widths and are made from AZ-50, Grade D steel, which has a tensile strength of 50,000 psi. This material provides excellent resistance to wind and weather. Customers can select from various gauges, including 22, 24, and 26.

Material options for the panels include painted steel, Galvalume, ReziBond, cold-rolled steel, and premium copper, available in 16- or 20-ounce thickness. Coating systems such as Durapon70 PVDF, Ultra Clad, and Kynar 500/Hylar 5000 offer fade resistance, chalk protection, and energy efficiency, with warranties ranging from 35 years for painted finishes to 20 years for Zincalume AZ50.

With its modern design, concealed fastening system, and extensive color and material options, the 1-1/2 inch Snap Lock panel strikes a balance between aesthetics and performance for residential, commercial, and light industrial applications.

Fall Protection For 1-1/2 Inch Snap Lock Panels

For 22- and 24-gauge steel Snap Lock panels, all SSRA products are fully compatible, providing multiple options for safe tie-off.

The SSRA1 Seam Anchor clamps securely onto the panel seam without penetrating it, ensuring the roof's warranty and watertightness remain intact while offering a strong tie-off point. After setting the SSRA1 anchors, you can enhance their functionality by adding SSRA2 Adjustable Roof Jack Adapters. These adapters mount on top of the anchors and securely hold 10-foot walkboards, giving roofers a safe and stable footing on steep slopes. You can mount the SSRA3 Anchor Plate onto SSRA1 Anchors to create secure attachment points for 100-foot temporary lifeline systems.

For larger projects, the SSRA HLL 100-Foot Temporary Horizontal Lifeline Kit is an excellent option. This OSHA-compliant system includes four SSRA1 Anchors, two SSRA3 Anchor Plates, a 100-foot lifeline, an energy absorber, and a tensioning system. It allows two workers to stay tied off while safely moving across long stretches of the roof without needing to unclip. For even greater coverage, consider the Super Anchor 120-foot Horizontal Lifeline Kit, designed as a permanent solution ideal for facilities with recurring roof access, such as commercial buildings or institutions.

It is essential to avoid using seam clamping on panels made from lighter 26-gauge steel, as this material lacks the necessary strength to withstand the clamping force. In such cases, the Ridge Pro Steep Assist Anchor offers the safest and most effective alternative. Installed over the ridge with a lightweight 16-foot extension pole, the Ridge Pro provides 100% tie-off from the ladder to the ridge and back again on roof pitches ranging from 6:12 to 12:12.

By selecting the appropriate fall protection system based on the panel gauge, contractors can ensure safety while maintaining the performance and longevity of the Snap Lock roof system.

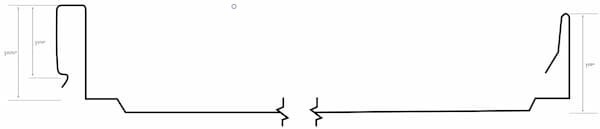

1-3/4 Inch Snap Lock Panels

The 1-3/4-inch Snap Lock panel features a taller rib and a bold standing seam design, while providing the same easy installation that has made Snap Lock systems popular.

Each panel interlocks through male and female edges that snap together, creating a smooth seam without the need for mechanical seaming. Concealed clips secure the panels to the deck, ensuring a clean finish that is resistant to wind and weather. See the Roof Anchor Compatibility for 22 ga. or Roof Anchor Compatibility for 24 ga. for 5280 Metal Supply 1.75-inch Snap Lock Standing Seam Panels.

These panels are available in widths of 14 inches and 18 inches, offering flexibility for both residential and commercial applications. Manufactured from AZ-50, Grade D steel with a tensile strength of 50,000 psi, the 1-3/4-inch Snap Lock is built to withstand demanding conditions. Steel panel gauges are available in 22, 24, and 26. Material options include painted steel, Galvalume, ReziBond, cold-rolled steel, and premium copper in 16- or 20-ounce thicknesses.

Coating systems such as Durapon 70 PVDF, Ultra Clad, and Kynar 500/Hylar 5000 ensure long-lasting color, UV resistance, and durability, with warranties of up to 35 years for painted finishes and 20 years for Zincalume AZ50. With its taller rib height and wider panel coverage, the 1-3/4-inch Snap Lock offers an ideal blend of strength, style, and performance for projects that require both aesthetic appeal and weather resistance.

Fall Protection For 1-3/4 Inch Snap Lock Panels

For 22- and 24-gauge steel panels, contractors can effectively use the full range of SSRA fall protection products. The SSRA1 Seam Anchor clamps directly onto the seam, eliminating the need for drilling, and thereby preserving the watertight integrity of the panel.

When walkboards are needed, mount the SSRA2 Adjustable Roof Jack Adapters on top of the anchors to support secure 10-foot walkboards between two SSRA1 Seam Anchors. Additionally, crews can use the SSRA3 Anchor Plate to establish secure 100-foot temporary horizontal lifelines, making this system highly versatile for various job site needs.

For larger projects, the SSRA HLL 100-Foot Temporary Horizontal Lifeline Kit is beneficial, as it allows two workers to safely move across larger roof areas while remaining tied off at all times. For buildings that necessitate regular roof access, the Super Anchor 120-Foot Permanent Lifeline Kit offers a fixed solution, ensuring a tie-off point is always available without the need for repeated setup.

Avoid seam clamping on lighter 26-gauge panels because their reduced structural strength cannot safely support the required impact loads. In such cases, the Ridge Pro Steep Assist Anchor is the best alternative. It is installed over the ridge using a lightweight extension pole, providing 100% tie-off from the ladder to the ridge and back down again on roof pitches between 6:12 and 12:12.

By selecting the appropriate fall protection equipment based on the panel gauge and seam design, crews can maintain safety without compromising the performance or appearance of the Snap Lock roof system.

1.5 Inch Mechanical Panel

The 1.5-inch Mechanical Lock panel is a reliable roofing system known for its exceptional strength, weather resistance, and long-lasting performance.

Each panel interlocks with the next and is mechanically crimped using specialized seamers, creating a watertight double-lock seam that effectively keeps out rain, snow, and wind. The raised ribs provide a classic standing seam appearance while adding rigidity across the panel surface, making this profile one of the most dependable options for challenging environments. See the Roof Anchor Compatibility for 22 ga. or Roof Anchor Compatibility for 24 ga. for 5280 Metal Supply 1.5-inch Snap Lock Standing Seam Panels.

These panels are available in widths of 12, 16, and 20 inches, allowing contractors to customize the system to their project requirements. They come in gauges of 22, 24, and 26 steel. The panels are AZ-50, Grade D steel, which has a tensile strength of 50,000 psi, ensuring consistent durability and reliability.

Customers can choose from various finishes, including painted steel, Galvalume, ReziBond, Core-Ten, cold roll, or premium copper, available in 16 or 20-ounce options. Available paint systems include Durapon 70 PVDF and Ultra Clad Kynar 500/Hylar 5000, each backed by a 35-year finish warranty. Additionally, Zincalume AZ50 panels come with a 20-year warranty, providing further assurance of long-term performance. With a diverse range of widths, materials, and finishes, the 1.5-inch Mechanical Lock panel is a versatile choice for residential, commercial, and institutional roofing projects.

Fall Protection For 1.5 Inch Mechanical Panel

For the 22- and 24-gauge steel versions of this panel, contractors can confidently use the complete SSRA product line.

The SSRA1 Seam Anchor clamps securely to the rib without penetrating it, thereby preserving the roof's watertight seal while creating OSHA-compliant tie-off points. The SSRA2 Adjustable Roof Jack Adapters enhance the system's utility by mounting directly on top of the anchors, supporting walkboards for safer footing on steep slopes. Additionally, the SSRA3 Anchor Plate increases versatility by allowing crews to install 100-foot temporary lifelines across larger roof spans.

Crews engaged in larger projects can benefit from the SSRA HLL 100-Foot Temporary Horizontal Lifeline Kit, which allows two workers to move securely across the roof while maintaining continuous tie-off. For facilities requiring regular roof access, the Super Anchor 120-Foot Permanent Lifeline Kit offers a long-term solution.

It's important to note that seam clamping is not recommended for 26-gauge panels, as the lighter material lacks the strength to hold anchors securely. In such cases, the Ridge Pro Steep Assist Anchor provides the safest option. Installed over the ridge with a lightweight extension pole, it ensures 100% tie-off from the ladder to the ridge and back on roof pitches between 6:12 and 12:12. By selecting the appropriate fall protection system based on the panel gauge and seam design, crews can work confidently while maintaining the integrity of the 1.5-inch Mechanical Lock roof.

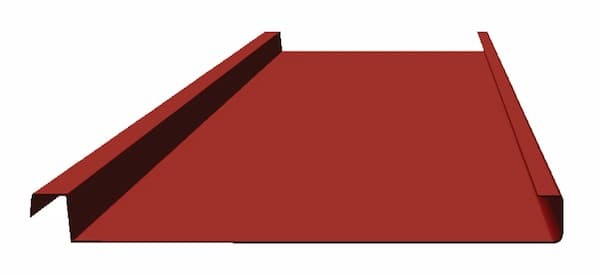

2 Inch Mechanical Panel

The 2-inch Mechanical Lock panel is one of the most durable and weather-resistant roofing systems available today.

Each panel interlocks with the next, and the seams are mechanically crimped using specialized tools to create a watertight seal. With its tall ribs and tightly locked seams, this profile can withstand extreme wind pressures, heavy rain, and snow loads. Contractors and building owners rely on this system when they require a roof that provides strength, longevity, and reliable performance. See the Roof Anchor Compatibility for 22 ga. or Roof Anchor Compatibility for 24 ga. for 5280 Metal Supply 2-inch Snap Lock Standing Seam Panels.

This profile is available in panel widths of 14 and 18 inches, providing flexibility for various roof designs and engineering requirements. The available steel gauges are 22, 24, and 26. Panels are made from AZ-50, Grade D steel, with a tensile strength of 50,000 ksi, ensuring reliable durability for every project.

Customers can choose from a variety of materials, including painted steel, Galvalume, ReziBond, Core-Ten, cold-rolled steel, or copper, available in 16- or 20-ounce thicknesses. Finish options include Durapon 70 PVDF or Ultra Clad Kynar 500/Hylar 5000, both of which come with a 35-year warranty. Zincalume AZ50 is backed by a 20-year warranty, providing an additional layer of assurance. With its taller seam and enhanced structural capabilities, the 2-inch Mechanical Lock panel is an excellent choice for commercial, institutional, and large-scale residential applications that require maximum resistance to the elements.

Fall Protection For 2 Inch Mechanical Panel

When working with 22- and 24-gauge steel panels, crews can confidently use the full range of SSRA fall protection products.

The SSRA1 Seam Anchor creates strong, non-penetrating tie-off points by clamping directly onto the seam with twelve set screws, which helps maintain the roof's watertight integrity. Workers can install the SSRA2 Adjustable Roof Jack Adapters on top of the anchors to provide a secure and stable platform for walkboards, allowing for work on steep metal roofs. The SSRA3 Anchor Plate enhances the system by mounting on top of two SSRA1 Seam Anchors, creating secure attachment points for 100-foot temporary lifelines.

For larger roof areas, the SSRA HLL 100 Foot Temporary Horizontal Lifeline Kit offers continuous tie-off for two workers across extensive roof runs. This system is invaluable when crews need the freedom of movement while still adhering to OSHA-compliant fall protection requirements. For long-term safety needs, the Super Anchor 120 Foot Lifeline Kit serves as a permanent solution, ensuring roofs remain compliant and safe for ongoing maintenance without requiring repeated anchor installations.

Seam clamping is not recommended for 26-gauge steel panels, as the lighter material may not provide sufficient strength to withstand the impact forces. The Ridge Pro Steep Assist Anchor is the best option for 26-gauge steel panels. This anchor can be installed over the ridge using a 16-foot lightweight extension pole, ensuring that workers are 100% tied off before stepping onto the roof. The Ridge Pro is effective for pitches between 6:12 and 12:12, delivering reliable safety without compromising the panels. By selecting the appropriate fall protection system for each gauge and roof design, contractors can effectively protect their crews while ensuring the long-term performance of the 2-inch Mechanical Lock panel.

Metal Roof Anchor Panel Compatibility For 5280 Metal Supply 22 Gauge

Metal Roof Anchor Panel Compatibility For 5280 Metal Supply 24 Gauge

Contact Us For More Information

For further details on roofing solutions and fall protection systems, please get in touch with us at 863-703-4522 or visit www.StandingSeamRoofAnchor.com. Let's work together to make your roofing projects safe, beautiful, and built to last. For more safety tips, refer to OSHA's 48-page Fall Protection Manual. Once you have determined the most suitable anchors for your roof system, download our free Anchor Inspection Form.

Safety Tips For Standing Seam Roofs

Use Specialized Anchor Systems for Standing Seam Roofs

Standing seam roofing requires non-penetrating anchors made explicitly for this type of roof. Standard penetrating anchors can compromise the seams, possibly leading to leaks. At the same time, seam-mounted systems clamp securely without damaging the roof. These specialized anchors provide workers with a reliable tie-off point while maintaining the integrity of the panels for years to come.

Encourage the Use of Trauma Straps

While a fall arrest harness can save a life, suspension trauma can still be fatal if help doesn't arrive quickly. Trauma straps allow a worker to restore circulation to their femoral arteries and remain upright in their harness while waiting for rescue. They are lightweight, inexpensive, and one of the simplest additions you can make to any harness system.

Equip Workers with High-Quality Safety Gear

Even the best fall protection plan fails without dependable equipment. Harnesses, lanyards, and self-retracting lifelines (SRLs) should fit properly, meet OSHA requirements, and be comfortable for extended use. Workers who trust their gear will use it consistently. With OSHA cracking down on improperly fitted equipment, investing in quality gear protects both the crews and the companies.

Develop OSHA-Compliant Safety Plans

Before climbing ladders or stepping onto a roof, crews need a written safety plan. This document should outline hazard zones, methods of fall protection, and clear rescue procedures in the event of an incident. Regular updates and ensuring that every worker understands their role can transform a set of rules into a practical guide for safer workdays.

Prioritize Ladder Safety Training

Many serious falls occur before anyone even reaches the roof. Teaching workers the 4-to-1 ladder rule, ensuring three points of contact, and checking tie-offs can significantly reduce the risk of accidents. A brief safety refresher before the workday helps workers avoid injuries that still rank among the most common accidents.

Consult Experts for Curved Metal Panels

Curved roofs are visually appealing but introduce complexities that straight panels do not have. Using the wrong anchor can cause seams to deform or fail under stress. Bringing in a fall protection professional to review the roof design and recommend appropriate anchors or lifeline setups is advisable for safe operation on curved roofs.

Promote a Culture of Safety

While the safety gear and rules set the foundation, a safety culture keeps workers committed to protecting themselves and others. A team that openly discusses safety concerns, holds short daily check-ins, and looks out for one another creates a job site where safety becomes second nature. Leadership that encourages feedback and responds quickly strengthens that culture even further.

Set Up Protective Guardrail Barriers for Work Zones

Guardrails are one of the simplest ways to prevent falls around roof edges, skylights, or access points. They require no training, adjustments, or extra steps—just a solid physical barrier to keep workers from stepping too close to the edge. On busy job sites, this kind of passive protection is invaluable.

Install Permanent Roof Anchor Systems

For buildings that require routine maintenance access, HVAC service, or solar installation, permanent anchors are a logical choice. Once installed, they provide year-round tie-off points without the need for repeated clamping or drilling into panels. Building owners benefit from long-term protection, while workers gain faster and safer access to their facilities.

Ensure Proper Footwear for Stability

Even the best harness won't help if a worker slips before securing the tie-off. Boots with slip-resistant soles, firm ankle support, and lightweight flexibility help keep crews stable on steep or slick surfaces. Proper footwear also reduces fatigue, allowing workers to maintain better footing and sharper focus throughout lengthy shifts.
