Fall Protection Strategies For Alcan Products Roofs

See the Roof Anchor Compatibility Chart for Alcan Products Standing Seam Panels.

Who Is Alcan Products?

Alcan Products Ltd. has grown into one of Western Canada's most dependable names in roofing metals and custom sheet metal work.

The company operates out of Surrey, British Columbia, and has spent more than 20 years building a reputation on craftsmanship, consistency, and solutions that go beyond the basic catalog. Their team produces curved flashings, tapered components, box-built structures, and other custom pieces that give architects and contractors the freedom to chase the exact look they need.

Today, Alcan Products holds a respected position in the roofing industry because it continues to combine technical skill with a willingness to take on custom challenges. Contractors know that when a project calls for a one-off solution, Alcan delivers work that looks clean, fits correctly, and arrives on time.

Why Is Non-Penetrating Fall Protection Crucial for Alcan's Panels?

Non-penetrating anchors protect Alcan Mech-Lock and Quik-Lock panels from seam damage, warranty failures, and oil-canning.

Standing seam metal roofs work differently from traditional fastened systems, and that difference matters when choosing fall protection. Alcan's Mech-Lock and Quik-Lock profiles rely on raised seams, concealed clips, and engineered coatings that all work together to keep the roof weather-tight and structurally stable. Any anchor that drills through the metal or grips the seam incorrectly can interrupt the thermal expansion. Even a small penetration can lead to panel distortion, premature paint wear, warranty loss, or oil-canning as the metal loses its ability to expand and contract.

For these reasons, penetrations are never acceptable on these roofs. A single penetration can allow water leaks to form under the panels. Non-penetrating anchors solve these problems by protecting the standing seam while still providing workers with a stable, predictable tie-off point. The safest workflow starts with using fall-protection devices built for standing seam panels and matched to the material thickness of each Alcan profile.

The SSRA1 Standing Seam Roof Anchor provides a secure, non-penetrating tie-off point for 24-gauge steel Mech-Lock roofs. It clamps to the seam with stainless-steel set screws that hold firm without punching through the metal or crushing the rib. This anchor maintains the weather-tight seal and keeps the floating-clip mechanism free, allowing the panel to expand and contract naturally as the temperature changes throughout the day.

For steep roof sections, the SSRA2 Adjustable Roof Jack Adapters mount on top of the SSRA1 anchors and support ten-foot walkboards. Crews gain a level working platform, which helps on steep Mech-Lock runs where staging tools and safe footing matter. When multiple workers need mobility across larger roofs, the SSRA3 Anchor Plate connects to the SSRA1. It becomes the base for a temporary horizontal lifeline system.

Horizontal mobility is where the lifeline kits come in. The SSRA HLL 100-Foot Temporary Horizontal Lifeline Kit protects two workers along extended panel runs and is ideal for new installations or short-term projects. For facilities that require ongoing rooftop access, the Super Anchor 120-Foot Permanent Horizontal Lifeline Kit stays in place year-round, eliminating the need for HVAC technicians or maintenance crews to repeatedly set up anchors.

For lighter 26-gauge steel in the Mech-Lock series, seam-mounted anchors are not the right choice. In these cases, the Ridge Pro Steep Assist is the correct option. It hooks over the ridge and never touches the panel seam, keeping the nailstrip or mechanical profile intact while providing a stable tie-off for slopes from 6:12 to 12:12.

Choosing the correct non-penetrating anchor preserves the seam shape, protects the clip system below, and keeps the entire Alcan roof performing as the manufacturer intended. With the right equipment in place, workers stay tied off, the roof stays warranty-safe, and the installation remains clean and professional from the first panel to the last.

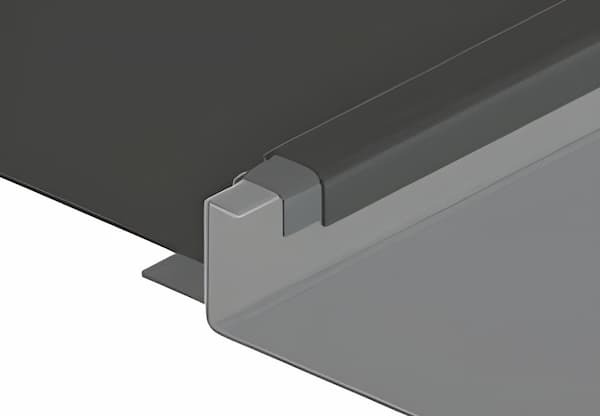

Alcan Mech-Lock Mechanical Panel

The Alcan Mech Lock 1-inch panel gives commercial projects a durable standing seam system that performs well on low-slope roofs.

The panel uses a hidden clip system and a mechanical seaming that work together to create a strong, weather-tight connection. This approach helps the roof remain durable through seasonal temperature swings and storm-driven rain. The long, clean lines create a modern look that fits many commercial and institutional buildings. See the Roof Anchor Compatibility Chart for Alcan Products Mech Lock 1-inch Standing Seam Panels.

A floating clip mechanism supports natural thermal expansion and contraction. That feature keeps stress away from the seam and reduces the risk of oil canning. Notching is available by request for architects and builders who need more control over transitions or custom design features. The Mech Lock system works on both roofs and walls, allowing designers to maintain the same profile across an entire structure without visual breaks.

Alcan offers this system in 26-, 24-, and 22-gauge steel to meet different performance goals and budgets. Standard coverage widths include 13, 17, and 21 inches, giving installers several layout options without sacrificing appearance or strength. The mechanical seam and concealed fasteners provide strong protection in regions with high winds, heavy rain, or wide temperature swings. It is a dependable panel system for anyone who needs long-term performance and a clean architectural finish.

Fall Protection for Alcan Mech-Lock

A safe workflow on Mech-Lock panels starts with matching the anchor system to the exact steel gauge, so crews stay protected, and the panel system remains weather-tight.

Workers on 22- and 24-gauge steel Mech-Lock panels can rely on the complete SSRA system for secure, non-penetrating fall protection. The SSRA1 Standing Seam Roof Anchor clamps to the seam without piercing the metal, providing a stable tie-off point that preserves the seam's structural integrity. When a stable platform is needed, crews can mount SSRA2 Adjustable Roof Jack Adapters on top of the SSRA1 anchors and support a ten-foot walkboard so workers can move across steep panel runs with better footing. SSRA3 Anchor Plates also mount on the SSRA1 anchors and create a solid base for temporary horizontal lifelines.

When a project calls for additional worker mobility, safety managers bring in the SSRA HLL 100-foot Temporary Horizontal Lifeline Kit. This setup supports multiple workers and maintains a smooth workflow across wide roof sections. Buildings that need long-term service access use the Super Anchor 120-foot Permanent Horizontal Lifeline Kit. This system stays in place year-round and gives maintenance crews a ready-made lifeline without penetrating the standing seam roof.

Crews working on 26-gauge Mech-Lock panels need a different approach because this substrate cannot support seam-mounted anchorage. The Ridge Pro Steep Assist is the right choice and provides a non-penetrating tie-off point on slopes from 6:12 to 12:12. It hooks over the ridge and keeps crews connected from the ladder to the peak without stressing the thinner seam.

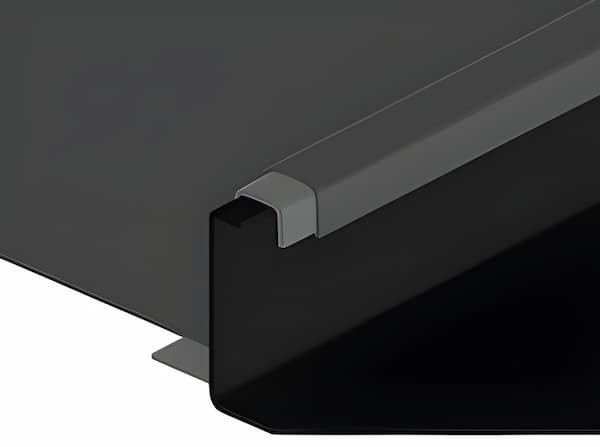

Alcan Mech-Lock 1.5 Mechanical Panel

The Alcan Mech-Lock 1.5-inch panel system builds on everything contractors like about the original 1-inch version. It raises the rib height to deliver more strength.

This profile uses the same hidden clip system and mechanically crimped seam, both of which keep the roof clean and weatherproof from end to end. The floating clip mechanism gives the Mech-Lock 1.5 an advantage on large roof areas because the panels can expand and contract naturally as temperatures swing. That movement maintains the seam shape and keeps the roof smooth through the seasons. Alcan offers the panel in 26, 24, and 22-gauge steel, allowing designers to meet the strength requirements of each project without sacrificing the architectural look the system is known for. Coverage widths of 12, 16, and 20 inches add more flexibility for roofs and walls that require a consistent rhythm from panel to panel. See the Roof Anchor Compatibility Chart for Alcan Products Mech-Lock 1.5-inch Standing Seam Panels.

The 1.5-inch rib height sharpens the appearance and improves overall rigidity, making this system a strong choice for commercial buildings that experience harsh weather and long panel runs. The hidden fastener layout also protects the clips from moisture, reducing corrosion and keeping the system performing as Alcan intended. Routine inspections and basic cleaning are usually all the maintenance these roofs need.

Fall Protection for Alcan Mech-Lock 1.5

Mech-Lock 1.5 panels require fall protection systems that preserve the floating clip mechanism that allows thermal expansion.

On 22- and 24-gauge steel Mech-Lock 1.5 panels, crews can use the complete SSRA system with confidence. The SSRA1 Standing Seam Roof Anchor clamps cleanly to the rib with 12 non-penetrating set screws. When walkboards are needed, SSRA2 Adjustable Roof Jack Adapters mount on top of the SSRA1 anchors and create a level surface for safer movement. SSRA3 Anchor Plates build on this setup by providing a solid connection point for temporary horizontal lifelines.

Larger commercial projects often require uninterrupted mobility along the full roof length. The SSRA HLL 100-foot Temporary Horizontal Lifeline Kit meets that need and protects multiple workers during installation or service tasks. For facilities that expect regular rooftop access after construction, the Super Anchor 120-foot Permanent Horizontal Lifeline Kit delivers a ready-to-use galvanized lifeline that stays in place for the life of the roof.

The lighter 26-gauge Mech-Lock 1.5 panel calls for a ridge-mounted anchor solution. The Ridge Pro Steep Assist provides a safe, predictable tie-off point on slopes from 6:12 to 12:12 without clamping to the seam. It keeps workers secure during the transition from the ladder to the roof and keeps them tied off the entire time.

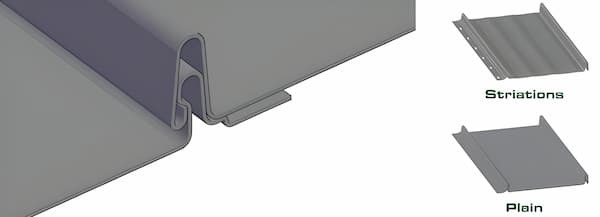

Alcan Quik-Lock Nailstrip Panel

The Alcan Quik-Lock 1-inch panel gives builders a clean architectural look with a simple snap feature that works across roofing and wall designs.

The Alcan Quik-Lock 1-inch system delivers a versatile standing seam solution that fits both roof and wall applications. It creates long, uninterrupted lines that give buildings a modern look without visible fasteners. See the Roof Anchor Compatibility Chart for Alcan Products Quik-Lock 1-inch Standing Seam Panels.

The Quik-Lock profile is available in widths of 12, 16, and 20 inches. The one-inch rib adds a crisp shadow line that works on a wide range of architectural styles. Alcan produces this panel in 26-gauge and 24-gauge steel so contractors can choose the material strength they need for the job. Notching is available when a project requires a tighter fit around transitions or detailed architectural elements.

This system works well on slopes greater than 3:12. That range keeps the panel flexible enough for smaller residential work and large commercial roofs. The minimum panel length is 36 inches, which leaves plenty of room for efficient layouts without unnecessary seams.

The concealed fastening system helps extend the life of the installation by protecting the clips from UV exposure and moisture. This feature reduces corrosion risk and keeps the panel tight over time. Routine cleaning and occasional visual inspections are usually all that is needed to keep the Quik-Lock system looking sharp.

Fall Protection for Alcan Quik-Lock

Ridge Pro Steep Assist offers the safest access method for Quik-Lock nailstrip roofs because the seam shape will not support clamped anchors.

Nailstrip panels often create compatibility concerns because their locking feature does not form a structural rib. Even slight variations between rollforming machines can change the seam shape enough to make seam-mounted anchors unpredictable. The safest approach is to avoid seam attachment entirely.

The Ridge Pro Steep Assist solves that problem. It connects over the ridge and never touches the seam. Workers gain a stable, non-penetrating tie-off point on slopes from 6:12 to 12:12. This protects the panel from deformation and removes the risk of damaging the nailstrip seam during installation or maintenance.

The Ridge Pro gives crews a predictable connection point, supports safe ladder transitions, and maintains the long-term performance of the Quik-Lock panel system.

Alcan Quik-Lock 1.5 Nailstrip Panel

The Alcan Quik-Lock 1.5-inch panel system provides designers with a taller architectural rib and a stronger visual line without compromising the clean appearance that makes the Quik-Lock series popular.

The 1.5-inch rib height adds depth to the profile and brings extra rigidity to longer spans. Because the system uses a hidden-fastener design, the finished installation appears uniform on a roof or a wall. See the Roof Anchor Compatibility Chart for Alcan Products Quik-Lock 1.5-inch Standing Seam Panels.

Coverage options include 11, 15, and 19 inches. These widths help architects match the panel layout to the building's proportions. Like the 1-inch version, the Quik-Lock 1.5-inch panel is available in 26-gauge and 24-gauge steel. Notching is available by request when the design calls for it. The system works on slopes greater than 3:12 and installs cleanly on both residential and commercial structures.

The hidden fastening system protects the clips from weather exposure and keeps the surface smooth. Maintenance stays simple because crews only need basic inspections and occasional cleaning to keep the panels in good condition. The taller rib gives the system a more pronounced architectural look while maintaining the same dependable performance that builders expect from Alcan Products Ltd.

Fall Protection for Alcan Quik-Lock 1.5

Nailstrip seams do not pair well with clamp-mounted fall protection anchors. Variations in rollforming can alter the seam shape, creating a risk when using seam-mounted anchors.

To avoid panel deformation and protect the locking mechanism of the seam, safety managers should use the Ridge Pro Steep Assist for slopes between 6:12 and 12:12. The Ridge Pro attaches over the ridge rather than on the seam, so it keeps the nailstrip profile intact while giving workers a secure and predictable tie-off location. This ridge-mounted strategy protects the roof and crew. It keeps the installation aligned with best practices for nailstrip fall protection.

Alcan Products Conclusion

Alcan Products has built a strong reputation across Western Canada by offering standing seam metal roofing systems that combine clean architectural lines with long-term structural performance.

The Alcan Mech-Lock 1-inch and Mech-Lock 1.5-inch mechanical panels support commercial projects that demand strong weather protection, clean mechanical seams, and reliable thermal movement. These systems use floating clips that allow the roof to expand naturally with seasonal temperature swings. That detail keeps the seams straight and prevents long-term panel stress on low-slope applications. Builders trust Mech-Lock panels because they deliver the structural performance needed for offices, warehouses, retail spaces, and institutional buildings that face heavy wind and exposure.

The Alcan Quik-Lock 1-inch and 1.5-inch nailstrip panels offer architects and builders a versatile path to modern roof and wall designs. Their hidden fastener systems protect the metal from weather exposure and create the smooth, uninterrupted appearance that homeowners and commercial clients want. With options for multiple gauges, custom notching, and flexible coverage widths, the Quik-Lock family adapts easily to different structures and stays simple to maintain year after year.

Matching the proper fall protection system to these Alcan standing seam panels matters just as much as choosing the correct panel gauge. The SSRA1 Standing Seam Roof Anchor, SSRA2 Adjustable Roof Jack Adapter, and SSRA3 Anchor Plates work exceptionally well on 22- and 24-gauge steel Mech-Lock panels and provide a dependable non-penetrating tie-off point that preserves the weather-tight seam. The SSRA HLL 100-foot Temporary Horizontal Lifeline Kit gives crews maximum mobility across large roof areas while protecting the roof surface. Facility owners who expect frequent rooftop activity rely on the Super Anchor 120-foot Permanent Horizontal Lifeline Kit, which provides a ready-to-use access path without requiring penetrations through the standing seam.

For 26-gauge Mech-Lock and Quik-Lock installations, the Ridge Pro Steep Assist remains the safest choice. It hooks securely over the ridge and keeps workers tied off on slopes from 6:12 to 12:12 without placing compression forces on thinner nailstrip or mechanical seams. This ridge-based approach protects the panel geometry while giving crews a stable tie-off point during ladder transitions, inspections, and installation work.

Alcan Products continues to stand out in the Canadian metal roofing industry because its Quik-Lock and Mech-Lock systems combine architectural beauty with dependable long-term performance. When paired with the correct fall protection solutions, these standing seam panels deliver safe installations, protected warranties, and project timelines that stay on track. Builders who choose the right anchor for each Alcan panel type create a safer jobsite, a stronger finished roof, and a more predictable maintenance path for the life of the building.

Standing Seam Metal Roof Anchor Panel Compatibility Chart For Alcan Products



Contact Us for Expert Standing Seam Fall Protection Advice

For expert guidance on standing seam roof anchors, lifeline kits, and fall protection systems that protect both your crew and your panels, contact us today at 863-703-4522 or visit www.StandingSeamRoofAnchor.com. Our safety specialists can help you match the right non-penetrating anchor to your specific roof profile and slope. Let's make your next metal roofing project safe, compliant, and built to last. For continued learning, download OSHA's 48-page Fall Protection Manual and our free Anchor Inspection Form once you've selected the ideal anchors for your roof system. Together, we'll help you stay ahead of OSHA standards while preserving your roof's weather-tight seal.

Safety Tips For Standing Seam Roofs

Promote a Culture of Safety

A few minutes of conversation before the workday starts can shape the entire job. When installers talk openly about wind and weather conditions, or what felt unstable the day before, crews adjust faster and stay sharper. This kind of communication strengthens awareness of Alcan Mech-Lock and Quik-Lock roofs.

Use Specialized Anchor Systems for Standing Seam Roofs

Alcan standing seam roofs depend on concealed clips and engineered seams, so the fall protection must match that precision. SSRA1 seam anchors spread load across the seam with low-torque stainless set screws, which keep the seam shape intact and protect the finish from compression damage.

Develop OSHA-Compliant Safety Plans

A written plan turns a complex Alcan installation project into a predictable workflow. It identifies where SSRA1 anchor mounts will be on compatible panels, outlines when SSRA2 walkboard adapters will be in place, and maps lifeline locations long before tools leave the truck. When the plan is reviewed daily and updated as the weather changes, the team works with fewer surprises and fewer improvised decisions.

Equip Workers with High-Quality Safety Gear

Crews on Alcan panels work more confidently when their gear feels right. The SSRA HLL 100-foot Temporary Horizontal Lifeline Kit extends the system and provides crews with maximum mobility across wide roof sections without damaging the panels. Proper gear reduces hesitation and gives installers the focus needed for long panel sections.

Set Up Protective Guardrail Barriers for Work Zones

Guardrails remain one of the simplest ways to add passive protection on wide commercial roofs using Mech-Lock or Quik-Lock systems. They define safe travel paths around skylights, open edges, or staging areas. When crews see those boundaries clearly, they avoid distractions that often lead to avoidable slips or missteps.

Install Permanent Roof Anchor Systems

Some Alcan installations support ongoing HVAC service or seasonal inspection work. In those cases, a permanent solution, such as the Super Anchor 120-foot Permanent Horizontal Lifeline Kit, reduces the need for repeated setup and prevents repetitive anchor installations. A fixed lifeline provides maintenance crews with a predictable, OSHA-compliant, galvanized-steel lifeline that remains ready year-round.

Consult Experts for Curved Metal Panels

Curved panels behave differently from straight systems. The panel curves drastically change how set screws can attach to the seams and how workers position themselves as they move. A fall protection specialist needs to review these projects in person to determine the safest method. That evaluation protects the roof from distortion and ensures crews are correctly tied off on complex curves.

Encourage the Use of Trauma Straps

Suspension trauma can develop quickly after an arrest event. Trauma straps give a fallen worker a way to relieve pressure on the legs, restore circulation, and stay conscious while the rescue plan unfolds. Every worker on an Alcan roof should treat trauma straps as essential gear, not an optional add-on.

Prioritize Ladder Safety Training

Crews should inspect ladder rails, rungs, and feet; maintain three points of contact; and follow the four-to-one setup angle every time. A safe start on the ladder sets the tone for the rest of the day.

Ensure Proper Footwear for Stability

Smooth metal finishes on Alcan panels can turn slick when dew, dust, or pollen settles. Boots with slip-resistant soles and firm ankle support give workers the traction needed for long panel runs or steep approaches. Good footwear paired with a proper tie-off point creates a dependable foundation for safer movement across the roof.
