Fall Protection Strategies For Dallas Metal Products Roofs
Posted by Howie Scarboro - CEO Fall Protection Distributors, LLC on Feb 25th 2026
See the Roof Anchor Compatibility Chart for Dallas Metal Products Standing Seam Panels.
Who Is Dallas Metal Products?
Dallas Metal Products is based in the heart of Dallas and boasts a strong reputation and a solid customer following. This company has over 30 years of experience and 70 million square feet of roofing and wall panel experience in the industry. Dallas Metal Products delivers high-quality solutions for homes, businesses, and industrial projects throughout the South and Southwest. Their lineup of eight concealed-fastener standing-seam roofing systems, exposed-fastener panels, and structural components makes them a go-to choice for regional builders who need durability and style. Whether the project is a sleek residential roof or a rugged commercial setup, Dallas Metal Products delivers panels that withstand Texas storms.
Why Are Compatible Fall Protection Anchors Critical for Standing Seam Roofs?
When working with standing-seam roofs, manufacturers prohibit penetrating the metal for several reasons. Water leaks, structural integrity issues, and oil-canning are problems we want to avoid by avoiding penetration of standing-seam panels. Fastening down an isolated area of a floating roof system will likely cause panel deformations. All metal roofs require fall protection for workers, and standing-seam metal panels are no exception.
Compatible fall protection anchors are non-negotiable for standing-seam roofs. These anchors clamp directly onto the seams without penetration, maintaining the roof's watertight seal and preserving its warranty. Clamping gives workers a secure tie-off point, ensuring safety during installation, maintenance, or inspections. Using the proper anchors means complying with OSHA rules, dodging costly fines, and bringing everyone home safe. For Dallas Metal's panels, which range from snaplock to mechanically seamed designs, the proper fall-protection gear is the difference between a job well done and a job-site disaster.
The following specialized products provide the primary safety solutions for Dallas Metal Products systems:
- SSRA1 Standing Seam Roof Anchor: The core of the system. This anchor provides a non-penetrating, certified 5,000-pound tie-off point using 12 cupped-tip or nylon-tipped set-screws.
- SSRA2 Adjustable Roof Jack Adapters: These mount directly to the SSRA1 anchors. This setup allows the staging of 10-foot wooden walkboards to create level work platforms on steep slopes.
- SSRA3 Anchor Plates: These heavy-duty aluminum plates secure across two SSRA1 anchors. These plates serve as the certified endpoints for a temporary horizontal lifeline system.
- SSRA HLL 100-foot Temporary HLL Kit: This kit provides continuous tie-off for up to two workers in fall arrest. This assembly allows for safe lateral movement across large roof spans.
- 120-foot Super Anchor Permanent HLL Kit: This galvanized-steel-cable solution is for roofs requiring regular maintenance. This hardware provides a permanent safety backbone without penetrations.
- Ridge Pro Steep Assist: The ultimate solution for slopes between 6:12 and 12:12. This hook system secures over the ridge to provide 100% tie-off from the moment a worker leaves the ladder.
Proper Attachment: Set-Screws and Torque Requirements
Worker safety and the holding power of the SSRA1 anchor depend entirely on correct set-screw application:
- Cupped-Tip Stainless Steel Set-Screws: Use these screws exclusively on 22-gauge steel panels. Torque these screws to 90 inch-pounds for a secure lock.
- Nylon-Tipped Set-Screws: Apply these tips to 22-gauge or 24-gauge steel panels to achieve certified holding power. Torque these screws to 180-200 inch-pounds for maximum strength.
- Maintenance: Treat nylon tips as consumables. Replace these tips every 3 to 5 uses to maintain maximum grip strength.
Critical Warning: No Impact Guns
Never use an impact gun to install set-screws. Over-torquing with an impact driver will crush the standing-seam rib. This installation mistake will damage the anchor hardware and void the manufacturer's warranty. Always use a calibrated torque wrench for final installation.

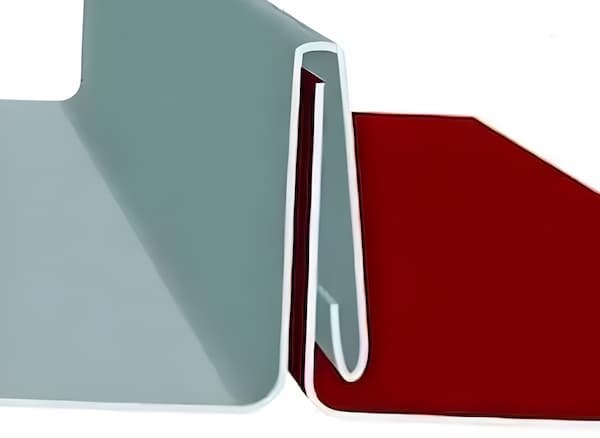

Dallas Metal Products DMP 1.5-inch Snaplock 450 Panels (SSRA Compatible 22/24 ga. Steel)
The DMP 1.5-inch Snaplock 450 is simple to install on homes and small commercial buildings. This standing-seam panel features a 1.5-inch seam height and a 16-inch width. DMP offers this panel in 22-gauge, 24-gauge, and 26-gauge steel for enhanced durability in harsh weather conditions. The snaplock seam relies on concealed clips, with the next panel snapping snugly over them for a fastener-free finish. See the Roof Anchor Compatibility Chart for 22 Gauge and 24 Gauge Dallas Metal Products DMP 1.5-inch Snaplock 450 Standing Seam Panels.
Fall Protection for DMP 1.5-inch Snaplock 450 Panels
DMP 1.5-inch Snaplock 450 roof panels are durable and require specialized fall-protection solutions:
- SSRA1 Seam Anchor: Securely grips the seam to provide a tight tie-off for personal fall arrest systems.
- SSRA2 Adjustable Roof Jack: Pairs with the SSRA1 to attach 10-foot wooden walkboards, creating a stable platform.
- SSRA3 Anchor Plate: Works in conjunction with the SSRA1 to support temporary 100-foot horizontal lifelines.
- SSRA HLL 100-foot Temporary HLL Kit: Enables multiple workers to stay tied off as they move laterally.
- Super Anchor 120-foot Standing Seam HLL Kit: Provides a permanent galvanized steel cable lifeline anchored to the seams without drilling.
- Ridge Pro Steep Assist: Hooks over the roof peak for 26-gauge steel panels or steeper slopes between 6:12 and 12:12.
Dallas Metal Products DMP 1.5-inch Snaplock 450+ Panels (SSRA Compatible 22/24 ga. Steel)
The DMP 1.5-inch Snaplock 450+ takes the winning formula of the 450 and adds seam modifications for extra versatility. This panel features a 1.5-inch seam height and a 16-inch coverage width. It is available in 22-gauge, 24-gauge, or 26-gauge steel. The snaplock seam ensures a clean, watertight finish for Texas roofs that need to look good and stand the test of time. See the Roof Anchor Compatibility Chart for 22 Gauge and 24 Gauge Dallas Metal Products DMP 1.5-inch Snaplock 450+ Standing Seam Panels.
Fall Protection for DMP 1.5-inch Snaplock 450+ Panels
Working on a DMP 1.5-inch Snaplock 450+ roof means finding a compatible anchoring system that will not damage the seams:
- SSRA1 Seam Anchor: Clamps tightly to the seam with twelve non-penetrating set-screws.
- SSRA2 Adjustable Roof Jack: Supports 10-foot wooden walkboards and is adjustable for roof pitch and seam height.
- SSRA3 Anchor Plate: Mounts onto SSRA1 anchors for temporary horizontal lifelines.
- SSRA HLL 100-foot Temporary HLL Kit: Let multiple workers stay tied off as they move along the length of the roof.
- Super Anchor 120-foot Standing Seam HLL Kit: Provides a permanent lifeline system clamped to the seams.
- Ridge Pro Steep Assist: Hooks over the peak to ensure 100% tie-off for tricky pitches or non-steel materials.
Dallas Metal Products DMP 1.75-inch Snaplock 550 Panels (SSRA Compatible 22/24 ga. Steel)
The DMP 1.75-inch Snaplock 550 features a unique 1.75-inch seam height designed for projects that require a bolder profile. Available in 18-inch widths for 22 to 24-gauge steel or 16-inch widths for 0.040 aluminum, this panel is versatile for residential and commercial roofs. See the Roof Anchor Compatibility Chart for 22 Gauge and 24 Gauge Dallas Metal Products DMP 1.75-inch Snaplock 550 Standing Seam Panels.
Fall Protection for DMP 1.75-inch Snaplock 550 Panels
The DMP 1.75-inch Snaplock 550 requires specialized anchoring to preserve its smooth surface:
- SSRA1 Seam Anchor: Grips the seam tightly to provide a secure tie-off point.
- SSRA2 Adjustable Roof Jack: Supports 10-foot wooden walkboards to create a stable, slip-resistant platform.
- SSRA3 Anchor Plate: Mounts on top of SSRA1 anchors to create temporary horizontal lifelines.
- SSRA HLL 100-foot Temporary HLL Kit: Protects multiple workers across the length of the roof without penetrations.
- Super Anchor 120-foot Standing Seam HLL Kit: Offers a permanent lifeline solution for buildings with frequent access.
- Ridge Pro Steep Assist: Hooks over the peak for aluminum panels or 26-gauge steel on challenging pitches.

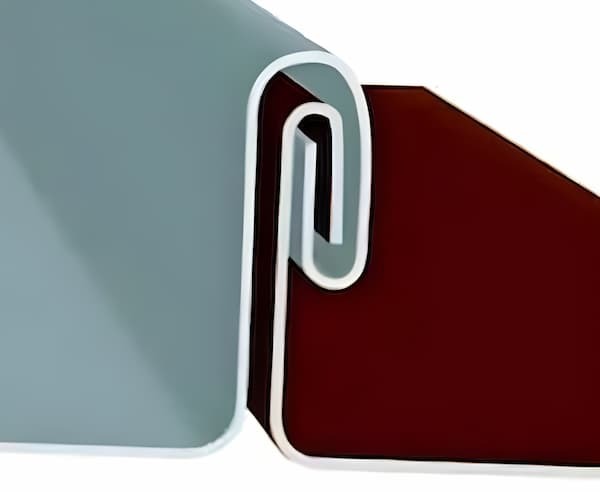

Dallas Metal Products DMP 1-inch Mechanical Seam Panels (SSRA Compatible 22/24 ga. Steel)
The DMP 1-inch Mechanical Seam is a low-profile panel designed for wall, soffit, and low-slope roof applications. It is available in 22-, 24-, and 26-gauge steel or 0.027- to 0.040-inch aluminum. A field-seamed mechanical seam ensures a tight, weathertight fit. See the Roof Anchor Compatibility Chart for 22 Gauge and 24 Gauge Dallas Metal Products DMP 1-inch Mechanical Seam Standing Seam Panels.
Fall Protection for DMP 1-inch Mechanical Seam Panels
DMP 1-inch Mechanical Seam panels are compatible with several fall-protection solutions:
- SSRA1 Seam Anchor: Attaches tightly to the low-profile seam for a reliable tie-off.
- SSRA2 Adjustable Roof Jack: Supports 10-foot wooden walkboards to provide a stable platform and spread weight.
- SSRA3 Anchor Plate: Anchors temporary horizontal lifelines for larger projects.
- SSRA HLL 100-foot Temporary HLL Kit: Allows multiple workers to move laterally without requiring penetration.
- Super Anchor 120-foot Standing Seam HLL Kit: Delivers a permanent lifeline system for long-term access needs.
- Ridge Pro Steep Assist: Hooks over the peak for aluminum or 26-gauge steel on steeper pitches.

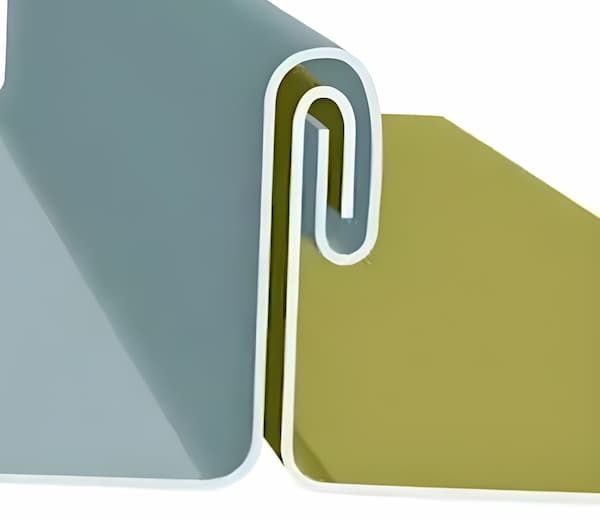

Dallas Metal Products DMP 1.5-inch Mechanical Seam Panels (SSRA Compatible 22/24 ga. Steel)
The DMP 1.5-inch Mechanical Seam blends strength and versatility for high-end residential and commercial roofs. It features a 1.5-inch seam height and is available in 22 to 24-gauge steel. See the Roof Anchor Compatibility Chart for 22 Gauge and 24 Gauge Dallas Metal Products DMP 1.5-inch Mechanical Seam Standing Seam Panels.
Fall Protection for DMP 1.5-inch Mechanical Seam Panels
The 1.5-inch Mechanical Seam is for rigorous conditions, and its smooth surface requires a stringent safety plan:
- SSRA1 Seam Anchor: Grips the seam tightly without damaging the warranty-protected finish.
- SSRA2 Adjustable Roof Jack: Supports walkboards, providing your crew with a level work platform on steep metal slopes.
- SSRA3 Anchor Plate: Pairs with the SSRA1 to anchor temporary horizontal lifelines.
- SSRA HLL 100-foot Temporary HLL Kit: Let multiple workers stay tied off without penetrating the panels.
- Super Anchor 120-foot Standing Seam HLL Kit: Provides a permanent lifeline system utilizing clamps and riser posts.
- Ridge Pro Steep Assist: Hooks over the peak to ensure 100% tie-off on pitches between 6:12 and 12:12.
Dallas Metal Products DMP 2-inch Mechanical Seam Panels (SSRA Compatible 22/24 ga. Steel)
The DMP 2-inch Mechanical Seam is an excellent choice for low-slope commercial roofs needing maximum strength. This panel features a 2-inch seam height and is a go-to choice for Texas warehouses facing high winds. DMP offers this panel in 22- and 24-gauge steel. See the Roof Anchor Compatibility Chart for 22 Gauge and 24 Gauge Dallas Metal Products DMP 2-inch Mechanical Seam Standing Seam Panels.
Fall Protection for DMP 2-inch Mechanical Seam Panels
The DMP 2-inch Mechanical Seam requires non-penetrating fall-protection anchors:
- SSRA1 Seam Anchor: Attaches securely to the large 2-inch seam for a reliable tie-off.
- SSRA2 Adjustable Roof Jack: Spreads weight to prevent panel damage on large industrial complexes.
- SSRA3 Anchor Plate: Works with the SSRA1 to anchor temporary horizontal lifelines.
- SSRA HLL 100-foot Temporary HLL Kit: Allows multiple workers to move safely across long commercial spans.
- Super Anchor 120-foot Standing Seam HLL Kit: Delivers a permanent lifeline system with secure riser posts.
- Ridge Pro Steep Assist: Hooks over the peak for steeper slopes and challenging pitches.

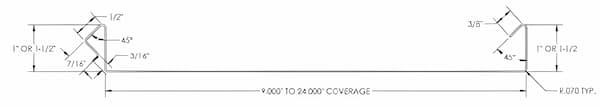

Dallas Metal Products DMP 100 RFSL Panels (SSRA Compatible 22/24 ga. Steel)
The DMP 100 panels offer snaplock flexibility with 1-inch seam heights. DMP offers this panel in 22-gauge, 24-gauge, or 26-gauge steel, copper, or aluminum. These panels deliver style and strength for projects in Texas. See the Roof Anchor Compatibility Chart for 22 Gauge and 24 Gauge Dallas Metal DMP 100 RFSL Products Standing Seam Panels.
Fall Protection for DMP 100 RFSL
The DMP 100 Snaplock style panels require specialized fall-protection strategies:
- SSRA1 Seam Anchor: Grips the 1-inch seam tightly without penetration.
- SSRA2 Adjustable Roof Jack: Supports 10-foot wooden walkboards to ensure sure footing.
- SSRA3 Anchor Plate: Mounts on top of SSRA1 anchors for temporary horizontal lifelines.
- SSRA HLL 100-foot Temporary HLL Kit: Protects workers across the roof without requiring penetrations.
- Super Anchor 120-foot Standing Seam HLL Kit: Provides a permanent lifeline system for buildings with frequent access.
- Ridge Pro Steep Assist: Hooks over the peak for copper or aluminum panels or steeper slopes.
Dallas Metal Products DMP 150 RFSL Panels (SSRA Compatible 22/24 ga. Steel)
The DMP 150 RFSL panel is a standout in the lineup, bringing snaplock ease and rugged durability. Sporting a 1.5-inch seam height, made from 22, 24, or 26-gauge steel, copper, or aluminum. From ranches to retail spaces, the DMP 150 RFSL delivers the style Texas demands. See the Roof Anchor Compatibility Chart for 22 Gauge and 24 Gauge Dallas Metal Products DMP 150 RFSL Standing Seam Panels.
Fall Protection for DMP 150 RFSL Panels
The DMP 150 RFSL snaplock panel demands serious safety to keep your crew out of trouble:
- SSRA1 Seam Anchor: Secures the seam with twelve set-screws without making a single hole.
- SSRA2 Adjustable Roof Jack: Supports slip-resistant platforms and protects the surface from dents.
- SSRA3 Anchor Plate: Mounts temporary horizontal lifelines for sprawling commercial roofs.
- SSRA HLL 100-foot Temporary HLL Kit: Keeps large crews safe and productive across the roof length.
- Super Anchor 120-foot Standing Seam HLL Kit: Provides a permanent lifeline solution without compromising the roof.
- Ridge Pro Steep Assist: Hooks securely over the peak for copper, aluminum, or steep slopes.
Dallas Metal Products DMP 100 Batten Cap Panels (Ridge Pro Only)
The DMP 100 Batten Cap panel has a 1-inch seam height and is available in 22-gauge to 26-gauge steel, copper, or aluminum. For projects that need to stand out while withstanding Texas storms, the DMP 100 Batten Cap delivers unmatched style. See the Roof Anchor Compatibility Chart for Dallas Metal Products DMP 100 Batten Cap Standing Seam Panels.
Fall Protection for DMP 100 Batten Cap Panels
The smooth, batten-style surface poses a safety challenge for workers. Unlike traditional standing-seam panels, batten-cap designs are incompatible with seam-mounted anchors like the SSRA1 because their unique cap system makes clamping unreliable.

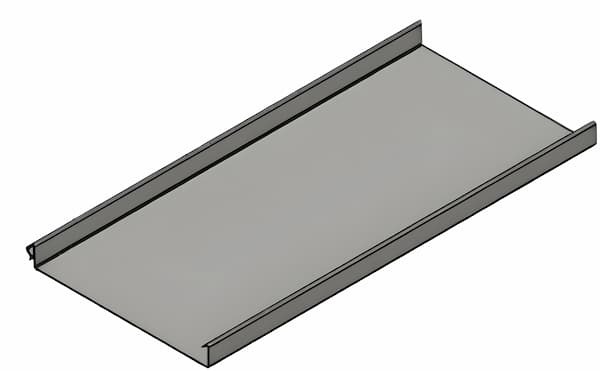

Dallas Metal Products DMP 150 Batten Cap Panels (Ridge Pro Only)
The DMP 150 Batten Cap panel elevates the architectural edge with a commanding 1.5-inch seam height. This panel is ideal for Texas projects requiring a bold visual impact. This panel is crafted from 22-gauge to 26-gauge steel, copper, or aluminum. See the Roof Anchor Compatibility Chart for Dallas Metal Products DMP 150 Batten Cap Standing Seam Panels.
Fall Protection for DMP 150 Batten Cap Panels
Working on the DMP 150 Batten Cap panels demands a safety solution that respects their unique design:
- Ridge Pro Steep Assist: Seam-mounted anchors are not suitable for this profile. The Ridge Pro hooks securely over the roof peak to provide a robust anchor point without contacting the batten seams. Its padded base protects the roof surface, which is crucial for softer copper or aluminum panels.
The Liability Trap: Why Generic Import Anchors Fail the Professional Standard
While discount online marketplaces make it easy to source cheap fall protection anchors, these unbranded imports represent a massive liability for contractors in Texas. The primary danger lies in the lack of traceable engineering. Professional-grade safety requires more than a 5,000-pound claim; it requires verifiable proof that the hardware meets the rigid performance metrics of OSHA 1926.502 and ANSI Z359.18. Using uncertified anchors introduces an unacceptable level of engineering guesswork into your safety plan. If a generic anchor fails, the legal and financial fallout stays with the contractor, often voiding insurance coverage and resulting in heavy OSHA fines. The SSRA system eliminates this vulnerability through total manufacturing transparency. We produce and test every component in the United States, providing you with a clear paper trail of reliability. You can review our official SSRA test reports to see the actual performance data behind our hardware. In the high-stakes environment of metal roofing, "good enough" is never the professional standard.
Metal Roof Anchor Panel Compatibility For 22 Gauge Dallas Metal Products Panels
| DMP 1.5 In Snaplock (22 Ga.) | DMP 1.5 In Snaplock 450+ (22 Ga.) | DMP 1.75-in Snaplock 550 (22 Ga.) | DMP 1-in Mechanical Seam (22 Ga.) | DMP 1.5-in Mechanical Seam (22 Ga.) | DMP 2 in Mechanical Seam (22 Ga.) | |
|---|---|---|---|---|---|---|
SSRA 1 |
YES | YES | YES | YES | YES | YES |
SSRA1 Nylon Tip |
YES | YES | YES | YES | YES | YES |
SSRA2 Roof Jack |
YES | YES | YES | YES | YES | YES |
SSRA3 Anchor Plate |
YES | YES | YES | YES | YES | YES |
The Ridge Pro |
YES | YES | YES | YES | YES | YES |
Metal Roof Anchor Panel Compatibility For 24 Gauge Dallas Metal Products Panels
| DMP 1.5 In Snaplock (24 Ga.) | DMP 1.5 In Snaplock 450+ (24 Ga.) | DMP 1.75-in Snaplock 550 (24 Ga.) | DMP 1-in Mechanical Seam (24 Ga.) | DMP 1.5-in Mechanical Seam (24 Ga.) | DMP 2 in Mechanical Seam (24 Ga.) | |
|---|---|---|---|---|---|---|
| SSRA 1 |
NO | NO | NO | NO | NO | NO |
| SSRA1 Nylon Tip |
YES | YES | YES | YES | YES | YES |
| SSRA2 Roof Jack |
YES | YES | YES | YES | YES | YES |
| SSRA3 Anchor Plate |
YES | YES | YES | YES | YES | YES |
| The Ridge Pro |
YES | YES | YES | YES | YES | YES |
Metal Roof Anchor Panel Compatibility For Dallas Metal Products Panels Cont.
| DMP 100 RFSL (22 Ga.) | DMP 100 RFSL (24 Ga.) | DMP 150 RFSL (22 Ga.) | DMP 150 RFSL (24 Ga.) | DMP-100-Batten-Cap | DMP-150-Batten-Cap | |
|---|---|---|---|---|---|---|
| SSRA 1 |
YES | NO | YES | NO | NO | NO |
| SSRA1 Nylon Tip |
YES | YES | YES | YES | NO | NO |
| SSRA2 Roof Jack |
YES | YES | YES | YES | NO | NO |
| SSRA3 Anchor Plate |
YES | YES | YES | YES | NO | NO |
| The Ridge Pro |
YES | YES | YES | YES | YES | YES |
Contact Us For More Information
For further details on roofing solutions and fall protection systems, please contact us at 863-703-4522 or visit www.StandingSeamRoofAnchor.com. Let's work together to make your roofing projects safe. For more safety tips, refer to the OSHA 48-page Fall Protection Manual. Once you have determined the most suitable anchors for your roof system, download our free Anchor Inspection Form.
Safety Tips For Standing Seam Roofs
Ensure Proper Footwear for Stability
Roofers require footwear that provides a secure grip. Skip generic work boots. Roofing calls for slip-resistant soles and flexible designs to keep workers safe on sloped panels. The proper boots prevent minor missteps from turning into hospital visits.
Install Permanent Roof Anchor Systems
For buildings like schools or warehouses, permanent anchors are a wise choice. They provide ready-to-go tie-off points, reducing setup time. Fixed systems ensure safer access for maintenance crews while protecting the roof from repeated damage.
Develop OSHA-Compliant Safety Plans
Every roof is unique. Build a custom plan that maps hazards and assigns clear roles to your crew. Review the plan before every job and update it when the site changes so the team is always ready for what is ahead.
Set Up Protective Guardrail Barriers for Work Zones
Roof edges and skylights can catch workers off guard. Guardrails establish a clear distinction between safe and risky areas. They are a must on low-slope roofs where workers might lose track of the perimeter.
Prioritize Ladder Safety Training
Most roofing accidents start on the ladder. Train your crew to select the correct ladder and set it up using the four-to-one angle rule. Climbing with three points of contact is the foundation of a safe job.
Equip Workers with High-Quality Safety Gear
Invest in OSHA-approved harnesses, lanyards, and lifelines that fit well. Comfortable equipment gets worn correctly every time. Your crew's safety depends on the gear they trust and use.
Promote a Culture of Safety
Safety is about people looking out for each other. Lead by example and discuss safety every day. When your crew views safety as part of the job, you have a team keeping everyone safe.
Consult Experts for Curved Metal Panels
Curved roofs are beautiful but challenging for safety managers. Standard anchors may not attach correctly. Bring in a fall-protection pro to assess the roof and recommend gear fitting the curves.
Use Specialized Anchor Systems for Standing Seam Roofs
Drilling holes in a standing-seam roof leads to leaks and voided warranties. Go with seam-mounted anchors that attach without penetrating the panel. Specialized anchors hold workers securely while keeping the roof watertight.
Encourage the Use of Trauma Straps
A harness stops a fall, but hanging in it can cut off blood flow. Trauma straps are inexpensive and allow workers to shift their weight, keeping them comfortable while waiting for rescue.
