Fall Protection Strategies For Mansea Standing Seam Roofs

Who Is Mansea Metal?

Mansea Metal is a trusted name across Kentucky, Illinois, and Ohio. They help property owners replace failing asphalt shingles, rotting wood shakes, and brittle clay tiles with strong and energy-efficient metal roofing. Founded by John Griffith and Pat Brown in 2007, the company delivers high-quality, American-made metal roofing and siding solutions for residential, commercial, agricultural, and equestrian projects.

Mansea Metal is a regional powerhouse that offers everything from pole barn kits to custom trims. They fabricate products in-house using top-tier US steel coated with Sherwin-Williams WeatherXL finishes. The 2023 acquisition of Burch Sheet Metal further expanded their reach with facilities in Winchester and Walton, KY; Mt. Zion, IL; and Dayton, OH.

Why Are Compatible Fall Protection Anchors Critical for Standing-Seam Roofs?

Mansea Metal standing-seam roofs last because concealed clip systems allow panels to expand and contract without loosening fasteners. Any fall-protection gear installed on the roof must be non-penetrating to maintain that performance with standing-seam profiles.

Non-compatible anchors often deform the seam, void warranties, or break the waterproofing seal. Purpose-built anchors, such as the non-penetrating SSRA1 Seam Anchor, clamp directly onto the seam rib without puncturing the panel. These anchors meet the OSHA 5,000-pound load rating for fall arrest.

The following specialized products provide the primary safety solutions for Mansea Metal systems:

• SSRA1 Standing Seam Roof Anchor: The core of the system. It provides a non-penetrating, certified 5,000-pound tie-off point using 12 cupped-tip or nylon-tipped set-screws.
• SSRA2 Adjustable Roof Jack Adapters: These mount directly to the SSRA1 anchors. They allow the staging of 10-foot wooden walkboards to create level work platforms on steep slopes.
• SSRA3 Anchor Plates: These heavy-duty aluminum plates secure across two SSRA1 anchors. They serve as the certified endpoints for a temporary horizontal lifeline system.
• SSRA HLL 100-foot Temporary HLL Kit: This kit provides continuous tie-off for up to two workers in fall arrest. It allows for safe lateral movement across large roof spans.
• 120-foot Super Anchor Permanent HLL Kit: This galvanized-steel-cable solution is for roofs requiring regular maintenance. It provides a permanent safety backbone without penetrations.
• Ridge Pro Steep Assist: This is the ultimate solution for slopes between 6:12 and 12:12. It hooks over the ridge to provide 100% tie-off from the moment a worker leaves the ladder.

Proper Attachment: Set-Screws and Torque Requirements

Worker safety and the holding power of the SSRA1 anchor depend entirely on correct set-screw application:

• Cupped-Tip Stainless Steel Set-Screws: Use these exclusively on 22-gauge steel panels. Torque them to 90 inch-pounds for a secure, non-penetrating lock.
• Nylon-Tipped Set-Screws: Apply these to 22-gauge or 24-gauge steel panels to achieve certified holding power. Torque them to 180–200 inch-pounds for maximum strength.
• Maintenance: Treat nylon tips as consumables. Replace them every 3 to 5 uses to maintain maximum grip strength.

Mansea ToughLok 175 SnapLock Panels (SSRA Compatible 22/24 ga. Steel)

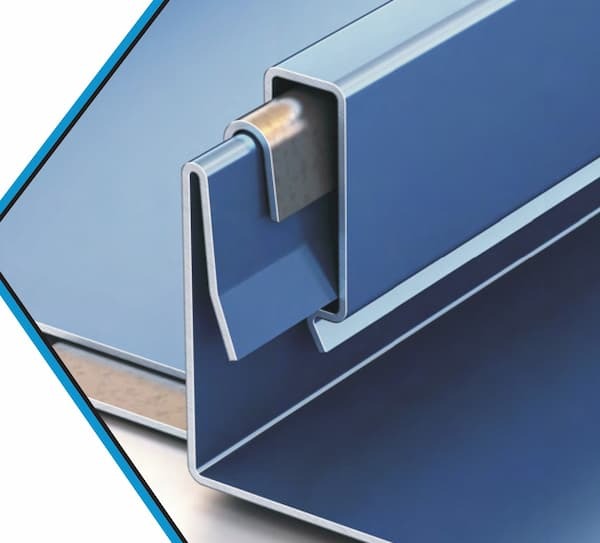

The ToughLok 175 SnapLock panel is a powerful choice for projects demanding superior structural strength. It features a 1.75-inch vertical rib and a continuous interlocking snap-together design. This system handles extremely high design pressures and works over solid substrates or open purlin roof systems. It is available in 22-, 24-, and 26-gauge steel, with a minimum recommended slope of 2:12. Panel widths are 16 or 18 inches. See the Roof Anchor Compatibility Chart for Mansea Metal ToughLok 175 SnapLock Standing Seam Panels.

Fall Protection for ToughLok 175 SnapLock Panels

For 22 and 24-gauge steel ToughLok 175 roofs, proper safety measures protect both workers and the roof system.

• The SSRA1 Seam Anchor provides a robust, non-penetrating 5,000-pound tie-off point.
• SSRA2 Adjustable Roof Jack adapters mount directly to the anchors to support 10-foot wooden walkboards. This assembly creates a stable staging area for handling tools and materials.
• The SSRA3 Anchor Plates are installed on top of two anchors to create a certified endpoint for the SSRA HLL 100-foot Temporary HLL Kit.
• The 120-foot Super Anchor Permanent HLL Kit delivers a permanent, OSHA-compliant safety solution with galvanized steel cable.
• For aluminum or roof slopes between 6:12 and 12:12, the Ridge Pro Steep Assist is the best alternative. It hooks over the ridge for 100% tie-off without clamping the panel seams.

Mansea ToughLok 200 Mechanical Panels (SSRA Compatible 22/24 ga. Steel)

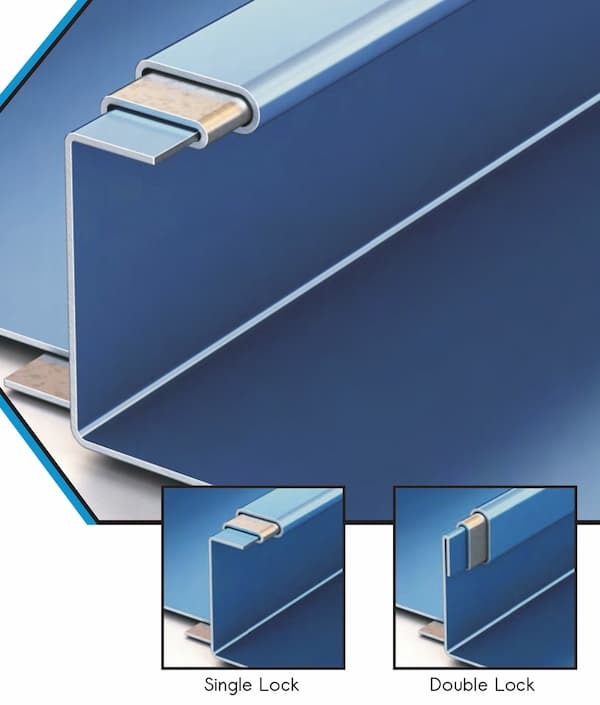

The ToughLok 200 Single Lock and Double Lock panels deliver strength for demanding commercial and industrial projects. With a 2-inch mechanically seamed rib, these systems excel across low and steep-slope applications. Mechanically locked seams reduce panel stress from thermal expansion and contraction. These panels are available in 22-, 24-, and 26-gauge steel and are rated for a minimum slope of 1/2:12. See the Roof Anchor Compatibility Chart for Mansea Metal ToughLok 200 Mechanical Standing Seam Panels.

Fall Protection for ToughLok 200 Panels

On 22 and 24-gauge steel ToughLok 200 roofs, compatibility ensures safety without roof damage.

• The SSRA1 Seam Anchor provides a non-penetrating, OSHA-compliant tie-off point rated for 5,000 pounds.
• SSRA2 Adjustable Roof Jack adapters create reliable supports for 10-foot wooden walkboards.
• The SSRA3 Anchor Plates connect two anchors to form the anchorage for the SSRA HLL 100-foot Temporary HLL Kit.
• The 120-foot Super Anchor Permanent HLL Kit installs 120 feet of galvanized steel cable lifeline without penetrations.
• For lighter-gauge metals or aluminum, the Ridge Pro Steep Assist hooks over the peak for 100% tie-off coverage.

Mansea QuickSeam Plus Snap-lock Panels (SSRA Compatible 24 ga. Steel)

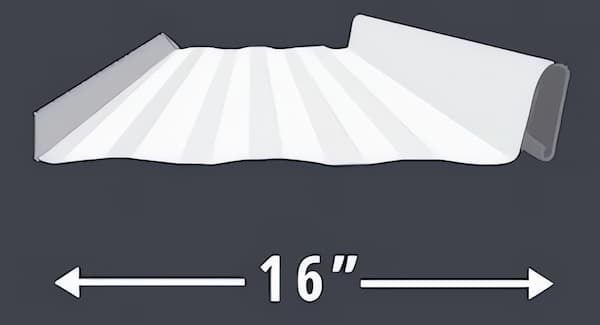

The QuickSeam Plus Snap-lock panel brings upscale, concealed-fastener performance to premium projects. These panels have a 1.5-inch rib height and 16-inch coverage width. They deliver high wind, fire, and impact resistance. Available in 24 or 26-gauge steel, these panels perform beautifully under harsh Midwest conditions. See the Roof Anchor Compatibility Chart for Mansea Metal QuickSeam Plus Snap-lock Standing Seam Panels.

Fall Protection for QuickSeam Plus Snap-lock Panels

For 24-gauge steel QuickSeam Plus roofs, the SSRA system ensures compliance with OSHA requirements.

• The SSRA1 Seam Anchor clamps tightly to the seam rib without damaging the panel.
• SSRA2 Adjustable Roof Jack adapters provide workers with a stable platform by supporting 10-foot wooden walkboards.
• The SSRA3 Anchor Plates mount over two anchors to form endpoint points for the SSRA HLL 100-foot Temporary HLL Kit.
• The 120-foot Super Anchor Permanent HLL Kit offers a permanent fall-protection solution without making a single penetration.
• For 26-gauge steel or aluminum, the Ridge Pro Steep Assist provides reliable 100% tie-off coverage.

Mansea QuickSeam Nailstrip Panels (Ridge Pro Only)

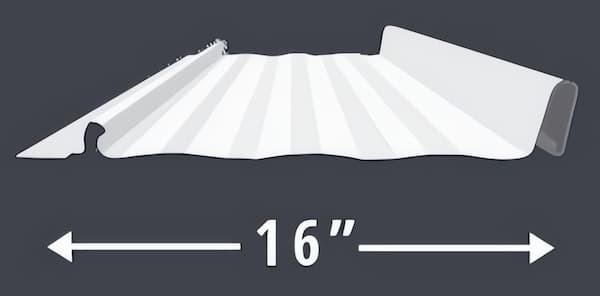

The QuickSeam Nailstrip panel features a 1.5-inch rib height and 16-inch coverage width. These snap-lock, concealed-fastener panels are built from premium 24 or 26-gauge steel. To ensure a flawless finish, they install over a solid, uniform substrate. See the Roof Anchor Compatibility Chart for Mansea Metal QuickSeam Nailstrip Standing Seam Panels.

Fall Protection for QuickSeam Nailstrip Panels

This panel profile is incompatible with seam-clamping anchors. The Ridge Pro Steep Assist is the best option for slopes between 6:12 and 12:12. This peak-mounted anchor hooks over the roof ridge to deliver 100% tie-off coverage without clamping the panel seams.

Avoiding Liability from Untested Standing Seam Imports

Choosing high-quality, American-made equipment is an investment in both safety and long-term value. While global marketplaces offer inexpensive alternatives, these cheap imports often lack the verifiable third-party testing required to meet strict OSHA 1926.502 and ANSI Z359.18 standards.

The SSRA system eliminates this risk through the transparency of domestic engineering. We manufacture and certify every component in the United States to provide our customers with documented compliance, not empty promises. To ensure your crew has total peace of mind, you can review our official SSRA test reports to see the data for yourself.

Metal Roof Anchor Panel Compatibility For Mansea Metal

	ToughLok 175 (22 Ga.)	ToughLok 175 (24 Ga.)	ToughLok 200 (22 Ga.)	ToughLok 200 (24 Ga.)	QuickSeam Plus (24 Ga.)	QuickSeam-Nailstrip
SSRA 1	YES	NO	YES	NO	NO	NO
SSRA1 Nylon Tip	YES	YES	YES	YES	YES	NO
SSRA2 Roof Jack	YES	YES	YES	YES	YES	NO
SSRA3 Anchor Plate	YES	YES	YES	YES	YES	NO
The Ridge Pro	YES	YES	YES	YES	YES	YES

Contact Us For More Information

For further details on roofing solutions and fall protection systems, contact us at 863-703-4522 or visit www.StandingSeamRoofAnchor.com. Let's work together to make your roofing projects safe, beautiful, and built to last. For more safety tips, check out OSHA's 48-page fall protection manual. Once you have determined the most suitable anchors for your roof system, download our free Anchor Inspection Form.

Safety Tips For Standing Seam Roofs

Consult Experts for Curved Metal Panels

Curved metal roofing systems require specialized fall protection because of their unique shape. Standard anchors are often not rated for curved surfaces and might fail to attach securely. You should consult a fall-protection specialist to determine the correct system before starting work on a radiused roof. Custom solutions protect your crew while preserving your high-quality craftsmanship.

Develop OSHA-Compliant Safety Plans

A detailed safety plan is the backbone of any successful roofing project. These plans must outline site-specific hazards, emergency rescue procedures, and individual responsibilities. A clear plan transforms confusion into accountability and ensures safer outcomes from the first day on the job site.

Encourage the Use of Trauma Straps

A fall-arrest system stops the initial drop, but the aftermath requires a plan for suspension trauma. Suspension trauma can set in within minutes and lead to serious injury. Trauma straps allow a suspended worker to relieve leg pressure and improve circulation while awaiting rescue. This lightweight accessory buys critical time during a rescue.

Install Permanent Roof Anchor Systems

Permanent anchors are a smart investment for commercial buildings that require regular maintenance or HVAC service. These fixed points stay attached to the roof, eliminating the hassle of temporary setups. Permanent anchors ensure safe, instant roof access for technicians year-round.

Prioritize Ladder Safety Training

Roofing safety starts before a worker ever reaches the panels. Ladder mishaps remain a leading cause of job-site injuries in the construction industry. You should train your team to use the 4-to-1 angle rule and maintain three points of contact at all times. A stable climb sets the tone for a safe and professional project.

Promote a Culture of Safety

Safety habits are more effective than written rules alone. Building a proactive mindset requires open-door feedback and pre-shift meetings where workers look out for each other. When safety becomes a daily conversation, it changes behavior and builds a more focused crew.

Set Up Protective Guardrail Barriers for Work Zones

Guardrails provide passive protection that quietly keeps everyone safe. They are ideal for high-traffic areas around roof edges, skylights, or open sections. Guardrails reduce the mental load on workers on hectic commercial sites, allowing them to focus on their tasks rather than the ledge.

Use Specialized Anchor Systems for Standing-Seam Roofs

Standing-seam panels require non-penetrating anchors designed for the profile gauge. These seam-mounted anchors clamp securely without penetrating the roof, preserving the roof's watertight integrity. Nothing else compares to OSHA-compliant safety for protecting both the crew and the manufacturer's warranty.

Equip Workers with High-Quality Safety Gear

Safety equipment is only effective when it fits well and performs flawlessly. Ensure every crew member has high-quality harnesses and self-retracting lifelines designed for rooftop work. Comfortable gear leads to consistent use and helps save lives on the job.

Ensure Proper Footwear for Stability

Metal roofs demand boots with serious grip to prevent slips on slick or sloped surfaces. Slip-resistant soles with firm ankle support and deep treads give workers the edge they need to stay balanced. Proper footwear is your first line of defense against slipping on metal panels.
