Fall Protection Strategies for Nu-Ray Standing Seam Roofs

See the Roof Anchor Compatibility Chart for Nu-Ray Metals Standing Seam Panels.

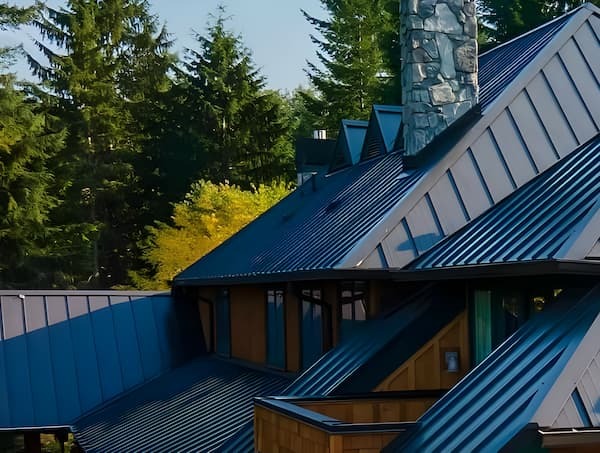

Who Is Nu-Ray Metals

Nu-Ray Metals built its reputation by giving builders dependable standing seam systems backed by West Coast manufacturing and decades of hands-on experience.

Nu-Ray Metals has grown into a significant force in the metal roofing and siding world, especially across the West Coast. With headquarters in Auburn, Washington, and an additional facility in Grand Terrace, California, the company supports residential and commercial projects with a wide range of durable metal roofing products.

A key strength of Nu-Ray Metals is its lineup of standing seam panels. These systems use a one-piece snaplock feature that speeds installation and produces a clean, uniform appearance across long panel runs. Because the panels can be factory roll-formed into continuous lengths, they can span impressive distances without end laps. That detail improves durability, keeps water out, and delivers a sleek architectural finish that builders appreciate.

What Are the Most Compatible Fall Protection Anchors for Nu-Ray Standing Seam Systems?

Nu-Ray standing seam panels require specific non-penetrating anchors that protect the seam profile while keeping workers safely tied off.

Choosing compatible fall protection anchors for Nu-Ray's standing seam systems is critical to protect the roof system and the workers. Any anchor that pierces the metal can cause damage, leaks, or warranty issues. Safety managers, roofing contractors, and building owners benefit when they match the right anchor to the right seam.

Most 24-gauge Nu-Ray standing seam panels pair well with the SSRA1 Standing Seam Roof Anchor and adapter plates. Its low-torque, set-screw gripping design creates a secure, non-penetrating connection that preserves the roof and keeps workers safely tied off.

When crews need walkboards, the SSRA2 Adjustable Roof Jack Adapters mount on top of the SSRA1 and support a ten-foot plank. Workers needing good mobility on larger roofs can use the SSRA3 Anchor Plates and the SSRA HLL 100-foot Temporary Horizontal Lifeline Kit for tie-offs. Permanent tie-off systems are easy to install for roofs that require routine access. The Super Anchor 120-foot Permanent Horizontal Lifeline Kit is perfect for mechanically-seamed standing seam roofs that don't allow penetrations.

For lighter 26-gauge panels, the Ridge Pro Steep Assist Anchor is the best option for a worker's temporary anchorage. It hooks over the ridge and creates a stable, non-penetrating tie-off point on slopes between 6:12 and 12:12. This keeps workers secure on thinner-gauge panels that cannot support seam-mounted anchorage.

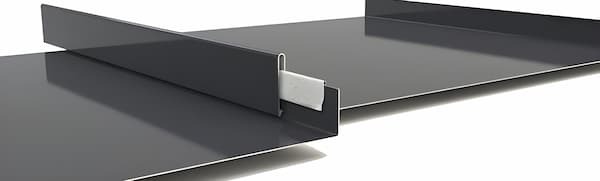

NRM-1000 Snaplock Panel

The NRM-1000 panel provides dependable performance with a clean snaplock seam and strong material options for residential and commercial roofs.

The NRM-1000 is a straightforward, low-maintenance snaplock panel built for durability. It uses a 1.5-inch seam height with standard widths of 12 and 16 inches. Installers can tailor the look using flat, striated, or ribbed accents, and the floating clip helps the panel manage thermal expansion without distorting. Nu-Ray manufactures this panel in 24-gauge and 26-gauge steel, giving builders a solid balance of strength and versatility. With a minimum pitch of 3:12, the NRM-1000 fits a wide range of residential and commercial roofs. See the Roof Anchor Compatibility Chart for Nu-Ray Metals NRM-1000 Standing Seam Panels.

Fall Protection For Nu-Ray NRM-1000

SSRA anchors provide the strongest non-penetrating tie-off option for NRM-1000 panels formed from heavier 24-gauge steel.

The 24-gauge NRM-1000 works seamlessly with the entire SSRA system. The SSRA1 Seam Anchor clamps securely to the seams without piercing the metal, preserving the roof's weather-tight seal. When walkboards are required, the SSRA2 Adjustable Roof Jack Adapters mount on top of SSRA1 anchors and support a 10-foot plank, allowing workers to move safely across steep metal roof areas. SSRA3 Anchor Plates also mount on top of SSRA1 anchors, creating attachment points for temporary horizontal lifelines.

The SSRA HLL 100-foot Temporary Horizontal Lifeline Kit extends fall protection coverage for multi-worker projects, and the Super Anchor 120-foot Permanent Horizontal Lifeline Kit provides a long-term solution for maintenance tie-off needs.

The 26-gauge NRM-1000 is not compatible with seam-mounted SSRA anchors. For these panels, the Ridge Pro Steep Assist Anchor provides the safest non-penetrating tie-off option. It hooks over the ridge and works effectively on roof pitches between 6:12 and 12:12.

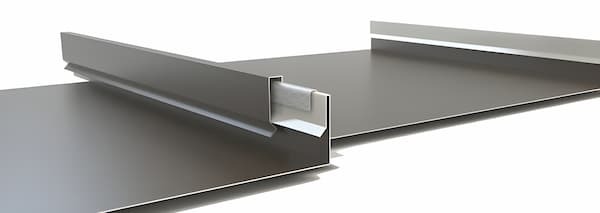

Nu-Ray Metals NRM-1750 Snaplock Panel

The NRM-1750 panel delivers high strength, smooth installation, and reliable performance with a snaplock system built for demanding environments.

The NRM-1750 offers strong structural performance with a streamlined installation process. The 1.75-inch rib locks continuously without seaming, and the floating clip helps the panel move with temperature changes, keeping the roof smooth and tight over time. Installers can choose 14-inch or 18-inch widths along with accent options such as flat, striations, ribs, and clip relief. With a minimum roof pitch of 2:12 and available in 24-gauge and 26-gauge steel, the NRM-1750 is well-suited for residential, commercial, and light industrial projects. See the Roof Anchor Compatibility Chart for Nu-Ray Metals NRM-1750 Standing Seam Panels.

Fall Protection For Nu-Ray NRM-1750

SSRA anchors give workers the strongest non-penetrating tie-off option for straight NRM-1750 panels in 24-gauge steel.

For the 24-gauge NRM-1750 panels, the SSRA1 Standing Seam Roof Anchor provides a solid, non-penetrating tie-off point. Crews can mount SSRA2 Adjustable Roof Jack Adapters on top of the SSRA1 anchors to support a ten-foot walkboard for better footing. The SSRA3 Anchor Plates also mount to SSRA1 anchors and serve as the base for temporary horizontal lifelines. Workers on wider roof areas benefit from the SSRA HLL 100-foot Temporary Horizontal Lifeline Kit, which protects multiple workers across extended roof sections. Permanent access needs are covered by the Super Anchor 120-foot Permanent Horizontal Lifeline Kit, giving building owners a long-term fall protection system for future maintenance.

The 26-gauge NRM-1750 panel requires a different approach because lighter substrates do not support seam-mounted anchors. For these installations, the Ridge Pro Steep Assist Anchor is an excellent temporary fall protection option. It hooks over the ridge and provides a stable, non-penetrating tie-off point on slopes between 6:12 and 12:12. This keeps workers tied off from the ladder to the ridge and back again, which matters when the job involves a standing seam system that cannot accept clamp-based anchors.

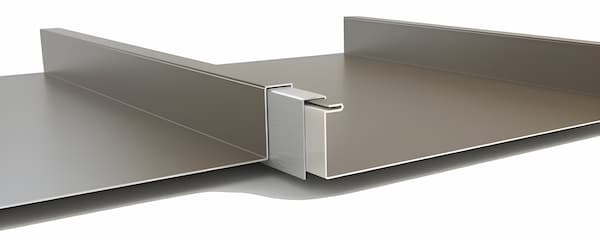

NRM-2000 Mechanical Panel

The NRM-2000 brings structural strength to low-slope roofs with a mechanical seam that delivers strong weather performance.

The NRM-2000 is for low-slope projects that require both structural integrity and clean architectural lines. Its 1-1/2-inch rib sits on a panel that includes a built-in anti-siphon seam for improved weather resistance. Installers can also order factory-injected sealant for projects that require added protection, and on-site forming is available for continuous lengths. See the Roof Anchor Compatibility Chart for Nu-Ray Metals NRM-2000 Standing Seam Panels.

Standard panel widths include 12 and 16 inches. Nu-Ray forms this panel from 24-gauge and 26-gauge steel, and the floating clip system, spaced at 18 inches, helps the panel handle thermal expansion without oil-canning the panel surface. The minimum roof pitch is 1/2:12, which makes this panel a strong fit for low-slope structures that still need metal's durability and long service life.

Fall Protection For Nu-Ray NRM-2000

SSRA1 anchors create the most secure non-penetrating tie-off setup for the 24-gauge NRM-2000 panels.

For NRM-2000 panels manufactured in 24-gauge steel, the SSRA1 Standing Seam Roof Anchor provides a strong non-penetrating attachment point. It clamps to the seam without piercing the metal, which preserves the roof's weather-tight seal. When workers need 10-foot walkboards on steep roof areas, the SSRA2 Adjustable Roof Jack Adapters mount on top of SSRA1 anchors and adjust for seam height and roof pitch.

The SSRA3 Anchor Plates also mount on SSRA1 anchors and act as attachment anchors for temporary horizontal lifelines. When the job calls for larger roof coverage, the SSRA HLL 100-foot Temporary Horizontal Lifeline Kit adds reliable multi-worker fall protection. The Super Anchor 120-foot Permanent Horizontal Lifeline Kit provides maintenance workers with an OSHA-compliant lifeline for future roof access.

For 26-gauge NRM-2000 models, seam-mounted anchors are not compatible. These lighter panels require a different attachment method. The Ridge Pro Steep Assist Anchor becomes the best option, hooking over the ridge to create a safe, non-penetrating tie-off point on roof pitches between 6:12 and 12:12. This setup keeps workers protected without compromising panel strength or shape.

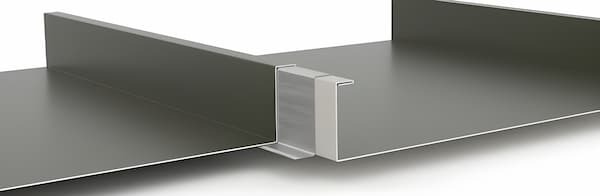

NRM-2200 Mechanical Panel

The NRM-2200 delivers structural performance that contractors can count on, backed by clean architectural lines and long-term durability.

Its 2-inch seam height creates a strong mechanical-lock profile that crews field-seam after installation, tightening the system into a weather-resistant, structurally sound roof. Panel widths include 14, 16, and 18 inches, giving installers enough flexibility to match layout needs on commercial and residential projects. Nu-Ray manufactures the NRM-2200 in 24- and 26-gauge steel, and customers can select from 20-, 30-, 40-, or even 50-year warranty packages. An optional factory-applied sealant is available for projects that require an added layer of weather protection. See the Roof Anchor Compatibility Chart for Nu-Ray Metals NRM-2200 Standing Seam Panels.

Fall Protection For Nu-Ray NRM-2200

For 24-gauge NRM-2200 panels, crews achieve the strongest non-penetrating tie-off setup with SSRA1 Seam Anchors, SSRA2 Adjustable Roof Jacks, and SSRA3 Anchor Plates.

The SSRA1 clamps lock onto the standing seam without drilling through the metal; the SSRA2 adapters turn those anchors into stable walkboard supports; and the SSRA3 plates create mounting points for temporary horizontal lifelines. Both the SSRA HLL 100' Temporary Horizontal Lifeline Kit and the Super Anchor 120' Permanent Horizontal Lifeline Kit protect the roof with seam-mounted anchors and non-penetrating set screws.

The 26-gauge version needs a different approach. Seam-mounted anchors are not compatible with lighter-gauge steel panels; therefore, the Ridge Pro Steep Assist Anchor is the best bet. It hooks over the ridge and creates a secure, non-penetrating tie-off point on slopes from 6:12 to 12:12, keeping crews tied off without risking panel deformation or seam damage.

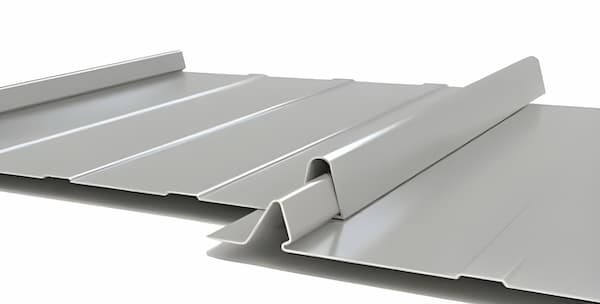

NRM-5000 Nailstrip Snaplock Panel (Not compatible with SSRA products)

The NRM-5000 panel delivers a crisp architectural look for projects that require a one-piece snaplock profile with fast installation.

It uses a 1-inch-tall rib and a standard 12-inch width, with accent options including striations and ribs. Installers can choose 24-gauge or 26-gauge steel, and the panel works well on roofs with a minimum pitch of 3:12, which keeps it flexible across a wide range of designs. See the Roof Anchor Compatibility Chart for Nu-Ray Metals NRM-5000 Standing Seam Panels.

Fall Protection For Nu-Ray NRM-5000

The tapered seam shape of the NRM-5000 does not accept seam-mounted anchors, so SSRA1 seam anchors, SSRA2 Roof Jacks, and SSRA3 Anchor Plates are not compatible with it.

The safest non-penetrating option is the Ridge Pro Steep Assist Anchor, which hooks over the ridge and provides a dependable tie-off point on 24-gauge and 26-gauge steel panels. The Ridge Pro keeps workers connected from the ladder to the ridge on slopes from 6:12 to 12:12, providing a safe, predictable way to access and navigate the roof.

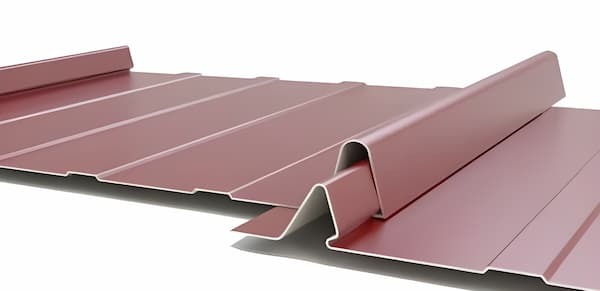

NRM-6000 Nailstrip Snaplock Panel (Not compatible with SSRA products)

The NRM-6000 panel delivers a cost-effective and clean architectural look that works well for roofs, mansards, canopies, and fascia.

These one-piece snaplock panels are available in 12-inch and 16-inch widths and in 24-gauge or 26-gauge steel. The 1-inch rib height and optional striations or ribs give installers enough design flexibility while keeping the system simple to install. With a minimum roof pitch requirement of 3:12, the NRM-6000 fits a wide range of residential and light-commercial applications. See the Roof Anchor Compatibility Chart for Nu-Ray Metals NRM-6000 Standing Seam Panels.

Fall Protection For Nu-Ray NRM-6000

The seam shape on the NRM-6000 prevents seam-mounted anchorage from properly gripping the panel, ruling out the SSRA1, SSRA2, and SSRA3 systems.

The Ridge Pro Steep Assist Anchor becomes the best fall protection option for this profile because it hooks securely over the ridge and creates a stable, non-penetrating tie-off point on slopes from 6:12 to 12:12. With the Ridge Pro in place, workers can navigate the NRM-6000 safely during installation and maintenance while preserving the roof's integrity.

Standing Seam Metal Roof Anchor Panel Compatibility Chart For Nu-Ray Metals



Contact Us for Expert Standing Seam Fall Protection Advice

For expert guidance on standing seam roof anchors, lifeline kits, and fall protection systems that protect both your crew and your panels, contact us today at 863-703-4522 or visit www.StandingSeamRoofAnchor.com. Our safety specialists can help you match the right non-penetrating anchor to your specific roof profile and slope. Let's make your next metal roofing project safe, compliant, and built to last. For continued learning, download OSHA's 48-page Fall Protection Manual and our free Anchor Inspection Form once you've selected the ideal anchors for your roof system. Together, we'll help you stay ahead of OSHA standards while preserving your roof's weather-tight seal.

Safety Tips For Standing Seam Roofs

Use Specialized Anchor Systems for Standing Seam Roofs

The SSRA1 Standing Seam Roof Anchor clamps feature 12 low-torque stainless set screws that spread the load across a 12-inch section of seam. Avoid older clamp designs that rely on heavy torque or require guessing where hidden clips sit under the panel. Precision matters. A properly mounted SSRA1 anchor provides a predictable tie-off point that roof crews can rely on throughout the day.

Develop OSHA-Compliant Safety Plans

A strong safety plan gives crews a clear path to follow instead of reacting on the fly. Mark where workers must tie off, outline when to switch from restraint to arrest, and define who initiates rescue procedures if something goes wrong. Safety managers should revise that plan as the job evolves.

Encourage the Use of Trauma Straps

When a fall arrest system stops the drop, trauma straps help prevent the suspension injury that can follow. They let a worker stand up in their harness and relieve leg pressure until the rescue crew arrives. Treat trauma straps as standard equipment, not a specialty accessory. On Nu-Ray roofs with steep metal panels or limited access points, they often make the difference between a manageable rescue and a medical emergency.

Install Permanent Roof Anchor Systems

Many facilities built with Nu-Ray panels require repeated rooftop access for maintenance or inspections. Permanent systems, such as the Super Anchor 120-foot Permanent Horizontal Lifeline Kit, simplify that access. Crews can clip in immediately without hunting for a temporary anchor location or setting up new tie-offs every visit. These systems preserve the roof warranties, meet OSHA and ANSI requirements, and reduce setup time during routine service calls.

Ensure Proper Footwear for Stability

Slip-resistant boots with firm ankle support help workers stay steady on Nu-Ray's smooth panel surfaces. Good footwear reduces fatigue, improves balance, and keeps feet planted during steep ascents. When combined with a tie-off to an SSRA1 seam anchor on heavier-gauge panels or a Ridge Pro ridge point on 26-gauge systems, workers gain three essentials at once: traction, balance, and reliable fall protection.

Equip Workers with High-Quality Safety Gear

A harness that truly fits and an SRL that engages smoothly give crews the confidence to work efficiently and safely. The intended user should inspect every Malta Dynamics SRL and connector. OSHA's updated focus on fit and inspection makes this even more critical. Paired with an SSRA1 or Ridge Pro tie-off point, properly fitted gear becomes the backbone of safe roof access.

Set Up Protective Guardrail Barriers for Work Zones

Guardrails provide a simple but effective barrier on expansive Nu-Ray projects. They highlight danger zones around edges, skylights, or staging areas, keeping crews aware of their surroundings while they focus on installations. When combined with seam-mounted SSRA anchors or ridge-mounted Ridge Pro devices, guardrails help define safe work areas and reduce exposure near leading edges.

Promote a Culture of Safety

Quick morning discussions about weather, construction updates, or material staging instructions can help everyone stay aligned. When crews speak up about close calls or awkward footing on a particular run, others can avoid the same mistake. A strong safety culture turns careful behavior into a shared expectation.

Consult Experts for Curved Metal Panels

While Nu-Ray does not offer curved versions of the profiles in this article, contractors occasionally encounter curved metal roof structures. In those cases, a fall protection specialist should evaluate the roof before anyone steps onto it. Curved surfaces distribute load differently, and choosing the wrong anchor can compromise both worker safety and the roof system beneath their feet.

Prioritize Ladder Safety Training

Before anyone steps onto a Nu-Ray roof, they must reach it safely. Ladder training should start with checking the rails, feet, and locks for damage, then setting the ladder at the proper four-to-one angle. Maintaining three points of contact on every climb is non-negotiable.
