Fall Protection Strategies For Taylor Metal Products Standing Seam Roofs

See the Roof Anchor Compatibility Chart for Taylor Metal Products Standing Seam Panels.

Who Is Taylor Metal Products?

Taylor Metal Products has been building its reputation for nearly a century, starting in 1928 when Glenn Taylor founded the company in Washington.

What began as a finishing operation for home appliances grew quickly as the company expanded into automotive and agricultural manufacturing under the direction of Glenn's son, Richard. His engineering background helped shape Taylor Metal's practical, performance-driven approach to fabrication.

That foundation eventually led Taylor Metal into metal roofing and siding, where the company found its long-term focus. By concentrating on standing seam systems and jobsite-friendly panel designs, Taylor Metal carved out a strong presence across Washington, Oregon, Idaho, and California. Contractors came to rely on the company for panels that install cleanly, perform predictably, and hold up over time.

Taylor Metal designs its standing seam panels with concealed fasteners, keeping attachment points protected beneath the roof surface instead of exposed to weather and wear. That approach reduces long-term maintenance costs and helps prevent water leaks caused by fastener failure. Details like 1-inch vertical ribs and flat seam tops also simplify flashing work at valleys, skylights, and ridges, which contractors notice once they're on the roof.

The result is a lineup of standing seam systems that balance performance, affordability, and real-world installation needs, whether the project is residential, commercial, or agricultural.

Why Non-Penetrating Fall Protection Is Critical for Taylor Metal Standing Seam Roofs

Taylor Metal standing seam panels rely on concealed clips and controlled thermal expansion. That design allows the roof to expand and contract naturally as temperatures change.

If fall protection equipment pierces the panel or seam, it works against those principles. Penetrations restrict movement, distort panel finishes, and often cause water leaks that do not appear until years later.

Non-penetrating fall protection systems eliminate that risk by attaching without drilling through the panel. Seam-mounted anchors clamp directly to the standing seam, preserving the roof's weather-tight seal while creating reliable tie-off points for workers. On compatible Taylor Metal profiles, this approach protects both the crew and the roof system simultaneously.

The SSRA1 Standing Seam Roof Anchor provides a single-worker tie-off point by clamping to the seam with non-penetrating set screws. Because it avoids contact with concealed clips, the panel can still move as designed. When crews need a level working surface on steep metal roofs, SSRA2 Adjustable Roof Jack Adapters attach above SSRA1 anchors and support 10-foot walkboards.

For larger roof areas or multi-worker access, SSRA3 Anchor Plates are installed on top of SSRA1 anchors and allow horizontal lifeline attachment. This setup lets crews move laterally across the roof while staying tied off, reducing the need to disconnect and reposition anchors every few feet.

For temporary use, the SSRA HLL 100-foot Temporary Horizontal Lifeline Kit provides a fast, non-penetrating solution that can be installed and removed quickly by the crew. For buildings that require regular rooftop access over the life of the structure, the Super Anchor 120-foot Permanent Horizontal Lifeline Kit offers dedicated tie-off locations that simplify future maintenance and discourage unsafe tie-off practices.

On Taylor Metal panels where seam-mounted anchors are not compatible, or on steeper roofs with a 6:12 to 12:12 pitch, the Ridge Pro Steep Assist provides another non-penetrating option. This ridge-mounted anchor allows workers to connect a vertical lifeline before stepping onto the roof surface, providing continuous protection from the ladder to the ridge without drilling into finished metal panels.

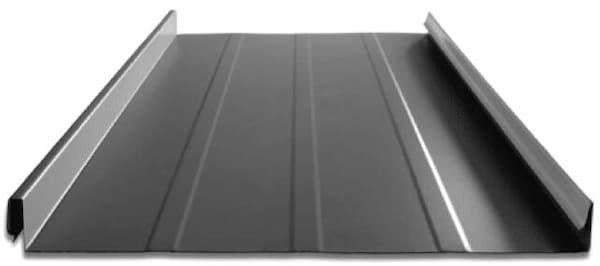

Versa-Span Snap Lock Panel (SSRA Compatible)

The Versa-Span Snap Lock panel from Taylor Metal Products is for projects that demand clean architectural lines and dependable structural performance.

Its snap-lock rib design pairs a fluted pan with concealed attachment points, maintaining strength while preserving a smooth, uninterrupted roof surface. This balance makes Versa-Span well-suited for low-slope applications where panel movement, appearance, and durability all matter. See the Roof Anchor Compatibility Chart for Taylor Metal Products Versa-Span Snap Lock 22 Gauge and 24 gauge Standing Seam Panels.

Versa-Span panels are available in 12-inch, 14-inch, 16-inch, and 18-inch coverage widths, giving designers flexibility when managing proportions across larger roof planes. Taylor Metal produces the panel in 22-gauge and 24-gauge Tru-Gauge™ steel, as well as .032-inch and .040-inch aluminum, allowing material selection to align with structural demands and design intent. A floating clip system supports thermal expansion across longer panel lengths, which is especially important on expansive roof layouts.

Standard panel lengths range from 5 feet up to 60 feet, with factory notching available to streamline installation. The 1-3/4-inch vertical rib height contributes to the panel's strength. Optional striations, accent ribs, or flat pans allow visual refinement without sacrificing performance. Versa-Span meets UL 580 Class 90 wind uplift and UL 790 Class A fire-resistance standards, and its Kynar 500® finish supports long-term color stability, backed by a 40-year residential paint warranty.

Fall Protection for Versa-Span Panels

Versa-Span panels fabricated from 22-gauge or 24-gauge steel are compatible with non-penetrating, seam-mounted fall protection systems that preserve panel movement and long-term performance.

The SSRA1 Standing Seam Roof Anchor provides a reliable tie-off point by clamping directly to the snap-lock seam without drilling through the panel. When walkboards are needed, SSRA2 Adjustable Roof Jack Adapters attach to SSRA seam anchors, providing crews with a stable working platform on sloped metal roofs.

For projects that require greater mobility across the roof surface, SSRA3 Anchor Plates allow horizontal lifeline attachment without seam penetrations. The SSRA HLL 100-foot Temporary Horizontal Lifeline Kit offers a removable installation solution. The Super Anchor 120-foot Permanent Horizontal Lifeline Kit provides long-term tie-off locations for buildings with ongoing rooftop activity.

On Versa-Span panels fabricated from aluminum or lighter-gauge substrates, or on roof slopes between 6:12 and 12:12, the Ridge Pro Steep Assist serves as the preferred non-penetrating option. This ridge-mounted anchor allows workers to connect a vertical lifeline before stepping onto the roof surface, maintaining continuous protection while keeping finished panels free of penetrations.

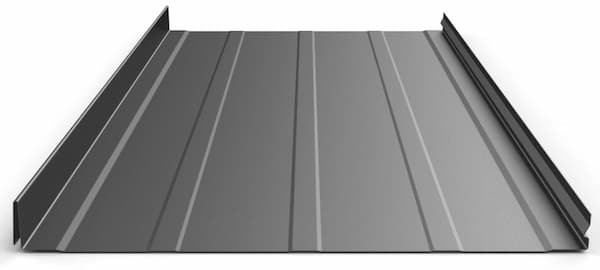

Slim-Lock Snap Lock Panel (SSRA Compatible)

Taylor offers Slim-Lock in 12-inch, 16-inch, and 20-inch coverage widths, so crews can choose a layout that matches the roof size and the look the customer wants.

The panel is available in 22-gauge and 24-gauge Tru-Gauge™ steel, with copper also available for higher-end applications. A 1-1/2-inch vertical seam height gives the system a solid snap-lock seam without appearing oversized. Factory notching helps speed up installation, and concealed fasteners keep the roof clean while eliminating the headache of exposed screws that can loosen over time and cause water leaks. See the Roof Anchor Compatibility Chart for Taylor Metal Products Slim-Lock Snap Lock 22 Gauge and 24 gauge Standing Seam Panels.

Slim-Lock typically runs from 4 feet to 60 feet in standard lengths, and on-site roll forming can exceed that when the job demands it. The panel also carries familiar performance benchmarks, including UL 580 Class 90 for wind uplift and UL 790 Class A for fire resistance, which helps when specs, inspections, or approvals are part of the conversation.

Fall Protection for Slim-Lock Panels

Slim-Lock installations in 22-gauge or 24-gauge steel pair well with seam-mounted, non-penetrating fall protection.

The SSRA1 Standing Seam Roof Anchor clamps to the snap-lock seam using set screws, providing a dependable tie-off point without drilling into the panel or dealing with the concealed clip layout. When crews need a level platform, SSRA2 Adjustable Roof Jack Adapters mount on top of SSRA1 anchors and support walkboards. For wider work areas or multiple workers moving laterally, SSRA3 Anchor Plates mount on top of SSRA1 anchors and provide attachment points for horizontal lifelines.

If the job calls for a full lifeline setup, the SSRA HLL 100-foot Temporary Horizontal Lifeline Kit works well for short-term use and service work. The Super Anchor 120-foot Permanent Horizontal Lifeline Kit makes sense for buildings that see repeated rooftop traffic over the years. On Slim-Lock roofs built from copper or other non-steel substrates, or on steeper slopes between 6:12 and 12:12, the Ridge Pro Steep Assist provides a ridge-mounted, non-penetrating tie-off option, allowing crews to connect a vertical lifeline before stepping onto the metal.

Clip-Lock 100 Snap Lock Panel (SSRA Compatible)

Clip-Lock 100 panels are available in 13-inch and 17-inch coverage widths, while the related Clip-Lock 150 profile offers a wider 15.5-inch option.

The Clip-Lock 100 uses a 1-inch seam height, and the Clip-Lock 150 increases it to 1-1/2 inches, offering flexibility based on wind exposure and project requirements. Taylor Metal manufactures these panels in 22-gauge and 24-gauge steel, as well as in .032-inch and .040-inch aluminum, for projects that demand corrosion resistance. Panel lengths typically range from 3 feet to 50 feet, with custom lengths available to reduce seams and simplify layout. See the Roof Anchor Compatibility Chart for Taylor Metal Products Clip-Lock 100 Snap Lock 22 Gauge and 24 gauge Standing Seam Panels.

Produced in Taylor Metal's California facilities, the Clip-Lock system meets UL 580 Class 90 wind uplift and UL 790 Class A fire resistance ratings. Those approvals make it a practical choice for commercial, institutional, and residential projects where performance documentation matters as much as appearance.

Fall Protection for Clip-Lock 100 Panels

Clip-Lock 100 panels, fabricated from 22-gauge or 24-gauge steel, are compatible with non-penetrating, seam-mounted fall protection systems.

The SSRA1 Standing Seam Roof Anchor clamps directly to the snap-lock seam using non-penetrating set screws, creating a reliable tie-off point without drilling into the panel or interfering with the concealed clip system.

When crews need a level working surface, SSRA2 Adjustable Roof Jack Adapters mount on top of SSRA1 anchors and support walkboards. For jobs that require workers to move laterally across the roof, SSRA3 Anchor Plates mount on top of SSRA1 anchors and provide attachment points for horizontal lifelines. Temporary projects can use the SSRA HLL 100-foot Temporary Horizontal Lifeline Kit, while buildings with ongoing rooftop maintenance benefit from the Super Anchor 120-foot Permanent Horizontal Lifeline Kit.

For Clip-Lock roofs constructed from aluminum or lighter substrates, or for roof slopes between 6:12 and 12:12, the Ridge Pro Steep Assist provides a ridge-mounted, non-penetrating tie-off option. This system allows workers to connect a vertical lifeline before stepping onto the metal roof surface, keeping the panels free of penetrations while maintaining continuous protection.

Clip-Lock 150 Snap Lock Panel (SSRA Compatible)

The Clip-Lock 150 Snap Lock panel from Taylor Metal Products is a heavier-duty snap-lock system built for projects that need added seam height and increased resistance to wind and roof movement.

While it shares the snap-together installation style of the Clip-Lock 100, the taller rib gives this panel a more substantial profile that performs well on larger commercial and institutional buildings. See the Roof Anchor Compatibility Chart for Taylor Metal Products Clip-Lock 150 Snap Lock 22 Gauge and 24 gauge Standing Seam Panels.

Taylor Metal manufactures the Clip-Lock 150 in Sacramento and Riverside, California. The panel installs with a 15.5-inch coverage width and a 1-1/2-inch seam height, which adds stiffness without sacrificing the clean appearance architects expect from a snap-lock system. Material options include 22-gauge and 24-gauge steel, as well as aluminum, for projects where corrosion resistance or reduced weight are essential. Concealed clips secure the panels to the structure while allowing the roof to respond naturally to temperature changes.

Standard panel lengths range from 3 feet up to 50 feet, with longer lengths available when project conditions require them. Taylor Metal also offers flat pans, accent ribs, and striations, allowing contractors to balance visual preference with panel stability. The Clip-Lock 150 meets UL 580 Class 90 wind uplift and UL 790 Class A fire resistance requirements, giving specifiers confidence in its performance across a wide range of environments.

Fall Protection for Clip-Lock 150 Panels

Clip-Lock 150 panels, fabricated from 22-gauge or 24-gauge steel, are compatible with non-penetrating, seam-mounted fall protection systems.

The SSRA1 Standing Seam Roof Anchor clamps directly to the snap-lock seam using non-penetrating set screws, creating a dependable tie-off point without drilling into the panel or interfering with the concealed clip system. When crews need a stable work platform, SSRA2 Adjustable Roof Jack Adapters mount on top of SSRA1 anchors and support walkboards, giving roofers a secure place to work on sloped metal surfaces.

For jobs that require lateral movement or multiple workers on the roof, SSRA3 Anchor Plates mount atop SSRA1 anchors and provide attachment points for horizontal lifelines. For short-term use, the SSRA HLL 100-foot Temporary Horizontal Lifeline Kit is the best option. For buildings with ongoing service needs, the Super Anchor 120-foot Permanent Horizontal Lifeline Kit provides years of worker protection.

For Clip-Lock 150 roofs constructed from aluminum or lighter substrates, or for roof slopes between 6:12 and 12:12, the Ridge Pro Steep Assist provides a ridge-mounted, non-penetrating tie-off option. This system allows workers to connect a vertical lifeline before stepping onto the roof, keeping the panels intact while maintaining continuous protection on steeper pitches.

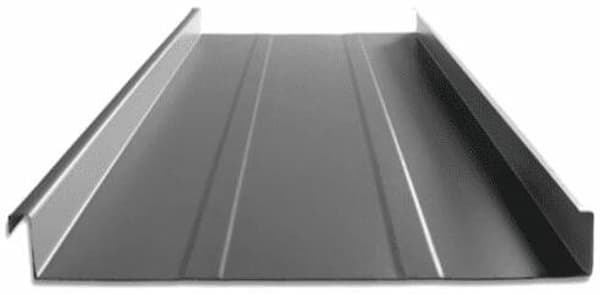

MS-100 Mechanical Standing Seam Panel (SSRA Compatible)

The MS-100 panel from Taylor Metal Products is for projects where wind, snow load, and long-term weather exposure drive the specification.

This fully mechanically seamed panel uses a field-crimped seam with butyl injected into the seam during installation, creating a tight seal that resists water intrusion even under severe conditions. That construction makes the MS-100 a strong fit for mountain regions, coastal zones, and other environments where roof failure is not an option. See the Roof Anchor Compatibility Chart for Taylor Metal Products MS-100 Mechanical 22 Gauge and 24 gauge Standing Seam Panels

The MS-100 features a 1-inch vertical rib and a floating clip system that allows the panel to move as temperatures change, which is especially important on longer panel runs. Taylor Metal offers the MS-100 in 13-inch, 17-inch, and 21-inch coverage widths, giving designers flexibility to balance appearance, strength, and material efficiency. Material options include 22-gauge and 24-gauge steel, as well as aluminum, zinc, and copper, for projects that require specialty substrates or corrosion resistance.

Manufactured in Salem, Oregon, the MS-100 is available in panel lengths from 3 feet up to 60 feet, with notched or non-notched ends depending on installation preference. The system meets UL 580 Class 90 wind uplift requirements and UL 790 Class A fire resistance ratings, reinforcing its reputation as a panel chosen for demanding roof conditions.

Fall Protection for MS-100 Panels

MS-100 panels fabricated from 22-gauge or 24-gauge steel are compatible with non-penetrating, seam-mounted fall protection systems.

The SSRA1 Standing Seam Roof Anchor clamps directly to the mechanically seamed rib using non-penetrating set screws, creating a secure tie-off point without drilling into the panel or interfering with the clip system beneath the seam.

When crews need safe footing, SSRA2 Adjustable Roof Jack Adapters mount on top of SSRA1 anchors and support walkboards, giving roofers a stable working surface on sloped metal roofs. For jobs that require movement across wider roof areas or multiple workers tied in at once, SSRA3 Anchor Plates mount on top of SSRA1 anchors and provide attachment points for horizontal lifelines. Short-term projects often use the SSRA HLL 100-foot Temporary Horizontal Lifeline Kit, while buildings with recurring rooftop access benefit from the Super Anchor 120-foot Permanent Horizontal Lifeline Kit.

For MS-100 panels made from aluminum, copper, zinc, lighter steel gauges, or for roof slopes between 6:12 and 12:12, the Ridge Pro Steep Assist is the recommended option. This ridge-mounted anchor allows workers to connect a vertical lifeline before stepping onto the roof surface, maintaining continuous protection while keeping the finished metal panels free of penetrations and long-term damage.

MS-150 Mechanical Standing Seam Panel (SSRA Compatible)

The MS-150 panel from Taylor Metal Products builds on the performance of the MS-Series™ by offering a taller seam and added structural capacity for demanding environments.

This mechanically seamed panel is for regions exposed to high winds, heavy snow loads, or wide temperature swings, where long-term roof performance matters. A butyl-injected seam is crimped during installation, helping block water intrusion and delivering dependable weather resistance throughout the life of the roof. See the Roof Anchor Compatibility Chart for Taylor Metal Products MS-150 Mechanical 22 Gauge and 24 gauge Standing Seam Panels.

The MS-150 features a 1-1/2-inch vertical rib, giving the panel increased stiffness compared to shorter seam profiles while maintaining a clean, architectural appearance. Coverage widths include 12-inch, 16-inch, and 20-inch options, allowing designers to balance strength, panel count, and visual proportion. Material choices range from 22-gauge and 24-gauge steel to aluminum, zinc, and copper, making the panel adaptable to both structural and aesthetic requirements. A floating clip system supports controlled thermal movement across longer panel lengths, helping reduce stress on seams and attachment points as temperatures change.

Manufactured in Salem, Oregon, MS-150 panels are available in lengths from 3 feet to 60 feet and require a minimum roof pitch of 1:12 for proper drainage. The system meets UL 580 Class 90 wind uplift ratings and UL 790 Class A fire resistance requirements, reinforcing its role as a reliable option for roofs exposed to severe conditions.

Fall Protection for MS-150 Panels

MS-150 panels fabricated from 22-gauge or 24-gauge steel are compatible with non-penetrating, seam-mounted fall protection systems.

The SSRA1 Standing Seam Roof Anchor clamps directly to the mechanically seamed rib using non-penetrating set screws, creating a secure tie-off point without drilling into the panel or interfering with the floating clip system beneath the seam.

When crews need a stable working surface, SSRA2 Adjustable Roof Jack Adapters mount on top of SSRA1 anchors and support walkboards, giving roofers solid footing during installation or maintenance. For wider roof areas or jobs involving multiple workers, SSRA3 Anchor Plates mount on top of SSRA1 anchors and provide attachment points for horizontal lifelines. Short-duration work often calls for the SSRA HLL 100-foot Temporary Horizontal Lifeline Kit, while facilities with ongoing rooftop access benefit from the Super Anchor 120-foot Permanent Horizontal Lifeline Kit.

For MS-150 panels manufactured from aluminum, copper, zinc, lighter steel gauges, or for roof slopes between 6:12 and 12:12, the Ridge Pro Steep Assist is the preferred option. This ridge-mounted anchor allows workers to connect a vertical lifeline before stepping onto the roof surface, maintaining continuous protection while keeping the finished metal panels free of penetrations and long-term damage.

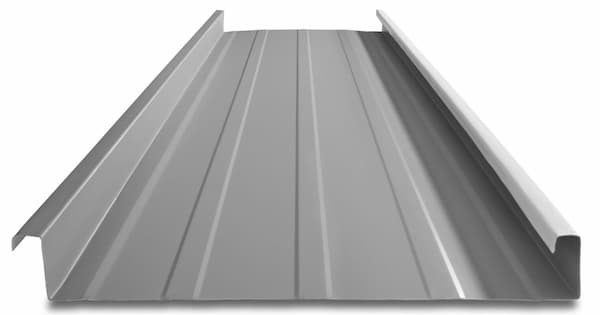

MS-200 Mechanical Standing Seam Panel (SSRA Compatible)

The MS-200 panel represents the heaviest-duty option in Taylor Metal Products' MS-Series™, built for projects where wind exposure, snow loads, and long panel runs demand maximum seam strength.

This fully crimped mechanical system uses a butyl-injected seam that is locked during installation, creating a tight seal that resists water intrusion even under sustained wind pressure and freeze–thaw cycles. It is a panel often specified when failure is not an option. See the Roof Anchor Compatibility Chart for Taylor Metal Products MS-200 Mechanical 22 Gauge and 24 gauge Standing Seam Panels.

With a 2-inch vertical rib, the MS-200 delivers greater rigidity than lower-profile MS panels, making it well-suited for large commercial, industrial, and institutional roofs. Coverage widths include 12-inch, 14-inch, 16-inch, and 18-inch options, allowing designers to fine-tune panel layout for structure and appearance. The panel is available in 22-gauge and 24-gauge steel, as well as aluminum and zinc substrates, giving engineers flexibility when balancing strength, corrosion resistance, and project environment. A floating clip system supports thermal movement across long roof spans, helping protect seams and attachment points as temperatures fluctuate.

Taylor Metal manufactures the MS-200 panel in Salem, Oregon, Riverside, California, and Sacramento, California. Standard panel lengths range from 3 feet to 60 feet, with on-site roll forming available for projects that exceed those limits. The MS-200 meets demanding performance benchmarks, including UL 580 Class 90 wind uplift and FM 4471 approvals for wind, fire, and hail resistance, reinforcing its role as a high-performance roofing system for severe environments.

Fall Protection for MS-200 Panels

MS-200 panels fabricated from 22-gauge or 24-gauge steel are compatible with non-penetrating, seam-mounted fall protection systems.

The SSRA1 Standing Seam Roof Anchor clamps directly to the mechanically seamed rib using non-penetrating set screws, creating a secure tie-off point without drilling into the panel or interfering with the floating clip system beneath the seam. SSRA2 Adjustable Roof Jack Adapters mount on top of SSRA1 anchors and support walkboards, helping roofers move safely across steeper roof sections.

For wider roof areas or jobs involving multiple workers, SSRA3 Anchor Plates mount on top of SSRA1 anchors and provide attachment points for horizontal lifelines. Short-term projects often rely on the SSRA HLL 100-foot Temporary Horizontal Lifeline Kit. At the same time, buildings with ongoing maintenance needs benefit from the Super Anchor 120-foot Permanent Horizontal Lifeline Kit.

For MS-200 panels manufactured from aluminum, zinc, lighter steel gauges, or for roof slopes between 6:12 and 12:12, the Ridge Pro Steep Assist is the preferred fall protection solution. This ridge-mounted anchor allows workers to connect a vertical lifeline before stepping onto the roof surface, maintaining continuous protection while keeping the finished metal panels free of penetrations and long-term damage.

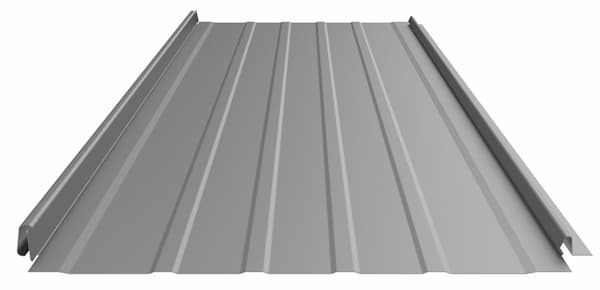

Easy-Lock Nailstrip Standing Seam Panel (Ridge Pro Only)

The Easy-Lock™ panel from Taylor Metal Products is a nailstrip standing seam system built for contractors who want installation flexibility without sacrificing long-term performance.

One of its standout features is the patented no-siphon dry-lock seam, which helps control water migration while allowing panels to lock together cleanly. The reversible design lets crews start installation from either direction on the roof, a practical advantage on complex layouts or phased projects where sequencing matters. See the Roof Anchor Compatibility Chart for Taylor Metal Products Easy-Lock Nailstrip Standing Seam Panels.

Easy-Lock panels install in 12-inch and 16-inch coverage widths and feature softer seam lines that appeal to residential and light-commercial designs, where appearance carries just as much weight as performance. The panel features a 1-inch vertical rib with a 3/8-inch flat top, simplifying flashing details and trim transitions. Concealed fasteners secure the nailstrip flange to the deck, keeping the finished surface clean while reducing the risk of water leaks associated with exposed fasteners.

Material options include 26-gauge, 24-gauge, and 22-gauge Tru-Gauge™ steel, .032-inch aluminum, and copper, allowing the panel to adapt to a wide range of climates and design goals. Easy-Lock panels carry UL 580 Class 90 wind uplift and UL 790 Class A fire ratings, and Taylor Metal finishes the system with Kynar 500® coatings for long-term color stability and durability backed by residential and commercial paint warranties.

Fall Protection for Easy-Lock Panels

Easy-Lock nailstrip panels are not compatible with seam-mounted fall protection anchors due to the nailstrip flange and seam design.

For roof slopes between 6:12 and 12:12, the Ridge Pro Steep Assist is the recommended fall protection solution. This ridge-mounted anchor allows workers to connect a vertical lifeline before stepping onto the roof surface, providing reliable protection on steeper pitches while keeping the Easy-Lock panels free of penetrations, deformation, and long-term performance issues.

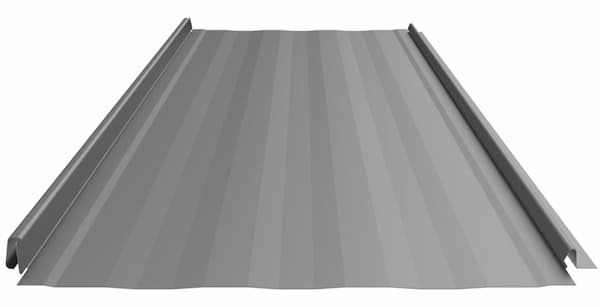

StreamLine Nailstrip Standing Seam Panel (Ridge Pro Only)

The StreamLine™ panel from Taylor Metal Products is a nailstrip standing seam system built for projects where clean lines, predictable performance, and installation efficiency matter.

StreamLine panels install in a 16-inch coverage width and are manufactured from 26-gauge Tru-Gauge™ ArmorTech™ painted steel. This lighter-gauge construction keeps the system cost-effective while still delivering dependable weather resistance for residential and light commercial applications. The panel's 1-inch vertical rib includes a 3⁄8-inch flat top, making flashing and trim details easier to manage. Concealed fasteners secure the nailstrip flange to the deck, keeping the finished roof surface clean and reducing the risk of water leaks associated with exposed fasteners. See the Roof Anchor Compatibility Chart for Taylor Metal Products StreamLine Nailstrip Standing Seam Panels.

Taylor Metal offers StreamLine panels factory-notched and tabbed, with a minimum roof pitch of 3:12 for proper drainage and long-term performance. StreamLine panels carry UL 580 Class 90 wind uplift and UL 790 Class A fire ratings under the Easy-Lock™ profile designation. The ArmorTech™ paint system adds another layer of durability and color retention, backed by a 40-year residential paint warranty.

Fall Protection for StreamLine Panels

StreamLine panels are manufactured from 26-gauge steel and use a nailstrip attachment method, making them incompatible with seam-mounted fall protection anchors.

For roof slopes between 6:12 and 12:12, the Ridge Pro Steep Assist is the recommended fall protection solution. This ridge-mounted anchor allows workers to connect a vertical lifeline before stepping onto the roof surface, providing reliable protection on steeper pitches while keeping the StreamLine panels free of penetrations, distortion, and long-term performance concerns.

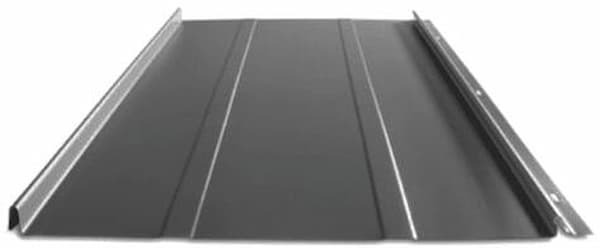

Premier-Lock 100 Nailstrip Standing Seam Panel (Ridge Pro Only)

The Premier-Lock™ 100 panel from Taylor Metal Products is a nailstrip standing seam system designed for projects where visual softness and dependable weather protection matter as much as structural performance.

Its anti-capillary dry-lock seam helps manage water at the seam line, reducing the risk of moisture migration while maintaining a smooth, architectural appearance that fits well in residential and light-commercial settings. See the Roof Anchor Compatibility Chart for Taylor Metal Products Premier-Lock 100 Nailstrip Standing Seam Panels.

Premier-Lock 100 installs in a standard 15.75-inch coverage width and features a 1-inch vertical rib that keeps the profile low and refined. The panel is available in 22-gauge or 24-gauge steel and installs over a solid deck using a concealed, pre-slotted nailstrip flange. That flange allows the panel to move naturally with temperature changes, helping preserve seam alignment and finish quality over time.

Taylor Metal offers Premier-Lock 100 panels with optional striations, accent ribs, or flat pan configurations, giving designers flexibility without altering the seam design. Performance testing includes UL 580 Class 90 wind uplift and UL 790 Class A fire ratings, confirming the panel's suitability for a wide range of environments.

Fall Protection for Premier-Lock 100 Panels

Premier-Lock 100 nailstrip panels are not compatible with seam-mounted fall protection anchors because of their fastened flange and seam design.

For roof slopes between 6:12 and 12:12, the Ridge Pro Steep Assist is the recommended fall protection solution. This ridge-mounted anchor allows workers to connect a vertical lifeline before stepping onto the roof surface, providing reliable protection on steeper pitches while keeping the Premier-Lock 100 panels free of penetrations, deformation, and long-term performance issues.

Premier-Lock 150 Nailstrip Standing Seam Panel (Ridge Pro Only)

The Premier-Lock™ 150 panel from Taylor Metal Products builds on the Premier-Lock line by offering a taller seam and added visual depth while keeping the same clean, architectural feel.

Its anti-capillary dry-lock seam helps control moisture at the seam, supporting long-term weather resistance without relying on exposed fasteners or surface penetrations. This feature makes the panel a strong option for residential and light commercial projects where appearance and performance need to work together. See the Roof Anchor Compatibility Chart for Taylor Metal Products Premier-Lock 150 Nailstrip Standing Seam Panels.

Premier-Lock 150 installs in a 14.75-inch coverage width and features a 1-1/2-inch vertical rib that adds subtle shadow lines and increased rigidity compared to lower-profile nailstrip systems. The panel is available in 22-gauge and 24-gauge steel and installs over a solid deck using a concealed, pre-slotted fastener flange. That flange allows the panel to expand and contract with temperature changes, helping maintain seam alignment and finish quality over time.

Design options for the Premier-Lock 150 include striations, accent ribs, and flat pan configurations, giving designers flexibility without altering the panel's attachment method. Taylor Metal manufactures the Premier-Lock 150 in Sacramento and Riverside, California, with standard lengths ranging from 2 feet to 35 feet, with longer lengths available upon request. The panel meets UL 580 Class 90 wind uplift and UL 790 Class A fire resistance ratings, confirming its suitability for a wide range of environments.

Fall Protection for Premier-Lock 150 Panels

Premier-Lock 150 nailstrip panels are not compatible with seam-mounted fall protection anchors. For roof slopes between 6:12 and 12:12, the Ridge Pro Steep Assist is the recommended fall protection solution.

This ridge-mounted anchor allows workers to connect a vertical lifeline before stepping onto the roof surface, providing dependable protection on steeper pitches while keeping the Premier-Lock 150 panels free of penetrations.

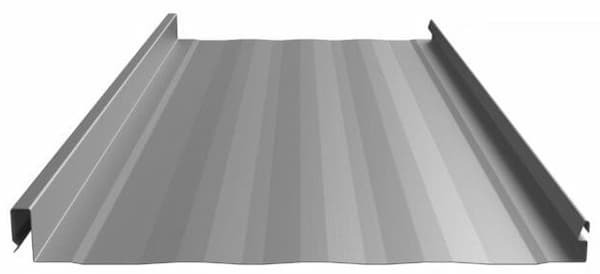

SL-15 Snap Lock Standing Seam Panel (Ridge Pro Only)

The SL-15 Snap Lock panel is an architectural standing-seam system that emphasizes clean lines and a refined visual profile.

Its narrow, vertical ribs create a classic appearance that works well on residential and light commercial projects where aesthetics matter as much as performance. Unlike mechanically seamed panels, the SL-15 uses a snap-lock rib, eliminating the need for field seaming while still delivering a tight, consistent seam. See the Roof Anchor Compatibility Chart for Taylor Metal Products SL-15 Snap Lock Standing Seam Panels.

Manufactured in Spokane, Washington, the SL-15 has 15-inch coverage and is made of 24- or 26-gauge steel. A concealed clip system secures the panels while allowing controlled thermal movement, which helps maintain alignment and finish quality over time. The 1-1/2-inch vertical rib adds definition to the roof surface while contributing to overall panel strength.

Design flexibility is another strong point of the SL-15. Contractors and designers can choose from striations, pencil ribs, or flat pan configurations to achieve the desired look without changing the panel's attachment method. All painted panels include a corrosion-resistant metallic layer beneath the primer and topcoat, and the ArmorTech™ SMP paint system carries a 40-year written paint warranty, supporting long-term durability and color retention.

Fall Protection for SL-15 Panels

The finished seam design of the SL-15 Snap Lock panel is not compatible with seam-mounted fall protection anchors. Because of the wide snap-lock seam shape, SSRA products cannot clamp securely without risking seam damage or improper attachment.

For roof slopes between 6:12 and 12:12, the Ridge Pro Steep Assist is the recommended fall protection solution. This ridge-mounted anchor allows workers to connect a vertical lifeline before stepping onto the roof surface, providing continuous protection while keeping the SL-15 panels free of penetrations, deformation, and long-term performance issues.

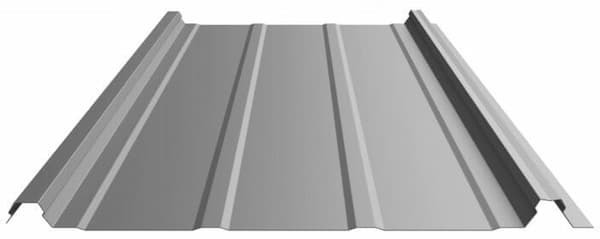

Loc-Rib Snap Lock Standing Seam Panel (Ridge Pro Only)

The Loc-Rib™ panel from Taylor Metal Products is a concealed-fastener snap lock system designed for efficiency, reliability, and clean roof lines.

That simplified attachment method makes Loc-Rib a popular option for residential and light commercial projects where installation speed and long-term performance both matter. See the Roof Anchor Compatibility Chart for Taylor Metal Products Loc-Rib Snap Lock Standing Seam Panels.

Manufactured in Spokane, Washington, 16-inch Loc-Rib panels feature a 7⁄8-inch vertical rib. The panel is produced from 24-gauge or 26-gauge Tru-Gauge™ high-tensile steel, providing strong load capacity while keeping overall roof weight manageable.

One of Loc-Rib's defining features is its interlocking rib design with a built-in mastic recess. That detail helps create a positive lock at the seam. It supports long-term weather resistance without relying on mechanical seaming. Standard panel lengths range from 3 feet to 40 feet, with longer lengths available upon request. Accent ribs are available for added visual interest without changing the panel's attachment method.

All painted Loc-Rib panels include a corrosion-resistant metallic layer beneath the primer and topcoat. Taylor Metal finishes the system with the ArmorTech™ SMP paint system, which carries a 40-year written paint warranty for color retention and durability in demanding environments.

Fall Protection for Loc-Rib Panels

Loc-Rib panels are not compatible with seam-mounted fall protection anchors. The wide snap-lock seam design prevents SSRA products from clamping properly, risking seam damage or unreliable attachment.

For roof slopes between 6:12 and 12:12, the Ridge Pro Steep Assist is the recommended fall protection solution. This ridge-mounted anchor allows workers to connect a vertical lifeline before stepping onto the roof surface, providing dependable protection while keeping the Loc-Rib panels free of penetrations, compression, and long-term performance issues.

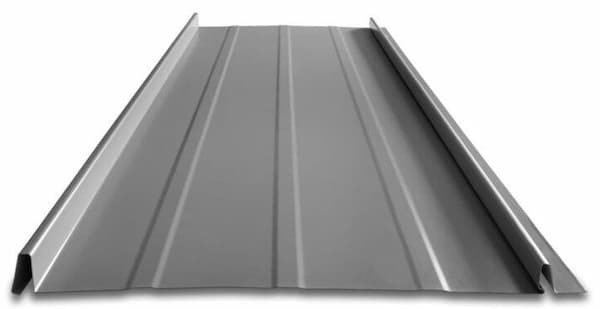

Snap-Loc Nailstrip Standing Seam Panel (Ridge Pro Only)

The Snap-Loc® nailstrip panel from Taylor Metal Products blends architectural appeal with practical jobsite efficiency.

This panel uses a self-locking standing seam that snaps together cleanly, creating a consistent weather-tight seal without mechanical seaming. Its non-combustible steel construction meets strict building and fire code requirements, making it a dependable choice for residential and light commercial projects where appearance and performance are equally important. See the Roof Anchor Compatibility Chart for Taylor Metal Products Snap-Loc Nailstrip Standing Seam Panels.

Manufactured in Auburn, Washington, Snap-Loc panels are available in 12-inch widths and feature 26-gauge steel construction. The system spans up to 2 feet on center, keeping framing requirements straightforward while maintaining structural reliability. A 1-inch vertical rib with a 5⁄16-inch flat top simplifies flashing attachment at transitions, penetrations, and trim details, which contractors appreciate during installation.

Snap-Loc secures through a concealed nailstrip flange, keeping fasteners hidden and protected from exposure. That attachment method helps reduce long-term maintenance concerns and supports a clean finished appearance across the roof. The panel's lightweight profile makes handling on the roof easier. Its durability ensures a long service life with minimal upkeep. A minimum roof pitch of 3:12 is recommended to ensure proper drainage and seam performance, especially on longer runs.

Fall Protection for Snap-Loc Panels

Snap-Loc nailstrip seams are not compatible with seam-mounted fall protection anchors. The nailstrip attachment method and finished seam shape do not provide a suitable clamping surface for SSRA products.

For roof slopes between 6:12 and 12:12, the Ridge Pro Steep Assist is the recommended fall protection solution. This ridge-mounted anchor allows workers to connect a vertical lifeline before stepping onto the metal roof surface, maintaining continuous protection while keeping the Snap-Loc panels free of penetrations, distortion, and long-term water-leak risks.

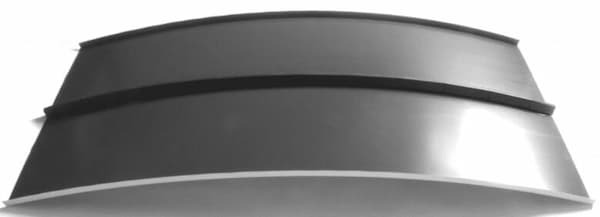

T-Panel with Batten Standing Seam Panel (Curved Panels Require Professional Advice)

The T-Panel™ with Batten from Taylor Metal Products gives designers and contractors a way to introduce architectural detail without sacrificing performance.

This system works well on residential and commercial buildings, especially where radius entries, curved canopies, or complete curved roof sections define the design. The panel uses a separate batten cap installed over concealed clips, creating strong vertical lines while allowing the roof to follow curved surfaces with precision. Pre-curved panels and battens can accommodate radii down to approximately three feet, making this system one of Taylor Metal's most flexible architectural options. See the Roof Anchor Compatibility Chart for Taylor Metal Products T-Panel with Batten Curved Standing Seam Panels.

Coverage widths range from 12 to 20 inches, and the T-Panel integrates cleanly with Easy-Lock™ standing seam panels, helping maintain visual consistency across different roof areas. The concealed clip attachment keeps fasteners protected and out of sight, supporting long-term durability and a clean finished appearance. Panels are available in custom lengths from 2 feet up to 60 feet, with optional striations, accent ribs, or flat pans to fine-tune the look. Contractors can choose between two batten styles: a narrow cap or a wider box batten, depending on the project's architectural intent.

The T-Panel with Batten meets demanding performance standards, including UL 580 Class 90 wind uplift and UL 790 Class A fire resistance. Material options include 24-gauge Kynar 500® painted steel, Zincalume® Plus, .032 Kynar 500® painted aluminum, and copper, giving builders flexibility across climates, budgets, and design goals.

Fall Protection for T-Panel with Batten

Curved T-Panel™ with Batten installations are not compatible with SSRA seam-mounted anchors or the Ridge Pro Steep Assist. The curved panel shape and batten cap design prevent these systems from attaching correctly without risking panel damage or long-term performance issues.

Any curved roof using the T-Panel with Batten requires a job-specific fall protection plan. A trained fall protection professional should evaluate the roof layout, curvature, access points, and work scope before installation or maintenance begins. This approach helps ensure worker safety while protecting the roof system from damage and future water leaks.

Standing Seam Metal Roof Anchor Panel Compatibility For 22 Gauge Taylor Metal Products



Standing Seam Metal Roof Anchor Panel Compatibility For 24 Gauge Taylor Metal Products



Standing Seam Metal Roof Hook Panel Compatibility For Taylor Metal Products



Contact Us for Expert Standing Seam Fall Protection Advice

For expert guidance on standing seam roof anchors, lifeline kits, and fall protection systems that protect both your crew and your panels, contact us today at 863-703-4522 or visit www.StandingSeamRoofAnchor.com. Our safety specialists can help you match the right non-penetrating anchor to your specific roof profile and slope. Let's make your next metal roofing project safe, compliant, and built to last. For continued learning, download OSHA's 48-page Fall Protection Manual and our free Anchor Inspection Form once you've selected the ideal anchors for your roof system. Together, we'll help you stay ahead of OSHA standards while preserving your roof's weather-tight seal.

Safety Tips For Standing Seam Roofs

Promote a Culture of Safety

Strong safety performance starts with group conversations, not equipment. Crews that talk through weather changes, access routes, and problem areas before the first ladder goes up keep each other accountable. When crews treat safety as a shared responsibility rather than a written policy, they spot problems sooner and prevent close calls before they become incidents.

Prioritize Ladder Safety Training

Many serious falls happen during ladder climbing. A ladder set at the wrong angle or resting on unstable ground turns a routine climb into a significant risk. Taking a few minutes to review ladder placement, proper tie-off at the top, and three points of contact helps crews start the day on solid footing.

Use Specialized Anchor Systems for Standing Seam Roofs

Standing seam panels stay water-tight due to concealed fasteners and thermal expansion. When the profile is compatible, use a seam-mounted anchor that grips without penetrating the seam. When the panel uses a nailstrip flange or a seam shape that will not clamp safely, use a ridge-mounted option like the Ridge Pro to stay tied off without damaging the standing seams.

Ensure Proper Footwear for Stability

Metal roofing surfaces change throughout the day. Morning dew, airborne dust, and heat can all affect traction. Boots with firm soles and solid ankle support help workers stay balanced while carrying tools or stepping between seams. Good footwear reduces slips that no harness can prevent.

Develop OSHA-Compliant Safety Plans

A written safety plan removes guesswork once work begins. Clearly defined tie-off points, lifeline routes, walkboard locations, and rescue responsibilities keep crews aligned, even when conditions change. Updating the plan as the job progresses helps prevent rushed decisions in high-risk moments.

Equip Workers with High-Quality Safety Gear

Gear that fits correctly changes how people work. Harnesses that sit properly, connectors that lock cleanly, and SRLs that retract smoothly allow crews to move confidently without equipment distractions. A short daily check of buckles, webbing, and labels helps catch wear early and keeps equipment performing as intended.

Install Permanent Roof Anchor Systems

Buildings with regular rooftop access benefit from permanent anchorage. HVAC service, solar maintenance, and routine inspections become safer and more efficient when fixed lifeline systems are already in place. Permanent anchors provide consistent tie-off points and reduce the temptation to improvise fall protection anchors.

Set Up Protective Guardrail Barriers for Work Zones

Guardrails provide constant protection without requiring the worker to take action. Around roof edges, skylights, and equipment clusters, they create clear boundaries that crews respect naturally. Because they work passively, guardrails protect everyone on the roof, even during busy installation phases.

Encourage the Use of Trauma Straps

Once the PFAS successfully arrests a fall, blood circulation becomes the next concern. Trauma straps allow a suspended worker to remain in their harness and relieve pressure until rescue arrives. They deploy quickly, weigh almost nothing, and make a meaningful difference during critical rescue situations.

Consult Experts for Curved Metal Panels

Curved standing seam roofs present challenges that flat panels do not. Seam design, attachment limitations, and anchor options vary by job. A fall protection professional should evaluate curved roofs before selecting equipment to ensure the approach protects workers without damaging the panel system or creating future water leaks.
