Fall Protection Strategies For TremCo Standing Seam Roofs

See the Roof Anchor Compatibility Chart for TremCo Roofing Standing Seam Panels.

Who Is Tremco Roofing?

Tremco Roofing has played a long-standing role in the commercial roofing industry since its founding in 1928. Headquartered in Beachwood, Ohio, the company operates as part of the Tremco Construction Products Group.

Tremco operates throughout North America with a large technical sales force and an extensive network of manufacturing facilities, distribution centers, and regional offices. Tremco Roofing & Building Maintenance has a long-standing reputation for durability and performance in the building envelope, with its metal roofing systems designed to pair seamlessly with Tremco's broader portfolio of sealants, waterproofing, and protective coatings. Tremco's standing seam solutions, including the TremLock series, are engineered for both new construction and retrofit projects, emphasizing concealed fasteners, weather-tight seams, and compatibility with a wide range of substrates. This approach aligns with Tremco's core focus on long-term envelope performance and lifecycle cost efficiency for owners and facility managers.

What Are The Most Compatible Fall Protection Anchors for Tremco Standing Seam Metal Roofs?

Tremco standing seam roof systems require fall protection that keeps workers safe without interfering with the roof's engineered performance.

Tremco standing seam panels rely on concealed clips, weather-tight seams, and controlled thermal expansion to maintain long-term weather resistance. Conventional mechanically-fastened anchors work against those design principles. Drilling through panels or seams restricts movement, damages seam shape, and introduces hidden leaks that often appear years after installation.

Non-penetrating fall protection systems provide the most compatible solution for Tremco standing seam roofs. Seam-mounted anchors clamp directly to the standing seam without puncturing the panel, preserving the roof's weather-tight seal while creating dependable tie-off points for workers. Another great alternative is ridge-mounted anchors for steeper roofs.

The SSRA1 Standing Seam Roof Anchor provides a single-worker tie-off point by clamping to the standing seam with 12 non-penetrating set screws. This attachment method avoids contact with concealed clips. It allows the panel system to expand and contract as intended, protecting both roof performance and seam integrity.

When walkable working surfaces are required, SSRA2 Adjustable Roof Jack Adapters mount on top of SSRA1 anchors and support walkboards. This setup provides crews with stable footing on sloped metal roofs without improperly loading panels or introducing penetrations. The SSRA2 Roof Jacks are adjustable for various roof pitches and seam heights.

For applications requiring greater mobility or multiple workers, SSRA3 Anchor Plates mount on top of SSRA1 anchors and provide rigid attachment points for horizontal lifeline systems. These assemblies allow crews to remain continuously tied off across wider roof areas without relocating anchors every few feet.

During temporary installation or short-term access, the SSRA HLL 100-foot Temporary Horizontal Lifeline Kit offers a complete multi-worker solution that installs quickly and removes easily once the work phase ends. This system leaves no permanent hardware or roof penetrations behind.

For buildings that require frequent rooftop access for maintenance, inspections, or equipment service, the Super Anchor 120-foot Permanent Horizontal Lifeline Kit provides consistent, long-term tie-off locations on mechanically seamed panels.

For Tremco roof systems where seam-mounted anchors are not compatible, or on steeper roof slopes between 6:12 and 12:12, the Ridge Pro Steep Assist provides a ridge-mounted, non-penetrating tie-off option. Workers can connect a vertical lifeline before stepping onto the metal surface, maintaining continuous protection while keeping the roof free of penetrations.

TremLock VP 1.5 Mechanical Standing Seam Panel (SSRA Compatible)

The TremLock VP 1.5 is a mechanically seamed standing seam roof panel built for strength, clean architectural lines, and long-term performance on commercial and high-end residential projects.

This panel features a 1.5-inch vertical seam height and installs in 12-inch, 16-inch, and 18-inch coverage widths. The profile delivers a balanced combination of structural capability and visual refinement, making it a common choice for projects that require durability without oversized seams. TremLock VP 1.5 panels perform on roof slopes as low as 1:12, supporting a wide range of modern roof designs. See the Roof Anchor Compatibility Chart for TremCo Roofing 22 Gauge and 24 Gauge TremLock VP 1.5 Mechanical Standing Seam Panels.

Tremco manufactures the VP 1.5 panel in 22-gauge and 24-gauge steel or Aluminum, allowing designers and engineers to match panel strength to project-specific requirements. The system supports both flat and curved installations, giving architects additional flexibility when working with complex roof designs or curves.

Concealed clips secure the panels to the structure while allowing controlled thermal movement across long roof runs. This design helps maintain weather-tight performance over time while preserving the clean appearance expected from architectural standing seam systems.

Fall Protection for TremLock VP 1.5 Panels

Non-curved TremLock VP 1.5 panels, fabricated from 22-gauge or 24-gauge steel, are compatible with non-penetrating, seam-mounted fall protection systems.

The SSRA1 Standing Seam Roof Anchor clamps directly to the vertical seam without penetrating the panel, providing a secure single-worker tie-off point while allowing normal thermal movement. SSRA2 Adjustable Roof Jack Adapters and SSRA3 Anchor Plates mount on top of SSRA1 anchors, supporting walkboards and horizontal lifeline systems where continuous movement or multi-worker access is required.

For projects that require multi-worker access, horizontal lifeline systems provide an added layer of control and efficiency. The SSRA HLL 100-foot Temporary Horizontal Lifeline Kit allows crews to establish short-term access without leaving permanent hardware behind. For buildings that require routine maintenance or frequent rooftop visits, the Super Anchor 120-foot Permanent Horizontal Lifeline Kit provides dedicated tie-off locations and supports consistent fall protection practices throughout the roof's life.

For aluminum VP 1.5 panels or on roof slopes between 6:12 and 12:12, the Ridge Pro Steep Assist provides a ridge-mounted, non-penetrating tie-off option. This system allows workers to connect a vertical lifeline before stepping onto the roof surface while keeping the panels free of penetrations.

Curved TremLock VP 1.5 panels are not compatible with SSRA seam-mounted anchors or Ridge Pro systems. An experienced fall protection expert should inspect curved roof systems before determining an appropriate anchorage strategy.

TremLock VP 2 Mechanical Standing Seam Panel (SSRA Compatible)

The TremLock VP 2 is a mechanically seamed, vertical-leg standing-seam roof panel designed for projects that require increased seam height, strength, and architectural presence.

This panel features a 2-inch vertical seam, providing a taller profile than the VP 1.5 while maintaining clean, well-defined lines across long roof runs. TremLock VP 2 panels are available in 12-inch, 16-inch, and 18-inch coverage widths, giving designers the flexibility to match structural requirements and visual proportions. The system performs on roof slopes as low as ½:12, making it suitable for both commercial and architectural applications. See the Roof Anchor Compatibility Chart for TremCo Roofing 22 Gauge and 24 Gauge TremLock VP 2 Mechanical Standing Seam Panels.

Tremco manufactures the VP 2 panel in 22-gauge and 24-gauge steel or Aluminum, allowing engineers to balance strength, span capability, and project-specific loading conditions. The panel supports both flat and curved installations, accommodating complex roof shapes while maintaining consistent seam engagement and long-term performance.

Concealed clips secure the panels to the structure while allowing controlled thermal movement. This concealed fastener configuration supports long-term performance and helps protect the roof system from stress caused by thermal expansion.

Fall Protection for TremLock VP 2 Panels

TremLock VP 2 panels, fabricated from 22-gauge or 24-gauge steel, are compatible with non-penetrating seam-mounted fall protection systems.

The SSRA1 Standing Seam Roof Anchor clamps directly to the vertical seam without penetrating the panel, providing a secure single-worker tie-off point while allowing normal thermal movement. SSRA2 Adjustable Roof Jack Adapters and SSRA3 Anchor Plates mount on top of SSRA1 anchors, supporting walkboards and horizontal lifeline systems when continuous movement or multi-worker access is required.

When crews need continuous movement across wider roof areas, horizontal lifelines offer a practical solution. The SSRA HLL 100-foot Horizontal Lifeline Kit supports multiple workers during temporary construction phases. For facilities with ongoing service demands, the Super Anchor 120-foot Permanent Horizontal Lifeline Kit provides long-term anchorage that simplifies future access while helping protect both workers and the roof system year after year.

For aluminum roof systems with roof slopes between 6:12 and 12:12, or where seam-mounted anchorage is not appropriate, the Ridge Pro Steep Assist provides a ridge-mounted, non-penetrating tie-off option that allows workers to connect a vertical lifeline before stepping onto the metal surface.

Curved TremLock VP 2 panels are not compatible with SSRA seam-mounted anchors or Ridge Pro systems. Curved roof applications introduce attachment challenges that require job-specific evaluation. A trained fall protection professional should inspect curved roofs before recommending an appropriate anchorage strategy.

TremLock VP 3 Mechanical Standing Seam Panel (SSRA Compatible)

The TremLock VP 3 is the tallest profile in Tremco's vertical leg standing seam family, offering increased seam height for projects that demand added structural capacity and a more pronounced architectural profile.

This panel features a 3-inch vertical seam and installs in 18-inch and 24-inch coverage widths, making it well-suited for expansive commercial, industrial, and institutional roof systems. The wider panel options support efficient coverage across large roof areas while maintaining strong seam engagement and visual consistency. See the Roof Anchor Compatibility Chart for TremCo Roofing 22 Gauge and 24 Gauge TremLock VP 3 Mechanical Standing Seam Panels.

TremLock VP 3 panels perform on roof slopes as low as 1/4:12. They can be installed in flat or curved configurations, providing flexibility for low-slope designs and complex roof shapes. Tremco manufactures the VP 3 panel in 22-gauge and 24-gauge steel or Aluminum, allowing designers and engineers to select the appropriate balance of strength, span capability, and performance requirements.

A concealed clip system secures the panels to the structure while accommodating controlled thermal movement. This approach helps limit stress on the seams and attachment points over time, supporting long-term weather resistance and system durability.

Fall Protection for TremLock VP 3 Panels

Non-curved TremLock VP 3 panels, fabricated from 22-gauge or 24-gauge steel, are compatible with non-penetrating, seam-mounted fall protection systems.

The SSRA1 Standing Seam Roof Anchor attaches directly to the vertical seam using non-penetrating set screws, creating a reliable single-worker tie-off point without restricting thermal movement. When crews need added stability or expanded access, SSRA2 Adjustable Roof Jack Adapters and SSRA3 Anchor Plates mount atop SSRA1 anchors to support walkboards and horizontal lifeline configurations.

Some projects benefit from lifeline systems that extend beyond single-point anchorage. The SSRA HLL 100-foot Temporary Horizontal Lifeline Kit gives installation crews flexibility to work across larger roof sections while remaining continuously tied off during short-duration tasks. For year-round lifeline access, the Super Anchor 120-foot Permanent Horizontal Lifeline Kit establishes permanent lifelines that improve safety, reduce labor associated with repeated setups, and support the roof throughout its service life.

On aluminum roof sections with slopes between 6:12 and 12:12, the Ridge Pro Steep Assist provides a ridge-mounted, non-penetrating tie-off solution. This system allows workers to connect a vertical lifeline before stepping onto the roof surface while keeping the VP 3 panels free of penetrations.

Curved TremLock VP 3 panels are not compatible with SSRA seam-mounted anchors or Ridge Pro systems. Curved roof applications introduce attachment challenges that require a job-specific evaluation. An experienced fall protection professional should inspect the curved roof system before determining the most appropriate anchorage strategy.

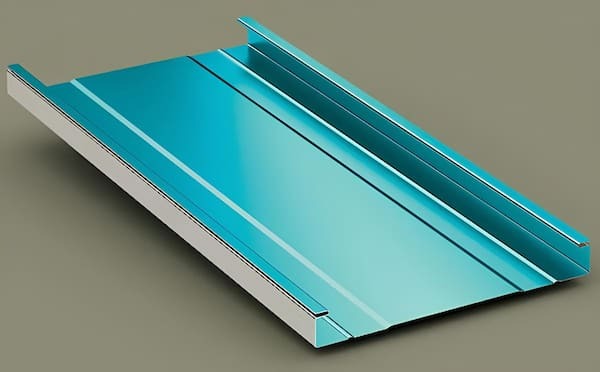

TremLock T-138 T-Seam Mechanical Standing Seam Panel (SSRA Compatible)

The TremLock T-138 is a mechanically seamed T-seam standing seam roof panel built for projects that require dependable performance, refined detailing, and installation flexibility.

This panel features a 1-3/8-inch seam height and installs in 12-inch, 16-inch, and 18-inch coverage widths. The lower seam profile creates a clean, understated appearance while still delivering strong seam engagement and weather resistance. See the Roof Anchor Compatibility Chart for TremCo Roofing 22 Gauge and 24 Gauge TremLock T-138 T-seam Mechanical Standing Seam Panels.

TremLock T-138 panels are available in 22- or 24-gauge Galvalume®, Aluminum, and copper. Finish options include Kynar 500® (PVDF), providing excellent resistance to fading, chalking, and environmental exposure. These coatings help the roof maintain both appearance and functionality over an extended service life.

The T-138 system offers notable fabrication flexibility. Panels can be roll-formed in the factory, roll-formed at the jobsite, or curved on site to accommodate architectural features and complex roof designs.

The panel meets several recognized performance benchmarks, including a UL Class A fire rating, UL 580 Class 90 uplift resistance, and UL Class 4 impact resistance, supporting its use in both residential and commercial applications.

Fall Protection for TremLock T-138 Panels

Non-curved TremLock T-138 panels, fabricated from 22-gauge or 24-gauge steel, are compatible with non-penetrating, seam-mounted fall protection systems.

The SSRA1 Standing Seam Roof Anchor secures directly to the T-seam rib using non-penetrating set screws, providing a dependable single-worker tie-off point without compromising the panel or restricting thermal movement. When additional access or work positioning is required, SSRA2 Adjustable Roof Jack Adapters and SSRA3 Anchor Plates are installed on top of SSRA1 anchors to support walkboards and horizontal lifeline configurations.

Horizontal lifeline systems are essential for larger roof areas or when multiple workers are present. The SSRA HLL 100-foot Temporary Horizontal Lifeline Kit allows crews to create a temporary, non-penetrating lifeline system. For buildings with frequent rooftop traffic, the Super Anchor 120-foot Permanent Horizontal Lifeline Kit offers a durable, long-term solution that streamlines access and maintains predictable, compliant tie-off points for future crews.

For Aluminum and copper panels with slopes between 6:12 and 12:12, the Ridge Pro Steep Assist provides a ridge-mounted, non-penetrating tie-off solution. This system allows workers to connect a vertical lifeline before stepping onto the metal surface while keeping the roof assembly free of penetrations.

Curved TremLock T-138 panels are not compatible with SSRA seam-mounted anchors or Ridge Pro systems. Curved installations introduce attachment challenges that require a project-specific evaluation. Trained fall protection professionals should inspect curved roof systems before determining an appropriate anchorage plan.

TremLock T-238 T-Seam Mechanical Standing Seam Panel (SSRA Compatible)

The TremLock T-238 is a mechanically seamed T-seam standing seam panel built for projects that demand added seam height, structural capacity, and installation flexibility.

This panel features a 2-3/8-inch seam height, creating a taller, more rigid profile than lower-seam systems while enhancing uplift resistance and long-term weather performance. Unlike the T-138, the T-238 installs over either a solid deck or open framing, giving designers and contractors greater flexibility across residential, commercial, and institutional applications. See the Roof Anchor Compatibility Chart for TremCo Roofing 22 Gauge and 24 Gauge TremLock T-238 T-seam Mechanical Standing Seam Panels.

TremLock T-238 panels are available in 16-inch, 18-inch, and 24-inch coverage widths, with the 24-inch option roll-formed on-site. The system supports factory roll-forming, jobsite roll-forming, and on-site curving, allowing the panel to adapt to complex roof layouts and architectural detailing.

Panel materials include 22- and 24-gauge Galvalume® steel, as well as Aluminum and copper options, offering a wide range of structural performance. Finish options include Kynar 500® (PVDF), offering excellent resistance to fading, chalking, and environmental exposure over time.

The T-238 panel meets rigorous performance benchmarks, including a UL Class A fire rating, UL 580 Class 90 uplift resistance, FM 4471 approval, and strict air and water infiltration standards. These certifications make it a dependable choice for demanding environments where long-term performance matters.

Fall Protection for TremLock T-238 Panels

Non-curved TremLock T-238 panels, fabricated from 22-gauge or 24-gauge steel, are compatible with non-penetrating, seam-mounted fall protection systems.

The SSRA1 Standing Seam Roof Anchor clamps directly to the T-seam rib using non-penetrating set screws, creating a secure single-worker tie-off point without compromising panel integrity or restricting thermal movement. When additional positioning or access is required, SSRA2 Adjustable Roof Jack Adapters and SSRA3 Anchor Plates mount on top of SSRA1 anchors to support walkboards and horizontal lifeline configurations.

For broader roof areas or multi-worker activity, horizontal lifeline systems provide added control. The SSRA HLL 100-foot Temporary Horizontal Lifeline Kit supports short-term installation and service work. On buildings with ongoing maintenance needs, the Super Anchor 120-foot Permanent Horizontal Lifeline Kit establishes long-term tie-off locations that reduce repeated setup and support consistent rooftop safety over the life of the roof.

For Aluminum and copper roofs on slopes between 6:12 and 12:12, the Ridge Pro Steep Assist provides a ridge-mounted, non-penetrating tie-off option that allows workers to connect a vertical lifeline before stepping onto the metal surface.

Curved TremLock T-238 panels are not compatible with SSRA seam-mounted anchors or Ridge Pro systems. Curved roof applications introduce attachment challenges that require job-specific evaluation. A trained fall protection professional can determine an appropriate anchorage strategy after inspecting a curved roof project.

TremLock SL Snap Lock Standing Seam Panel (SSRA Compatible)

The TremLock SL is an architectural snap-lock standing seam panel that balances structural performance with clean, modern aesthetics across a wide range of roof applications.

This panel features a 1-3/4-inch snap-together seam that delivers reliable engagement without mechanical seaming. The profile installs over either a solid deck or open framing, giving contractors flexibility across residential, commercial, and light industrial projects. Its snap-lock design supports efficient installation while maintaining the consistent seam alignment expected from architectural standing seam systems. See the Roof Anchor Compatibility Chart for TremCo Roofing 22 Gauge and 24 Gauge TremLock SL Snap Lock Standing Seam Panels.

TremLock SL panels are available in 12-inch, 16-inch, and 18-inch coverage widths. The panel is 24- or 22-gauge Galvalume® or Aluminum.

Performance testing confirms the TremLock SL's suitability for demanding environments. The panel meets UL Class A fire rating requirements, UL 580 Class 90 uplift resistance, ASTM E1592 structural testing, and strict air and water infiltration standards. Florida State and Miami-Dade approvals further validate its use in high-wind and severe weather regions.

Fall Protection for TremLock SL Panels

Non-curved TremLock SL panels fabricated from 22-gauge or 24-gauge steel are compatible with non-penetrating seam-mounted fall protection systems.

The SSRA1 Standing Seam Roof Anchor clamps directly to the snap-lock seam using non-penetrating set screws, creating a secure single-worker tie-off point without deforming the seam or restricting thermal movement. When additional positioning or access is required, SSRA2 Adjustable Roof Jack Adapters and SSRA3 Anchor Plates mount on top of SSRA1 anchors to support walkboards and horizontal lifeline configurations.

For projects involving broader roof areas or multiple workers, horizontal lifeline systems provide added flexibility. The SSRA HLL 100-foot Temporary Horizontal Lifeline Kit supports short-term installation and service work. For buildings that require ongoing rooftop access, the Super Anchor 120-foot Permanent Horizontal Lifeline Kit establishes long-term tie-off locations that reduce repeated setup and promote consistent safety practices throughout the roof's life.

Aluminum roofs on roof slopes between 6:12 and 12:12, the Ridge Pro Steep Assist provides a ridge-mounted, non-penetrating tie-off option that allows workers to connect a vertical lifeline before stepping onto the metal surface.

TremLock LSP Trapezoidal Mechanical Standing Seam Panel (SSRA Compatible)

The TremLock LSP is a mechanically seamed, trapezoidal standing seam roof system that is an excellent choice for low-slope applications where dependable weather performance matters most.

This panel accommodates roof pitches as shallow as 1/4:12. It performs best on simple roof planes without hips, valleys, dormers, or complex transitions. The TremLock LSP installs over a solid deck or substructural members, giving designers flexibility while maintaining consistent panel support across large roof areas. See the Roof Anchor Compatibility Chart for TremCo Roofing 22 Gauge and 24 Gauge TremLock LSP Trapezoidal Mechanical Standing Seam Panels.

A factory-applied seam sealant enhances weather-tightness once the panels are mechanically seamed, helping protect against wind-driven rain and long-term water intrusion. The panel is available in 18-inch and 24-inch coverage widths, reducing the total number of seams required and supporting efficient installation on wide roof runs.

TremLock LSP panels have Kynar 500® (PVDF) coatings for resistance to fading, chalking, and environmental exposure. Material options include standard 22- or 24-gauge Galvalume®.

Performance testing confirms the LSP's suitability for demanding conditions. The system meets UL Class A fire rating, UL 580 Class 90 uplift resistance, ASTM E1592 structural testing, and strict air and water infiltration standards. A UL 2218 Class 4 impact resistance rating and Florida State approval further support its use in severe weather regions.

Fall Protection for TremLock LSP Panels

Non-curved TremLock LSP panels fabricated from 22-gauge or 24-gauge steel are compatible with non-penetrating seam-mounted fall protection systems.

The SSRA1 Standing Seam Roof Anchor attaches to the mechanically seamed rib using non-penetrating set screws, providing a secure single-worker tie-off point without compromising seam integrity. Where additional access or positioning is required, SSRA2 Adjustable Roof Jack Adapters and SSRA3 Anchor Plates mount on top of SSRA1 anchors to support walkboards and horizontal lifeline configurations.

For projects involving wider roof areas or multiple workers, horizontal lifeline systems offer added flexibility. The SSRA HLL 100-foot Temporary Horizontal Lifeline Kit supports short-term installation and service work. On buildings with recurring rooftop access, the Super Anchor 120-foot Permanent Horizontal Lifeline Kit establishes long-term tie-off locations that reduce repeated setup and promote consistent safety practices over the life of the roof.

On roof sections with slopes between 6:12 and 12:12, the Ridge Pro Steep Assist provides a ridge-mounted, non-penetrating tie-off option that allows workers to connect a vertical lifeline before stepping onto the metal surface.

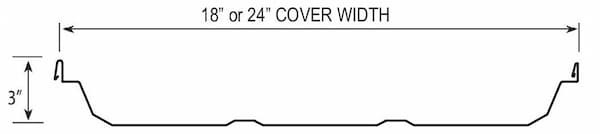

TremLock LSP-90 Trapezoidal Snap Lock Standing Seam Panel (SSRA Compatible)

The TremLock LSP-90 is a snap-lock trapezoidal standing-seam roof system designed for low-slope applications where simplicity and weather resistance are the priorities.

This panel supports roof pitches as low as 1/4:12. It performs best on straightforward roof planes without hips, valleys, dormers, or other complex transitions. TremLock LSP-90 panels install over a solid deck or substructural members, giving designers flexibility while maintaining consistent support across larger roof areas. See the Roof Anchor Compatibility Chart for TremCo Roofing 22 Gauge and 24 Gauge TremLock LSP-90 Trapezoidal Snap Lock Standing Seam Panels.

A snap-lock seam with a factory-applied sealant enhances weather-tight performance once engaged, helping protect against wind-driven rain and long-term moisture intrusion. The panel installs in a 24-inch coverage width, reducing seam count and improving installation efficiency on large roof surfaces.

Tremco finishes the LSP-90 with Kynar 500® (PVDF) coatings for resistance to fading, chalking, and environmental exposure. Material options include standard 22- or 24-gauge Galvalume®.

Performance testing supports the panel's use in demanding environments. The system meets UL Class A fire rating, UL 580 Class 90 uplift resistance, ASTM E1592 structural testing, and strict air and water infiltration standards. A UL 2218 Class 4 impact resistance rating and Florida State approval further validate its suitability for severe weather regions.

Fall Protection for TremLock LSP-90 Panels

Non-curved TremLock LSP-90 panels fabricated from 22-gauge or 24-gauge steel are compatible with non-penetrating seam-mounted fall protection systems.

The SSRA1 Standing Seam Roof Anchor clamps directly to the snap-lock rib using non-penetrating set screws, creating a dependable single-worker tie-off point without deforming the seam or restricting thermal movement. When additional access or positioning is needed, SSRA2 Adjustable Roof Jack Adapters and SSRA3 Anchor Plates mount on top of SSRA1 anchors to support walkboards and horizontal lifeline configurations.

For projects involving wider roof areas or multiple workers, horizontal lifeline systems provide added flexibility. The SSRA HLL 100-foot Temporary Horizontal Lifeline Kit supports short-term installation. On buildings with recurring rooftop access, the Super Anchor 120-foot Permanent Horizontal Lifeline Kit establishes long-term tie-off locations that reduce repeated setup and promote consistent safety practices over the life of the roof.

On roof sections with slopes between 6:12 and 12:12, the Ridge Pro Steep Assist provides a ridge-mounted, non-penetrating tie-off option that allows workers to connect a vertical lifeline before stepping onto the metal surface.

TremLock IL Snaplock Standing Seam Panel (SSRA Compatible)

The TremLock IL Snaplock is a snap-lock standing seam roof panel developed for projects that require enhanced uplift resistance while maintaining efficient installation and a refined architectural appearance.

This panel features a 1-inch seam height and installs using concealed clips, creating a clean roof surface with uninterrupted visual lines. Compared to the TremLock CFL profile, the IL Snaplock offers increased uplift capability while retaining the simplicity of a snap-together system. See the Roof Anchor Compatibility Chart for TremCo Roofing Standing Seam Panels.

TremLock IL Snaplock panels install in a standard 13-inch coverage width, with additional widths available upon request for project-specific requirements. The panel is manufactured in 24-gauge Galvalume® steel and finished with Kynar 500® (PVDF) coatings, providing strong resistance to fading, chalking, and environmental exposure over time.

Performance testing supports the panel's use in demanding conditions. The TremLock IL Snaplock meets UL Class A fire rating, UL 580 Class 90 uplift resistance, UL 1897 uplift testing, and UL 2218 Class 4 impact resistance, making it a dependable choice for residential and commercial roofs in high-wind regions.

Fall Protection for TremLock IL Snaplock Panels

Non-curved TremLock IL Snaplock panels, fabricated from 24-gauge steel, are compatible with non-penetrating, seam-mounted fall protection systems.

The SSRA1 Standing Seam Roof Anchor clamps directly to the snap-lock seam using non-penetrating set screws, providing a secure single-worker tie-off point without deforming the seam or interfering with concealed clip performance. When crews need additional positioning or access, SSRA2 Adjustable Roof Jack Adapters and SSRA3 Anchor Plates mount on top of SSRA1 anchors to support walkboards and horizontal lifeline configurations.

For larger roof areas or multi-worker activity, horizontal lifeline systems add flexibility and control. The SSRA HLL 100-foot Temporary Horizontal Lifeline Kit supports short-term installation. For buildings that require frequent rooftop access, the Super Anchor 120-foot Permanent Horizontal Lifeline Kit establishes long-term tie-off locations that reduce repeated setup and promote consistent safety practices throughout the roof's life.

On roof slopes between 6:12 and 12:12, the Ridge Pro Steep Assist provides a ridge-mounted, non-penetrating tie-off option that allows workers to connect a vertical lifeline before stepping onto the metal surface.

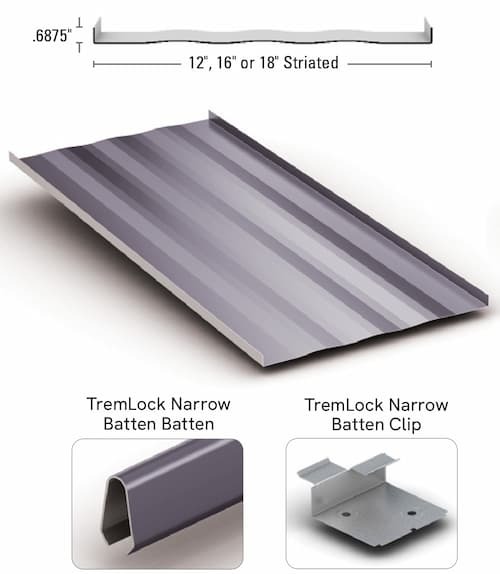

TremLock Narrow Batten Standing Seam Panel (Ridge Pro Only)

The TremLock Narrow Batten is an architectural standing seam roof system that emphasizes visual refinement while maintaining dependable structural performance.

This system uses a narrow batten cap installed over panels secured with concealed clips, creating crisp vertical lines and a polished finished appearance. Tremco installs the Narrow Batten system over a solid deck, providing consistent support and contributing to long-term roof stability. The panels are available in 12-inch, 16-inch, and 18-inch coverage widths with a 1-inch seam height, giving architects flexibility without overwhelming the roofline. See the Roof Anchor Compatibility Chart for TremCo Roofing TremLock Narrow Batten Standing Seam Panels.

One of the defining characteristics of the Narrow Batten system is its ability to accommodate curved applications, with a minimum radius of 30 inches. That design flexibility supports distinctive architectural features, but it also introduces limitations in terms of fall protection compatibility. The batten cap profile and seam configuration differ significantly from traditional standing seam ribs.

Tremco finishes the Narrow Batten system with Kynar 500® (PVDF) coatings for long-term resistance to fading, chalking, and environmental exposure. Material options include standard 22-gauge or 24-gauge Galvalume® steel. The system meets demanding performance criteria, including a UL Class A fire rating, UL 580 Class 90 uplift resistance, ASTM E1680 and E1646 air and water infiltration standards, and UL 2218 Class 4 impact resistance. Florida State and Miami-Dade approvals further support its use in severe weather environments.

Fall Protection for TremLock Narrow Batten Panels

The TremLock Narrow Batten system is not compatible with seam-mounted fall protection anchors. The narrow batten cap profile prevents proper clamping, making SSRA seam-mounted products unsuitable for this panel.

For non-curved TremLock Narrow Batten installations on roof slopes between 6:12 and 12:12, the Ridge Pro Steep Assist is the recommended fall protection solution. This ridge-mounted anchor allows workers to connect a vertical lifeline before stepping onto the roof surface while keeping the batten cap system completely free of penetrations or deformation.

Curved Narrow Batten panels introduce additional challenges that standard ridge-mounted or seam-mounted systems cannot address. Curved roof applications are not compatible with SSRA products or the Ridge Pro Steep Assist. These roofs require a job-specific evaluation by a trained fall protection professional who can assess the roof design, access points, and attachment limitations before work begins.

TremLock Narrow Batten II Standing Seam Panel (Ridge Pro Only)

The TremLock Narrow Batten II builds on Tremco's architectural batten-style roof systems by introducing a wider, more defined batten profile while maintaining the same clean, vertical emphasis.

This system uses a 1-1/2-inch wide box batten cap installed over panels secured with concealed clips, creating a bold visual presence and deeper shadow lines than the standard Narrow Batten profile. Tremco installs the Narrow Batten II over a solid deck, providing uniform support across the roof surface and contributing to consistent long-term performance. Panels are available in 12-inch, 16-inch, and 18-inch coverage widths with a 1-1/2-inch seam height, allowing designers to balance proportion and scale across a wide range of architectural styles. See the Roof Anchor Compatibility Chart for TremCo Roofing Standing Seam TremLock Narrow Batten II Panels.

Like the original Narrow Batten system, the Narrow Batten II can accommodate curved applications with a minimum radius of 30 inches. That flexibility supports complex architectural forms but also affects how workers can attach fall protection equipment. The box batten cap fully covers the seam area, creating a profile that differs significantly from exposed standing seam ribs.

Tremco finishes the Narrow Batten II with Kynar 500® (PVDF) coatings for long-term resistance to fading, chalking, and environmental exposure. Material options include 22-gauge and 24-gauge Galvalume® steel. The system meets stringent performance requirements, including UL Class A fire rating, UL 580 Class 90 uplift resistance, ASTM E1680 and E1646 air and water infiltration standards, and UL 2218 Class 4 impact resistance. Florida State and Miami-Dade approvals further support its use in severe weather regions.

Fall Protection for TremLock Narrow Batten II Panels

The TremLock Narrow Batten II is not compatible with seam-mounted fall protection anchors. The 1-1/2-inch box batten cap fully encloses the seam, preventing proper clamping and making SSRA seam-mounted products unsuitable for this panel.

For non-curved Narrow Batten II installations on roof slopes between 6:12 and 12:12, the Ridge Pro Steep Assist is the recommended fall protection solution. This ridge-mounted anchor allows workers to connect a vertical lifeline before stepping onto the roof surface while keeping the batten cap system free of penetrations, compression, or deformation.

Curved Narrow Batten II panels introduce attachment challenges that standard ridge-mounted or seam-mounted systems cannot accommodate. Curved applications are not compatible with SSRA products or the Ridge Pro Steep Assist. These roofs require a project-specific evaluation by a trained fall protection professional who can assess curvature, access paths, and anchorage limitations before work begins.

TremLock Tri-Rib I Concealed Fastener Panel (Ridge Pro Only)

The TremLock Tri-Rib I is a concealed fastener metal roof panel designed for durability, efficient coverage, and dependable performance on moderately sloped roofs.

This panel features 1 5/8-inch high ribs spaced 8 inches apart, creating a repeating rib pattern that delivers structural strength while maintaining a clean, symmetrical appearance. With a total panel width of 16 inches and two 8-inch valleys, the Tri-Rib I works well across a range of architectural and commercial roof designs. The system installs over a solid deck or substructural members, offering flexibility for different framing conditions. See the Roof Anchor Compatibility Chart for TremCo Roofing Standing Seam TremLock Tri-Rib I Panels.

TremLock Tri-Rib I panels perform on roof slopes as low as 2:12. For roof pitches below 3:12, Tremco requires tape sealant at the side laps to maintain weather-tight performance. The panel is manufactured from 24-gauge steel and finished with Kynar 500® (PVDF) coatings, providing long-term resistance to fading, chalking, and environmental exposure.

The Tri-Rib I system meets demanding performance criteria, including UL Class A fire rating, UL 580 Class 90 uplift resistance, and ASTM E1592 structural testing. It also satisfies strict air and water infiltration standards, carries a UL 2218 Class 4 impact resistance rating, and holds Florida State approval, making it a dependable option for projects exposed to challenging weather conditions.

Fall Protection for TremLock Tri-Rib I Panels

The TremLock Tri-Rib I panel is not compatible with seam-mounted fall protection anchors. Its seam design prevents proper attachment of SSRA seam-mounted products.

For roof slopes between 6:12 and 12:12, the Ridge Pro Steep Assist is the recommended fall protection solution. This ridge-mounted anchor allows workers to connect a vertical lifeline before stepping onto the roof surface while keeping the panel system free of penetrations or deformation.

The Ridge Pro integrates well with the Tri-Rib I profile by transferring loads at the ridge rather than the panel ribs, helping maintain both worker safety and roof integrity during installation, maintenance, or repair activities.

TremLock Tri-Rib II Concealed Fastener Panel (Ridge Pro Only)

The TremLock Tri-Rib II is a concealed-fastener metal roof panel engineered for increased rib height, improved strength, and consistent performance across a wide range of roof applications.

This panel features 1-3/4-inch high ribs spaced 8 inches on center, creating a pronounced rib profile that increases rigidity while maintaining a clean, uniform appearance. With a total panel width of 16 inches and two valleys, the Tri-Rib II delivers efficient coverage and predictable layout on residential, commercial, and light industrial projects. The system installs over a solid deck or substructural members, giving designers flexibility while maintaining dependable panel support. See the Roof Anchor Compatibility Chart for TremCo Roofing Standing Seam TremLock Tri-Rib II Panels.

TremLock Tri-Rib II panels perform on roof slopes as low as 2:12. The ribbed configuration supports effective water shedding. At the same time, Kynar 500® (PVDF) coatings provide long-term resistance to fading, chalking, and environmental exposure. The panel is manufactured from 24-gauge Galvalume® steel, offering a durable balance of strength and corrosion resistance.

The Tri-Rib II system meets several recognized performance benchmarks, including UL 790 Class A fire rating, UL 580 Class 90 uplift resistance, and UL 2218 Class 4 impact resistance. These certifications reinforce its suitability for projects that demand reliable performance in challenging weather conditions.

Fall Protection for TremLock Tri-Rib II Panels

The TremLock Tri-Rib II panel is not compatible with seam-mounted fall protection anchors. Its concealed fastener design and seam shape prevent proper attachment of SSRA seam-mounted products.

For roof slopes between 6:12 and 12:12, the Ridge Pro Steep Assist is the recommended fall protection solution. This ridge-mounted anchor allows workers to connect a vertical lifeline before stepping onto the roof surface while keeping the panel system free of penetrations or deformation.

Unlike other TremLock profiles, the Tri-Rib II panel is not offered in curved configurations, allowing the Ridge Pro Steep Assist to serve as a consistent, non-penetrating tie-off option across all standard installations.

TremLock CFL Nailstrip Standing Seam Panel (Ridge Pro Only)

The TremLock CFL Nailstrip is a snap-together standing seam roof system developed as a cost-effective solution for residential and light commercial applications where installation efficiency matters.

This panel is secured using a slotted nailstrip flange and pancake-head fasteners, allowing crews to install panels quickly while maintaining consistent alignment. See the Roof Anchor Compatibility Chart for TremCo Roofing TremLock CFL Nailstrip Standing Seam Panels.

The CFL Nailstrip features a 1-inch seam height and is available in 12-inch and 16-inch coverage widths. The 12-inch panel is commonly produced in 24-gauge or 26-gauge Galvalume® steel, giving designers flexibility depending on structural and budget requirements. Optional minor ribs or striations help control oil canning while offering subtle visual variation.

Tremco finishes the CFL Nailstrip with Kynar 500® (PVDF) coatings for resistance to fading, chalking, and environmental exposure. The panel meets several recognized performance standards, including a UL Class A fire rating, ASTM E1680 air infiltration testing, ASTM E1646 water infiltration testing, and a UL 2218 Class 4 impact resistance rating. Florida State approval further supports its use in regions exposed to severe weather.

Fall Protection for TremLock CFL Nailstrip Panels

TremLock CFL Nailstrip panels are not compatible with seam-mounted fall protection anchors. The fastened nailstrip flange and lighter-gauge construction prevent proper attachment of SSRA seam-mounted products.

For roof slopes between 6:12 and 12:12, the Ridge Pro Steep Assist is the recommended fall protection solution. This ridge-mounted anchor allows workers to connect a vertical lifeline before stepping onto the roof surface while keeping the nailstrip system free of penetrations or deformation.

Standing Seam Metal Roof Anchor Panel Compatibility For 22 Gauge TremCo Roofing



Standing Seam Metal Roof Anchor Panel Compatibility For 24 Gauge TremCo Roofing



Standing Seam Metal Roof Anchor Compatibility For TremCo Roofing Panels



Contact Us for Expert Standing Seam Fall Protection Advice

For expert guidance on standing seam roof anchors, lifeline kits, and fall protection systems that protect both your crew and your panels, contact us today at 863-703-4522 or visit www.StandingSeamRoofAnchor.com. Our safety specialists can help you match the right non-penetrating anchor to your specific roof profile and slope. Let's make your next metal roofing project safe, compliant, and built to last. For continued learning, download OSHA's 48-page Fall Protection Manual and our free Anchor Inspection Form once you've selected the ideal anchors for your roof system. Together, we'll help you stay ahead of OSHA standards while preserving your roof's weather-tight seal.

Safety Tips For Standing Seam Roofs

Promote a Culture of Safety

The strongest safety programs start with group conversations. Quick morning check-ins on access routes, wind conditions, staging areas, and panel transitions help crews anticipate problems before they occur.

Prioritize Ladder Safety Training

Ladders cause more injuries than most people realize, often before a harness ever gets clipped in. Verifying the ladder angle, securing the top, checking the rung condition, and confirming solid ground contact eliminate risk during the most overlooked phase of the job. A disciplined ladder setup usually predicts how safely the rest of the project will run.

Use Specialized Anchor Systems for Standing Seam Roofs

Standing seam roofs rely on thermal expansion and concealed attachment points to perform correctly. Fall protection anchors built specifically for these systems attach without causing seam damage or interfering with the panel's ability to expand and contract. Using equipment matched to the panel profile prevents hidden leaks, structural damage, and warranty problems that surface long after crews leave the site.

Equip Workers with High-Quality Safety Gear

A correctly fitting harness and an SRL that deploys smoothly change how a worker performs on metal panels. Comfortable, properly sized gear reduces fatigue and keeps attention where it belongs, on footing and task execution. OSHA reinforced in 2025 that fit matters, and ignoring that requirement exposes workers and companies to unnecessary risk.

Ensure Proper Footwear for Stability

Morning dew, airborne dust, and temperature swings can turn a metal roof slick in minutes. Footwear with aggressive tread, solid ankle support, and firm soles helps maintain balance during transitions between seams, walkboards, and tie-off points.

Develop OSHA-Compliant Safety Plans

Good safety plans eliminate hesitation when seconds matter. Clear documentation outlines where anchors go, how lifelines run across the roof, and who takes charge during a rescue. As conditions change throughout the day, revisiting the plan keeps everyone working from the same playbook instead of relying on assumptions.

Set Up Protective Guardrail Barriers for Work Zones

Guardrails protect without requiring active worker participation. Around skylights, roof edges, or equipment clusters, they establish boundaries crews instinctively respect. By turning high-risk areas into clearly defined hazardous zones, guardrails allow workers to focus on installation and service tasks rather than constantly monitoring fall hazards.

Install Permanent Roof Anchor Systems

Permanent anchor and horizontal lifeline systems eliminate the need for repeated setup and discourage the use of improvised tie-off solutions over time. Crews arrive, clip in, and get to work without reinventing safety measures on every return trip.

Encourage the Use of Trauma Straps

Fall arrest is only the first step in an incident response. Trauma straps give a suspended worker a way to stand, relieve leg pressure, and maintain circulation while rescue plans move into action. Lightweight and easy to carry, they often make the difference between a controlled rescue and a medical emergency.

Consult Experts for Curved Metal Panels

Curved standing seam roofs behave differently under load. Standard anchors may not apply, even if they work elsewhere on the building. A fall protection professional familiar with curved systems can evaluate attachment options before work begins, protecting workers, roof performance, and warranties simultaneously.

Disclaimer

The views, recommendations, and information presented in this blog are solely those of the author and do not necessarily reflect the opinions or positions of the featured panel manufacturer, its brands, subsidiaries, or parent companies. Customers are strongly encouraged to contact the roof panel manufacturer directly for inquiries regarding fall protection compatibility with their products and to address any potential warranty issues that may arise after installing our products.
