Fall Protection Techniques For Middle South Systems Roofs
Posted by Howie Scarboro - CEO Fall Protection Distributors, LLC on Feb 26th 2026
See the Roof Anchor Compatibility Chart for Middle South Systems Standing Seam Panels.
Who Is Middle South Systems?
When it comes to battling the Gulf Coast's wild weather, Middle South Systems, based in Kenner, Louisiana, has the necessary experience to build long-lasting roof systems. Founded in 1992 by Steve Stouder, a Louisiana native with a passion for durable roofing, the company has grown from a small operation into a trusted name across Louisiana and the Gulf Coast of Mississippi. With over 30 years of experience installing metal roofs across Louisiana and Mississippi, this team understands that hurricanes, hail, and humidity are the biggest threats to their products. Middle South Systems offers metal shingles, metal tiles, and standing seam panels.
Why Are Compatible Fall Protection Anchors Critical for Standing Seam Roofs?
Standing seam roofs, with their sleek snap lock or mechanically seamed profiles, pose unique dangers that make specialized fall protection a must to keep workers safe and the roof system intact. These roofs, typically made from 24-gauge or 22-gauge steel or 0.032-inch aluminum, have raised seams from 1 inch to 2 inches that create a watertight, fastener-free finish.
Drilling or improperly clamping onto these seams can deform them, cause leaks, and void warranties. The slick metal surface sheds dirt and bird droppings with rain, but that also creates a slippery walking surface even when dry. Without proper fall protection, a slip can lead to severe injury or worse; OSHA statistics show that falls account for over 30% of construction fatalities. OSHA requires that anchors provide a 5,000-pound anchor point for each worker. That is not too difficult when you can penetrate the panels and screw into structural members. However, standing seam roofs are challenging because they do not allow penetrations.
Non-penetrating anchor solutions, such as the SSRA products and the Ridge Pro Steep Assist, provide secure anchoring for these challenging standing seam systems. These OSHA-compliant systems prevent fines, protect the roof from damage that could compromise its weather resistance, and ensure crews can install or maintain roofs safely, keeping workers and the roof's waterproof integrity intact.
The following specialized products provide the primary safety solutions for Middle South Systems setups:
- SSRA1 Standing Seam Roof Anchor: The core of the system. This anchor provides a non-penetrating, certified 5,000-pound tie-off point using 12 cupped-tip or nylon-tipped set-screws.
- SSRA2 Adjustable Roof Jack Adapters: These mount directly to the SSRA1 anchors. This setup allows the staging of 10-foot wooden walkboards to create level work platforms on steep slopes.
- SSRA3 Anchor Plates: These heavy-duty aluminum plates secure across two SSRA1 anchors. These plates serve as the certified endpoints for a temporary horizontal lifeline system.
- SSRA HLL 100-foot Temporary HLL Kit: This kit provides continuous tie-off for up to two workers in fall arrest. This assembly allows for safe lateral movement across large roof spans.
- 120-foot Super Anchor Permanent HLL Kit: This galvanized-steel-cable solution is for roofs requiring regular maintenance without penetrations.
- Ridge Pro Steep Assist: The ultimate solution for slopes between 6:12 and 12:12. This hook system secures over the ridge to provide 100% tie-off from the moment a worker leaves the ladder.
Proper Attachment: Set-Screws and Torque Requirements
Worker safety and the holding power of the SSRA1 anchor depend entirely on correct set-screw application:
- Cupped-Tip Stainless Steel Set-Screws: Use these screws exclusively on 22-gauge steel panels. Torque these screws to 90 inch-pounds for a secure lock.
- Nylon-Tipped Set-Screws: Apply these tips to 22-gauge or 24-gauge steel panels to achieve certified holding power. Torque these screws to 180-200 inch-pounds for maximum strength.
- Maintenance: Treat nylon tips as consumables. Replace these tips every 3 to 5 uses to maintain maximum grip strength.
Critical Warning: No Impact Guns
Never use an impact gun to install set-screws. Over-torquing with an impact driver will crush the standing-seam rib. This installation error will damage the anchor hardware and void the manufacturer's warranty. Always use a calibrated torque wrench for final installation.
Middle South Gator Snap Snaplock Panels (SSRA Compatible 24 ga. Steel)

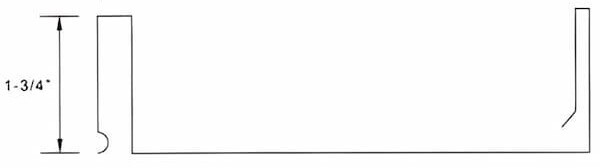

The flagship product, the Gator Snap panel, is a Standing Seam system designed for clean lines and robust durability in homes. Made from 24-gauge Galvalume steel with Kynar 500 or Hylar 5000 coatings, Gator Snap offers fade-resistant colors, such as Aged Bronze and Copper Patina, backed by a Lifetime Limited Warranty. Gator Snap panels are ideal for homeowners seeking a rugged, affordable roof. These 24-gauge Galvalume steel panels feature a 1.75-inch snap lock seam, providing a clean, modern look with concealed fasteners that resist wind, hail, and rain. Designed for a minimum slope of 1:12, they install over solid decking, such as plywood, using hidden clips for a watertight, fastener-free finish. Certified by the Fortified Roof program for resistance to hurricanes, strong winds, and hail, these panels meet UL 580 Class 90 uplift and ASTM air/water tests, making them perfect for coastal homes from Louisiana to Texas. See the Roof Anchor Compatibility Chart for Middle South Systems Gator Snap Snaplock Standing Seam Panels.
Fall Protection for Gator Snap Panels
Gator Snap panels feature a 1.75-inch snaplock seam that is watertight and requires non-penetrating fall-protection anchors. The SSRA product line is compatible with Gator Snap's snap lock profile when test-fitted for a secure grip.
- SSRA1 Seam Anchor: Clamps to seams with twelve stainless steel set screws, delivering a 5,000-pound anchor point for personal fall arrest systems without penetrations.
- SSRA2 Adjustable Roof Jack Adapter: Mounts on top of SSRA1 anchors to support 10-foot walkboards, creating stable platforms for installation or maintenance.
- SSRA3 Anchor Plate: Mount the SSRA3 Anchor Plate to support temporary horizontal lifeline systems for multiple workers. The SSRA HLL kit allows 2 workers to remain tied off during temporary roof work.
- Super Anchor 120-foot Permanent Horizontal Lifeline Kit: Uses seam-mounted posts to secure a galvanized steel cable, providing a durable, OSHA-compliant tie-off system for ongoing maintenance.
- Ridge Pro Steep Assist: Hooks over the roof's peak, offering a sturdy anchor point for slopes from 6:12 to 12:12 without contacting the snaplock seams. The Ridge Pro provides 100% tie-off protection for the worker at all times while on the roof.
The Advantage of Certified Engineering: Why Domestic Standards Win
While the global marketplace offers many budget-friendly options, investing in American-engineered safety equipment provides a level of certainty that generic imports cannot match. Back your safety plan with verifiable data rather than guesswork by choosing rigorously tested anchors that meet OSHA and ANSI standards. This commitment to American manufacturing means your crew can work with total confidence, knowing their gear is purpose-built for the rigors of the job site. By choosing certified SSRA hardware, you prioritize compliance testing over cheap pricing. We invite you to review our official SSRA test reports to see the performance benchmarks that set our system apart.
Metal Roof Anchor Panel Compatibility For Middle South Systems
Contact Us For More Information
For further details on roofing solutions and fall protection systems, please contact us at 863-703-4522 or visit www.StandingSeamRoofAnchor.com. Let's work together to make your roofing projects safe, beautiful, and built to last. For more safety tips, refer to the OSHA 48-page Fall Protection Manual. Once you have determined the most suitable anchors for your roof system, download our free Anchor Inspection Form.
Safety Tips For Standing Seam Roofs
Promote a Culture of Safety
Building a safe job site is like forging a tightly knit crew, starting with trust and accountability. Encourage your team to report hazards, share close-call stories, and prioritize safety every day. When everyone looks out for each other, a safety culture is born, keeping the site safer than ever.
Develop OSHA Compliant Safety Plans
Create a safety plan tailored to each job site's slope, weather conditions, and crew size. Detail anchor points, rescue procedures, and specific roles for every worker. Update it often to avoid OSHA fines and ensure your team is ready for any challenge.
Set Up Protective Guardrail Barriers for Work Zones
Guardrails stop trouble before it starts. Place sturdy barriers around skylights and roof edges to mark danger zones. Quick to install and tough as nails, they let your crew move freely without fear of accidents.
Equip Workers with High-Quality Safety Gear
Provide your crew with gear that feels like a second skin, using OSHA-certified harnesses, lanyards, and lifelines that fit well and perform reliably. Comfortable, dependable equipment ensures workers use it correctly, staying safe from sunrise to sunset on slick metal roofs.
Prioritize Ladder Safety Training
Ladders are one of the most dangerous areas on a job site. Train your team to secure ladders using the 4-to-1 angle rule, maintain three contact points, and check for wear. Safe ladder habits build the foundation for a safe climb.
Ensure Proper Footwear for Stability
On a slick standing seam roof, proper footwear is your best ally. Choose footwear designed for roofing, with grippy soles and strong ankle support to keep your crew steady. Good shoes reduce slips and fatigue, making every step safe.
Install Permanent Roof Anchor Systems
For roofs with regular maintenance needs, such as commercial buildings with HVAC systems or scheduled inspections, permanent anchors significantly enhance safety. Fixed anchor points save setup time, protect the roof from wear, and keep workers secure, ensuring every visit is as safe as the last.
Use Specialized Anchor Systems for Standing Seam Roofs
Drilling into standing seam panels voids the warranty and invites leaks. Select non-penetrating anchors, such as SSRA1 or Ridge Pro, to provide 5,000-pound anchor points without compromising the roof's watertight seal.
Consult Experts for Curved Metal Panels
Curved roofs are stunning, but can be tricky to set up fall protection anchors. Standard anchors may fail due to their unique shape; therefore, we recommend consulting with fall protection specialists. They will select equipment compatible with the job site, ensuring workers' safety without compromising the panel's design.
Encourage the Use of Trauma Straps
A fall is bad enough, but hanging in a harness can quickly cut off blood flow. Trauma straps allow workers to stand in their harness, easing pressure while awaiting rescue. Affordable and lightweight, they are essential for every kit to prevent a bad day from getting worse.
Disclaimer: The views, recommendations, and information presented in this blog are solely those of the author and do not necessarily reflect the opinions or positions of the featured panel manufacturer, its brands, subsidiaries, or parent companies. Customers are strongly encouraged to contact the roof panel manufacturer directly for inquiries regarding fall protection compatibility with their products and to address any potential warranty issues that may arise after installing our products.
