Super Anchor 1207 Standing Seam Plate – Versatile, Non-Penetrating Fall Protection for Standing Seam Roofs
The Super Anchor 1207 Standing Seam Plate is a groundbreaking, non-penetrating anchor solution designed to provide unmatched safety and versatility for standing seam roofs. Engineered with lightweight aluminum and available in three sizes to accommodate panel seam widths from 12" to 24", the 1207 Plate is compatible with roughly 95% of modern standing seam profiles, thanks to its unique RCT seam clamp system. Each plate is third-party tested to withstand 5,000 lbs of force in the specified load direction and installs with only three non-penetrating screws per clamp, ensuring secure, reliable attachment without damaging the roof.
The Super Anchor 1207 and RCT clamps are the foundation of the 120' Permanent HLL kit that is also available.

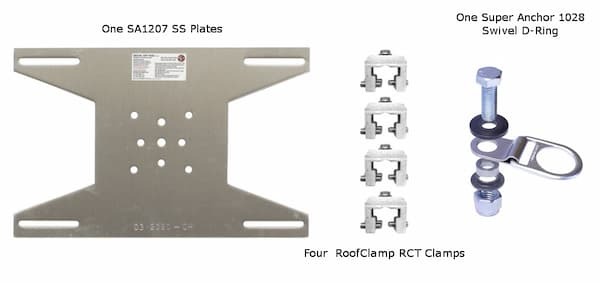

Kit Contents:
(1) Super Anchor 1207 Plate, (4) RCT seam clamps, and (1) Super Anchor 1028 Swivel D-Ring.
Non-penetrating attachment with RCT Clamps
The 1207 Plate attaches securely using four RCT Clamps, which connect to the seam with three 3/8" stainless steel hex screws per clamp. The clamp system is designed to accommodate most seam profiles, making it an ideal choice for projects requiring a non-invasive attachment.

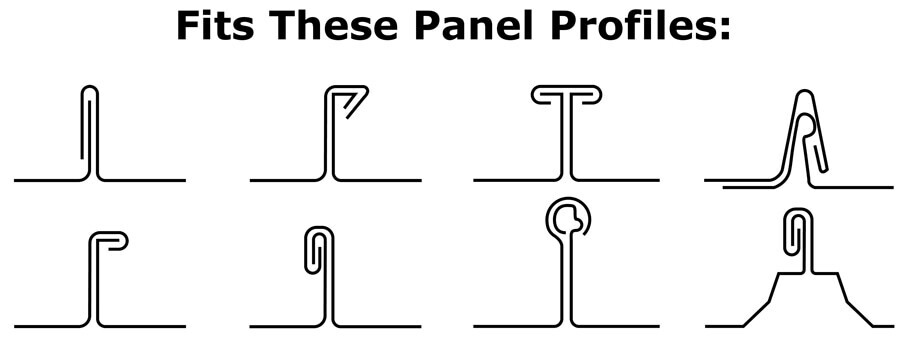

Pro Tip: Check your seam compatibility to be sure the RCT will fit properly. If you are working on one of these eight basic seam shapes, there is a 95% chance that the RCT clamps are compatible with your roof.
Versatile Applications for Various Fall Protection Needs

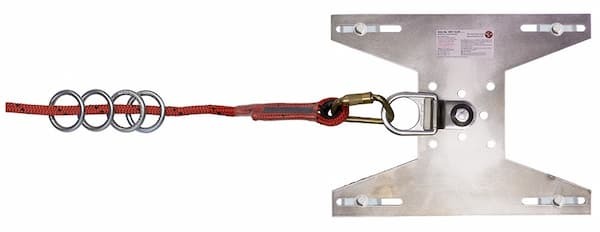

The 1207 Plate's swivel D-ring allows it to function as a single worker fall protection anchor point, a base for permanent cable lifeline end or intermediate posts, or a mount for SRL and SRD devices using a swivel cradle. The Super Anchor 1207 Standing Seam Plate is the foundation of the Super Anchor 120' Permanent Standing Seam HLL Kit. This 120' permanent lifeline kit is the only one in the industry that provides everything needed for a 120' permanent galvanized lifeline. The Super Anchor 1207 Plate brings flexibility to a wide range of fall protection scenarios on standing seam roofs.
Tested for High Strength and Compliance
Each 1207 Plate is rigorously third-party tested to meet ANSI, CSA, and OSHA standards, ensuring it holds up under a 5,000 lb load in specified directions. It provides reliable compliance for single-worker PPE fall protection, horizontal lifeline setups, and window-washing applications.
Product Panel Width Options:
The Super Anchor 1207 Standing Seam Plate Kit is available in 3 sizes to accomodate most standing seams 12" up to 24".
1207-12×18: Standing Seam Anchor with Four RCT Clamps and Swivel D-Ring
1207-14×22: Standing Seam Anchor with Four RCT Clamps and Swivel D-Ring
1207-18×24: Standing Seam Anchor with Four RCT Clamps and Swivel D-Ring
Installation and Support Documents:
The 1207 Plate comes with comprehensive support documents to assist with installation and ensure the correct setup:
1207 Standing Seam Plate Owner's Manual for detailed installation instructions and safety tips.
Super Anchor Lifeline Rigging Manual to guide safe horizontal lifeline (HLL) installation.
Super Anchor SSCA Manual provides extensive usage and compatibility guidance for various standing seam roof profiles.
Warranty and Compliance Statement for product compliance details and warranty information.
The Super Anchor 1207 Standing Seam Plate is the go-to, non-penetrating anchor solution for standing seam roofs. It provides versatility and strength in a single, easy-to-install system. With the 1207 Plate, you gain peace of mind knowing your fall protection is secure, compliant, and roof-friendly, ready for any job site challenge.
