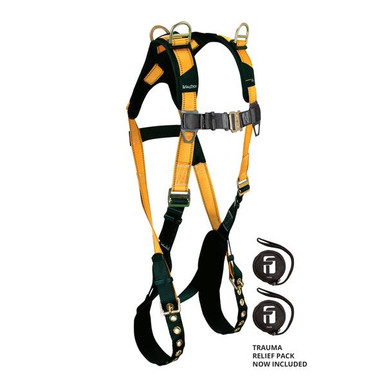

FallTech 7027C Journeyman Flex Steel Harness 1D+SD+Extender
The FallTech 7027C is a Journeyman Flex Steel Full Body Harness 1D+SD+Extender Retrieval Non-belted Tongue Buckle Legs/Quick-Connect Chest from the Journeyman Flex Steel family, built around 3 D-rings (dorsal and shoulder) with polyester webbing rated to 3,600 lb min. static strength.
It meets ANSI Z359.11-2021, OSHA 1926.502 and 1910.140, CSA Z259.10-2018 and is available in 1 size option. Every unit ships with the full FallTech documentation package, linked below for your safety submittals.
Who Needs This Product
Crews who need a harness with 3 D-rings for confined space entry, with shoulder connections for winch retrieval through a davit or tripod. The Journeyman Flex Steel family is FallTech's answer for this tier of work, and this configuration adds the specific closure and D-ring arrangement listed in the specifications below.
Features
Features integral padded shoulder
Features integral padded shoulder yoke and hip-to-seat leg pads to provide advanced breathable user comfort.
Proprietary dorsal attachment sleeve
Proprietary dorsal attachment sleeve supports effortless addition of personal SRLs.
Plated alloy steel low-profile
Plated alloy steel low-profile spring tension roller torso adjusters provide simple upper-body adjustment.
Dorsal and shoulder D-rings
Dorsal and shoulder D-rings, quick connect chest, and tongue buckle leg closures are all durably plated alloy steel.
Tongue buckle legs are
Tongue buckle legs are uniquely equipped with 9 grommeted adjustment positions for a wider range of fit.
Includes fully adjustable suspension
Includes fully adjustable suspension trauma relief system.
Safety first. A full body harness is only one part of a personal fall arrest system. Verify anchorage strength, connector compatibility, and fall clearance before work begins, and never use a harness that has arrested a fall until a competent person removes it from service. When calculating minimum required fall clearance, the FallTech manual adds 1.5 ft for harness stretch and D-ring shift during arrest.
Compliance Standards
ANSI Z359.11-2021
Meets the ANSI/ASSP standard for full body harnesses, covering design, testing, and marking requirements.
OSHA 1926.502 and 1910.140
Satisfies OSHA construction and general industry requirements for personal fall arrest system body support.
CSA Z259.10-2018
Certified to the CSA standard for full body harnesses, accepted on Canadian jobsites.
Applications
How to Use
Donning a full body harness takes less than a minute once the straps are adjusted to your body.
- Inspect first. Check webbing, stitching, D-rings, and buckles for damage before every use. Remove the harness from service if you find cuts, burns, or deformed hardware.
- Don the harness. Hold the dorsal D-ring, shake the harness so the straps fall free, and slip it on like a jacket.
- Close and adjust. Connect the chest and leg closures, then adjust the torso so the dorsal D-ring sits between the shoulder blades.
- Check the fit. You should be able to slide a flat hand, but not a fist, under the leg straps. Tuck loose strap ends into the keepers.
- Connect and verify. Attach your lanyard or SRL to the correct D-ring for the task, and verify anchorage and clearance based on the delivery location of the work.
Inspection and Service Life
OSHA requires personal fall protection to be inspected before each use, and ANSI Z359.11 adds a formal inspection by a competent person at least annually. Log formal inspections so the service history follows the harness.
- Webbing: look for cuts, fraying, abrasion, burns, chemical damage, and UV fading along every strap
- Stitching: check for pulled, broken, or abraded threads, especially at load-bearing junctions
- D-rings and hardware: confirm no cracks, sharp edges, corrosion, or distortion, and that buckles engage positively
- Labels: verify the label pack is present and legible, including the date of first use
- Load indicators: confirm the fall arrest indicator has not deployed
Retire the harness immediately if it has arrested a fall, if any inspection point fails, or if the label is missing or unreadable. Cut the webbing on retired units and destroy retired equipment so it cannot return to service.
Product Video
See the Frontline davit arm system set up for confined-space entry and non-entry rescue retrieval.
Who Needs This Product
This product is a confined space davit system - the rotating retrieval point that lowers and recovers workers and material over an opening. Confined space teams, utilities, and tank crews build their entry and non-entry rescue around it. It requires a rated winch or 3-way SRL, a full body harness, and a written rescue plan to form a complete system.
Features
360-degree boom
Swing the load over the opening and away to the landing zone.
Two integrated pulleys
Run a fall arrest SRL and a retrieval winch line simultaneously.
Permanent base options
Mount to steel, concrete, or a truck bed for mobile rescue.
Made in the USA
Patriot-line build for Buy American specs.
Removable boom
Lift the boom out when the entry point is not in use.
Tank and edge ready
Reaches over tank rims and leading edges.
Fall ProtectionDistributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your lanyard or SRL setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k).
Technical Specifications
| Type | Non-Belted Full Body Harness |
|---|---|
| SKU | 7027C |
| Family | Journeyman Flex Steel |
| D-Rings | 3 (Dorsal and Shoulder) |
| Closures | Tongue Buckle Legs with Quick-Connect Chest |
| Webbing | Polyester |
| Static Strength | 3,600 lb min. |
| ANSI User Capacity | 130 to 310 lb max. |
| OSHA User Capacity | 130 to 425 lb max. |
| CSA User Capacity | Up to 350 lb including clothing and tools, per the FallTech manual |
| Standards | ANSI Z359.11-2021; OSHA 1926.502 and 1910.140; CSA Z259.10-2018 |
| Warranty | FallTech 2-year manufacturer warranty, honored through Fall Protection Distributors |
Frequently Asked Questions
Submittals and Documentation
FallTech 7027C Spec SheetOne-page technical specifications for this product FallTech 7027C Instruction ManualFull user instructions, inspection criteria, and donning procedure FallTech 7027C Declaration of ConformityManufacturer declaration of conformity to the listed standards FallTech 7027C Declaration of Conformity (CSA)Manufacturer declaration of conformity to CSA Z259.10 FallTech 7027C Harness Sizing ChartManufacturer sizing chart to match torso and weight to the right sizeOrder the FallTech 7027C Today
Every FallTech product we stock ships fast and arrives with full documentation for your safety file. Not sure which size or configuration fits your crew? Our fall protection specialists size harnesses every day.
Call 863-703-4522 for expert help Specifying the right body wear for your application, or order online now for delivery based on the delivery location.
