Malta X500 Mobile Grabber: 360 Degree Rotatable Overhead Anchor
The Malta Dynamics X500 is a free-standing mobile fall protection system that delivers a rotating overhead anchor point for single-worker work at height, with no building modification and no ground penetration. Its hand-rotated mast turns a full 360 degrees and locks in place, so the tie-off point sits directly above the worker for maintenance, loading, and unloading around warehouses, docks, rail cars, and large machinery.
One worker, 25 feet of overhead reach, and a 360-degree mast that follows the work, all from a free-standing ballasted base.
$Configure Your X500: Instant Quote
Build your X500 below and see your price update instantly. All prices are FOB Malta, OH. Delivery is available and is quoted separately once you share a delivery address.
Base unit, 360-degree rotatable overhead anchor, single worker. FOB Malta, OH.

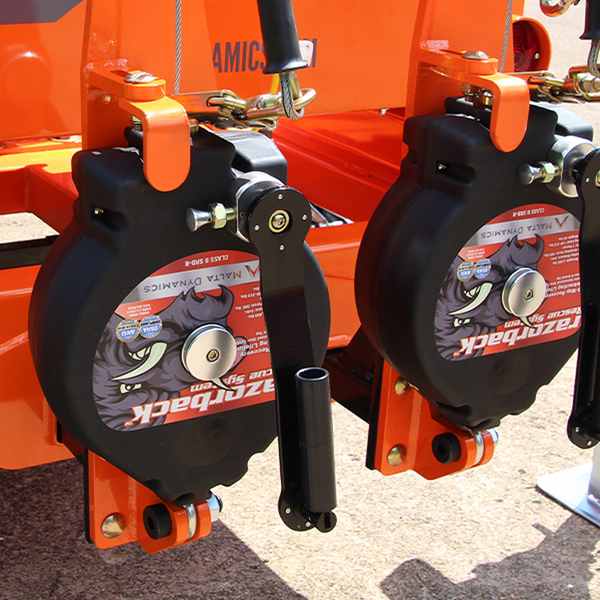

The only model-specific add-on for the X500. Adds bi-directional winching so an attendant can raise or lower a worker to a safe level, satisfying the OSHA confined space rescue and retrieval requirement. Includes a 3-Way Recovery SRL.

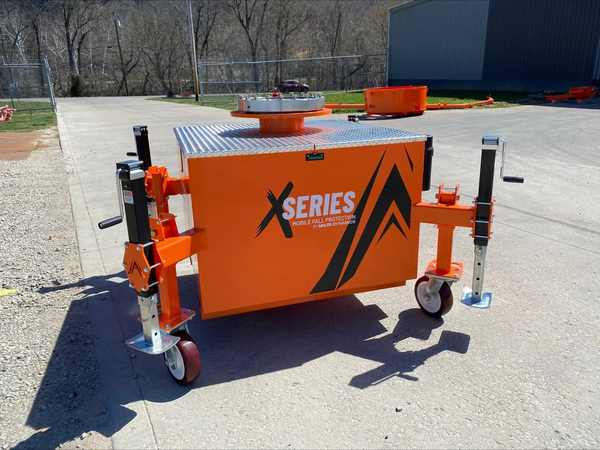

Set of four heavy-duty casters that mount to the base so a crew can roll the grabber across a smooth concrete floor and reposition it without a forklift.

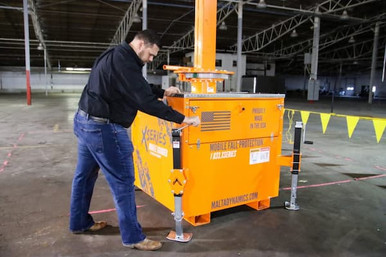

A certified instructor trains your crew on setup, rotation, tie-off, and inspection at your site. Flat rate anywhere in the continental US, instructor travel included.
This is a quote-request item. Build your configuration above, then request your quote, and our team will confirm pricing and lead time. Payment is made by ACH wire transfer. If delivery is required, provide a ship-to address, and we will quote truck freight, typically ranging from $1,500 to over $10,000, depending on the unit, distance, and current fuel costs. Sales tax is calculated based on your delivery location unless a valid resale certificate is on file.
Who Needs the X500
The X500 is built for single-worker overhead tie-off in facilities where fixed anchors are impractical: warehouse and factory maintenance, loading docks, railcar and trailer loading and unloading, and large machinery service. Because the base is free-standing and ballasted, there is no drilling, no roof penetration, and no structural attachment. The mast hand-rotates a full 360 degrees, so a single attendant can keep the anchor point directly overhead as the worker moves around the equipment, then lock it in place for the task.
Watch: XSERIES X500, Anchor Point in the SkySee how the X500 hand-rotated mast aligns a single overhead anchor point above the work, with no fixed building anchor and no ground penetration.
Features
360-degree rotatable mast
Turn the mast by hand from the ground to place the anchor directly overhead, then engage the multi-position boom lock to hold it during work.
Free-standing, zero penetration
A factory-ballasted base provides arrest-force resistance with no drilling, roof penetration, or building modification.
25-foot overhead reach
Ample clearance for industrial trailers, rail cars, and large machinery so the lifeline stays vertical above the worker.
Single worker rated
One overhead anchor point rated to 310 lbs, including tools and equipment, sized for focused single-user maintenance tasks.
Forklift portable
Reposition the unit within a facility using a forklift rated above the unit's weight; no power or vehicle hookup is required to rotate the mast.
USA-made and tested
Built in a USA-based ISO 9001 certified facility and tested to meet and exceed OSHA anchorage requirements.
Set up on a stable, level surface and engage the boom lock before any worker ties off. Keep the unit level, confirm the mast is locked in position, and complete a daily visual inspection of the base, mast, and anchor point. Pair the X500 with a compatible self-retracting lifeline; SRLs are not included with the unit.
Typical Applications
Warehouse and factory maintenance
Overhead tie-off for service work where roof or wall anchors are not available.
Loading docks and rail cars
Protect a worker on top of trailers, rail cars, and tankers during loading and unloading.
Machinery and equipment service
Position a rotating anchor above large machinery for maintenance and inspection.
Confined space retrieval
Use as a high-strength anchor for rescue and retrieval when paired with the R0003 recovery SRL.
Technical Specifications
| Product | Malta Dynamics XSeries X500 Mobile Grabber |
|---|---|
| SKU | X500 |

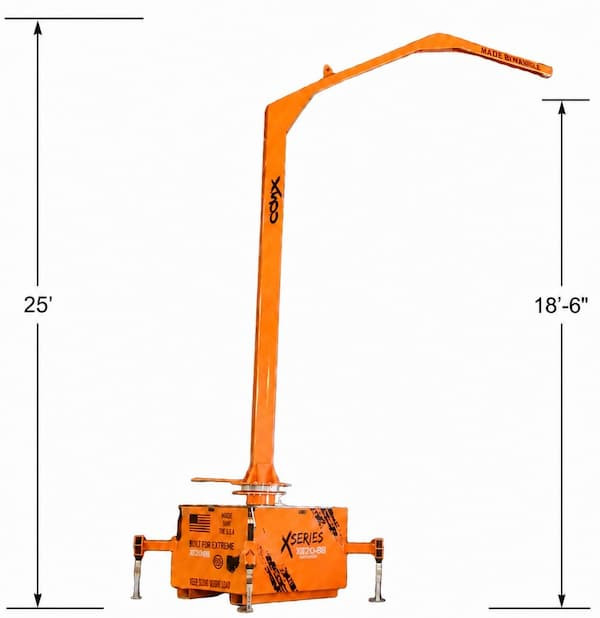

| Maximum working height | 25 ft (7.62 m) |
| Width | 6 ft 1 in (1.9 m) |
| Length | 13 ft (3.96 m) |
| Maximum anchor point capacity | 310 lbs |
| Maximum allowable users | 1 |
| Mast rotation | 360 degrees, hand-rotated, multi-position boom lock |
| Unit weight | Approximately 6,100 lbs (factory ballasted base) |
| Stabilization | Free-standing ballasted base, no ground penetration or building anchors |
| Mobility | Forklift portable for in-facility repositioning |
| Self-retracting lifeline | Not included; pair with a compatible SRL such as the R0003 |
| Compliance | OSHA fall arrest anchorage; tested per ISO 17025 protocol; Declaration of Conformity MDL1PO346 |
| Origin | Made in the USA, ISO 9001 certified facility |
| Warranty | 1 year limited (Malta Dynamics) against factory defects in workmanship and materials |
Tested and Compliant Anchorage
The X500 is documented to meet OSHA fall-arrest anchorage requirements, supported by a Malta Dynamics Declaration of Conformity (MDL1PO346), with testing performed in accordance with the ISO 17025 protocol. Each unit is manufactured in a USA-based ISO 9001-certified facility. Download the spec sheet, declaration of conformity, instruction manual, and annual inspection form below, and keep the inspection form on file as part of your documented fleet maintenance program.
Product Documents and Submittals
X500 Spec Sheet (PDF)Dimensions, height, capacity, and weight ratings. X500 Declaration of Conformity (PDF)OSHA compliance and ISO 17025 testing statement. XSeries Instruction Manual (PDF)Setup, rotation, deployment, and safe use. XSeries Annual Inspection Form (PDF)Documented inspection record for fleet maintenance. XSeries Add-On Options Guide (PDF)Overview of available XSeries accessories and upgrades.Frequently Asked Questions
Compare the Malta X-Series Mobile Grabbers
The X500 is the single-worker, 360-degree rotatable davit unit. For multi-worker coverage or greater overhead reach, compare the rest of the Malta XSeries mobile grabber line.
Ready to Configure Your X500?
Build your unit in the instant quote tool above, add the rescue kit or on-site training, and add it to your cart, or request a delivered quote, and our team will price freight to your address. Mobile overhead protection, made in the USA.
