Malta X1200 Mobile Grabber: Facility Electric Overhead Anchor for 2 Workers
The Malta Dynamics X1200 is a facility mobile fall protection system that delivers two overhead anchor points for work at height inside plants, warehouses, and maintenance shops, with no fixed building anchor and no floor penetration. An electric-powered hydraulic mast raises the anchor to 28 ft by pendant remote, four manually adjustable outrigger jacks level the base, and heavy-duty non-marking tires with a drop-down lunette ring let a forklift or tug reposition the unit between work areas without marking the floor. It is the indoor sibling to the road-towable X1000E and X1240.
Two workers, a 28 ft electric-hydraulic mast on a 12 volt battery, and non-marking tires built for finished floors. Not road-towable.
The finance payment shown is a sample, not an offer. Submit a quote request for actual costs. Financing is provided through APPROVE and its lender network, subject to credit approval, at a 60 month term; your offered rate and term may differ. Financing is available on orders of $2,500 and up, including smaller items bundled with the unit.
Configure Your X1200: Instant Quote
Build your X1200 below and see your price update instantly. All prices are FOB Malta, OH. Delivery is available and is quoted separately once you share a delivery address.
Base unit, facility chassis on non-marking tires, electric-hydraulic dual overhead anchor to 28 ft, up to 2 workers. FOB Malta, OH.
Adds bi-directional winching so an attendant can raise or lower a worker to a safe level, satisfying the OSHA confined space rescue and retrieval requirement. Includes a 3-Way Recovery SRL.
Compact wireless controller with a range up to 100 ft for mast and hydraulic control from a safe distance, an upgrade over the standard corded pendant.
Two mast-mounted lights that provide 360 degrees of lit work space for low-light plant areas, night shifts, and confined spaces.
High-visibility strobe for awareness near forklift lanes, vehicle traffic, and foot traffic inside a facility.
Lockable disconnect in the rear motor compartment so the unit cannot be powered on or moved while work is in progress, supporting your lockout and tagout program.
Two standardized studs for facilities that require the unit to be electrically grounded.
A mounted fire extinguisher as a first line of defense against fire hazards at the work area.
Big-foot tough-steel pads that spread the outrigger load on soft or uneven surfaces, and they install in seconds.
Oversized outrigger feet with all-steel studs for secure traction when the unit is set up outdoors on snow or ice.
A certified instructor trains your crew on positioning, setup, mast deployment, tie-off, charging, and inspection at your facility. Flat rate anywhere in the continental US, instructor travel included.
This is a quote-request item. Build your configuration above, then request your quote, and our team will confirm pricing and lead time. Payment is made by ACH or wire transfer. If delivery is required, provide a ship-to address, and we will quote truck freight, typically ranging from $1,500 to over $10,000, depending on the unit, distance, and current fuel costs. Sales tax is calculated based on your delivery location unless a valid resale certificate is on file.
Who Needs the X1200
The X1200 is built for two-worker overhead tie-off inside facilities that have no permanent anchorage above the work: trailer and railcar loading docks, aircraft hangars, heavy equipment shops, and high-ceiling plants and warehouses. Because the base is free-standing and stabilized by four outrigger jacks, there is no drilling, no roof penetration, and no building attachment. The electric-hydraulic mast raises by pendant remote from 2 ft to 28 ft, and the non-marking tires and drop-down lunette ring let a forklift or tug move the unit from bay to bay without scarring the floor. When the work travels between jobsites on public roads, choose the road-towable X1000E or X1240 instead.

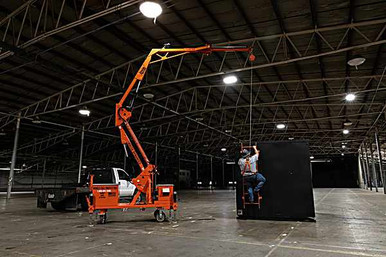

Watch: Malta X1200 in ActionSee the X1200 roll onto a smooth warehouse floor, level on its outrigger jacks, and raise its electric-hydraulic mast to an overhead anchor point by pendant remote.
Features
Electric-hydraulic pendant control
Raise and lower the mast from a safe distance with an electric-powered hydraulic system operated by a pendant remote on a 15 ft cord, or add wireless controls.
Facility chassis, not road-towable
Heavy-duty non-marking tires and a drop-down lunette ring let a forklift, tug, or yard truck reposition the unit at low speed without marking sealed or finished floors.
Two overhead anchor points
Two tie-off points rated to 310 lbs each support up to two workers at once for fall arrest or fall restraint.
2 ft to 28 ft working height
The mast sets the overhead anchor anywhere from 2 ft to 28 ft with 10 ft 6 in of arm reach, and it folds to 7 ft 2 in to pass through facility doors.
Battery power with smart charger
A 12 volt, 210 amp hour battery with a 30 amp fuse and battery gauge runs the hydraulics, and a 110 volt quick smart charger recharges from any standard outlet.
USA-made and tested
Built in a USA-based ISO 9001 certified facility and tested to meet OSHA anchorage requirements, with a Declaration of Conformity on file.
Do not tow the X1200 on public roads. Move it only at low speed with a forklift, tug, or yard truck, set up on a stable, level floor, and extend all four outrigger jacks before raising the mast or tying off. Confirm the unit is level, check the battery gauge, complete a daily visual inspection of the frame, mast, jacks, tires, and anchor points, and pair the X1200 with a compatible self-retracting lifeline; SRLs are not included with the unit.
Typical Applications
Warehouse and plant maintenance
Overhead tie-off for two technicians servicing conveyors, racking, lighting, and overhead equipment inside high-ceiling facilities.
Indoor loading docks
Overhead anchorage for workers on top of trailers, tankers, and rail cars during loading and unloading under a roof.
Aircraft hangars and heavy equipment shops
Position dual overhead anchors above aircraft, buses, or large machinery for maintenance, inspection, and washing.
Multi-bay facilities
Roll the unit from bay to bay on non-marking tires and deploy in minutes with the pendant remote, with no floor anchors or building attachment.
Technical Specifications
| Product | Malta Dynamics XSeries X1200 Mobile Grabber |
|---|---|
| SKU | X1200 |
| Maximum working height | 28 ft (8.5 m) |
| Minimum working height | 2 ft (0.6 m) |
| Maximum folded height | 7 ft 2 in (2.2 m) |
| Frame width | 4 ft 3 in (1.3 m) |
| Overall length | 12 ft 8 in (3.9 m) |
| Maximum arm reach out | 10 ft 6 in (3.2 m) |
| Maximum anchor point capacity | 310 lbs per anchor |
| Maximum allowable users | 2 |
| Actuating method | Electric-powered hydraulic system |
| Controls | Pendant remote, 15 ft cord length |
| Power source | 12 volt battery, 210 amp hour rating, with 30 amp fuse and battery gauge |
| Charging system | 110 volt quick smart charger with cord |
| Outrigger system | Four manually adjustable jacks |
| Hydraulic fluid capacity | 12.5 gallons |
| Towing | Not road-towable; facility and yard moves only |
| Tires | Heavy-duty non-marking |
| Coupling | Drop-down lunette ring |
| Unit weight | 5,500 lbs (2,495 kg) |
| Self-retracting lifeline | Not included; pair with a compatible SRL |
| Compliance | OSHA fall arrest anchorage; tested in a Malta Dynamics lab within the scope of ISO 17025; Declaration of Conformity MD1PO366 |
| Origin | Made in the USA, ISO 9001 certified facility |
| Warranty | 1 year limited warranty against factory defects (Malta Dynamics) |
Tested and Compliant Anchorage
The X1200 is documented to meet OSHA fall-arrest anchorage requirements, supported by a Malta Dynamics Declaration of Conformity (MD1PO366), with testing performed in the Malta Dynamics laboratory within the scope of the ISO 17025 standard. Each unit is manufactured in a USA-based ISO 9001-certified facility. Malta Dynamics notes that the published X1200 specifications are tentative for this newly released model, so confirm any dimension that is critical to your door openings or floor loading with our team before ordering. Download the spec sheet, declaration of conformity, instruction manual, working diameter charts, and annual inspection form below, and keep the inspection form on file as part of your documented fleet maintenance program.
Product Documents and Submittals
X1200 Spec Sheet (PDF)Working height range, frame dimensions, capacity, power, and weight. X1200 Declaration of Conformity (PDF)OSHA compliance statement and ISO 17025 lab testing reference, MD1PO366. X1200 Instruction Manual (PDF)Setup, mast deployment, charging, and safe use. XSeries Working Diameter Charts (PDF)Anchor reach and working diameter reference by anchor height. XSeries Reach Charts (PDF)Working diameter at each height from the ground for the XSeries line. XSeries Annual Inspection Form (PDF)Documented inspection record for fleet maintenance. XSeries Brochure (PDF)Full XSeries mobile grabber lineup and add-on options.Frequently Asked Questions
Compare the Malta X-Series Mobile Grabbers
The X1200 is the facility-use, two-worker, electric-hydraulic grabber on non-marking tires. For a road-towable trailer that travels between jobsites, see the X1000E or X1240, or compare the rest of the Malta XSeries mobile grabber line for more workers or greater overhead reach.
Ready to Configure Your X1200?
Build your unit in the instant quote tool above, add wireless controls, the rescue kit, or on-site training, then request a delivered quote, and our team will price freight to your facility. Facility overhead protection on non-marking tires, made in the USA.
