Malta X1000E Mobile Grabber: Road-Towable Electric Overhead Anchor for 2 Workers

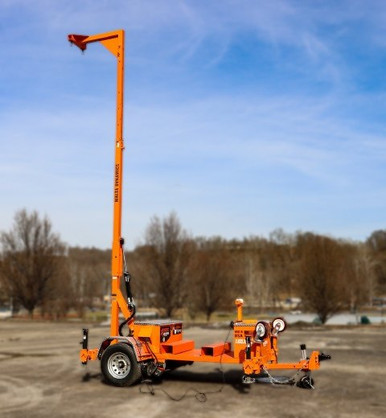

The Malta Dynamics X1000E is a road-towable mobile fall protection system that delivers two overhead anchor points for work at height, with no fixed building anchor and no ground penetration. It carries the X1000 platform forward and upgrades to an electric-powered hydraulic lift operated by remote control, so a crew can raise the mast from 17 ft to 22 ft and deploy in minutes. Four manually adjustable outrigger jacks level the base on uneven ground, and the trailer tows at posted highway speed to the next jobsite.
Two workers, an electric-hydraulic mast that adjusts from 17 ft to 22 ft by remote control, and a road-towable trailer that deploys in minutes.
$Configure Your X1000E: Instant Quote
Build your X1000E below and see your price update instantly. All prices are FOB Malta, OH. Delivery is available and is quoted separately once you share a delivery address.
Base unit, road-towable trailer, electric-hydraulic dual overhead anchor, up to 2 workers. FOB Malta, OH.
Two electric drive motors let a crew reposition the unit for fine placement without a tow vehicle attached.
Compact wireless controller with a range up to 100 ft for instant mast and hydraulic control from a safe distance.
Adds bi-directional winching so an attendant can raise or lower a worker to a safe level, satisfying the OSHA confined space rescue and retrieval requirement. Includes a 3-Way Recovery SRL.
Puncture-proof solid tires for rough sites with hot metal or debris. Not rated for highway use.
Two standardized studs for jobsites that require the unit to be electrically grounded.
Spare tire and all mounting hardware, installed with a few hand tools, so a road-towable unit is never stranded.
Oversized outrigger feet with all-steel studs for secure traction when the unit is set up on snow or ice.
A mounted fire extinguisher as a first line of defense against jobsite fire hazards.
High-visibility strobe for awareness near aviation, vehicle, or foot traffic.
Big-foot tough-steel pads that spread the load on soft ground for a more stable setup, and they install in seconds.

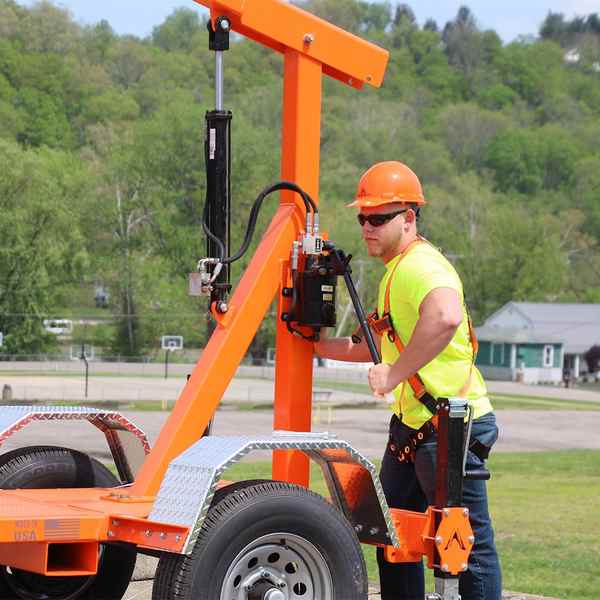

A certified instructor trains your crew on towing, setup, mast deployment, tie-off, and inspection at your site. Flat rate anywhere in the continental US, instructor travel included.
This is a quote-request item. Build your configuration above, then request your quote, and our team will confirm pricing and lead time. Payment is made by ACH or wire transfer. If delivery is required, provide a ship-to address, and we will quote truck freight, typically ranging from $1,500 to over $10,000, depending on the unit, distance, and current fuel costs. Sales tax is calculated based on your delivery location unless a valid resale certificate is on file.
Who Needs the X1000E
The X1000E is built for two-worker overhead tie-off on dynamic jobsites where permanent anchorage is not available and the unit needs to move from site to site: trailer and railcar loading, aircraft and heavy equipment maintenance, and high-ceiling facility work. Because the base is free-standing and stabilized by four outrigger jacks, there is no drilling, no roof penetration, and no building attachment. The electric-hydraulic mast raises by remote control from 17 ft to 22 ft, and the road-towable trailer relocates at posted highway speed when the job moves.

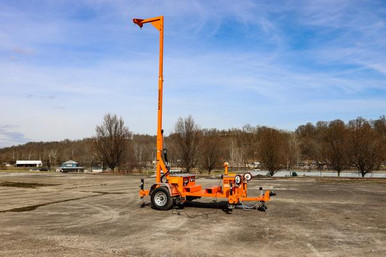

Watch: Malta X1000E in ActionSee how the X1000E tows to the jobsite, levels on its outrigger jacks, and raises its electric-hydraulic mast to two overhead anchor points by remote control.
Features
Electric-hydraulic remote control
Raise and lower the mast from a safe distance with a remote-operated electric hydraulic system, a faster upgrade over the manual hand-pump X1000.
Road-towable trailer
Tow at posted highway speed on a 4-pole blade trailer plug, with integrated fork pockets for moving the unit inside a facility.
Two overhead anchor points
Two tie-off points rated to 310 lbs each support up to two workers at once for fall arrest or fall restraint.
17 ft to 22 ft working height
An adjustable mast sets the overhead anchor between 17 ft and 22 ft to clear trailers, rail cars, and large equipment.
Four outrigger jacks
Four manually adjustable jacks level and stabilize the base on uneven ground, with no drilling or ballast required.
USA-made and tested
Built in a USA-based ISO 9001 certified facility and tested to meet and exceed OSHA anchorage requirements.
Tow only within the rated speed, set up on stable, level ground, and extend all four outrigger jacks before raising the mast or tying off. Confirm the unit is level, complete a daily visual inspection of the trailer, mast, jacks, and anchor points, and pair the X1000E with a compatible self-retracting lifeline; SRLs are not included with the unit.
Typical Applications
Trailer and railcar loading
Overhead tie-off for two workers on top of trailers, tankers, and rail cars during loading and unloading.
Aircraft and heavy equipment
Position dual overhead anchors above aircraft or large machinery for maintenance and inspection.
High-ceiling facilities
Mobile overhead anchorage for service work where fixed roof or wall anchors are not available.
Remote and changing jobsites
Tow the unit between sites and deploy quickly with the electric-hydraulic mast and outrigger jacks.
Technical Specifications
| Product | Malta Dynamics XSeries X1000E Mobile Grabber |
|---|---|
| SKU | X1000E |
| Maximum working height | 22 ft (6.7 m) |
| Minimum working height | 17 ft (5.18 m) |
| Maximum folded height | 7 ft 10 in (2.38 m) |
| Towing width | 5 ft 8 in (1.73 m) |
| Overall length | 12 ft 9 in (3.89 m) |
| Maximum arm reach out | 3 ft (0.91 m) |
| Maximum anchor point capacity | 310 lbs per anchor |
| Maximum allowable users | 2 |
| Actuating method | Electric-powered hydraulic system, remote control |
| Outrigger system | 4 manually adjustable jacks |
| Towing | Posted highway speed; 4-pole blade trailer plug wiring |
| Unit weight | Approximately 2,900 lbs |
| Self-retracting lifeline | Not included; pair with a compatible SRL |
| Compliance | OSHA fall arrest anchorage; tested in accordance with the ISO 17025 protocol; Declaration of Conformity MDL1PO347 |
| Origin | Made in the USA, ISO 9001 certified facility |
| Warranty | 1 year limited plus 5 year structural warranty (Malta Dynamics) |
Tested and Compliant Anchorage
The X1000E is documented to meet OSHA fall-arrest anchorage requirements, supported by a Malta Dynamics Declaration of Conformity (MDL1PO347), with testing performed in accordance with the ISO 17025 protocol. Each unit is manufactured in a USA-based ISO 9001-certified facility. Download the spec sheet, declaration of conformity, instruction manual, working diameter charts, and annual inspection form below, and keep the inspection form on file as part of your documented fleet maintenance program.
Product Documents and Submittals
X1000E Spec Sheet (PDF)Dimensions, working height range, capacity, and weight ratings. X1000E Declaration of Conformity (PDF)OSHA compliance and ISO 17025 testing statement. X1000E Instruction Manual (PDF)Towing, setup, mast deployment, and safe use. XSeries Working Diameter Charts (PDF)Anchor reach and working diameter reference. XSeries Annual Inspection Form (PDF)Documented inspection record for fleet maintenance. XSeries Brochure (PDF)Full XSeries mobile grabber lineup and add-on options.Frequently Asked Questions
Compare the Malta X-Series Mobile Grabbers
The X1000E is the road-towable, two-worker, electric-hydraulic grabber. For the manual-pump version see the X1000, or compare the rest of the Malta XSeries mobile grabber line for more workers or greater overhead reach.
Ready to Configure Your X1000E?
Build your unit in the instant quote tool above, add wireless controls, the rescue kit, or on-site training, then request a delivered quote, and our team will price freight to your address. Road-towable electric overhead protection, made in the USA.
