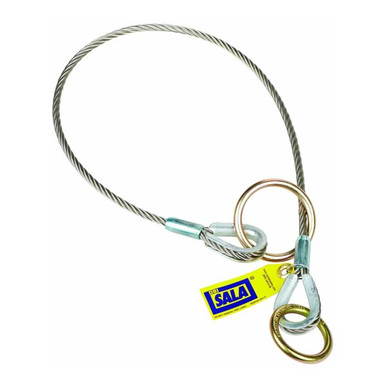

Cable Tie-Off Adaptor
3M's anchorage connectors are built from quality materials providing high strength and durability to stand up to the toughest environments. Anchorage connectors are the foundation of most fall protection systems, often overlooked but critical components because they securely attach your system to the anchorage. Your choice of anchor depends on the type of work being done. Anchorages are sold by what they connect to (general/all purpose, steel, concrete, roof or specialty), whether they are fixed or mobile, and whether they are permanent or portable.
ANSI Z359.18; OSHA 1910.140; OSHA 1926.502 A compliant anchorage point is the foundation of every personal fall arrest system; this connector installs fast and carries the load.
Who Needs This Product
For crews that need a compliant tie-off point where the structure does not offer one.
Features
Portable and reusable
Portable and reusable, engineered into this DBI-SALA configuration as standard.
Meets the requirements for ANSI/ASSP
Meets the requirements for ANSI/ASSP Z359.18, 29 CFR OSHA 1910.140 and 29 CFR OSHA 1926.502.
Recommended for use in multiple
Recommended for use in multiple industries including construction, mining, and oil and gas.
Compact and lightweight design
Compact and lightweight design, engineered into this DBI-SALA configuration as standard.
High strength steel O-ring hardware
High strength steel O-ring hardware, engineered into this DBI-SALA configuration as standard.
Variable length pass-thru type tie
Variable length pass-thru type tie off adaptor.
Technical Specifications
| SKU | 5900551 |
|---|---|
| Anchor Install Type | Reusable |
| Attachment Type | Pass-through/Choker |
| Connected Safety ID Equipped | No |
| Material | Stainless Steel |
| Net Weight | 2.75 lb |
| Overall Length | 6 ft |
| Product Type | Cable Tie-off Adapter |
| Specifications Met | ANSI Z359.18; OSHA 1910.140; OSHA 1926.502 |
| Webbing Material | Stainless Steel Wire Rope |
| Weight Capacity | 310 lbs. (141 kg) ANSI / 420 lbs. (190 kg) OSHA |
| Weight Capacity | 420 lb |
| Warranty | 3M Global Product Warranty against factory defects, one year from first use |
The anchor is only as strong as the structure. Fall arrest anchorages must sustain 5,000 lbf per worker or be engineered as certified anchorages. Verify the substrate before every installation.
Compliance Standards
ANSI Z359
Meets the ANSI Z359 fall protection code requirements listed on the product label and instruction manual.
OSHA 1926.502 and 1910.140
Meets OSHA personal fall protection requirements for construction and general industry.
3M Quality
Designed, tested, and certified by 3M Fall Protection, the successor to Capital Safety and the DBI-SALA legacy.
One-Year Warranty
Covered by the 3M Global Product Warranty against factory defects in workmanship and materials.
Typical Applications
Setup Overview
- Verify the structure can sustain the required anchorage load.
- Install per the 3M instruction manual using the specified fasteners or attachment method.
- Inspect the installed anchor before each use.
- Connect the fall arrest system and verify all gates lock.
- Remove from service after any fall arrest loading.
Full use instructions ship with the unit; the instruction manual is linked in the documentation section below.
Inspection and Retirement
Inspect before each use, and have a competent person inspect the unit on a documented schedule per the applicable ANSI standard and the 3M manual.
- Hardware: cracks, distortion, corrosion, and loose fasteners.
- Webbing or lifeline: cuts, frays, burns, abrasion, and chemical damage.
- Connectors: gates close and lock; no distortion at either end.
- Labels: present and legible, with the inspection log current.
- Function: smooth operation with no hesitation, per the manual test procedure.
Retirement triggers: any fall arrest event, failed inspection, or damage beyond the limits in the manual.
Fall ProtectionDistributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your SRL or lanyard setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k).
Frequently Asked Questions
DBI-SALA 5900551 Submittals and Documentation
Tie Off Adaptor And Scaffold Choker Instruction Manual Engli (PDF)Installation, use, and inspection instructions from 3M. Anchorage Strength Requirements Technical Bulletin (PDF)3M technical bulletin. Cleaning Of Web In Personal Fall Protection Products Technic (PDF)3M technical bulletin. Compatibility Of Fall Protection Components Fm (PDF)Compatibility guidance for fall protection components. Marking And Identifying Web Products Technical Bulletin (PDF)3M technical bulletin.Compatible and Related Products
