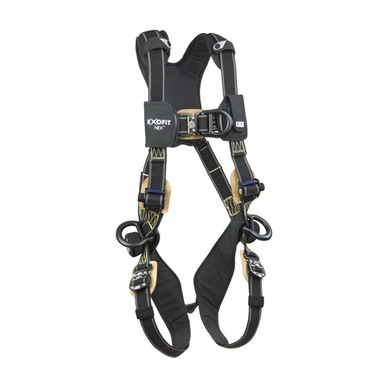

ExoFit NEX Comfort Arc Flash Climbing/Positioning Safety Harness Medium
DBI-SALA ExoFit NEX Safety Harness is designed using the culmination of experience with ExoFit and ExoFit XP ongoing research and the incorporation of new materials and innovative features. When optimal safety and efficiency are project requirements, this harness provides the worker with features designed for freedom and confidence. Lastly, 3M DBI-SALA ExoFit NEX Safety Harness is designed to provide users with comfort, function, and support across various segments and applications at height.
ANSI A10.32; ANSI Z359.1; ANSI Z359.3; ANSI Z359.4; ASTM F887; OSHA 1910.66; OSHA 1926.502 The harness is the one piece of fall protection the worker wears all day; fit and comfort decide whether it gets worn right.
Who Needs This Product
For crews standardizing body wear across the fleet: this configuration matches the D-ring layout and buckle style to the trade, and the size options cover the roster.
Features
Revolving Torso Adapters adjust harness
Revolving Torso Adapters adjust harness fit with ease and speed and lock webbing into place.
Automatic stand-up back D-ring enables
Automatic stand-up back D-ring enables efficient dorsal connections.
Dual-locking quick connect buckles lock
Dual-locking quick connect buckles lock to harness webbing and prevent adjustments from slipping (available on select models).
Lightweight aluminum D-rings
Lightweight aluminum D-rings, engineered into this DBI-SALA configuration as standard.
Integrated suspension trauma straps
Integrated suspension trauma straps included on all models.
Technical Specifications
| SKU | 1113331 |
|---|---|
| Body Belt | No |
| Chest Buckle Material | Zinc Plated Steel |
| Connected Safety ID Equipped | Yes |
| D-ring Placement | Back; Front; Side |
| Harness Application | Arc-flash; Climbing; Positioning |
| Harness Size | Medium |
| Leg Buckle Material | Zinc Plated Steel |
| Padding Location Type | Shoulder/Back and Leg |
| Product Series | ExoFit NEX |
| Product Type | Arc Flash Positioning/Climbing Harness |
| Specifications Met | ANSI A10.32; ANSI Z359.1; ANSI Z359.3; ANSI Z359.4; ASTM F887; OSHA 1910.66; OSHA 1926.502 |
| Torso Buckle Material | Zinc Plated Steel |
| Webbing Material | Nomex/Kevlar |
| Weight | 5.1 lb |
| Weight Capacity | 420 lbs. (190 kg) |
| Weight Capacity | 420 lb |
| Warranty | 3M Global Product Warranty against factory defects, one year from first use |
Sizes and Ordering Information
| Size | SKU | UPC |
|---|---|---|
| Medium | 1113331 | 00840779012398 |
| Large | 1113332 | 00840779012404 |
| X-Large | 1113333 | 00840779012411 |
All stocked sizes are selectable from the options above.
Fit is a safety function. Size the harness to the worker with the DBI-SALA sizing chart, snug all straps, and connect fall arrest only to the rated D-rings. Retire the harness after any fall arrest event.
Compliance Standards
ANSI Z359
Meets the ANSI Z359 fall protection code requirements listed on the product label and instruction manual.
OSHA 1926.502 and 1910.140
Meets OSHA personal fall protection requirements for construction and general industry.
3M Quality
Designed, tested, and certified by 3M Fall Protection, the successor to Capital Safety and the DBI-SALA legacy.
One-Year Warranty
Covered by the 3M Global Product Warranty against factory defects in workmanship and materials.
Typical Applications
Setup Overview
- Read the 3M instruction manual before first use.
- Inspect all components before each use.
- Install or deploy per the manual for your application.
- Verify system compatibility and clearances.
- Document inspections on a competent person schedule.
Full use instructions ship with the unit; the instruction manual is linked in the documentation section below.
Inspection and Retirement
Inspect before each use, and have a competent person inspect the unit on a documented schedule per the applicable ANSI standard and the 3M manual.
- Hardware: cracks, distortion, corrosion, and loose fasteners.
- Webbing or lifeline: cuts, frays, burns, abrasion, and chemical damage.
- Connectors: gates close and lock; no distortion at either end.
- Labels: present and legible, with the inspection log current.
- Function: smooth operation with no hesitation, per the manual test procedure.
Retirement triggers: any fall arrest event, failed inspection, or damage beyond the limits in the manual.
