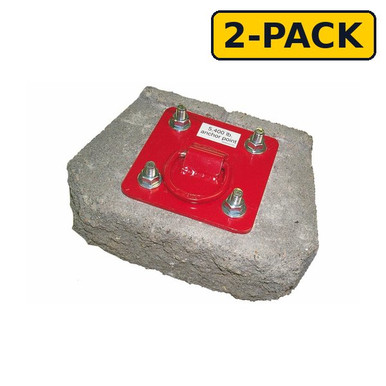

Protecta D-ring Plate Anchor For Concrete with Fastener Kit
Our anchorage connectors are built from top quality materials guaranteeing high strength and durability to stand up to the toughest environments. Anchorage connectors are the unsung heroes of most fall protection systems, often overlooked but critical components because they securely attach your system to the anchorage. Your choice of anchor depends on the type of work being done.
OSHA 1910.140; OSHA 1926.502 A compliant anchorage point is the foundation of every personal fall arrest system; this connector installs fast and carries the load.
Who Needs This Product
For crews that need a compliant tie-off point where the structure does not offer one.
Features
Meets the requirements for OSHA
Meets the requirements for OSHA 1910.140, OSHA 1926.502.
Low-profile 6" x 6" x
Low-profile 6" x 6" x 0.5" steel plate stays out of the way as you work.
Features pre-drilled, 9/16 in. bolt
Features pre-drilled, 9/16 in. bolt holes and four 1/2" x 3-3/4" bolts for easy installation.
Steel construction for durability
Steel construction for durability, engineered into this DBI-SALA configuration as standard.
This safety equipment is designed
This safety equipment is designed for use with additional personal protective equipment.
Lightweight design is portable and
Lightweight design is portable and reusable, engineered into this DBI-SALA configuration as standard.
Technical Specifications
| SKU | AJ720A |
|---|---|
| Anchor Install Type | Permanent |
| Attachment Type | Bolt |
| Connected Safety ID Equipped | No |
| Material | Galvanized Steel |
| Net Weight | 0.5 lb |
| Product Series | PRO |
| Product Type | Concrete D-ring Anchorage Plate |
| Specifications Met | OSHA 1910.140; OSHA 1926.502 |
| Weight Capacity | 310 lbs. (141 kg) |
| Weight Capacity | 310 lb |
| Warranty | 3M Global Product Warranty against factory defects, one year from first use |
The anchor is only as strong as the structure. Fall arrest anchorages must sustain 5,000 lbf per worker or be engineered as certified anchorages. Verify the substrate before every installation.
Compliance Standards
OSHA 1926.502 and 1910.140
Meets OSHA personal fall protection requirements for construction and general industry.
3M Quality
Designed, tested, and certified by 3M Fall Protection, the successor to Capital Safety and the DBI-SALA legacy.
One-Year Warranty
Covered by the 3M Global Product Warranty against factory defects in workmanship and materials.
Typical Applications
Setup Overview
- Verify the structure can sustain the required anchorage load.
- Install per the 3M instruction manual using the specified fasteners or attachment method.
- Inspect the installed anchor before each use.
- Connect the fall arrest system and verify all gates lock.
- Remove from service after any fall arrest loading.
Full use instructions ship with the unit; the instruction manual is linked in the documentation section below.
Inspection and Retirement
Inspect before each use, and have a competent person inspect the unit on a documented schedule per the applicable ANSI standard and the 3M manual.
- Hardware: cracks, distortion, corrosion, and loose fasteners.
- Webbing or lifeline: cuts, frays, burns, abrasion, and chemical damage.
- Connectors: gates close and lock; no distortion at either end.
- Labels: present and legible, with the inspection log current.
- Function: smooth operation with no hesitation, per the manual test procedure.
Retirement triggers: any fall arrest event, failed inspection, or damage beyond the limits in the manual.
