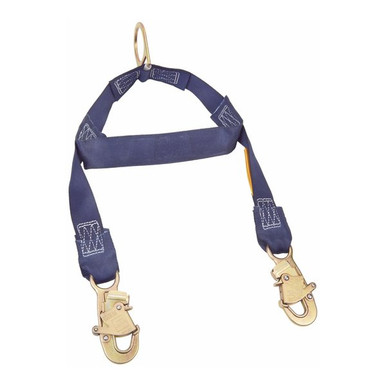

Rescue/Retrieval Y-Lanyard with Spreader Bar
3M's positioning lanyards have a build quality that is second-to-none, backed by decades of design, research, manufacturing know-how and on-the-job performance. These lanyards are designed without shock absorbers, making them ideal for positioning or restraint applications. The web, rope and chain positioning lanyards are as tough as the guys who use them and feature abrasion resistant construction and high strength materials.
ANSI Z359.3; OSHA 1910.66; OSHA 1926.502 Energy absorbing design limits arrest forces on the body and meets OSHA connecting device requirements.
Who Needs This Product
The everyday connecting device for crews with fixed anchor points and verified clearance below the working surface.
Features
DBI-SALA equipment is designed for
DBI-SALA equipment is designed for use with DBI-SALA approved components and subsystems only.
This equipment is for use
This equipment is for use by persons with a combined weight (person, clothing, tools, etc.) of no more than 310 lbs. (140.6 kg.).
This equipment must be used
This equipment must be used by persons who have been properly trained in its correct application and use.
Technical Specifications
| SKU | 1231460 |
|---|---|
| Anchor Connection Type | None |
| Anchor Hook Material | Zinc Plated Steel |
| Connected Safety ID Equipped | Yes |
| Harness Connection Hook Material | Zinc Plated Steel |
| Harness Connection Type | Snap Hook |
| Lanyard Length | 2 ft |
| Lanyard Material | Polyester Web |
| Lanyard Type | Fixed |
| Number of Legs | 2 |
| Overall Length | 2 ft |
| Product Type | Rescue/Retrieval Y-Lanyard with Spreader Bar |
| Specifications Met | ANSI Z359.3; OSHA 1910.66; OSHA 1926.502 |
| Weight | 2.9 lb |
| Weight Capacity | 310 lbs. (141 kg) |
| Weight Capacity | 310 lb |
| Warranty | 3M Global Product Warranty against factory defects, one year from first use |
Check your clearance. A 6 ft shock absorbing lanyard can need 18 ft or more of clearance below the working surface. If clearance is short, use a self-retracting lifeline instead. Remove from service after any fall arrest.
Compliance Standards
ANSI Z359
Meets the ANSI Z359 fall protection code requirements listed on the product label and instruction manual.
OSHA 1926.502 and 1910.140
Meets OSHA personal fall protection requirements for construction and general industry.
3M Quality
Designed, tested, and certified by 3M Fall Protection, the successor to Capital Safety and the DBI-SALA legacy.
One-Year Warranty
Covered by the 3M Global Product Warranty against factory defects in workmanship and materials.
Typical Applications
Setup Overview
- Inspect webbing, energy absorber pack, and both hooks before use.
- Connect the harness end to the dorsal D-ring and verify the gate locks.
- Connect the anchor end to a compliant anchorage at or above the D-ring.
- Keep free fall to 6 ft or less and remove slack where possible.
- Verify total fall clearance below the working surface before working.
Full use instructions ship with the unit; the instruction manual is linked in the documentation section below.
Inspection and Retirement
Inspect before each use, and have a competent person inspect the unit on a documented schedule per the applicable ANSI standard and the 3M manual.
- Hardware: cracks, distortion, corrosion, and loose fasteners.
- Webbing or lifeline: cuts, frays, burns, abrasion, and chemical damage.
- Connectors: gates close and lock; no distortion at either end.
- Labels: present and legible, with the inspection log current.
- Function: smooth operation with no hesitation, per the manual test procedure.
Retirement triggers: any fall arrest event, failed inspection, or damage beyond the limits in the manual.
