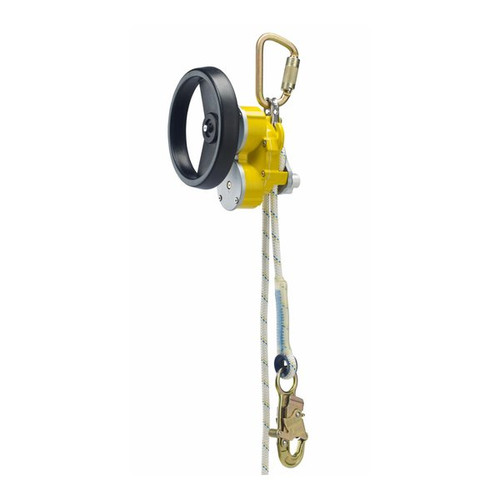

Rollgliss R550 Rescue and Descent Device System with Rescue Wheel and Case Yellow, 100 ft. (30 m)
The Rollgliss R550 offers the choice of controlled descent rescue, evacuation or the versatility of assisted rescue with lifting capabilities. This state of the art, fully automatic controlled descent device can be used for rescue and evacuation from heights up to 1,640 ft. (500m) for one user 310 lbs. (141kg) or 575 ft. (175m) for two users totaling 620 lbs. (282kg). It features 3/8 in. (9.
ANSI/ASSP Z359.9-2021; CSA Z259.2.3-12 When seconds count, purpose-built rescue equipment turns a suspended worker into a recovered worker.
Who Needs This Product
For rescue teams and competent persons responsible for getting a suspended worker down fast after an arrest.
Features
Attaches Rollgliss R550 Rescue and
Attaches Rollgliss R550 Rescue and Descent Device to ladder rungs.
Fast and simple detent-style mounting
Fast and simple detent-style mounting of R550 to bracket.
Built-in adjustment handle for various
Built-in adjustment handle for various rung spacing.
Detent pin installs ladder to
Detent pin installs ladder to bracket, engineered into this DBI-SALA configuration as standard.
Powder-coated steel construction for
Powder-coated steel construction for durability and strength.
Recommended for use in transportation,
Recommended for use in transportation, utilities, and general industrial applications.
Technical Specifications
| SKU | 3326100 |
|---|---|
| Carabiner/Hook Material | Zinc Plated Steel |
| CoWorker Controlled Ascent | Yes |
| CoWorker Controlled Descent | Yes |
| Connected Safety ID Equipped | Yes |
| Descent Type | Vertical |
| Housing Material | Aluminum |
| Lifeline Material | Kernmantle, Braided Polyester Cover with Nylon Filament Core |
| Line Length | 100 ft |
| Maximum Number of Users | Two |
| Net Weight | 35.3 lb |
| Overall Length | 100 ft |
| Product Series | Rollgliss R550 |
| Product Type | Rescue and Descent Device |
| Specifications Met | ANSI/ASSP Z359.9-2021; CSA Z259.2.3-12 |
| User Controlled Ascent | No |
| User Controlled Descent | Yes |
| Weight | 35.3 lb |
| Weight Capacity | 620 lb |
| Warranty | 3M Global Product Warranty against factory defects, one year from first use |
Rescue equipment requires rescue training. Deploy only under a rescue plan with trained personnel per OSHA 1926.502 and ANSI Z359.2. Practice before you need it.
Compliance Standards
ANSI Z359
Meets the ANSI Z359 fall protection code requirements listed on the product label and instruction manual.
OSHA 1926.502 and 1910.140
Meets OSHA personal fall protection requirements for construction and general industry.
3M Quality
Designed, tested, and certified by 3M Fall Protection, the successor to Capital Safety and the DBI-SALA legacy.
One-Year Warranty
Covered by the 3M Global Product Warranty against factory defects in workmanship and materials.
Typical Applications
Setup Overview
- Read the 3M instruction manual before first use.
- Inspect all components before each use.
- Install or deploy per the manual for your application.
- Verify system compatibility and clearances.
- Document inspections on a competent person schedule.
Full use instructions ship with the unit; the instruction manual is linked in the documentation section below.
Inspection and Retirement
Inspect before each use, and have a competent person inspect the unit on a documented schedule per the applicable ANSI standard and the 3M manual.
- Hardware: cracks, distortion, corrosion, and loose fasteners.
- Webbing or lifeline: cuts, frays, burns, abrasion, and chemical damage.
- Connectors: gates close and lock; no distortion at either end.
- Labels: present and legible, with the inspection log current.
- Function: smooth operation with no hesitation, per the manual test procedure.
Retirement triggers: any fall arrest event, failed inspection, or damage beyond the limits in the manual.
