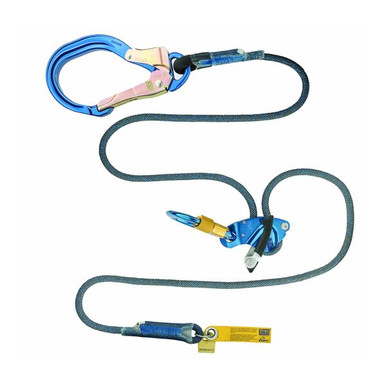

Trigger X Adjustable Single Mode Rope Positioning Lanyard 1/2 in Aramid Kernmantle, 6 ft
ANSI Z359.3; OSHA 1910.269; OSHA 1926.502; OSHA 1926.954 Energy absorbing design limits arrest forces on the body and meets OSHA connecting device requirements.
Who Needs This Product
The everyday connecting device for crews with fixed anchor points and verified clearance below the working surface.
Features
ANSI & ASTM rated for
ANSI & ASTM rated for Single Mode or Double Mode use.
Available in Tie-back models to
Available in Tie-back models to help reduce equipment needed in certain applications.
Available in Tie-back models to
Available in Tie-back models to help reduce equipment needed in certain applications.
Technical Specifications
| SKU | 1234090 |
|---|---|
| Anchor Connection Type | Rebar Hook |
| Anchor Hook Material | Aluminum |
| Carabiner/Hook Material | Aluminum |
| Connected Safety ID Equipped | Yes |
| Harness Connection Type | Carabiner |
| Install Type | Removable |
| Lanyard Length | 6 ft |
| Lanyard Material | Technora Core, Technora/Nylon Blend Cover Kernmantle Rope |
| Lanyard Type | Adjustable |
| Leg Count | Single-Leg |
| Maximum Number of Users | One |
| Product Series | Trigger X |
| Product Type | Rope Positioning Lanyard |
| Specifications Met | ANSI Z359.3; OSHA 1910.269; OSHA 1926.502; OSHA 1926.954 |
| Structure Type | Tower/Lattice |
| Weight | 2.701 lb |
| Weight Capacity | 310 lbs. (141 kg) |
| Weight Capacity | 310 lb |
| Warranty | 3M Global Product Warranty against factory defects, one year from first use |
Check your clearance. A 6 ft shock absorbing lanyard can need 18 ft or more of clearance below the working surface. If clearance is short, use a self-retracting lifeline instead. Remove from service after any fall arrest.
Compliance Standards
ANSI Z359
Meets the ANSI Z359 fall protection code requirements listed on the product label and instruction manual.
OSHA 1926.502 and 1910.140
Meets OSHA personal fall protection requirements for construction and general industry.
3M Quality
Designed, tested, and certified by 3M Fall Protection, the successor to Capital Safety and the DBI-SALA legacy.
One-Year Warranty
Covered by the 3M Global Product Warranty against factory defects in workmanship and materials.
Typical Applications
Setup Overview
- Inspect webbing, energy absorber pack, and both hooks before use.
- Connect the harness end to the dorsal D-ring and verify the gate locks.
- Connect the anchor end to a compliant anchorage at or above the D-ring.
- Keep free fall to 6 ft or less and remove slack where possible.
- Verify total fall clearance below the working surface before working.
Full use instructions ship with the unit; the instruction manual is linked in the documentation section below.
Inspection and Retirement
Inspect before each use, and have a competent person inspect the unit on a documented schedule per the applicable ANSI standard and the 3M manual.
- Hardware: cracks, distortion, corrosion, and loose fasteners.
- Webbing or lifeline: cuts, frays, burns, abrasion, and chemical damage.
- Connectors: gates close and lock; no distortion at either end.
- Labels: present and legible, with the inspection log current.
- Function: smooth operation with no hesitation, per the manual test procedure.
Retirement triggers: any fall arrest event, failed inspection, or damage beyond the limits in the manual.
Fall ProtectionDistributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your SRL or lanyard setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k).
Frequently Asked Questions
DBI-SALA 1234090 Submittals and Documentation
Trigger X Instruction Manual (PDF)Installation, use, and inspection instructions from 3M. Osha 1910 269 White Paper Updated March 13 2015 White Paper (PDF)3M product documentation.Compatible and Related Products
- DBI-SALA Adjustable Web Positioning Lanyard 6 ft 1231016. Related DBI-SALA product in this line.
Choosing Lanyards for Your Crew?
Confirm your setup with us and we will make sure the right equipment ships together, based on the delivery location.
Call 863-703-4522 to talk to a fall protection specialist.
3M DBI-SALA Global Product Warranty
Unless otherwise provided by local laws, 3M fall protection products are warranted against factory defects in workmanship and materials for a period of one year from the date of installation or first use by the original owner.
Limited Remedy: Upon written notice to 3M, 3M will repair or replace any product determined by 3M to have a factory defect in workmanship or materials. 3M reserves the right to require product be returned to its facility for evaluation of warranty claims. This warranty does not cover product damage due to wear, abuse, misuse, damage in transit, failure to maintain the product or other damage beyond 3M's control. 3M will be the sole judge of product condition and warranty options. This warranty applies only to the original purchaser and is the only warranty applicable to 3M's fall protection products.
Limitation of Liability: To the extent permitted by local laws, 3M is not liable for any indirect, incidental, special or consequential damages including, but not limited to loss of profits, in any way related to the products regardless of the legal theory asserted.
The warranty above is made in lieu of all warranties or conditions, express or implied, including the implied warranties or conditions of merchantability or fitness for a particular purpose. Please contact 3M's customer service department in your region for assistance with warranty claims, or reach out to our team at Fall Protection Distributors, LLC and we will help you start the process.
