FallTech 7500 Confined Space Tripod System – 11' Adjustable Rescue & Retrieval Kit

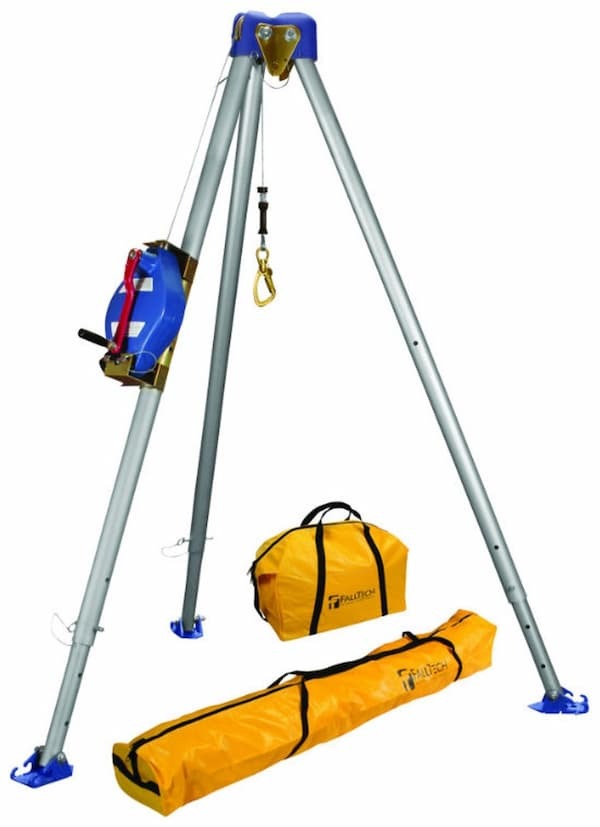

The FallTech 7500 Confined Space Tripod System is a comprehensive, professional-grade solution engineered for secure entry, fall arrest, and emergency retrieval in permit-required confined spaces. This 2026-ready kit features the 7275 heavy-duty 11-foot adjustable aluminum tripod paired with a 60-foot galvanized steel Self-Retracting Lifeline with Retrieval (SRL-R) capabilities. Designed for rapid deployment, the telescoping legs adjust from 6 to 11 feet, providing the vertical clearance required for diverse manhole and vault entries while maintaining 5,000-lb anchorage strength.
Telescoping Adjustability and Field Versatility
The heart of the FallTech 7500 system is the 2-stage telescoping leg design, allowing for precise height increments between 6 and 11 feet. Constructed from high-strength anodized aluminum, the tripod is both corrosion-resistant and light enough for a single worker to transport. The head assembly features an integral pulley system and additional eyeholes, allowing for the simultaneous installation of a secondary mechanical device, such as a Personnel Winch, for dual-line operations.
Complete Retrieval Kit Components
The FallTech 7500 is a ready-to-work system that includes all necessary mounting hardware and storage solutions:
- FallTech 7281 60' SRL-R: A Class B retrieval-enabled lifeline with a galvanized steel cable and a 3-way rescue handle.
- Aluminum Tripod (7275): Features rubber-padded feet with spiked "dig-in" options for soft terrain.
- Mounting Hardware: Includes the heavy-duty leg bracket for secure SRL-R attachment and a safety chain to prevent leg splaying.
- Storage Solutions: Includes a dedicated 80" tripod bag and a 20" device bag to protect high-precision mechanical components from job-site debris.
Regulatory Compliance and Structural Safety
Every component of the FallTech 7500 meets or exceeds OSHA 1926.502, 1910.66, and applicable ANSI Z359 standards for confined space safety. The system is rated for a single user capacity of 130 to 310 lbs for fall arrest and rescue. By combining lightweight portability with a 5,000 lb static load capacity, FallTech provides the essential security required for utilities, municipal maintenance, and industrial tank entry projects.
FallTech 7500 Technical Submittals & Compliance Docs:
- FallTech 7500 Specification Sheet – Full load ratings and dimensional data.
- FallTech 7500 Instruction Manual – Detailed guide on tripod setup and SRL-R mounting.
FallTech 7500 Tripod System FAQ
1. What is the difference between an SRL and the SRL-R included in this kit?
A standard SRL only provides fall arrest. The SRL-R (Retrieval) included in the FallTech 7500 kit features an emergency recovery handle. In the event of a fall or a medical emergency, an attendant can engage the handle to winch the worker to safety immediately.
2. How do I properly adjust the height of the telescoping legs?
The legs are adjusted using captive locking pins. You must ensure all three legs are set to the same height increment and that the locking pins are fully seated. For a visual diagram of the locking mechanism, please see the FallTech 7500 Instruction Manual linked above.
3. Can this tripod be used on uneven ground?
Yes. The feet feature a swivel design with rubber padding for flat surfaces and a spiked "spud" side for soft ground. However, the tripod head must remain level and the legs must be secured with the safety chain to prevent slipping.
4. Does the system come with a harness?
No, this kit includes the tripod and retrieval mechanisms. For confined space entry, we recommend a Harness with Shoulder D-Rings to allow for a vertical retrieval profile during extraction.
5. What is the maximum weight capacity of the FallTech 7500?
The system is rated for a single user with a total weight (including tools and clothing) of 130-310 lbs to comply with ANSI Z359 standards.
6. Can I add a second winch to this tripod?
Yes. The tripod head includes secondary pulley eyeholes. This allows you to mount a personnel/material winch on a separate leg, which is often required for entries where a dedicated retrieval line and a dedicated work line are both necessary.
7. How do I avoid common mistakes with the FallTech 7500?
- 1. Forgetting the Safety Chain: Always install the leg-base safety chain; without it, the legs can spread beyond their structural limit under a load.
- 2. Improper SRL-R Placement: Ensure the lifeline is routed through the integral pulley at the head; routing it directly from the leg bracket to the worker can cause a dangerous tip-over force.
- 3. Neglecting Mechanical Service: The SRL-R is a complex machine. If the retrieval handle is hard to turn or the lifeline doesn't retract smoothly, remove it from service immediately for factory inspection.
