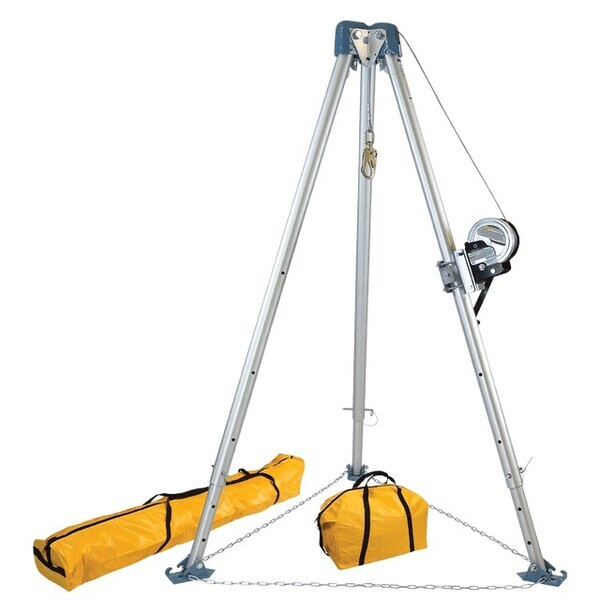

FallTech 7505 Confined Space Tripod System – 11' Kit with 60' Personnel Winch
The FallTech 7505 Confined Space Tripod System is a high-performance retrieval and rescue solution designed for the unique demands of 2026 industrial and utility entries. This comprehensive kit centers on the 7275 heavy-duty 11-foot aluminum tripod and the 7290 60-foot Personnel Winch. Offering a 5:1 mechanical advantage, this system is engineered to provide smooth, controlled ascent and descent for workers in manholes, vaults, and tanks. Built for rapid deployment, the 7505 ensures full compliance with OSHA and ANSI standards for permit-required confined space operations.
Durable 11-foot Aluminum Tripod with Advanced Rigging
The centerpiece of the FallTech 7505 is the anodized aluminum tripod, featuring 2-stage telescoping legs that adjust from 6 to 11 feet. The tripod head is reinforced with three steel plates and includes an integral composite pulley to streamline rope or cable travel. For complex 2026 rescue scenarios, auxiliary head-plate connecting eyes enable secondary rigging setups. Stability is prioritized through slip-resistant foot belting and hardened cable detent pins, ensuring the tripod remains secure on both finished concrete and uneven job site terrain.
High-Efficiency Personnel Winch Performance
The system includes the FallTech 7290 Personnel Winch, featuring 60 feet of high-strength galvanized steel cable. This "man-rated" winch features a rugged 5:1 gear ratio, allowing an attendant to lift or lower personnel with minimal physical effort. Safety is reinforced by a primary and secondary braking system, providing an automatic fail-safe during critical retrieval operations. The winch mounts effortlessly to the tripod leg using the included heavy-duty bracket, maintaining a compact footprint for tight workspaces.
Technical Specifications and System Capacity
The FallTech 7505 is engineered to handle both personnel rescue and heavy material lifting:
- Worker Capacity: 130 to 310 lbs (ANSI/OSHA Personnel Rating).
- Material Handling: Rated for equipment loads up to 620 lbs.
- Mechanical Advantage: 5:1 gear ratio for efficient retrieval.
- Compliance: Meets or exceeds OSHA 1926.502, 1910.66, and ANSI Z359.18 standards.
- Total Weight: Approximately 85 lbs, including storage bags.
FallTech 7505 Technical Submittals & Compliance Docs:
- FallTech 7505 Specification Sheet – Full load capacities and material specifications.
- FallTech 7505 Instruction Manual – Detailed guide on tripod leveling and winch installation.
FallTech 7505 Tripod System FAQ
1. Does the 7505 kit provide automatic fall arrest?
No. This kit features a Personnel Winch for controlled ascent and descent. If your entry requires automatic fall arrest protection, we recommend the FallTech 7504 Tripod Kit with Winch and SRL-R, which includes both a Winch and an SRL-R (Retrieval SRL).
2. How do I know if the tripod legs are locked securely?
Each leg is secured with a cable detent pin that must be fully inserted through both the outer and inner telescoping tubes. You must also ensure that the legs do not extend beyond the red safety marking. For a detailed setup checklist, please see the FallTech 7505 Instruction Manual linked above.
3. Can this winch be used for lifting tools and equipment?
Yes. While "man-rated" for personnel, the 7290 winch is also rated for material handling up to 620 lbs. This makes it a versatile tool for lowering gear into a vault before worker entry.
4. What is the maximum height this tripod can reach?
The FallTech 7505 tripod legs can be extended to a maximum vertical height of 11 feet, providing significant clearance for workers and rescue equipment above the entry point.
5. Is a harness included with the 7505 kit?
No. A full-body harness must be purchased separately. For confined-space retrieval, we strongly recommend a FallTech Full Body Harness with shoulder D-rings to ensure a vertical extraction profile.
6. Can I use this tripod on soft or loose ground?
Yes. The tripod feet feature a swivel design with rubber pads for flat surfaces and spiked "spud" edges that can be driven into the soil for added stability on loose ground.
7. How do I avoid common mistakes with the FallTech 7505?
- 1. Skipping the Safety Chain: Always install the leg safety chain; it is the only thing preventing the legs from splaying outward under a heavy load.
- 2. Improper Winch Routing: Ensure the cable is correctly routed through the head-mounted pulley; side-loading the cable directly from the leg can cause the tripod to tip.
- 3. Storing Wet Cables: If the winch cable gets wet or muddy, clean and dry it before winding it back onto the drum and placing it in the device bag to prevent corrosion.
