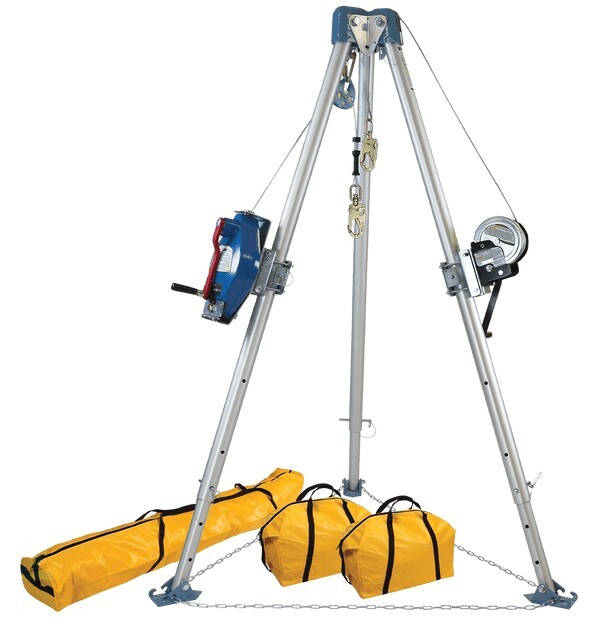

FallTech 7504 Confined Space Tripod System – 11' Kit with SRL-R and Personnel Winch
The FallTech 7504 Confined Space Tripod System is the ultimate all-in-one solution for high-stakes confined-space entry, offering dual mechanical redundancy. This 11-foot adjustable system includes both a 60-foot galvanized steel Self-Retracting Lifeline with Retrieval (SRL-R) and a dedicated Personnel Winch. This configuration allows for simultaneous fall protection and independent mechanical lifting/lowering, making it the 2026 standard for municipal, industrial, and utility crews. Engineered with anodized aluminum legs, the 7504 provides a 5,000 lb-rated anchorage point that is portable yet exceptionally rugged.
Dual-Mechanical Redundancy for Entry and Rescue
The FallTech 7504 is designed to manage complex entries where a single line is insufficient. The kit's telescoping aluminum legs adjust from 6 to 11 feet, accommodating round openings up to 5 feet and square openings up to 4 feet. By utilizing the integrated head pulley and secondary eye-holes, this system supports both the 7281 SRL-R for fall arrest/emergency retrieval and the 7297 Personnel Winch for controlled mechanical ascent and descent. This ensures that even if one system is engaged, a secondary recovery method is immediately available.
Complete 7504 System Component Breakdown
This professional-grade kit is shipped ready for service with the following high-performance components:
- 11' Adjustable Tripod (7275): Featuring 2-stage telescoping legs and a 5,000 lb tensile load rating.
- 60' Galvanized SRL-R (7281): Provides fall arrest and features a 3-way emergency retrieval handle.
- Personnel Winch (7297): Dedicated mechanical hauling device for controlled worker positioning and rescue.
- Storage & Transport: Includes an 80" heavy-duty tripod bag and two 20" device bags to keep mechanicals free of job-site contamination.
- Safety Essentials: Includes leg-mounting brackets, safety chains, and leg-retention webbing for maximum stability.
Compliance Standards and Industrial Load Ratings
The FallTech 7504 meets and exceeds OSHA 1926.502, 1910.66, and ANSI Z359.4-2013 standards. Rated for a single-user working load of 310 lbs, this system provides the legal and physical security required for permit-required confined space (PRCS) operations. The non-sparking aluminum and plated steel construction ensures longevity in harsh environments, from wastewater treatment plants to industrial chemical vats.
FallTech 7504 Technical Submittals & Compliance Docs:
- FallTech 7504 Specification Sheet – Full load capacities and dimensional specifications.
- FallTech 7504 Instruction Manual – Detailed guide on dual-device mounting and leg stabilization.
FallTech 7504 Tripod System FAQ
1. Why does this kit include both an SRL-R and a Winch?
In many permit-required confined spaces, you need a primary means of entry/exit (the Personnel Winch) and a secondary, independent fall arrest system (the SRL-R). This "dual-line" setup ensures that if a worker falls or the winch fails, the SRL-R will arrest the fall and allow for immediate retrieval. The Falltech 7500 Tripod with 60-foot srl includes a 60-foot SRL for projects that don't require the winch mechanism.
2. How do I install the devices onto the tripod legs?
Each device uses a specific leg-mounting bracket that pins directly into the tripod leg. The cables must then be routed through the pulleys at the tripod head. For a specific step-by-step routing diagram, please see the FallTech 7504 Instruction Manual linked above.
3. Can the Personnel Winch be used to lift materials?
No. The FallTech manual states the personnel winch is not intended for material handling applications. If you are lifting debris or equipment, we recommend a dedicated Material Winch to prevent unnecessary wear on your life-safety equipment.
4. What is the maximum opening size this tripod can span?
The FallTech 7504 is designed to safely span round openings up to 5 feet in diameter or square openings up to 4 feet. The tripod feet must be positioned on a stable, level surface outside the "collapse zone" of the opening.
5. Does the kit include a harness for the worker?
No. For a complete system, the worker will need a Confined Space Entry Harness. These typically feature shoulder D-rings to ensure the worker remains upright during extraction.
6. How many workers can the 7504 support at one time?
The tripod and mechanical devices are rated for a single user (maximum 310 lbs). For entries involving multiple workers, ensure each worker has an independent fall-arrest and retrieval system.
7. How do I avoid common mistakes with the FallTech 7504?
- 1. Improper Leg Locking: Always ensure the leg adjustment pins are fully inserted and the safety chain/webbing is tight; if the legs spread, the structural integrity of the tripod is lost.
- 2. Cable Overlapping: When using two devices, ensure the cables are routed so they do not rub against each other, as this can cause friction-burns on the galvanized steel.
- 3. Neglecting Device Maintenance: Both the SRL-R and the Winch require regular lubrication and inspection. Store them in their provided device bags to prevent grease and grit from entering the gears.
