FallTech 7508 Confined Space Tripod System – Compact 8' Kit with 60' SRL-R
The FallTech 7508 Confined Space Tripod System is a specialized safety assembly designed for entry, rescue, and retrieval in areas with restricted overhead clearance. This comprehensive 2026 kit features the 7273 compact 8-foot aluminum tripod paired with the 7281 60-foot galvanized steel Self-Retracting Lifeline with Retrieval (SRL-R). Engineered for maximum portability without sacrificing strength, the 7508 provides an OSHA-compliant 5,000 lb-rated anchorage point for manholes, vaults, and tanks where larger 11-foot systems cannot fully extend.
Adjustable 8-Foot Tripod for Low-Clearance Applications
The centerpiece of the FallTech 7508 is the 7273 tripod, featuring 2-stage telescoping aluminum legs that adjust from 5 to 8 feet. This range allows for stable deployment in indoor facilities or under low ceilings while providing ample vertical space for worker extraction. The head assembly includes integrated pulleys for seamless cable travel and auxiliary eyebolts, allowing safety managers to rig secondary systems for complex 2026 multi-line rescue scenarios. The tripod is finished in anodized aluminum for superior corrosion resistance and lightweight handling.
60-Foot Galvanized SRL-R for Reliable Fall Arrest and Retrieval
The 7508 system is equipped with the FallTech 7281 SRL-R, featuring 60 feet of 3/16" galvanized steel cable. This mechanical device serves as a primary fall arrestor during entry and, in an emergency, transforms into a high-strength rescue winch. With a 3,400-lb minimum tensile strength and a 3-way retrieval handle, an attendant can quickly engage rescue mode to winch a worker to safety. This Class B device is engineered to meet the highest safety thresholds for both daily operation and emergency recovery.

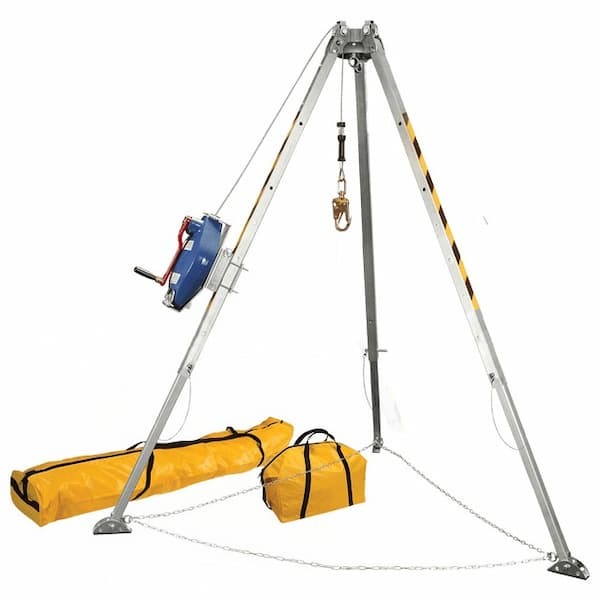

Complete 7508 System Component Breakdown
This professional-grade kit is shipped field-ready with the following essential components:
- FallTech 7273 Tripod: 8-foot adjustable aluminum body with a 5,000 lb tensile load rating.
- FallTech 7281 SRL-R: 60' galvanized steel lifeline with an integrated 3-way retrieval winch.
- Mounting Hardware: Includes a heavy-duty leg bracket for secure SRL-R attachment and a safety chain to prevent leg splaying.
- Protective Storage: Includes a 70" tripod bag and a 20" device bag to protect mechanical gears from environmental damage.
Compliance Standards and Technical Performance
The FallTech 7508 meets or exceeds OSHA 1926.502, 1910.66, and ANSI Z359.14-2014 standards. The system is rated for a single-user capacity of 130 to 310 lbs for personnel and up to 620 lbs for material-handling tasks. By providing a portable, high-strength anchorage solution, FallTech ensures that municipal, utility, and industrial crews remain protected in even the most constrained permit-required confined spaces.
FallTech 7508 Technical Submittals & Compliance Docs:
- FallTech 7508 Specification Sheet – Full capacity ratings and technical specifications.
- FallTech 7508 Instruction Manual – Detailed guide on tripod leveling and SRL-R operation.
- FallTech 7508 Sell Sheet – Overview of system benefits and key features.
FallTech 7508 Tripod System FAQ
1. Why should I choose the 7508 over the standard 11-foot 7500 kit?
The FallTech 7500 60' Tripod Kit features an 11-foot tripod, which is excellent for deep entries but too tall for indoor facilities with low ceilings. The 7508 uses an 8-foot tripod designed to fit in restricted-height areas while providing the same 60-foot retrieval capability.
2. How do I engage the retrieval mode on the SRL-R?
In the event of an emergency, the attendant must pull the shift pin and engage the winch handle to lift the worker. For a detailed step-by-step on mechanical engagement, please see the FallTech 7508 Instruction Manual linked above.
3. Can this tripod be used on uneven ground?
Yes. The 7273 tripod feet feature a swivel design with rubber pads for flat surfaces and spiked edges that can be driven into the ground for stability on loose terrain. The telescoping legs also adjust independently to level the head.
4. Does the kit include a harness for the worker?
No. To complete the system, the entrant will need a Confined Space Entry Harness. We recommend a harness with shoulder D-rings to ensure the worker remains upright during a vertical retrieval.
5. What is the maximum weight capacity of the FallTech 7508?
The system supports a maximum personnel weight of 310 lbs to maintain ANSI compliance. For lifting tools or debris buckets, the material-handling capacity is rated at up to 620 lbs.
6. Can I add a second winch to this tripod?
Yes. The tripod head has secondary attachment eyes for an additional pulley. This allows you to mount a personnel winch on another leg if your entry requires a primary mechanical lift and a secondary fall arrest line.
7. How do I avoid common mistakes with the FallTech 7508?
- 1. Skipping the Safety Chain: Never use the tripod without the leg safety chain; without it, the legs can spread beyond their 5,000 lb structural capacity under load.
- 2. Improper Cable Routing: The cable must always be routed through the integral head pulley; routing it directly from the leg bracket to the worker creates dangerous side-loading forces.
- 3. Storage Neglect: Grit and industrial dust can damage the internal gears of the SRL-R. Always store the device in its provided bag between uses.
