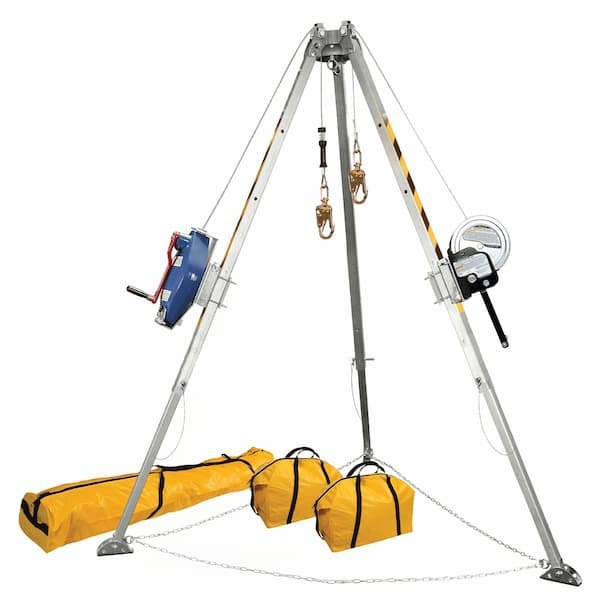

FallTech 7509 Confined Space Tripod System – 8' Adjustable Tripod with 60' Galvanized SRL-R and Winch
The FallTech 7509 Confined Space Tripod Kit offers a complete solution for confined space entry, rescue, and retrieval operations. This confined space system combines adjustable height, integrated pulleys, and a comprehensive rescue package to ensure safety and compliance in demanding environments.
The FallTech 7509 Confined Space Tripod System offers a robust and reliable solution for industries requiring confined space entry, rescue, and retrieval capabilities.
Key Features of the FallTech 7509 Confined Space Tripod System
- Adjustable 8-Foot Tripod for Versatile Use:
The tripod features 2-stage telescoping aluminum legs adjustable from 5 to 8 feet, providing flexibility for various confined space applications. Lightweight and corrosion-resistant, the tripod includes built-in pulleys and auxiliary eyebolts for additional anchoring options.
- 60-foot Galvanized SRL-R for Fall Protection:
The system, equipped with a 60-foot galvanized steel self-retracting lifeline with 3-way retrieval capability, ensures reliable fall protection and rescue functionality. Its durable construction supports safe and efficient operation in emergencies.
- Personnel Winch for Safe and Efficient Retrieval:
The included personnel winch features a 60-foot galvanized steel cable with 12 feet per minute lifting speed. A secondary braking system enhances safety during operation, making it ideal for non-entry rescue and retrieval tasks.
Comprehensive Components in the FallTech 7509 Kit
Tripod (7276): Adjustable 2-stage telescoping legs with integral pulleys and auxiliary eyebolts.
SRL-R (7281): 60' galvanized steel cable with fall protection and retrieval capabilities.
Personnel Winch (7297): Designed for controlled retrieval and rated for personnel use.
Additional Accessories: This includes leg brackets, a leg safety chain, a 70" tripod storage bag, and two 20" device bags for organized storage and transport.
Compliance and Standards for the FallTech 7509 Tripod System
This system complies with OSHA 1926.502, OSHA 1910.66, and applicable ANSI standards, ensuring that your confined space operations meet industry regulations for safety and performance.
Technical Specifications of the FallTech 7509 Tripod Kit
Tripod Height: Adjustable from 5 to 8 feet
Materials: Anodized aluminum tripod, galvanized steel cables
System Weight: Approximately 124 lbs
User Capacity: 130-310 lbs for personnel and up to 620 lbs for material handling
Compliance: OSHA 1926.502, 1910.66, ANSI Z359.18
Step-by-Step Setup for the FallTech 7509 Confined Space Tripod
Unpack and position the tripod by removing it from the storage bag and laying it flat. Adjust the tripod legs to the desired height and secure the adjustment pins. Attach the leg safety chain to stabilize the tripod on uneven surfaces. Connect the SRL-R and personnel winch to the integrated pulleys for ready use. Anchor the tripod using auxiliary eyebolts or additional devices for secure anchorage.
Maintenance Tips for the FallTech 7509 Confined Space System
Regular inspections are performed before and after each use to ensure all components are functional. Clean the system with mild soap and water, ensuring no debris affects the pulley or winch operation. Store in a cool, dry area using the included storage bags to protect against moisture and damage.
